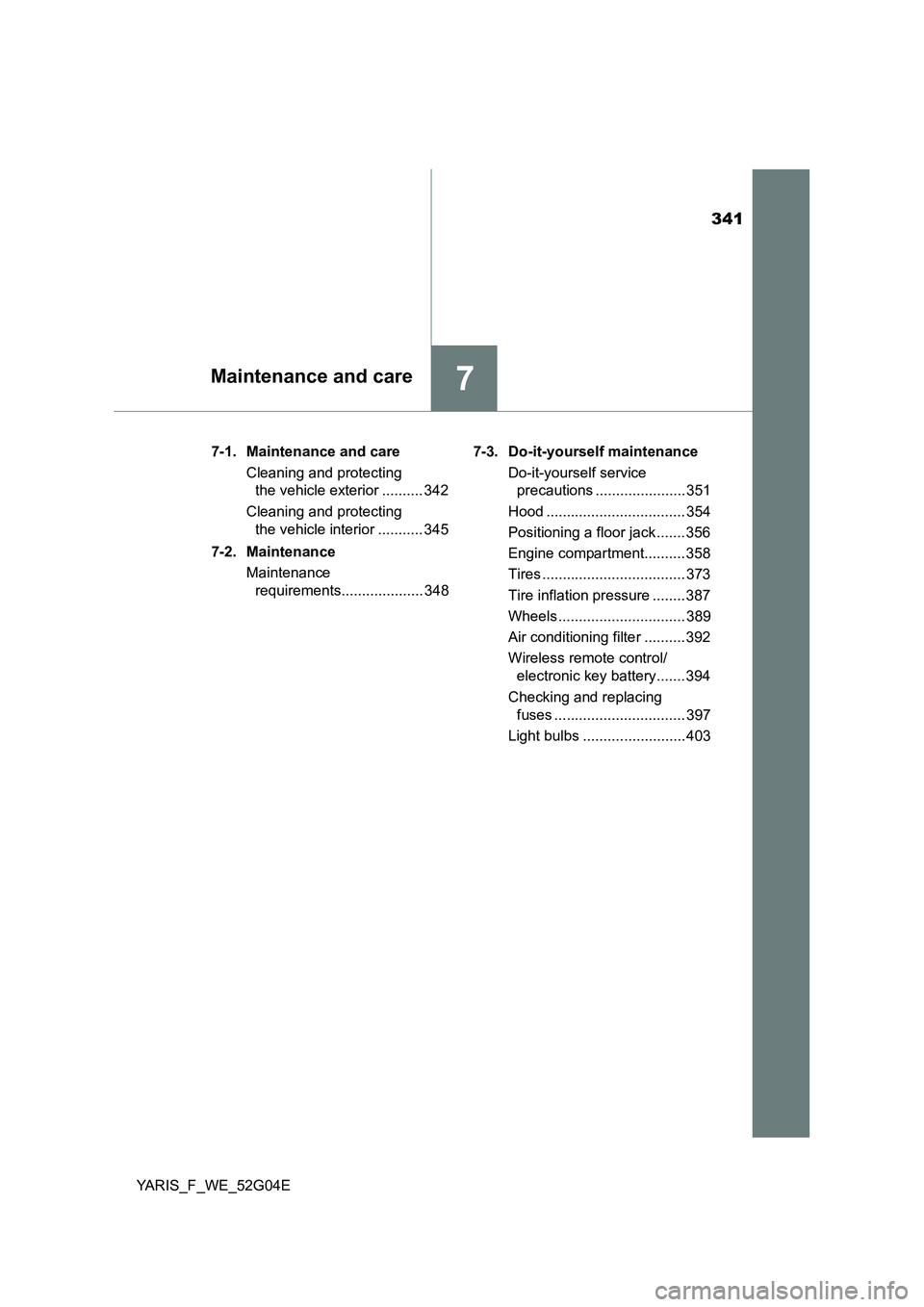

341
7Maintenance and care
YARIS_F_WE_52G04E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 342
Cleaning and protecting
the vehicle interior ........... 345
7-2. Maintenance
Maintenance
requirements.................... 348
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 351
Hood .................................. 354
Positioning a floor jack ....... 356
Engine compartment.......... 358
Tires ................................... 373
Tire inflation pressure ........ 387
Wheels ............................... 389
Air conditioning filter .......... 392
Wireless remote control/
electronic key battery....... 394
Checking and replacing
fuses ................................ 397
Light bulbs ......................... 403

4358-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_WE_52G04E
(Flashes in yellow for 15 seconds.)
Smart entry & start system indicator*2
Indicates a malfunction in the smart entry & start system.
 Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
Open door warning light (warning buzzer)*3
Indicates that one or more of the doors is not fully closed.
 Check that all the side doors and back door are
closed.
Low fuel level warning light
Gasoline engine: Indicates that remaining fuel is about
5.8 L (1.5 gal., 1.3 Imp.gal.) or less.
Diesel engine: Indicates that remaining fuel is about 6.4 L
(1.7 gal., 1.4 Imp.gal.) or less.
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)*4
Warns the driver and front passenger to fasten their seat
belts.
 Fasten the seat belt.
If the passenger’s seat is occupied, the front passen-
ger’s seat belt also needs to be fastened to make the
warning light (warning buzzer) turn off.
(On the center panel)
Rear passengers’ seat belt reminder lights
(warning buzzer)*2, 4
Warns the rear passengers to fasten their seat belts.
 Fasten the seat belt.
Tire pressure warning light*2
When the light comes on: Low tire inflation pressure such
as
• Natural causes ( P. 440)
• Flat tire ( P. 445, 460)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Warning lightWarning light/Details/Actions

4368-2. Steps to take in an emergency
YARIS_F_WE_52G04E
Low engine oil level warning light (diesel engine only)
Indicates that engine oil level is low.
 Check the level of engine oil, and add if necessary.
DPF system warning light (diesel engine with a DPF
system)
• Indicates that the DPF catalytic converter needs to be
cleaned due to repeated short trips and/or low-speed
driving.
• Indicates that the amount of accumulated deposits in the
DPF catalytic converter has reached the specified level.
 To clean the DPF catalytic converter, drive the vehicle
at a speed of 65 km/h (40 mph) or greater for 20 to 30
minutes as much as possible until the DPF system
warning light turns off.*5
Do not turn off the engine as much as possible until
the DPF system warning light turns off.
If it is not possible to drive the vehicle at speeds of 65
km/h (40 mph) or greater, or the DPF system warning
light does not turn off even after driving for more than
30 minutes, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Warning lightWarning light/Details/Actions

4378-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_WE_52G04E
*1: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
*2: If equipped
*3: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
Engine oil change reminder light (diesel engine only)
When the light flashes:
Indicates that the engine oil is scheduled to be changed.
• Vehicles without a DPF system*6:
Flashes approximately 35000 km (22000 miles) after the
engine oil is changed. (The indicator will not work prop-
erly unless the oil maintenance data has been reset).
• Vehicles with a DPF system*6:
Flashes approximately 14500 km (9000 miles) after the
engine oil is changed. ( P. 439) (The indicator will not
work properly unless the oil maintenance data has been
reset).
 Check the engine oil, and change if necessary. After
changing the engine oil, the oil change system
should be reset. ( P. 364)
When the light comes on:
Indicates that the engine oil should be changed.
• Vehicles without a DPF system*6:
Comes on approximately 40000 km (25000 miles) after
the engine oil is changed (and the oil maintenance data
has been reset).
• Vehicles with a DPF system*6:
Comes on approximately 15000 km (9300 miles) after
the engine oil is changed (and the oil maintenance data
has been reset).
 Check and change the engine oil, and oil filter by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. After changing
the engine oil, the oil chan ge system should be reset.
( P. 364)
Warning lightWarning light/Details/Actions

4398-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_WE_52G04E
■ If the engine oil change reminder light flashes (diesel engine with a DPF
system)
Repeated short trips and/or low-speed dr iving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder light will flash.
■ Engine oil change reminder light comes on (diesel engine only)
Vehicles without a DPF system
Replace the engine oil and oil filter when the engine oil change reminder light
does not come on even if you have driven over 40000 km (25000 miles) after
the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 40000 km (25000 miles) based on a
usage or driving condition.
Vehicles with a DPF system
Replace the engine oil and oil filter when the engine oil change reminder light
does not come on even if you have driven over 15000 km (9300 miles) after
the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
■ When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 445, 460
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.

4408-2. Steps to take in an emergency
YARIS_F_WE_52G04E
■ The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even
though the flat tire has been replaced with the spare tire. Replace the spare
tire with the repaired tire and adjust the tire inflation pressure. The tire pres-
sure warning light will go off after a few minutes.
■ If the tire pressure warning system is not functioning (vehicles with a
tire pressure warning system)
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
● If tires not equipped with tire pressure warning valves and transmitters are
used
● If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
● If the tire inflation pressure is 500 kPa (5.1 kgf/cm2 or bar, 73 psi) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
● If electronic devices or facilities using similar radio wave frequencies are
nearby
● If a radio set at a similar frequency is in use in the vehicle
● If a window tint that affects the radio wave signals is installed
● If there is a lot of snow or ice on the vehicle, particularly around the wheels
or wheel housings
● If non-genuine Toyota wheels are used (Even if you use Toyota wheels, the
tire pressure warning system may not work properly with some types of
tires.)
● If tire chains are used
■ If the tire pressure warning light frequently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch is turned on, have it checked by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.

5139-1. Specifications
9
Vehicle specifications
YARIS_F_WE_52G04E
Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be avai lable, so please check the availability
with your distributor.
■ If your engine knocks
● Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Gasoline engine
EU area:
You must only use unleaded gasoline conforming to European stan-
dard EN228.
Select unleaded gasoline with a Research Octane Number of 95 or
higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or
higher for optimum engine performance.
Diesel engine
EU area:
You must only use diesel fuel conforming to European standard
EN590.
Except EU area (except Russia) :
You must only use diesel fuel that contains 50 ppm or less of sulfur
with a cetane number of 48 or higher.
Except EU area (Russia) :
You must only use diesel fuel with a cetane number of 48 or higher.
Your vehicle must use only diesel fuel confirming to GOST R52368-
2005 (Sulfur max 50 ppm).

528Alphabetical index
YARIS_F_WE_52G04E
Care ................................... 342, 345
Aluminum wheels .................. 343
Exterior.................................. 342
Interior ................................... 345
Seat belts .............................. 346
CD player .................................. 283
Chains ....................................... 268
Child restraint system ............... 55
Baby seats definition ............... 56
Baby seats installation ............ 66
Child seats definition ............... 56
Child seats installation ...... 66, 67
Installing CRS with ISOFIX
rigid anchors ......................... 69
Installing CRS with
seat belts .............................. 66
Installing CRS with top strap ... 70
Junior seats definition ............. 56
Junior seats installation........... 68
Child safety ................................ 54
Airbag precautions .................. 41
Back door precautions .......... 126
Battery precautions ............... 369
Child restraint system ............. 55
How your child should wear
the seat belt .......................... 35
Installing child restraints.......... 65
Power window lock switch .... 156
Power window precautions ... 159
Rear door child-protectors .... 121
Removed key battery
precautions ......................... 396
Seat belt precautions .............. 36
Seat heater precaution.......... 324
Child-protectors....................... 121
Cigarette lighter ....................... 337
Cleaning ........................... 342, 345
Aluminum wheels.................. 343
Exterior ................................. 342
Interior................................... 345
Seat belts .............................. 346
Clock ........................................... 95
Clutch ....................................... 507
Condenser ................................ 367
Coolant ..................................... 366
Capacity ................................ 505
Checking ............................... 366
Preparing and checking
before winter....................... 267
Cooling system ........................ 366
Engine overheating ............... 485
CRS (Child Restraint
System) .................................... 55
Cruise control .......................... 245
Warning lights ....................... 434
Cup holders.............................. 329
Curtain shield airbags ............... 39
Customizable features ............ 515
C
