527 6-1. Specifications
6
Vehicle specifications

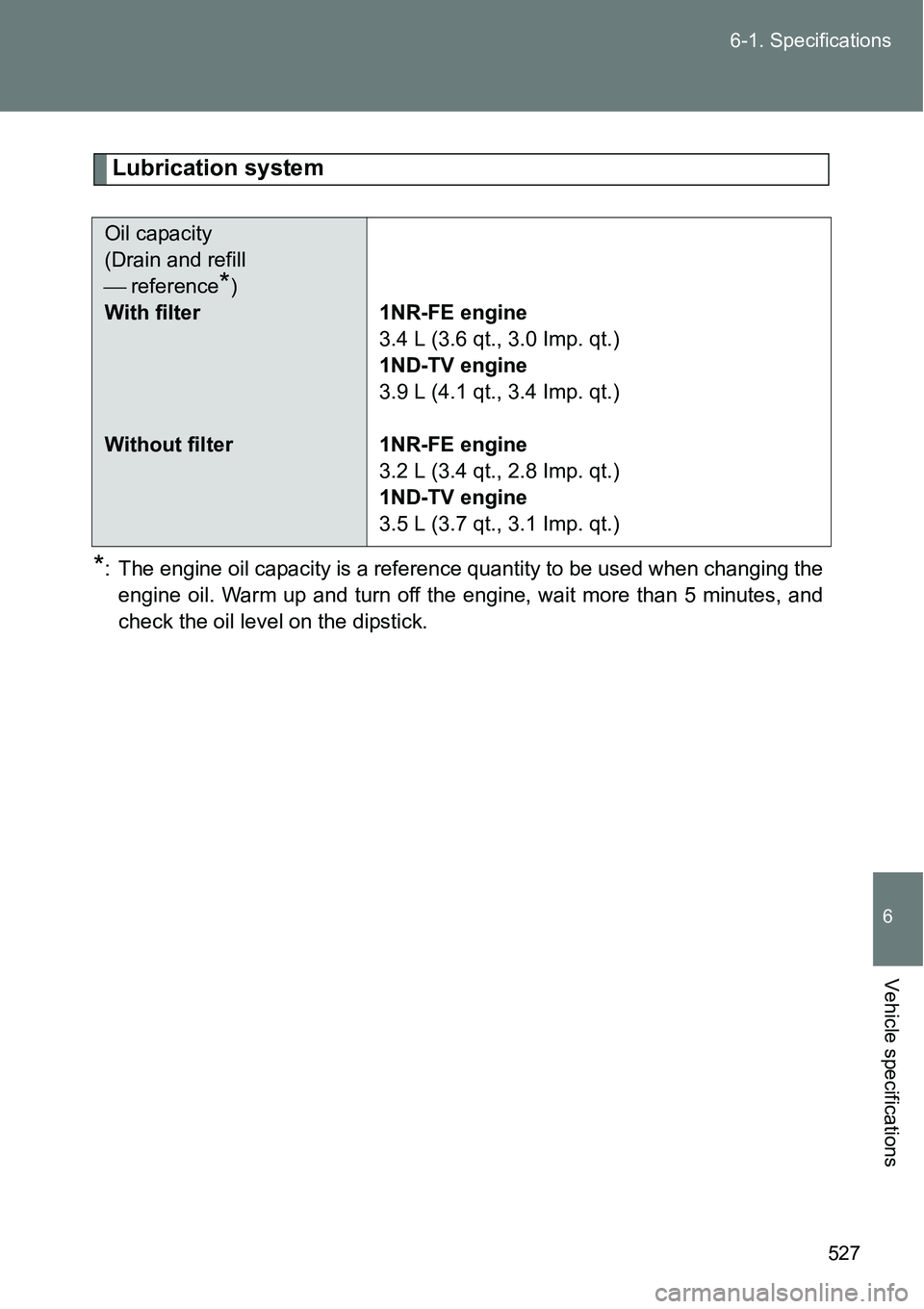

Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Oil capacity
(Drain and refill
 reference
*)
With filter
Without filter1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ND-TV engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ND-TV engine
3.5 L (3.7 qt., 3.1 Imp. qt.)

532 6-1. Specifications

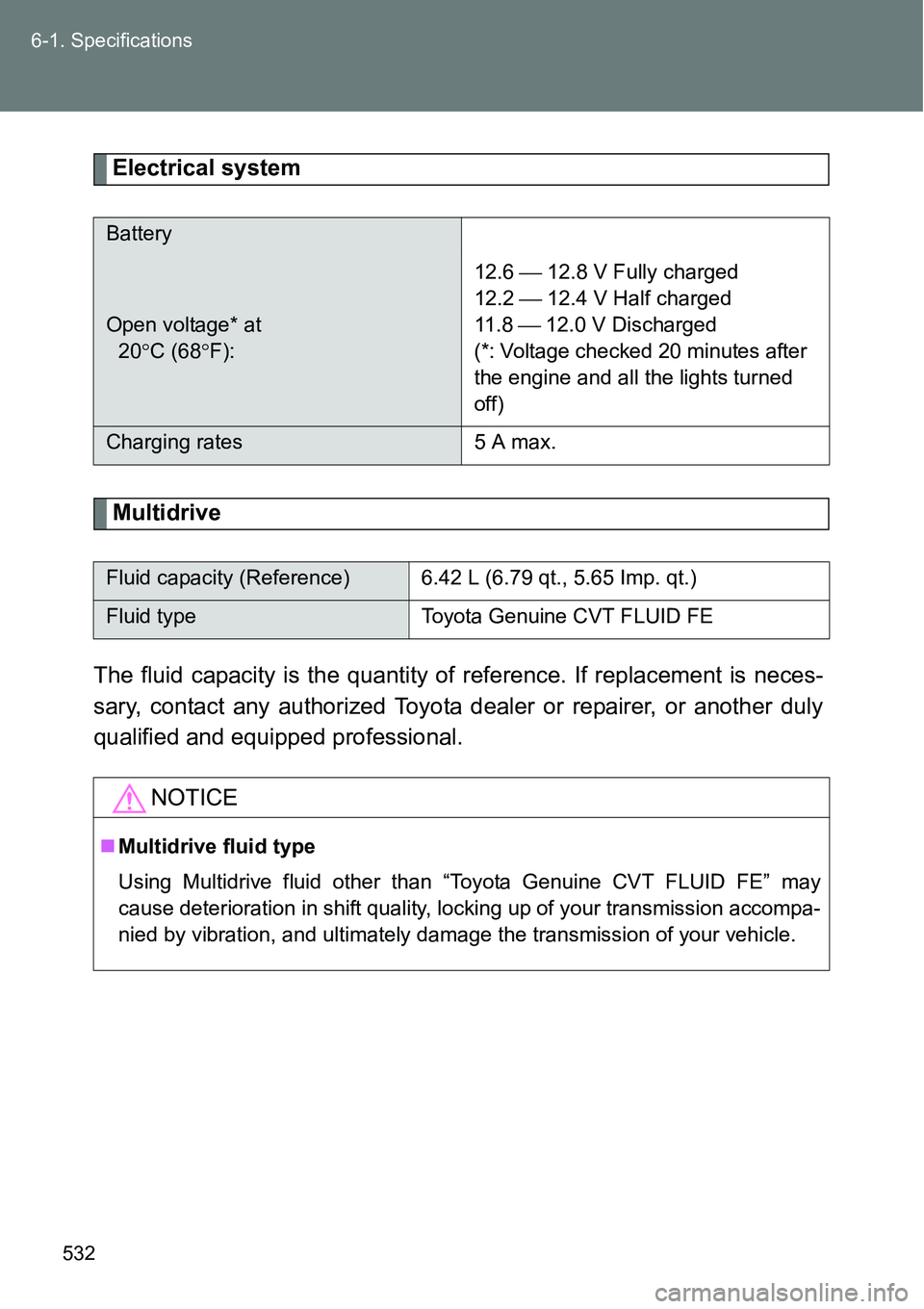

Electrical system
Multidrive
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Battery
Open voltage* at
20C (68F):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights turned
off)
Charging rates 5 A max.
Fluid capacity (Reference) 6.42 L (6.79 qt., 5.65 Imp. qt.)
Fluid type Toyota Genuine CVT FLUID FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT FLUID FE” may
cause deterioration in shift quality, locking up of your transmission accompa-
nied by vibration, and ultimately damage the transmission of your vehicle.

537
6-1. Specifications
6
Vehicle specifications

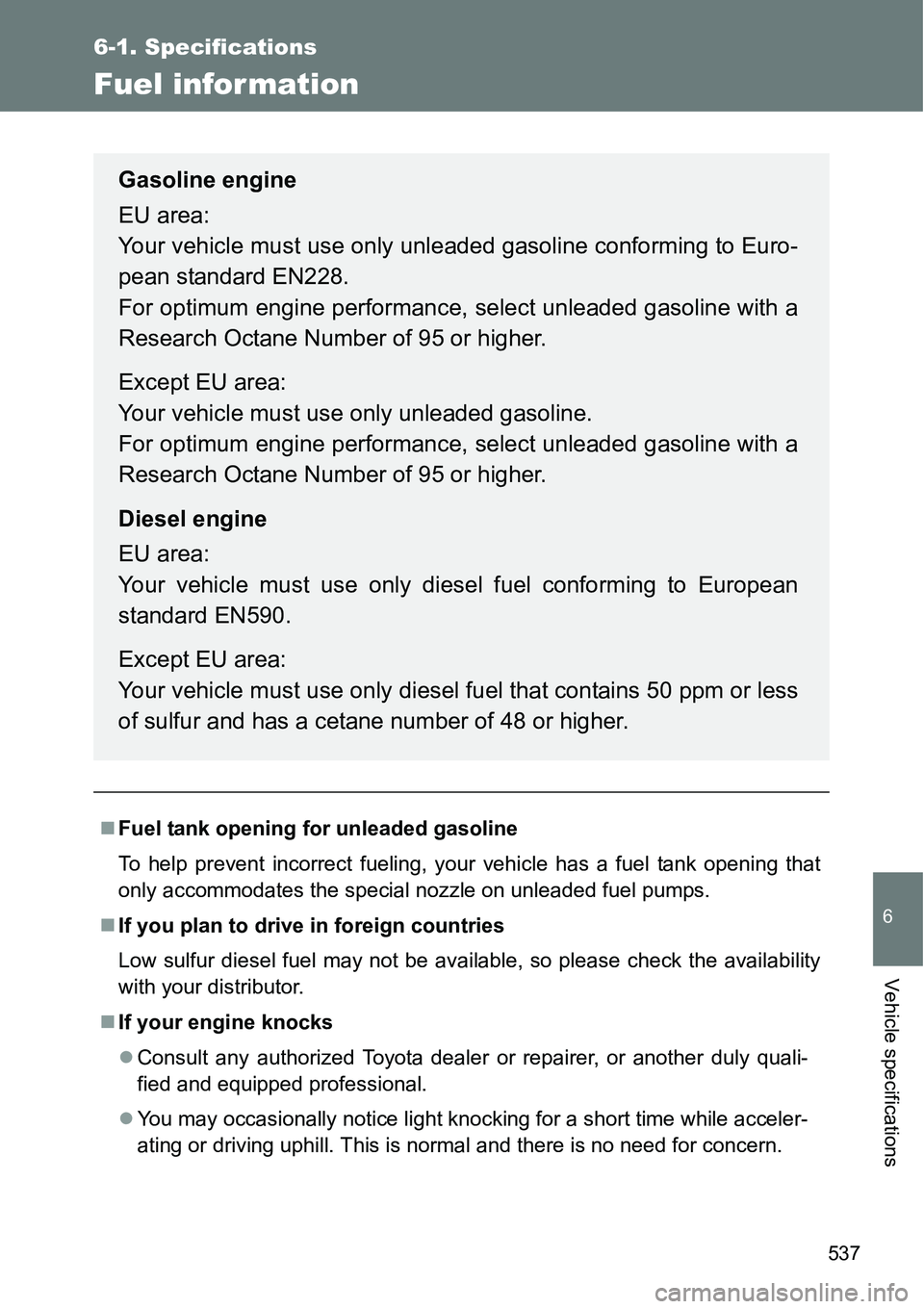

Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
Gasoline engine
EU area:
Your vehicle must use only unleaded gasoline conforming to Euro-
pean standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel fuel that contains 50 ppm or less
of sulfur and has a cetane number of 48 or higher.

551 Alphabetical index
Emergency tire puncture
repair kit ................................. 475
Engine
Compartment ........................ 370
Engine switch ................ 173, 182
Hood ..................................... 367
How to start the
engine ......................... 173, 182
Identification number............. 523
If the engine will not start ...... 492
If you run out of fuel and
the engine stalls.................. 514
Ignition switch ............... 173, 182
Overheating .......................... 509
Engine coolant
Capacity ................................ 531
Checking ............................... 376
Preparing and checking
before winter ....................... 250
Engine immobilizer system .... 105
Engine oil
Capacity ................................ 527
Checking ............................... 372
Preparing and checking
before winter ....................... 250
“ENGINE START STOP”
switch light............................. 323
EPS............................................ 240Floor mat .................................. 345
Fluid
Washer ................................. 382
Fog lights
Replacing light bulbs............. 423
Switch ................................... 219
Wattage ................................ 536
Front fog lights
Replacing light bulbs............. 423
Switch ................................... 219
Wattage ................................ 536
Front passenger's seat belt
reminder light ........................ 451
Front position lights
Switch ................................... 213F

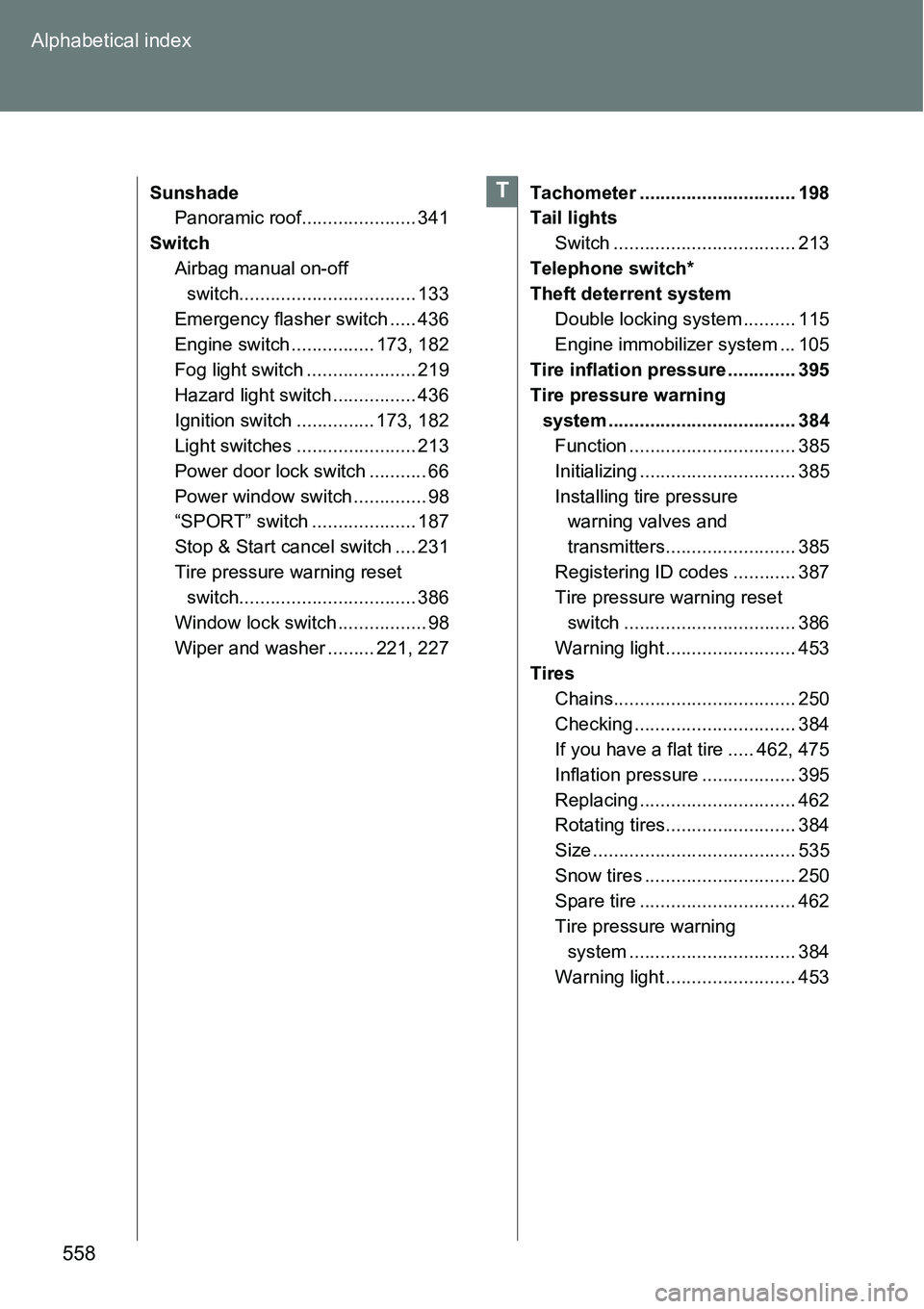

558 Alphabetical index
Sunshade
Panoramic roof...................... 341
Switch
Airbag manual on-off
switch.................................. 133
Emergency flasher switch ..... 436
Engine switch ................ 173, 182
Fog light switch ..................... 219
Hazard light switch ................ 436
Ignition switch ............... 173, 182
Light switches ....................... 213
Power door lock switch ........... 66
Power window switch .............. 98
“SPORT” switch .................... 187
Stop & Start cancel switch .... 231
Tire pressure warning reset
switch.................................. 386
Window lock switch ................. 98
Wiper and washer ......... 221, 227Tachometer .............................. 198
Tail lights
Switch ................................... 213
Telephone switch*
Theft deterrent system
Double locking system .......... 115
Engine immobilizer system ... 105
Tire inflation pressure ............. 395
Tire pressure warning
system .................................... 384
Function ................................ 385
Initializing .............................. 385
Installing tire pressure
warning valves and
transmitters......................... 385
Registering ID codes ............ 387
Tire pressure warning reset
switch ................................. 386
Warning light ......................... 453
Tires
Chains................................... 250
Checking ............................... 384
If you have a flat tire ..... 462, 475
Inflation pressure .................. 395
Replacing .............................. 462
Rotating tires......................... 384
Size ....................................... 535
Snow tires ............................. 250
Spare tire .............................. 462
Tire pressure warning
system ................................ 384
Warning light ......................... 453T
