2015 TOYOTA VERSO S fog light

426 4-3. Do-it-yourself maintenance

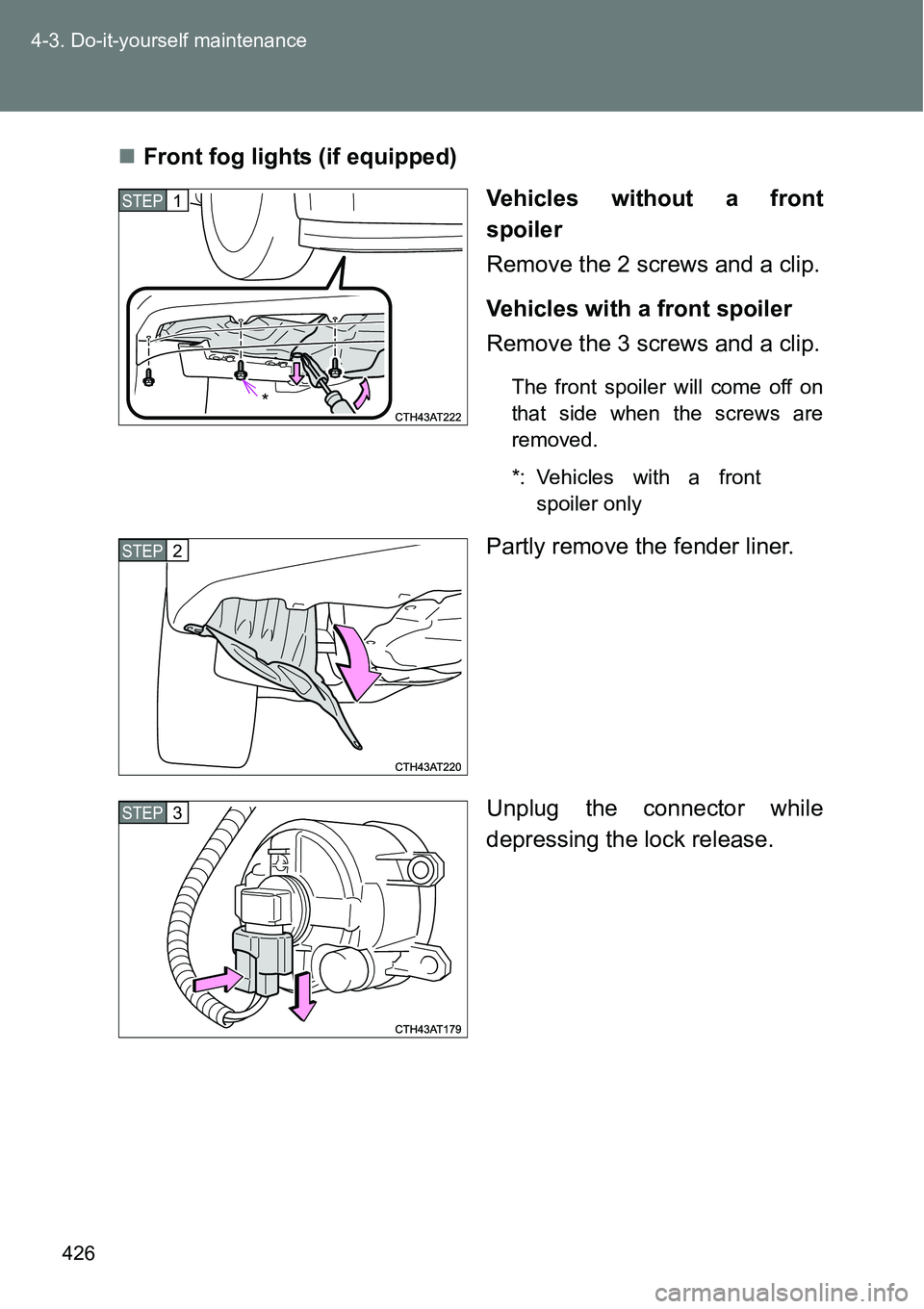

Front fog lights (if equipped)
Vehicles without a front
spoiler
Remove the 2 screws and a clip.
Vehicles with a front spoiler
Remove the 3 screws and a clip.
The front spoiler will come off on
that side when the screws are
removed.
*: Vehicles with a front
spoiler only
Partly remove the fender liner.
Unplug the connector while
depressing the lock release.
STEP1
*
STEP2
STEP3

427 4-3. Do-it-yourself maintenance
4
Maintenance and care

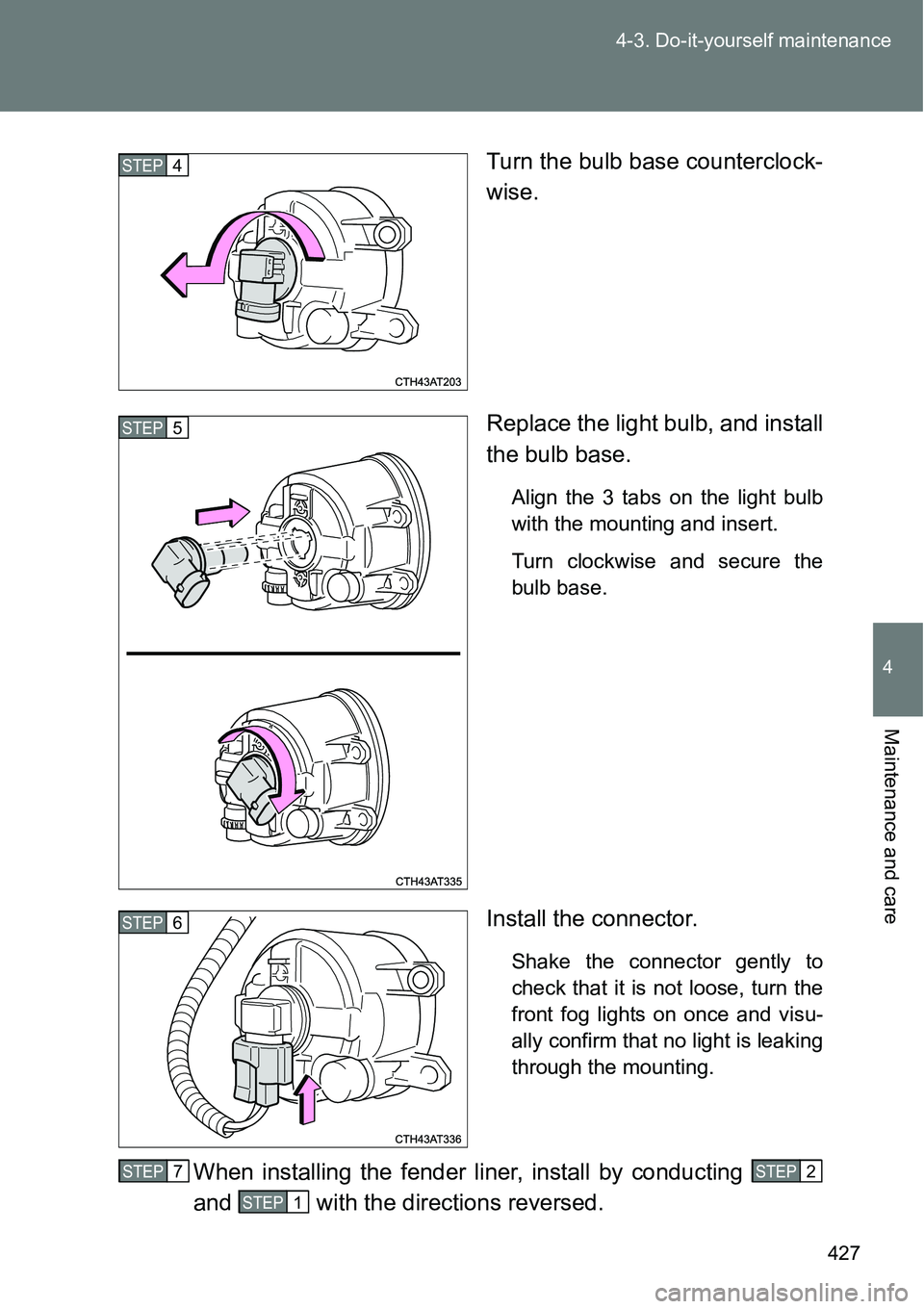

Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn the
front fog lights on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
and with the directions reversed.
STEP4
STEP5
STEP6
STEP1STEP7STEP1STEP2
STEP1STEP1

430 4-3. Do-it-yourself maintenance

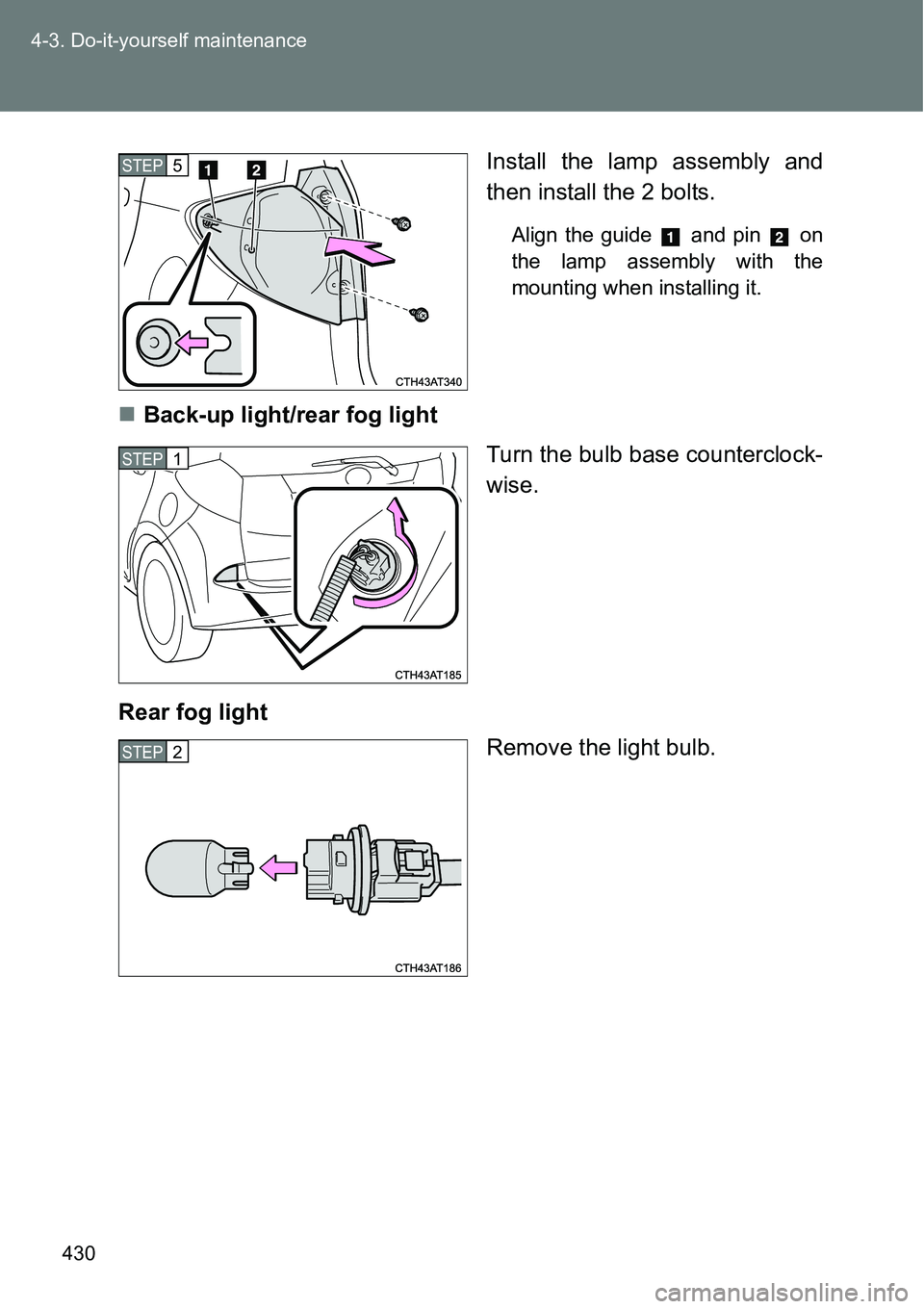

Install the lamp assembly and
then install the 2 bolts.
Align the guide and pin on
the lamp assembly with the
mounting when installing it.
Back-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
STEP5
STEP1
STEP2

536 6-1. Specifications
Light bulbs
A: HIR2 halogen bulbs B: H11 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs
*1: Vehicles without a panoramic roof shade
*2: Vehicles with a panoramic roof shade
Light bulbsWTy p e
ExteriorHeadlights 55 A
Front fog lights (if equipped) 55 B
Front turn signal lights 21 D
Back-up light 16 C
Rear fog light 21 C
License plate lights 5 C
Rear turn signal lights 21 D
InteriorPersonal lights
*18C
Personal/interior lights
*28C
Interior light 8 E
Luggage compartment light 5 E
