2015 TOYOTA VERSO S mirror

21
B
Telephone
switch
,*1
Engine (ignition) switch (vehicles without a
smart entry & start system)
P. 182
Paddle shift switches  P. 188
Audio switches ,*2
P. 320
C
Headlight leveling dial P. 214
Outside rear view mirror
switches
P. 96
VSC/TRC off switch P. 241
Engine (ignition) switch
(vehicles with a smart entry & start system)
P. 173
Cruise control
switch
 P. 236
: If equipped
*1: Refer to “Navigation and multimedia system Owner’s manual”.
*2: For vehicles with a navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.

1Before driving
29
1-1. Key information
Keys.................................... 30
1-2. Opening, closing and
locking the doors
Smart entry & start
system .............................. 33
Wireless remote control ...... 57
Side doors .......................... 66
Back door ........................... 72
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats.......................... 77
Rear seats .......................... 78
Head restraints ................... 83
Seat belts............................ 85
Steering wheel .................... 92
Anti-glare inside rear
view mirror ........................ 94
Outside rear view
mirrors .............................. 96
1-4. Opening and closing
the windows
Power windows................... 981-5. Refueling
Opening the fuel tank
cap .................................. 101
1-6. Theft deterrent system
Engine immobilizer
system ............................ 105
Double locking
system ............................ 115
Alarm ................................ 117
1-7. Safety information
Correct driving posture ..... 120
SRS airbags...................... 122
Airbag manual on-off
system ............................ 133
Child restraint
systems .......................... 136
Installing child
restraints ......................... 145

77
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
CAUTION
Seat adjustment
Be careful that the seat does not hit passengers or luggage.
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
After adjusting the seat, make sure that the seat is locked in position.
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)

78
1-3. Adjustable components (seats, mirrors, steering wheel)
Rear seats
Pull up the seatback angle
adjustment lever until the lock
is released.

79 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving

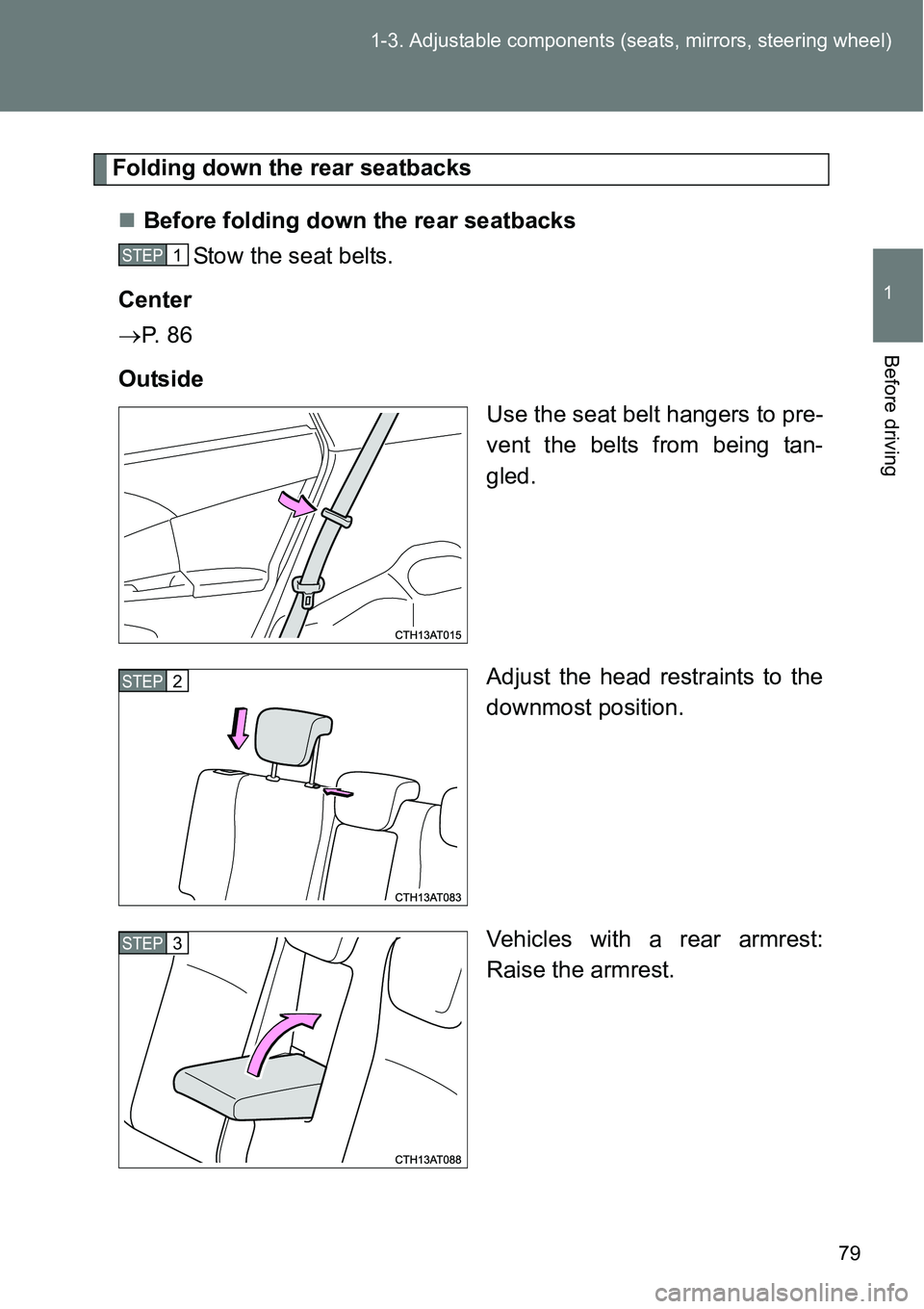

Folding down the rear seatbacks
Before folding down the rear seatbacks
Stow the seat belts.
Center
P. 8 6
Outside
Use the seat belt hangers to pre-
vent the belts from being tan-
gled.
Adjust the head restraints to the
downmost position.
Vehicles with a rear armrest:
Raise the armrest.
STEP1
STEP2
STEP3

80 1-3. Adjustable components (seats, mirrors, steering wheel)
Folding down rear seatbacks
From inside
Fold the seatback down while
pulling the seatback angle
adjustment lever.
Pull the lever until the lock is
released.
From outside
Pull the lever.
Folds down the left side and
center seats
Folds down the right side seat

81 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the rear seatback when rear passengers sit on the rear seats
or luggage is placed on the seat. Make sure that no passengers or lug-
gage are on the rear seat. Be especially careful when operating the rear
seat from the luggage compartment.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (vehicles with a Multidrive) or N (vehicles with a manual trans-
mission).
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
Do not allow anyone sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
Be careful not to catch your hand when folding the rear seatbacks.
Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
Be careful not to catch your hand when adjusting the rear seats.

82 1-3. Adjustable components (seats, mirrors, steering wheel)

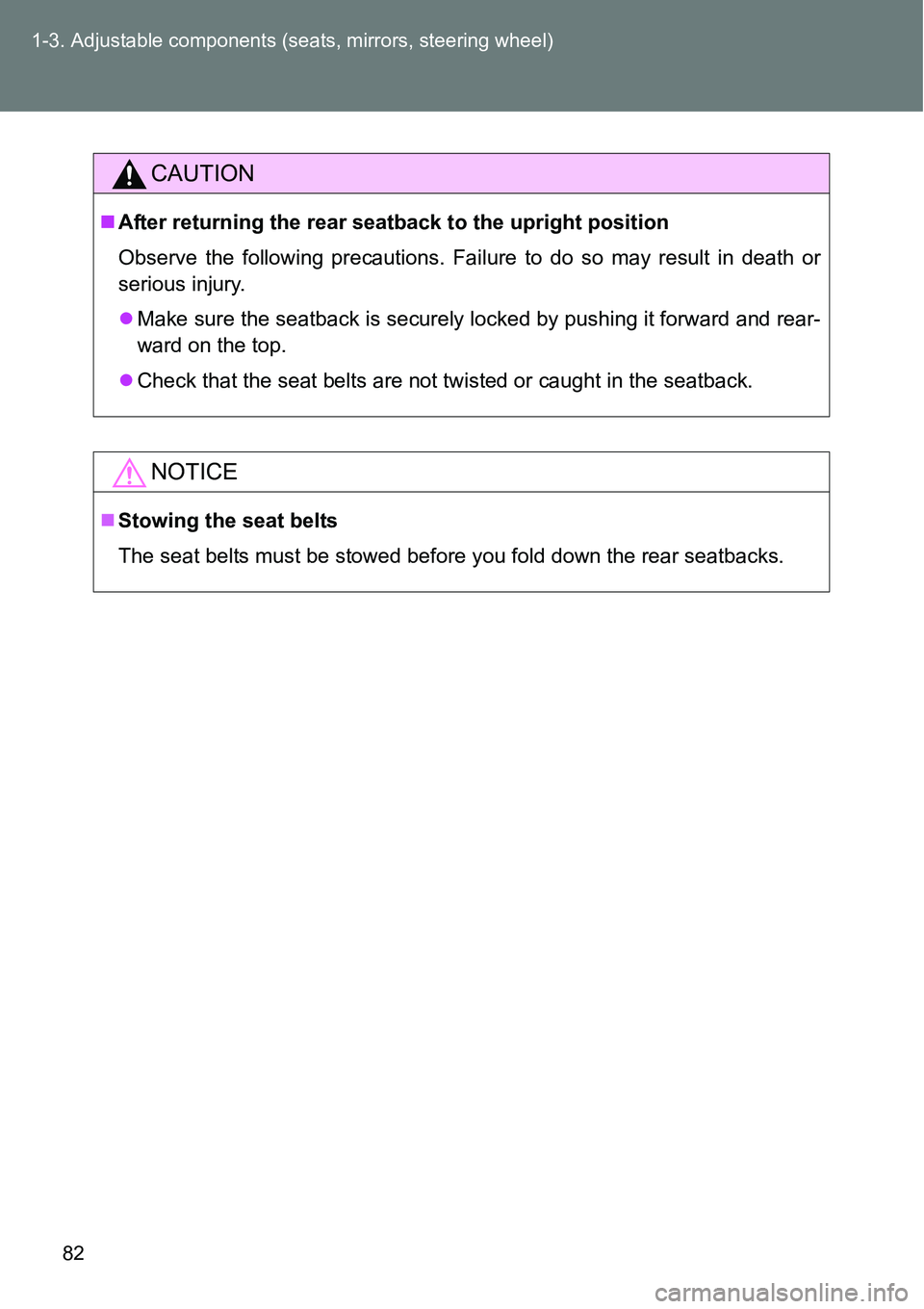

CAUTION
After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
Check that the seat belts are not twisted or caught in the seatback.
NOTICE
Stowing the seat belts
The seat belts must be stowed before you fold down the rear seatbacks.
