2015 TOYOTA PRIUS PLUS Owners Manual

1292. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

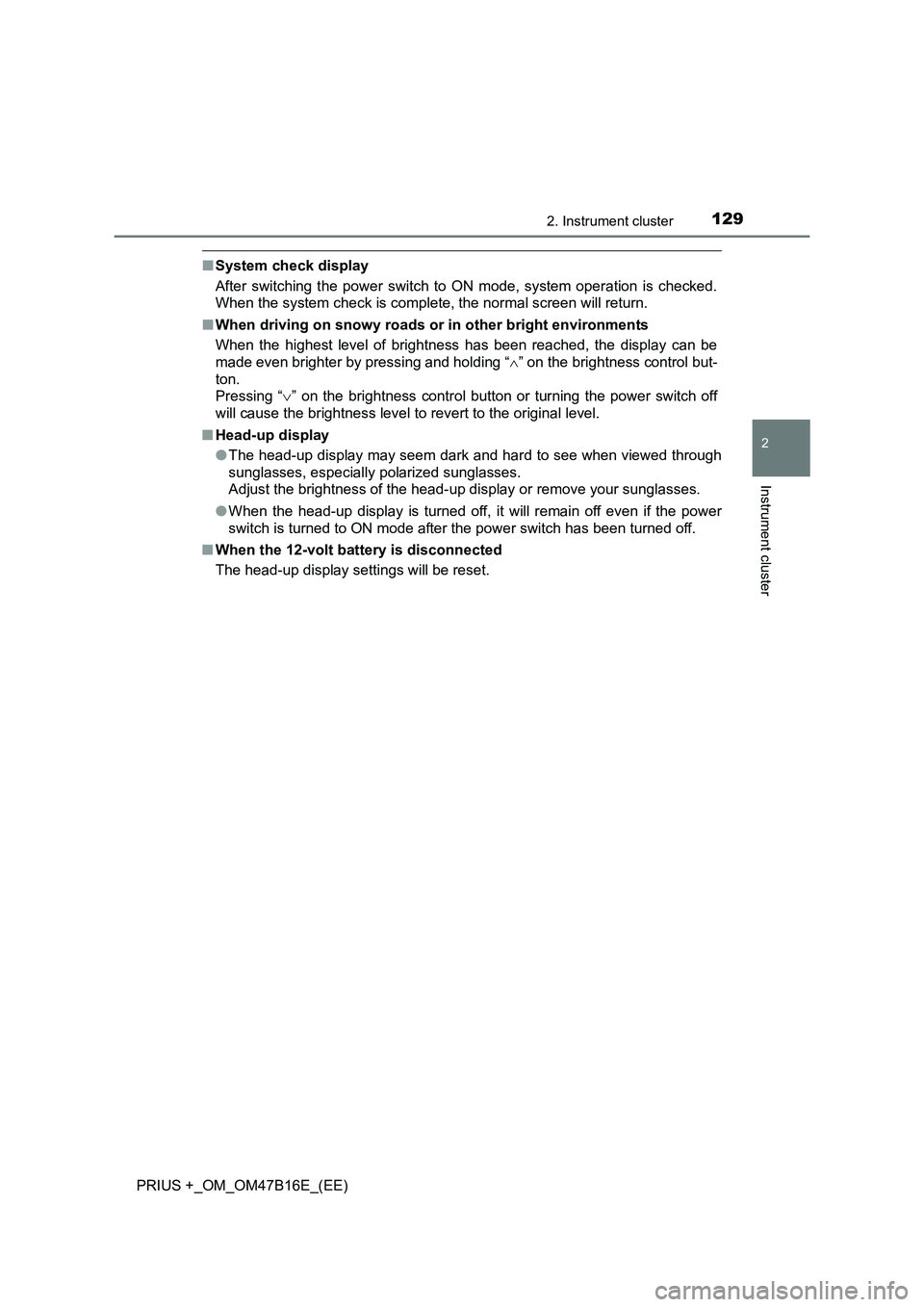

■System check display
After switching the power switch to ON mode, system operation is checked.
When the system check is complete, the normal screen will return.
■ When driving on snowy roads or in other bright environments
When the highest level of brightness has been reached, the display can be
made even brighter by pressing and holding “ ∧” on the brightness control but-
ton.
Pressing “ ∨” on the brightness control button or turning the power switch off
will cause the brightness level to revert to the original level.
■ Head-up display
●The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
● When the head-up display is turned off, it will remain off even if the power
switch is turned to ON mode after the power switch has been turned off.
■ When the 12-volt battery is disconnected
The head-up display settings will be reset.

1302. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)

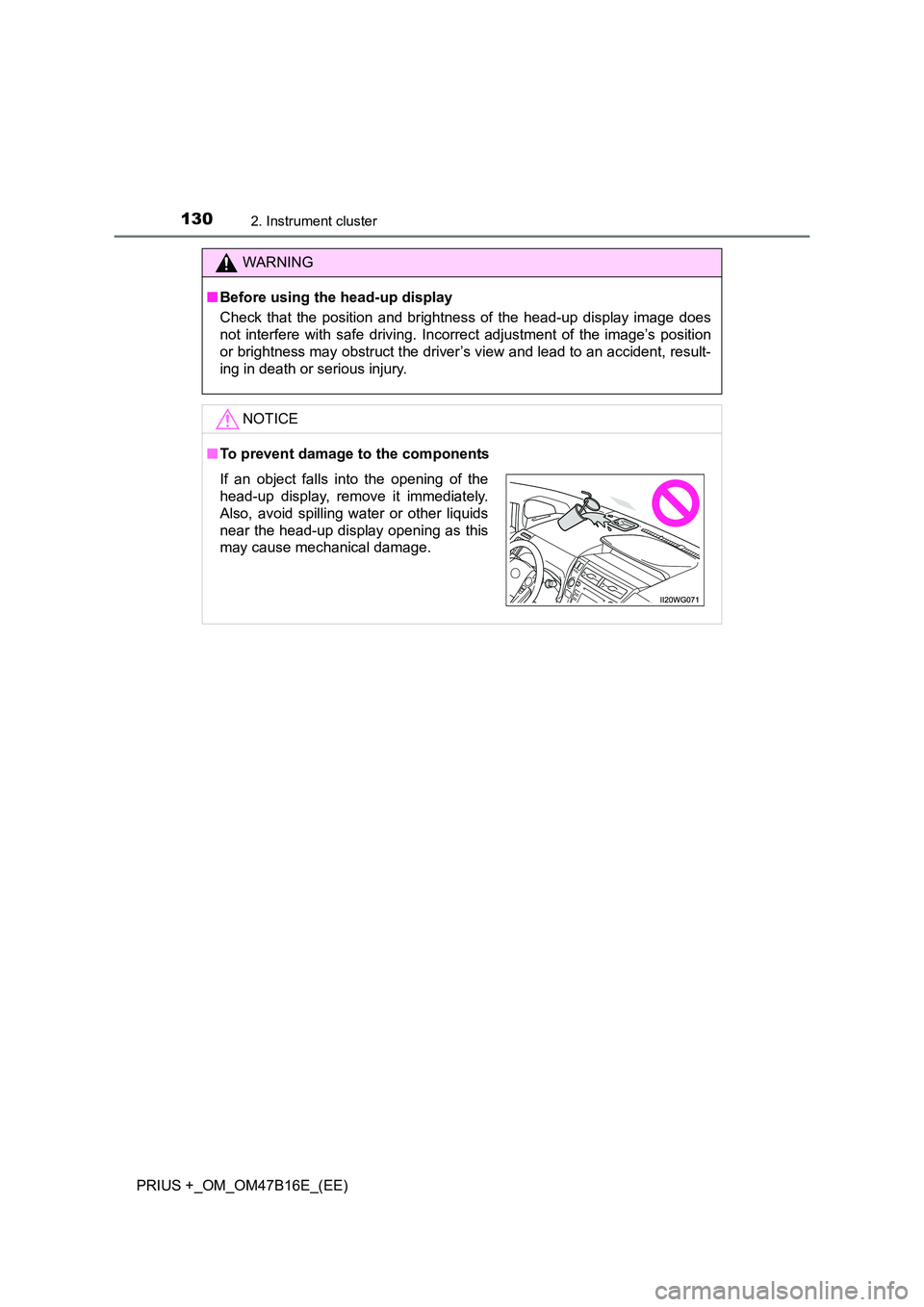

WARNING
■ Before using the head-up display
Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident, result-
ing in death or serious injury.
NOTICE
■To prevent damage to the components
If an object falls into the opening of the
head-up display, remove it immediately.
Also, avoid spilling water or other liquids
near the head-up display opening as this
may cause mechanical damage.

131
2
2. Instrument cluster
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Energy monitor/consumption screen
Audio systemPress the “CAR”.
Select “Energy monitor” on the
“CAR” screen.
You can view the status of your hybrid system on the audio sys-
tem screen.
Energy monitor
1
2

1322. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Audio system screen
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

1332. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
These images are examples only, and may vary slightly from actual
conditions.

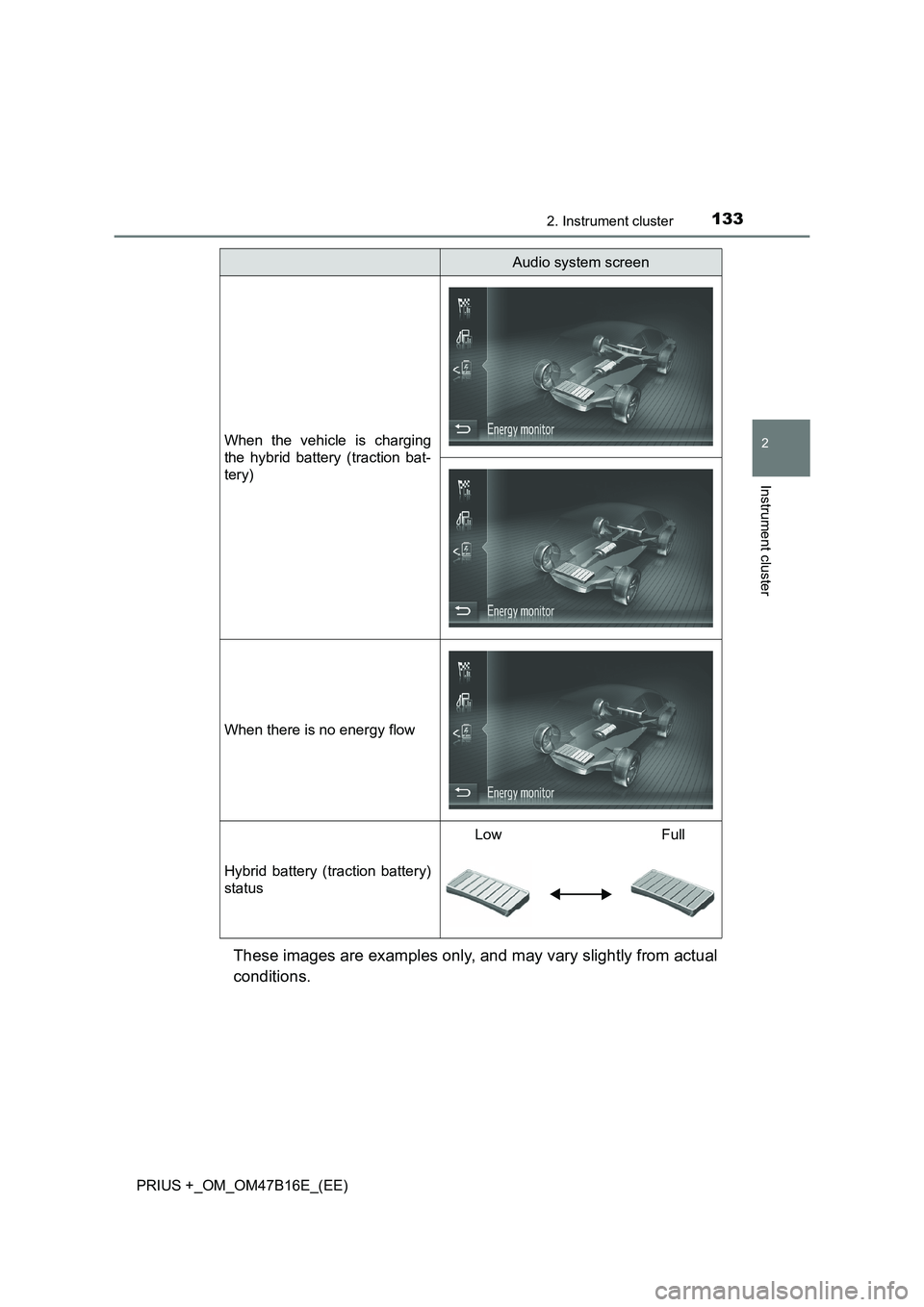

When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (traction battery)
status
LowFull
Audio system screen

1342. Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Press the “CAR”. (→P. 131)
Select “Trip information” on the
“CAR” screen. Average vehicle speed since
the hybrid system was
started.
Cruising range ( →P. 135)
Fuel consumption in the past
15 minutes
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Elapsed time since the hybrid system was started.
Resetting the consumption data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.

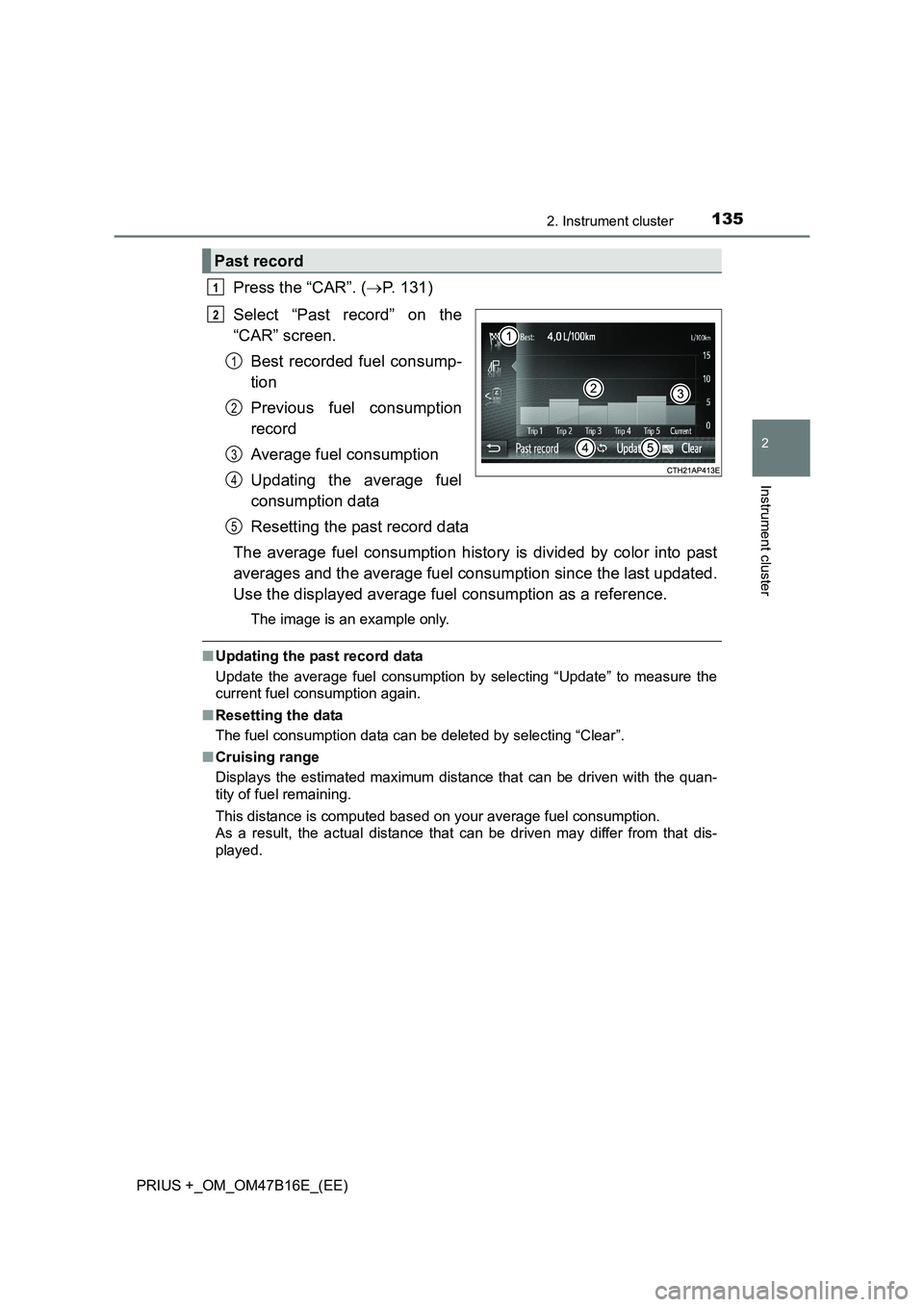

Trip information
1
2
1
2
3
4
5
6

1352. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B16E_(EE)
Press the “CAR”. (→P. 131)
Select “Past record” on the
“CAR” screen. Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■ Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
2
1
2
3
4
5
