2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

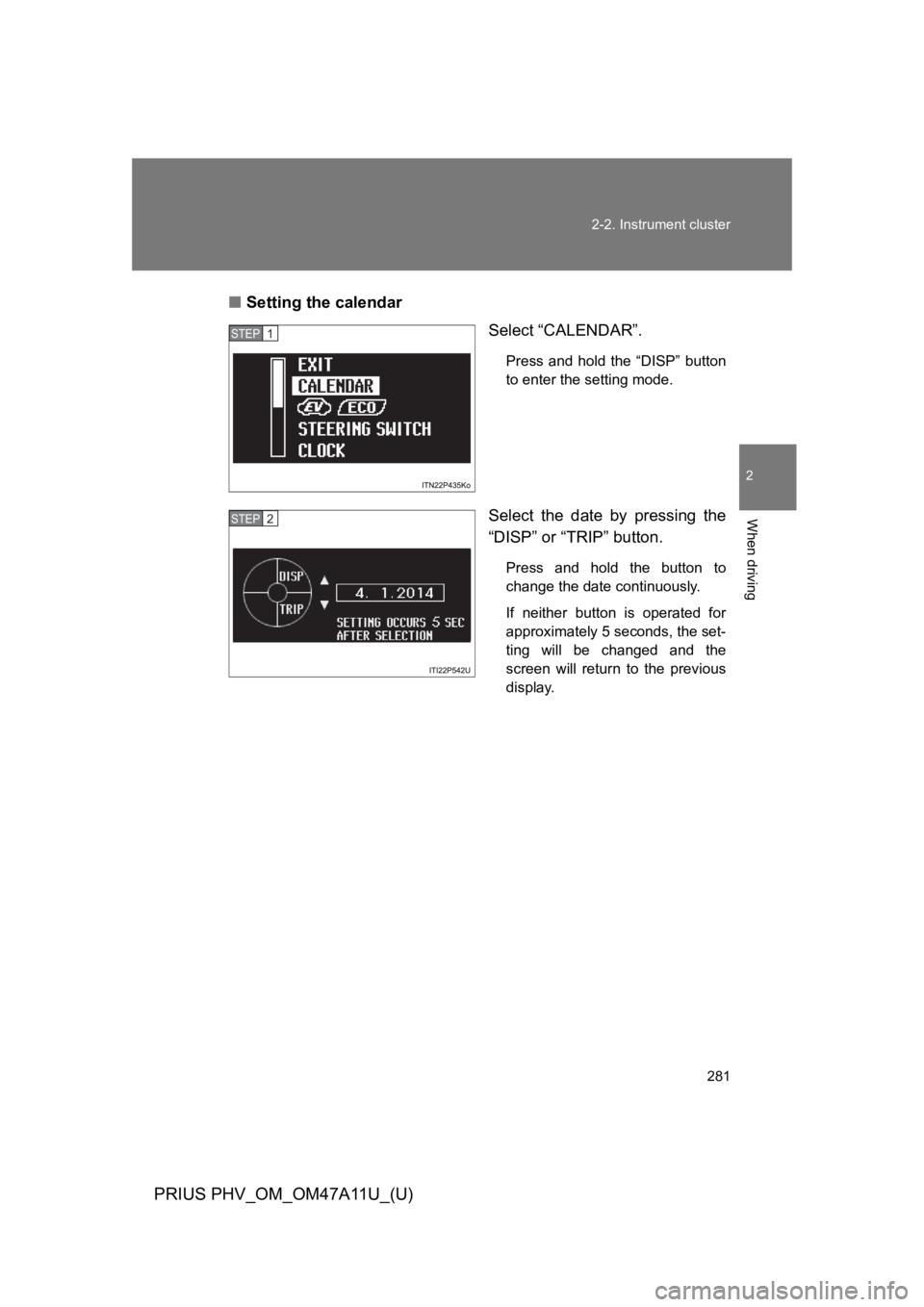

■Setting the calendar
Select “CALENDAR”.
Press and hold the “DISP” button
to enter the setting mode.
Select the date by pressing the
“DISP” or “TRIP” button.
Press and hold the button to
change the date continuously.
If neither button is operated for
approximately 5 seconds, the set-
ting will be changed and the
screen will return to the previous
display.
STEP 1
STEP 2

283
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
■Switching the steering switch operation display on/off (if
equipped)
Select “STEERING SWITCH”.
Press and hold the “DISP” button
to enter the setting mode.
Select “ON” or “OFF”.
Press and hold the “DISP” button
to finish setting.
STEP 1
STEP 2

284
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
■Selecting 12h/24h clock display
Select “CLOCK”.
Press and hold the “DISP” button
to enter the setting mode.
Select “12h” or “24h”.
Press and hold the “DISP” button
to finish setting.
STEP 1
STEP 2

286
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
■Tu r n i n g o f f t h e m u l t i - i n f o r m a t i o n d i s p l a y
Select “SCREEN OFF”.
Press and hold the “DISP” button
to enter the setting mode.
Select “OFF”.
Press and hold the “DISP” button
to turn off the multi-information
display.
To r e - d i s p l a y t h e m u l t i - i n f o r m a t i o n
display, press the “DISP” button
to display the “SETTINGS”
screen and follow the same pro-
cedure, selecting “ON” instead of
“OFF”.
■Returning to the previous screen
Select “EXIT” and press and
hold the “DISP” button.
The screen will revert to the
“SETTINGS” screen.
STEP 1
STEP 2

287
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
■System check display
■Ending display
oP. 2 4 7
■Eco Driving Indicator Light
Eco Driving Indicator Light will turn on when driving power is lower than the
upper limit of Eco driving. It will turn off when the acceleration exceeds the
Eco driving accelerator upper limit or when the vehicle is stopped.
Eco Driving Indicator Light will not operate in the following conditions:
●The shift position is anything other than D.
●The driving mode is set to power mode. (oP. 2 5 1 )
●The vehicle speed is approximately 80 mph (130 km/h) or higher.
Eco Driving Indicator Light is also displayed when 5-minute consumption, 1-
minute consumption or monthly fuel consumption record is displayed.
Eco Driving Indicator Light can be set to activated or deactivated. (oP. 2 8 2 )
■Hybrid System Indicator display when in EV mode
The movement of the bar in response to the operation of the accelerator
pedal may differ in accordance with the status of the hybrid battery (traction
battery). However, this does not indicate a malfunction.
After switching the “POWER” switch to
ON mode, “welcome to PRIUS” is dis-
played while system operation is
checked. When the system check is com-
plete, the normal screen will return.

288
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
■Driving in Eco drive mode
The multi-information display will automatically switch the display to Hybrid
System Indicator, regardless of which display is currently being shown.
(oP. 2 7 3 )
■To u c h t r a c e r d i s p l a y ( i f e q u i p p e d )
●The touch tracer display can be set to not display even if the steering
switches are touched.
●Only the circular, rubber-covered switches have a built-in touch sensor.
To u c h i n g a n y o f t h e o t h e r s w i t c h e s w i l l n o t d i s p l a y t h e t o u c h t r a c e r d i s -
play.
■Display settings can be changed when
The vehicle speed is less than approximately 5 mph (8 km/h).
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc. There are times
when the engine speed that is displayed may differ even when vehicle oper-
ation and driving conditions are the same.
■When the 12-volt battery is disconnected
The following data will be reset.
●Average fuel consumption
●Distance to empty
●Average vehicle speed
●EV driving ratio
●Clock
●Display settings
●Trip meter

289
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
■Va c u u m f l u o r e s c e n t d i s p l a y
Small spots or light spots may appear on the display. This phenomenon is
characteristic of vacuum fluorescent displays, and there is no problem to
continue using the display.
NOTICE
■Steering switches
To p r e v e n t d a m a g e t o t h e s t e e r i n g s w i t c h e s , o b s e r v e t h e f o l l o w i n g p r e c a u -
tions.
●Do not touch the steering switches with wet hands
●Do not push hard or sharp objects into the steering switches
●Do not subject the steering switches to strong impacts
●Do not allow organic solvents containing thinner, benzene or gasoline, or
acidic/alkaline soap to adhere to the surfaces of the steering switches

290
2-2. Instrument cluster
PRIUS PHV_OM_OM47A11U_(U)
Head-up display

: If equipped
The head-up display can be used to project vehicle speed and other
information onto the windshield.
Head-up display
Display brightness will change
automatically according to the
brightness of the surrounding
area.
HUD (Head-up display)
main switch
Turn-by-turn navigation
switch (if equipped)
Display position adjustment
switch
Display brightness adjust-
ment switch
Used to adjust the display
brightness to the desired level.
