2015 TOYOTA PRIUS PLUG-IN HYBRID turn signal bulb

259
2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)
2
When driving

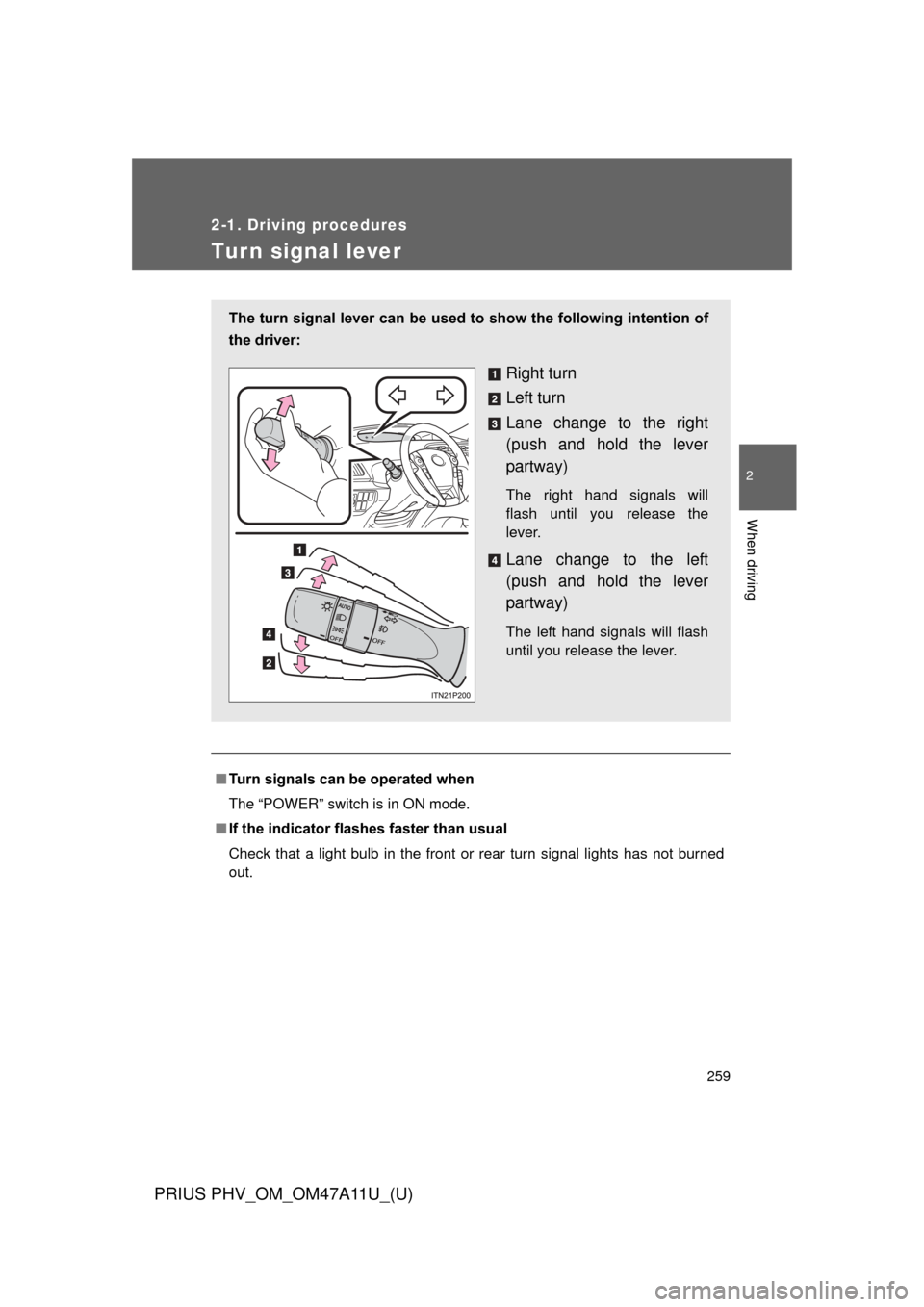

Tur n signal lever
■Turn signals can be operated when
The “POWER” switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intention of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

511
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care

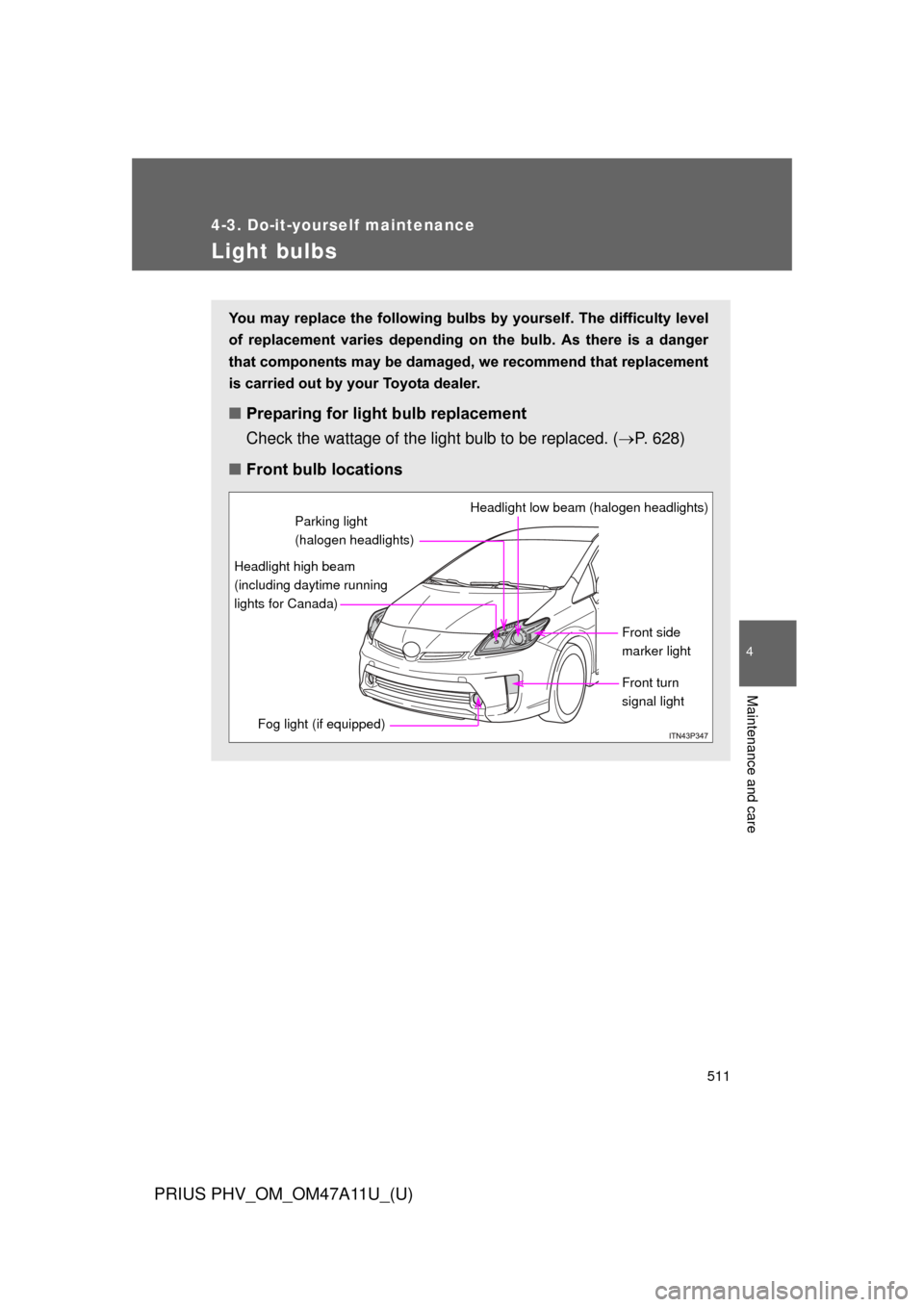

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by your Toyota dealer.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 628)
■ Front bulb locations
Front side
marker light
Headlight low beam (halogen headlights)
Headlight high beam
(including daytime running
lights for Canada)
Fog light (if equipped)
Front turn
signal light
Parking light
(halogen headlights)

512 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
Replacing light bulbs■ Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
■Rear bulb locations
Rear turn signal light
Back-up light License plate lights
STEP 1

520 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
■Front turn signal lights
Remove the fender liner bolt and clip and pull down the fender
liner. ( P. 518)
For the U.S.A.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

522 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
■Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb. Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4

628 6-1. Specifications
PRIUS PHV_OM_OM47A11U_(U)
Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs

*
: If equipped
Light BulbsBulb No.WTy p e
Exterior Halogen headlights
Low beam
High beam
LED headlights High beam H11
9005
9005 55
60
60A
B
B
Fog lights
*H16 19 C
Front turn signal lights WY21W 21 D
Front side marker lights W5W 5 E
Parking lights
(halogen headlights) W5W 5 E
Rear turn signal lights WY21W 21 D
Back-up lights W21W 21 E
License plate lights W5W 5 E
InteriorFront interior/personal lights
5E
Rear interior light 8F
Vanity lights 8E
Door courtesy lights 5E
Luggage compartment light 5F

680 Alphabetical index
PRIUS PHV_OM_OM47A11U_(U)
EngineAccessory mode.................... 244
Compartment ........................ 464
Hood...................................... 448
How to start the hybrid system ................................ 242
Identification number ............. 620
If the hybrid system will not start ..................................... 596
Ignition switch........................ 242
Overheating........................... 607
“POWER” switch ................... 242
Engine coolant Capacity ................................ 625
Checking ............................... 469
Preparing and checking before winter ....................... 355
Engine/power control
unit coolantCapacity ................................ 625
Checking ............................... 469
Preparing and checking before winter ....................... 355
Engine oil Capacity ................................ 622
Checking ............................... 465
Preparing and checking before winter ....................... 355
Enhanced VSC ......................... 333
EPS ............................................ 333
EV driving ratio indicator ........ 276
EV driving range ................58, 273
Event data recorder ...................25
EV/HV mode selection switch .......................................37 Floor mats ................................ 407
Fluid
Brake..................................... 627
Washer.................................. 474
Fog lights Replacing light bulbs ............. 511
Switch ................................... 303
Wattage................................. 628
Foot lights ................................ 388
Front fog lights
Replacing light bulbs ............. 511
Switch ................................... 303
Wattage................................. 628
Front passenger occupant classification system ............ 202
Front passenger’s seat belt reminder light ........................ 541
Front seats
Adjustment ............................ 150
Front side marker light Replacing light bulbs ............. 511
Wattage................................. 628
Front turn signal lights Replacing light bulbs ............. 511
Switch ................................... 259
Wattage................................. 628
Fuel Capacity ................................ 621
Fuel gauge ............................ 262
Information ............................ 629
Refueling ............................... 178
Type ...................................... 629
Fuel door .................................. 178
Fuel filler door .......................... 178
Fuses ........................................ 499F

682 Alphabetical index
PRIUS PHV_OM_OM47A11U_(U)
Language .................................. 285
License plate lightsReplacing light bulbs ............. 511
Wattage ................................. 628
Light bulbs Replacing .............................. 511
Wattage ................................. 628
Lights Emergency flasher switch ..... 528
Fog light switch ..................... 303
Foot lights.............................. 388
Hazard light switch ................528
Headlight switch .................... 297
Interior lights.................. 389, 390
Personal lights....................... 389
Replacing light bulbs ............. 511
Shift lever lighting .................. 388
Turn signal lever.................... 259
Turn signal light switch .......... 259
Vanity lights ........................... 399
Wattage ................................. 628
Load capacity ........................... 354
Luggage compartment light
Switch.................................... 145
Wattage ................................. 628
Luggage cover ......................... 410 Maintenance
Do-it-yourself maintenance ....................... 445
General maintenance............ 439
Maintenance data ................. 618
Maintenance requirements....................... 436
Maintenance data..................... 437
Meter Instrument panel light control ................................. 265
Meters ................................... 262
Speed unit select button ....... 264
Trip information display ......... 279
Micro dust and pollen filter ..... 368
Microphone
*............................ 421
Mirrors Inside rear view mirror .......... 170
Side mirror heater ................. 381
Side mirrors........................... 173
Vanity mirrors ........................ 399
MP3 disc
*
Multi-information display ........ 271
Navigation system
(refer to “Navigation
System Owner’s Manual”)
Noise from under vehicle .......... 22
LM
N
