6
Outside rear view mirrors P. 80

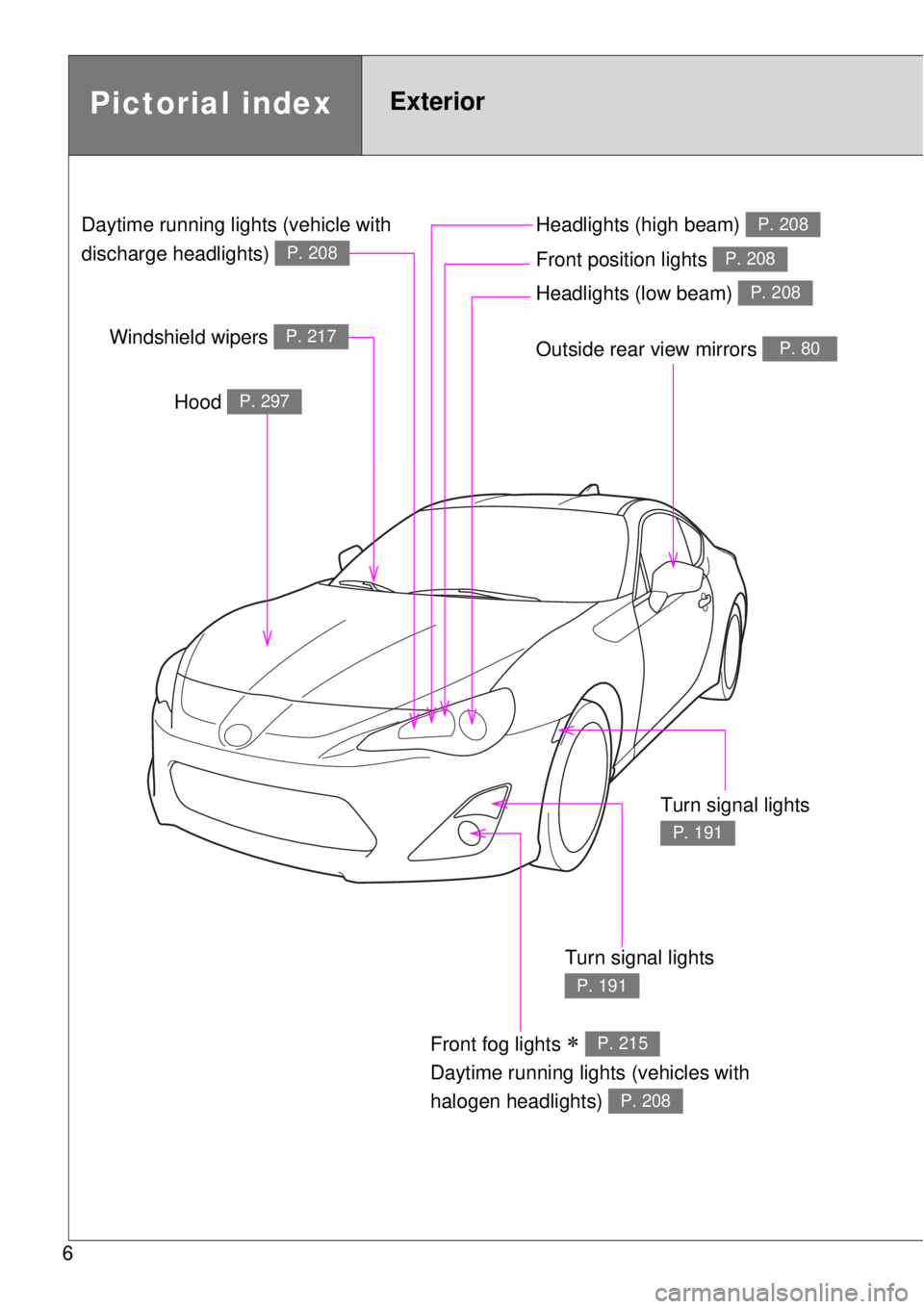

Pictorial indexExterior
Hood P. 297
Windshield wipers P. 217
Headlights (high beam) P. 208
Front position lights P. 208
Headlights (low beam) P. 208
Turn signal lights
P. 191
Turn signal lights
P. 191
Front fog lights 
Daytime running lights (vehicles with
halogen headlights) P. 215
P. 208
Daytime running lights (vehicle with
discharge headlights)
P. 208

199 2-2. Instrument cluster
2
When driving

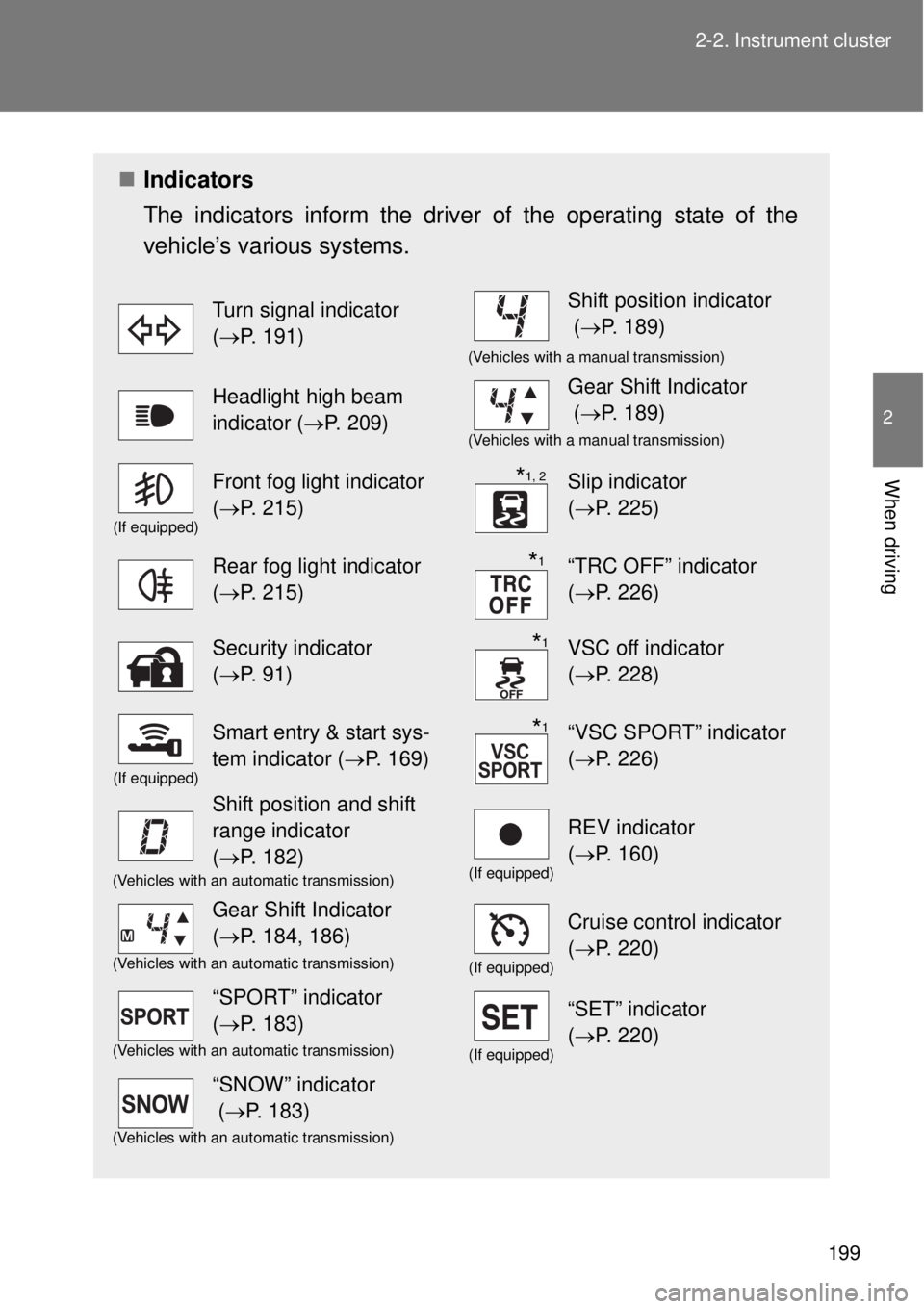

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 191)Shift position indicator
(P. 189)
(Vehicles with a manual transmission)
Headlight high beam
indicator (P. 209)Gear Shift Indicator
(P. 189)
(Vehicles with a manual transmission)
(If equipped)
Front fog light indicator
(P. 215)Slip indicator
(P. 225)
Rear fog light indicator
(P. 215)“TRC OFF” indicator
(P. 226)
Security indicator
(P. 91)VSC off indicator
(P. 228)
(If equipped)
Smart entry & start sys-
tem indicator (P. 169)“VSC SPORT” indicator
(P. 226)
Shift position and shift
range indicator
(P. 182)
(If equipped)
REV indicator
(P. 160)
(Vehicles with an automatic transmission)
Gear Shift Indicator
(P. 184, 186)
(If equipped)
Cruise control indicator
(P. 220)
(Vehicles with an automatic transmission)
“SPORT” indicator
(P. 183)
(If equipped)
“SET” indicator
(P. 220)
(Vehicles with an automatic transmission)
“SNOW” indicator
(P. 183)
(Vehicles with an automatic transmission)
*1, 2
*1
*1
*1

209 2-3. Operating the lights and windshield wipers
2
When driving

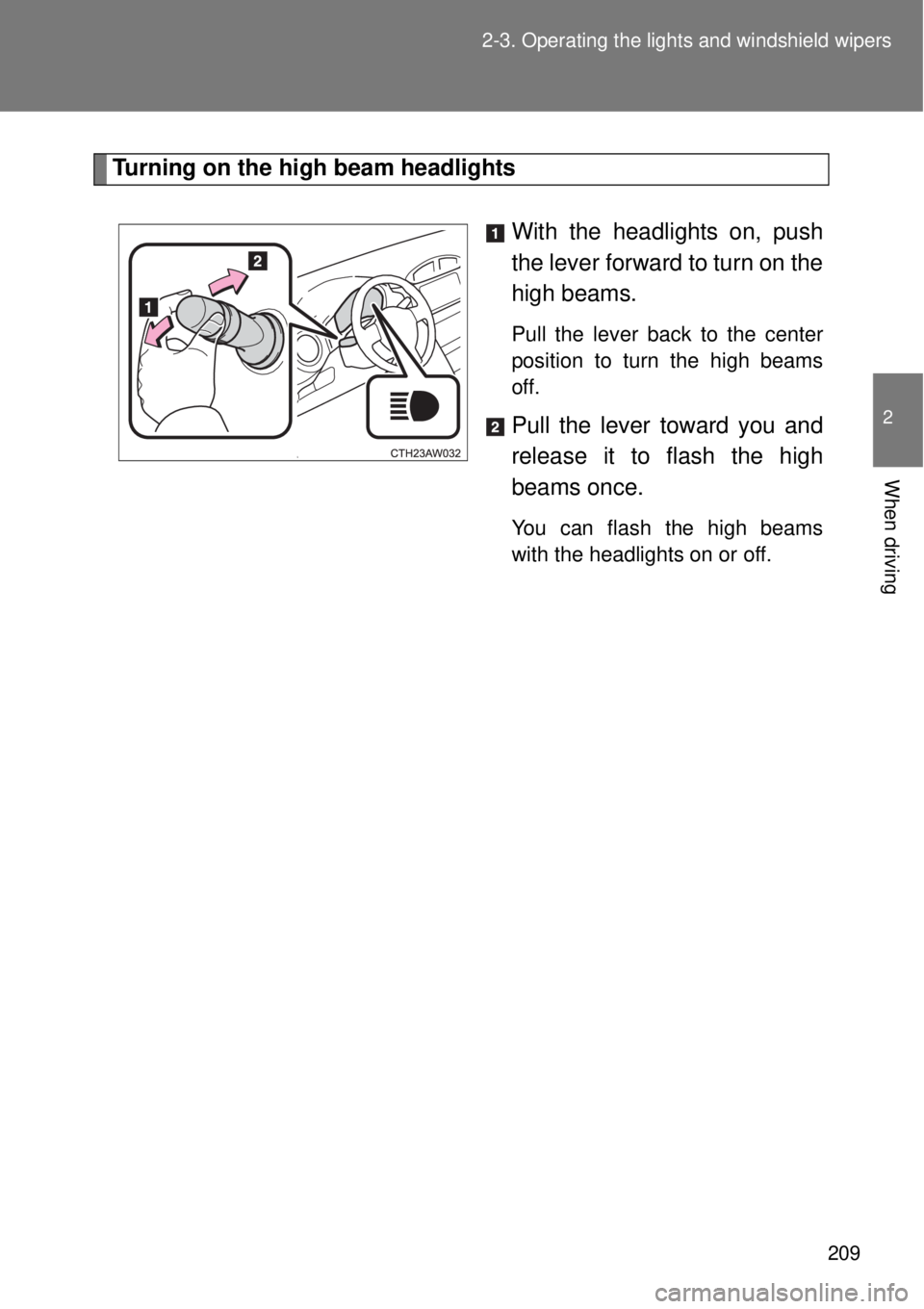

Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.

340 4-3. Do-it-yourself maintenance
Note
One of each of the following spare fuses are provided: 7.5 A, 10 A, 15
A, 20 A, 25 A, 30 A.
37HORN NO. 2 7.5 A Horn
38HORN NO. 1 7.5 A Horn
39H-LP LH LO 15 A Left-hand headlight (low beam)
40H-LP RH LO 15 A Right-hand headlight (low beam)
41H-LP LH HI 10 A Left-hand headlight (high beam)
42H-LP RH HI 10 A Right-hand headlight (high beam)
43INJ 30 AMultiport fuel injection system/
sequential multiport fuel injection
system
44H-LP WASHER 30 A Headlight cleaners
45AM2 NO. 1 40 A Starting system, engine control unit
46EPS 80 A Electric power steering
47A/B MAIN 15 A SRS airbag system
48ECU-B 7.5 AWireless remote control, main body
ECU
49DOME 20 A Interior light
50IG2 7.5 A Engine control unit
FuseAmpereCircuit

343
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 444)
Front bulb locations
Headlights (high beam)
(vehicles with halogen
headlights)
Headlights (low beam) (vehicles with
halogen headlights)
Side turn
signal lights
Front turn signal lightsFront position lights (vehicles
with halogen headlights)
Daytime running lights
(vehicles with
halogen headlights)
Front fog lights
(if equipped)

346 4-3. Do-it-yourself maintenance
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beams on once and
visually confirm that no light is
leaking through the mounting.
Headlight high beams (vehicles with halogen bulbs)
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Install a new bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP 4
STEP 1
STEP 2
STEP 3

347 4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beams on once
and visually confirm that no light
is leaking through the mounting.
Front position lights (vehicles with halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 4
STEP 1
STEP 2
STEP 3

358 4-3. Do-it-yourself maintenance
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight high and low beams (discharge bulb)
Front position lights (vehicle with discharge headlights)
Daytime running lights (vehicle with discharge headlights)
Stop/tail lights
High mounted stoplight
Door courtesy lights
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional for more information in
the following situations:
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The front position lights (vehicles with discharge headlights), stop/tail lights
and high mounted stoplight consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
