4-3. Do-it-yourself maintenance
4
Maintenance and care

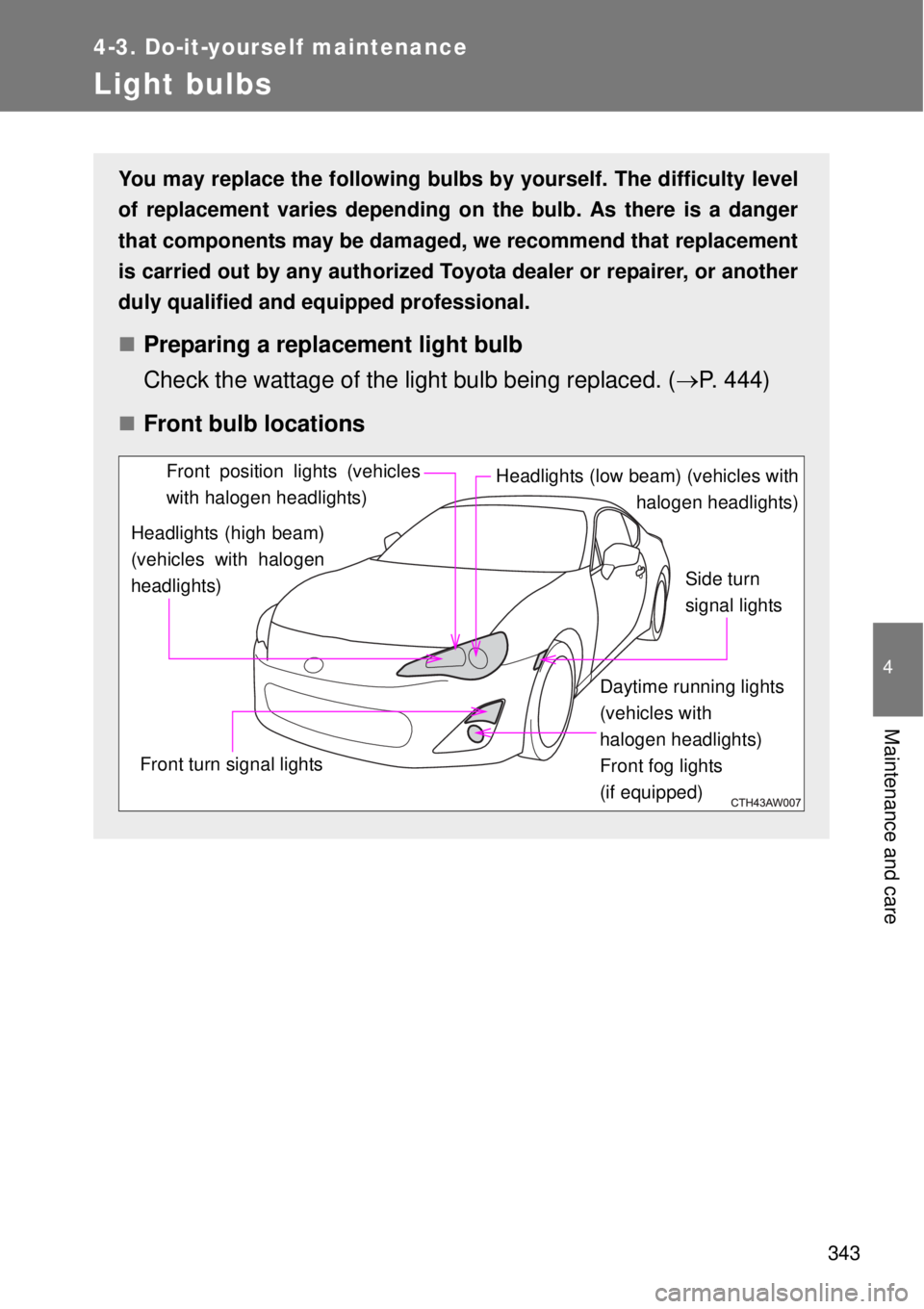

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 444)
Front bulb locations
Headlights (high beam)
(vehicles with halogen
headlights)
Headlights (low beam) (vehicles with
halogen headlights)
Side turn
signal lights
Front turn signal lightsFront position lights (vehicles
with halogen headlights)
Daytime running lights
(vehicles with
halogen headlights)
Front fog lights
(if equipped)

345 4-3. Do-it-yourself maintenance
4
Maintenance and care

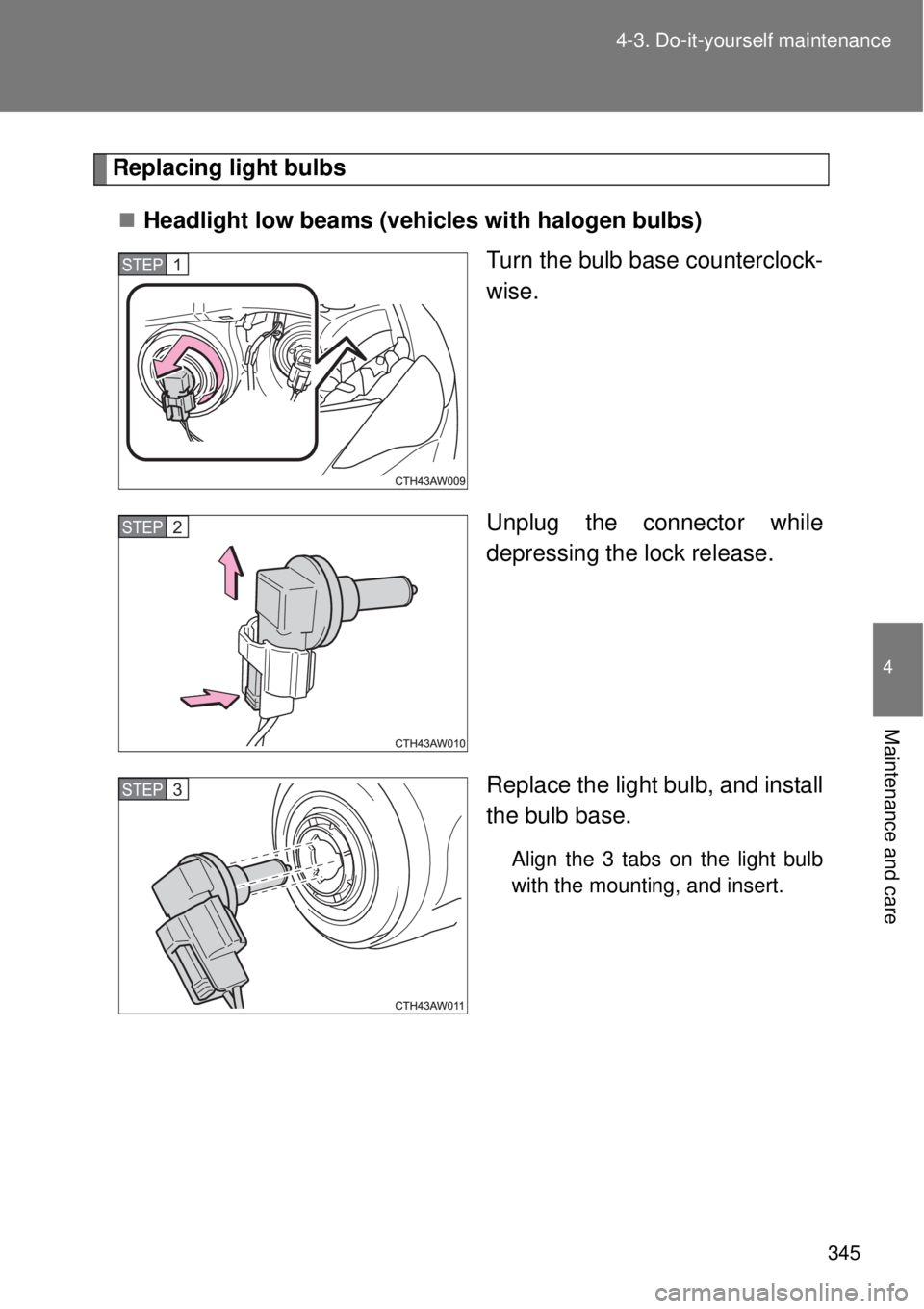

Replacing light bulbs
Headlight low beams (vehicles with halogen bulbs)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP 1
STEP 2
STEP 3

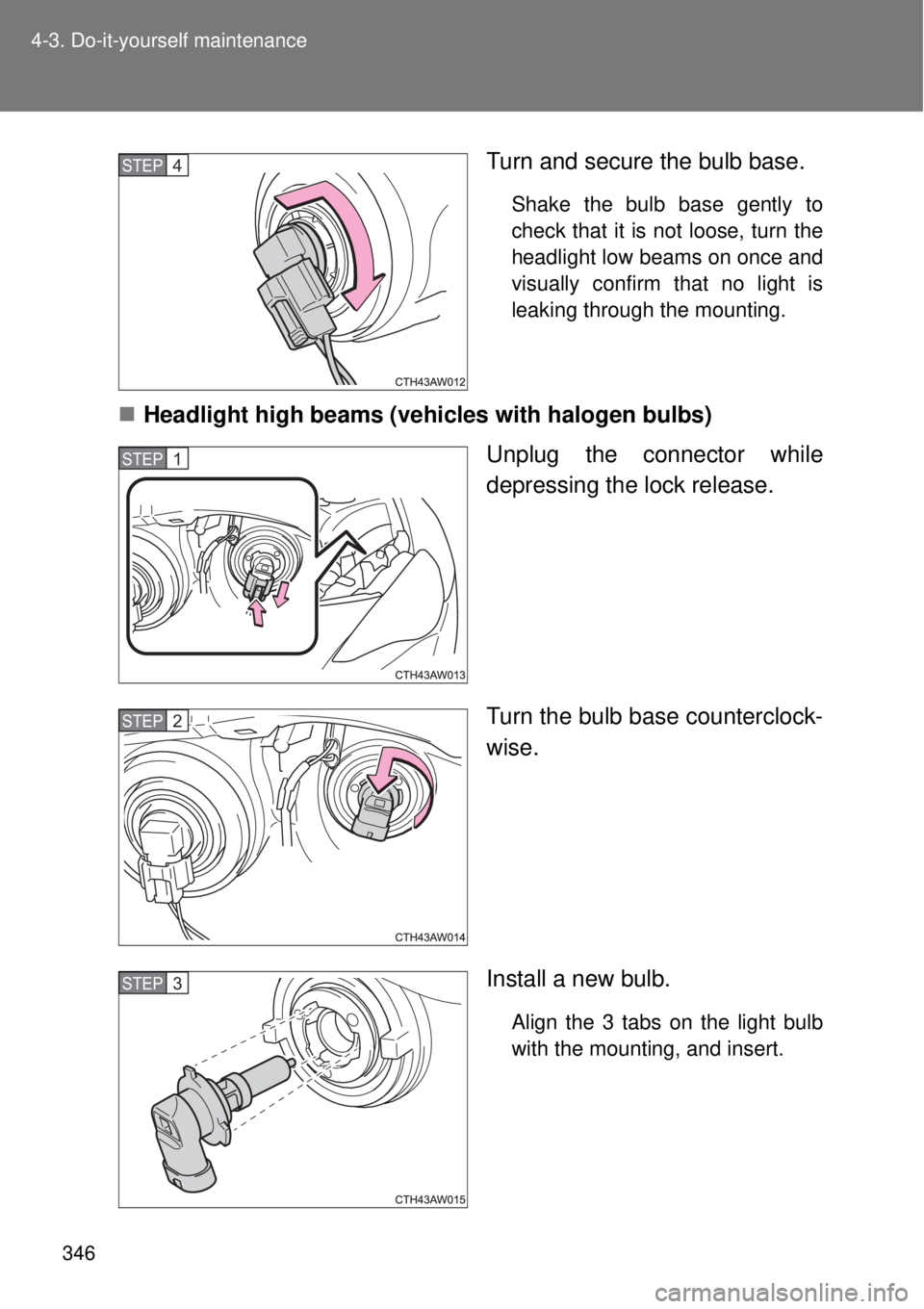

346 4-3. Do-it-yourself maintenance
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beams on once and
visually confirm that no light is
leaking through the mounting.
Headlight high beams (vehicles with halogen bulbs)
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Install a new bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
STEP 4
STEP 1
STEP 2
STEP 3

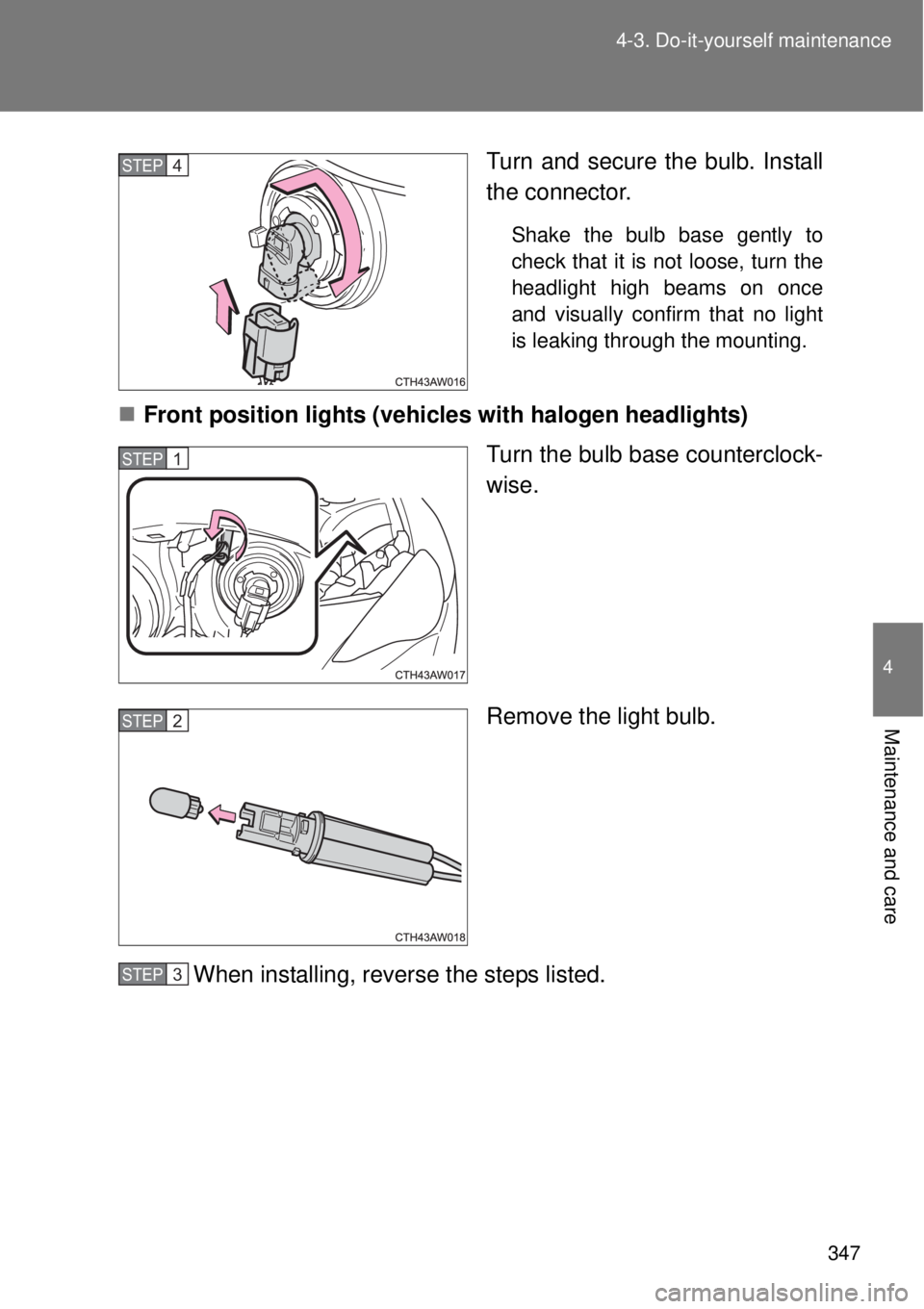

347 4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beams on once
and visually confirm that no light
is leaking through the mounting.
Front position lights (vehicles with halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 4
STEP 1
STEP 2
STEP 3

358 4-3. Do-it-yourself maintenance
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight high and low beams (discharge bulb)
Front position lights (vehicle with discharge headlights)
Daytime running lights (vehicle with discharge headlights)
Stop/tail lights
High mounted stoplight
Door courtesy lights
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional for more information in
the following situations:
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The front position lights (vehicles with discharge headlights), stop/tail lights
and high mounted stoplight consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.

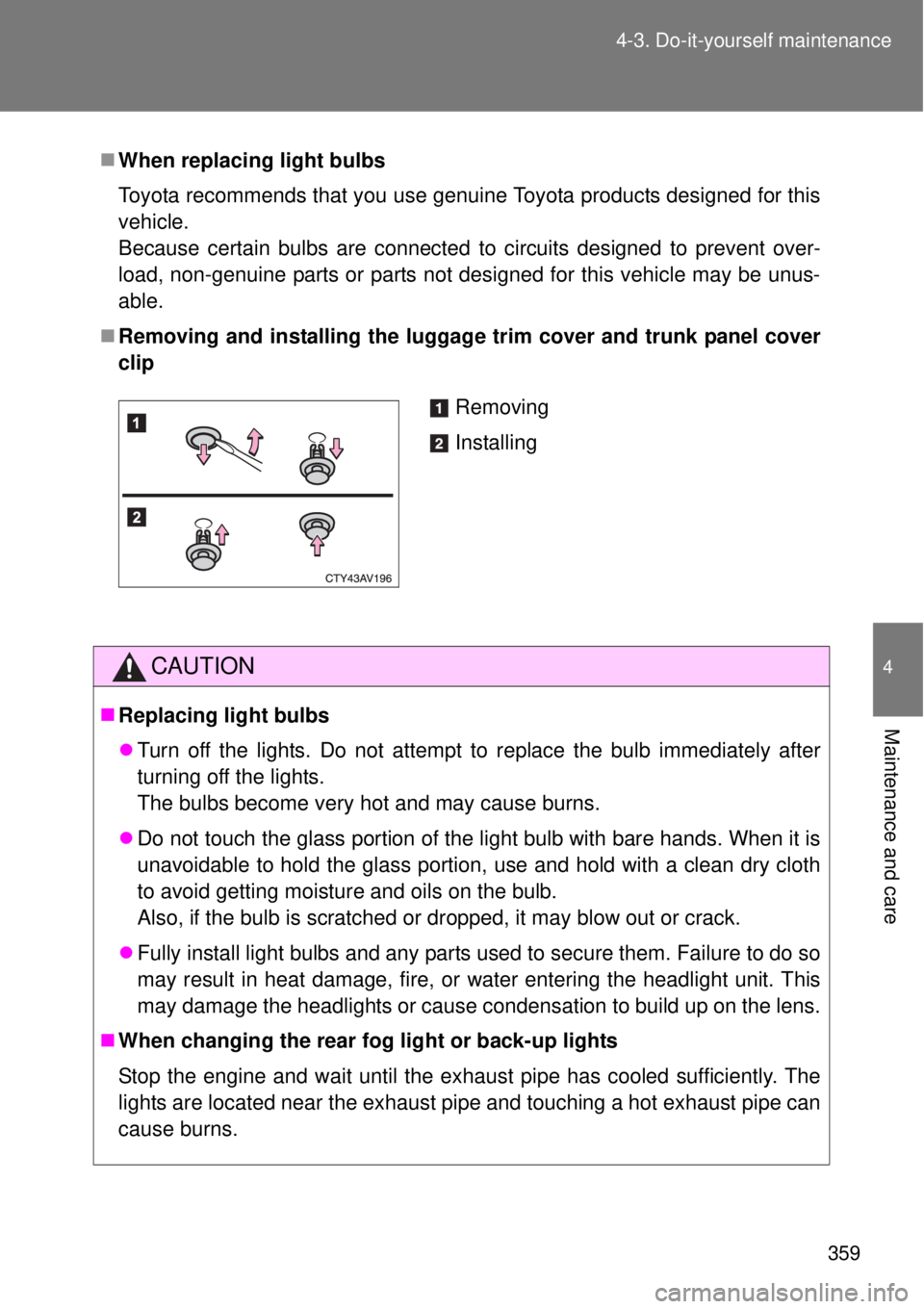

359 4-3. Do-it-yourself maintenance
4
Maintenance and care
When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
Removing and installing the luggage trim cover and trunk panel cover
clip
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
When changing the rear fog light or back-up lights
Stop the engine and wait until the exhaust pipe has cooled sufficiently. The
lights are located near the exhaust pipe and touching a hot exhaust pipe can
cause burns.
Removing
Installing

360 4-3. Do-it-yourself maintenance
CAUTION
Discharge headlights (if equipped)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 25000 V will be discharged and could result
in serious injury or death by electric shock.
Do not attempt to take apart or repair the low beam discharge headlight
bulbs, connectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
To prevent damage or fire
Make sure bulbs are fully seated and locked.

444 6-1. Specifications
Light bulbs
A: D4S discharge bulbs B: H11 halogen bulbs
C: Wedge base bulbs (amber) D: HB3 halogen bulbs
E: Wedge base bulbs (clear) F: Double end bulbs
G: H8 halogen bulbs
Light BulbsWTy p e
ExteriorHeadlights
High beam (halogen bulbs)
Low/high beam (discharge bulbs)
Low beam (halogen bulbs)60
35
55D
A
B
Front turn signal lights 21 C
Front position lights (vehicles with halogen
headlights)5E
Daytime running lights 13
Front fog lights (vehicles with discharge head-
lights)24
Front fog lights (vehicles with halogen head-
lights) (if equipped)35 G
Rear turn signal lights 21 C
Back-up lights 16 E
Rear fog lights 21 E
License plate lights 5 E
Side turn signal lights 5 C
InteriorVanity lights (if equipped) 2 F
Interior light 10 F
Door courtesy lights (if equipped) 5 C
Trunk light (if equipped) 5 C
