2015 TOYOTA AVENSIS lock

1643-2. Opening, closing and locking the doors
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 164 Thursday, January 29, 2015 1:47 PM

1653-2. Opening, closing and locking the doors
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. ( →P. 149)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling the entry function.
AVENSIS_OM_OM20C20E_(EE).book Page 165 Thursday, January 29, 2015 1:47 PM

1673-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Manual seat: After adjusting the seat, make sure that the seat is locked in
position.
AVENSIS_OM_OM20C20E_(EE).book Page 167 Thursday, January 29, 2015 1:47 PM

1683-3. Adjusting the seats
AVENSIS_OM_OM20C20E_(EE)

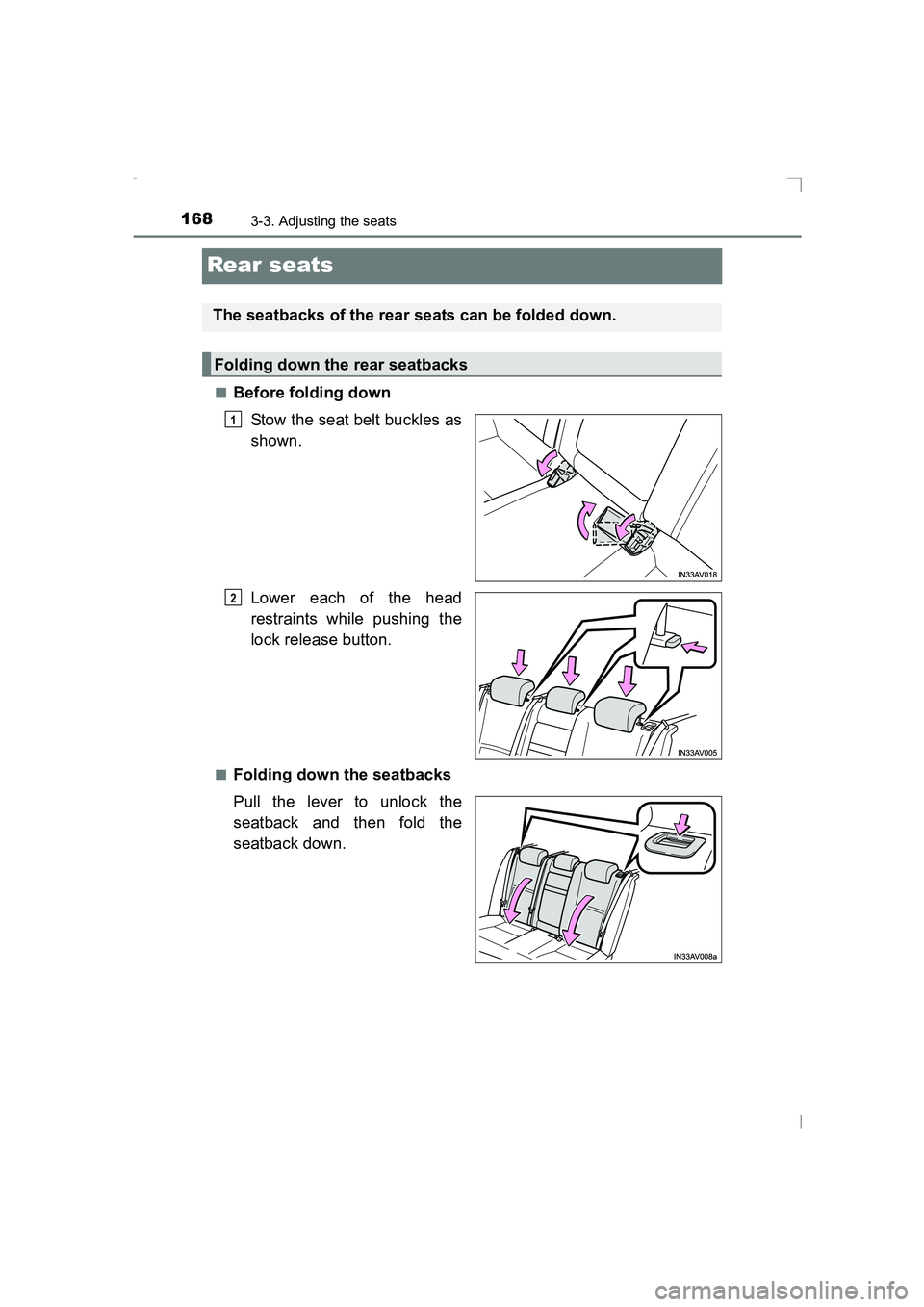

Rear seats
■Before folding downStow the seat belt buckles as
shown.
Lower each of the head
restraints while pushing the
lock release button.
■Folding down the seatbacks
Pull the lever to unlock the
seatback and then fold the
seatback down.
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 168 Thursday, January 29, 2015 1:47 PM

1693-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)
■Returning the seatbacks (sedan)
Tilt the seatback up until it locks, making
sure that you hold the seat belt to prevent
it from getting caught between the seat-
back and the inner side of the vehicle.
Make sure the shoulder belt passes
through the guide and that the seat belt
is in position before folding down the
seat when returning the seatback up.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■ When folding the rear seatbacks down
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (Multidrive) or N (manual transmission).
● Do not allow anyone to sit on a folded seatback, or in the trunk/luggage
compartment while driving.
● Do not allow children to enter the trunk/luggage compartment.
■ After returning the rear seatbacks to the upright position
●Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■ Stowing the seat belt buckles
The rear seat belt buckles and the armrest must be stowed before you fold
down the rear seatbacks. ( →P. 168, 419)
■ When the rear right seatback is folded down (sedan)
Make sure the luggage loaded in the enlarged trunk will not damage the
webbing of the rear center seat belt.
● Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.
AVENSIS_OM_OM20C20E_(EE).book Page 169 Thursday, January 29, 2015 1:47 PM

1723-3. Adjusting the seats
AVENSIS_OM_OM20C20E_(EE)

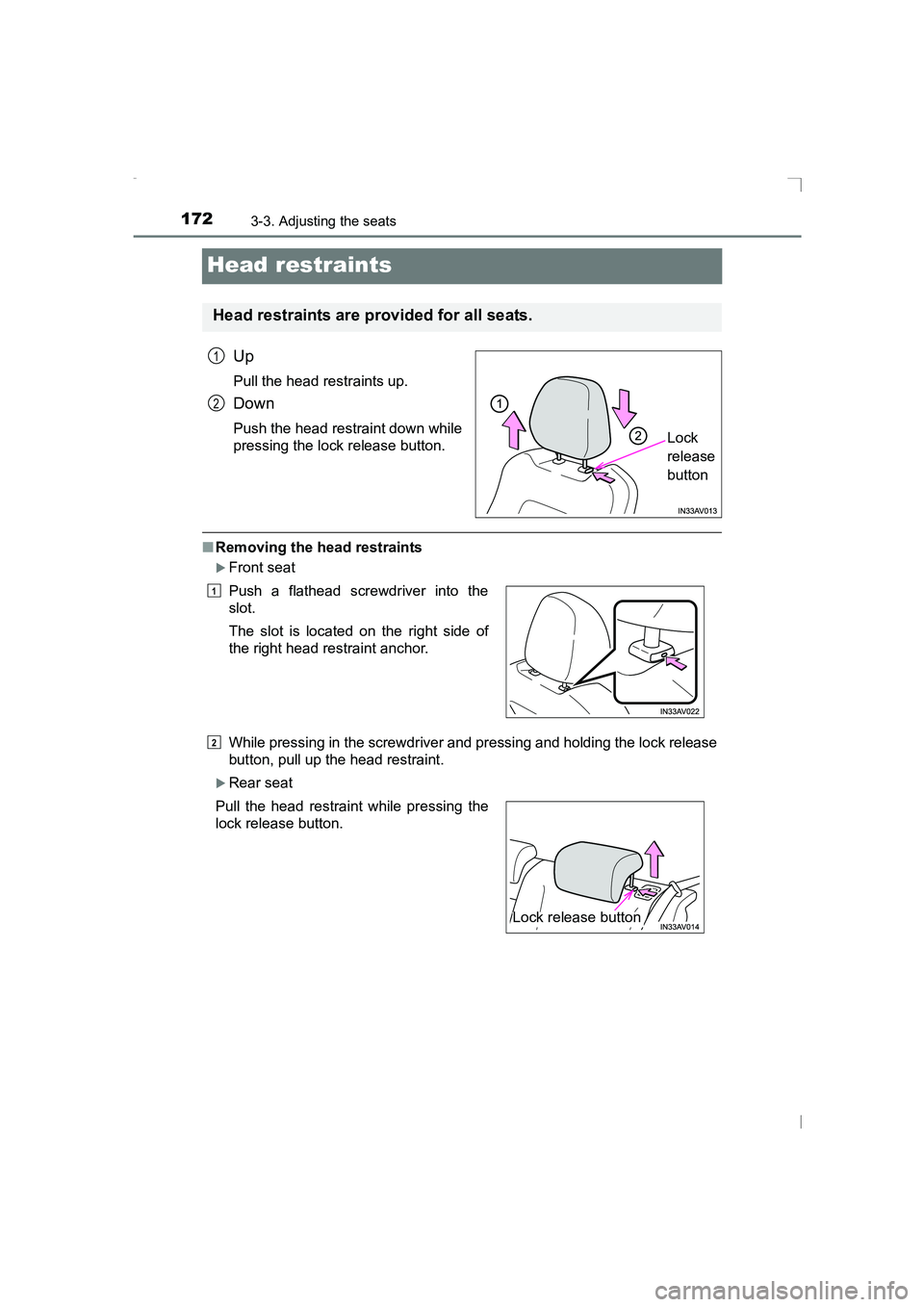

Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
XFront seat
While pressing in the screwdriver and pressing and holding the lock release
button, pull up the head restraint.
XRear seat
Head restraints are provided for all seats.
Lock
release
button
1
2
Push a flathead screwdriver into the
slot.
The slot is located on the right side of
the right head restraint anchor.
Pull the head restraint while pressing the
lock release button.1
2
Lock release button
AVENSIS_OM_OM20C20E_(EE).book Page 172 Thursday, January 29, 2015 1:47 PM

1733-3. Adjusting the seats
3
Operation of each component
AVENSIS_OM_OM20C20E_(EE)■
Installing the head restraints
■ Adjusting the height of the head restraints (front seats)
■ Adjusting the rear seat head restraint Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Always raise the head restraint one level
from the stowed position when using.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
AVENSIS_OM_OM20C20E_(EE).book Page 173 Thursday, January 29, 2015 1:47 PM

1743-4. Adjusting the steering wheel and mirrors
AVENSIS_OM_OM20C20E_(EE)
Steering wheel
Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
1
2
Horn
