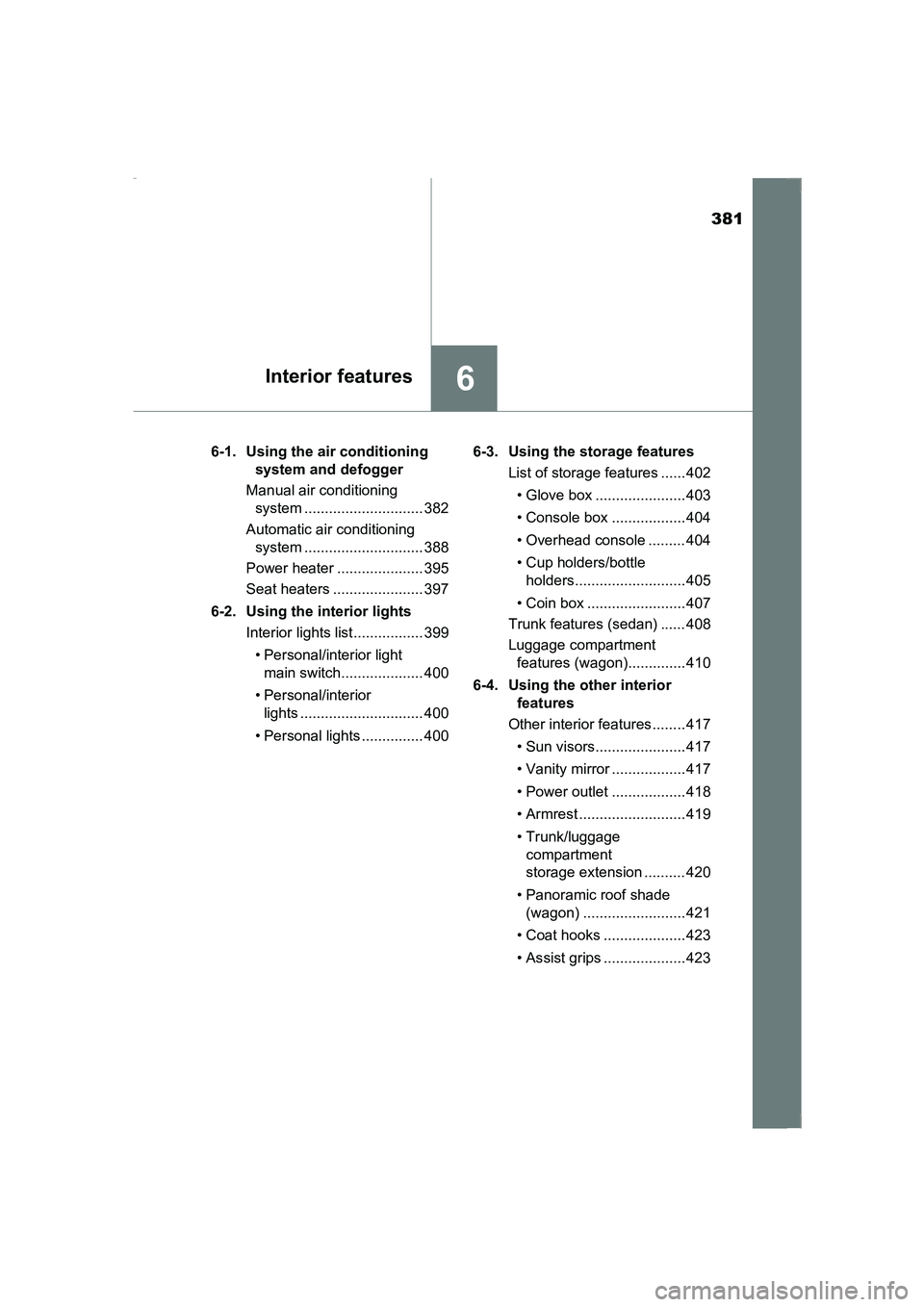

2015 TOYOTA AVENSIS lights

381
6Interior features
AVENSIS_OM_OM20C20E_(EE)6-1. Using the air conditioning
system and defogger
Manual air conditioning system ............................. 382
Automatic air conditioning system ............................. 388
Power heater ..................... 395
Seat heaters ...................... 397
6-2. Using the interior lights Interior lights list................. 399
• Personal/interior light main switch.................... 400
• Personal/interior lights .............................. 400
• Personal lights ............... 400 6-3. Using the storage features
List of storage features ...... 402
• Glove box ...................... 403
• Console box .................. 404
• Overhead console ......... 404
• Cup holders/bottle holders........................... 405
• Coin box ........................ 407
Trunk features (sedan) ...... 408
Luggage compartment features (wagon).............. 410
6-4. Using the other interior features
Other interior features ........ 417
• Sun visors...................... 417
• Vanity mirror .................. 417
• Power outlet .................. 418
• Armrest .......................... 419
• Trunk/luggage compartment
storage extension .......... 420
• Panoramic roof shade (wagon) ......................... 421
• Coat hooks .................... 423
• Assist grips .................... 423
AVENSIS_OM_OM20C20E_(EE).book Page 381 Thursday, January 29, 2015 1:47 PM

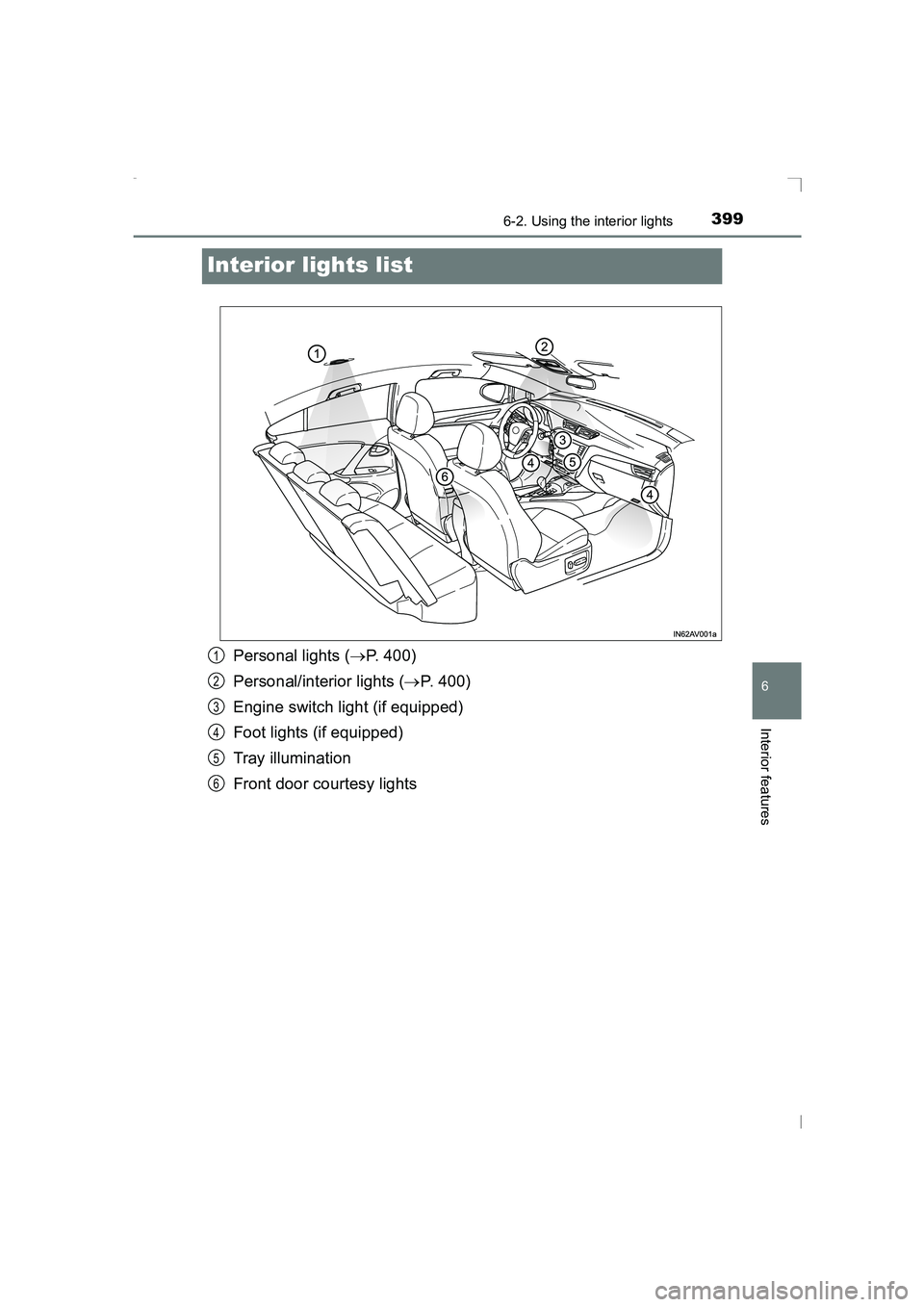

3996-2. Using the interior lights
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Interior lights list
Personal lights (→P. 400)
Personal/interior lights ( →P. 400)
Engine switch light (if equipped)
Foot lights (if equipped)
Tray illumination
Front door courtesy lights1
2
3
4
5
6
AVENSIS_OM_OM20C20E_(EE).book Page 399 Thursday, January 29, 2015 1:47 PM

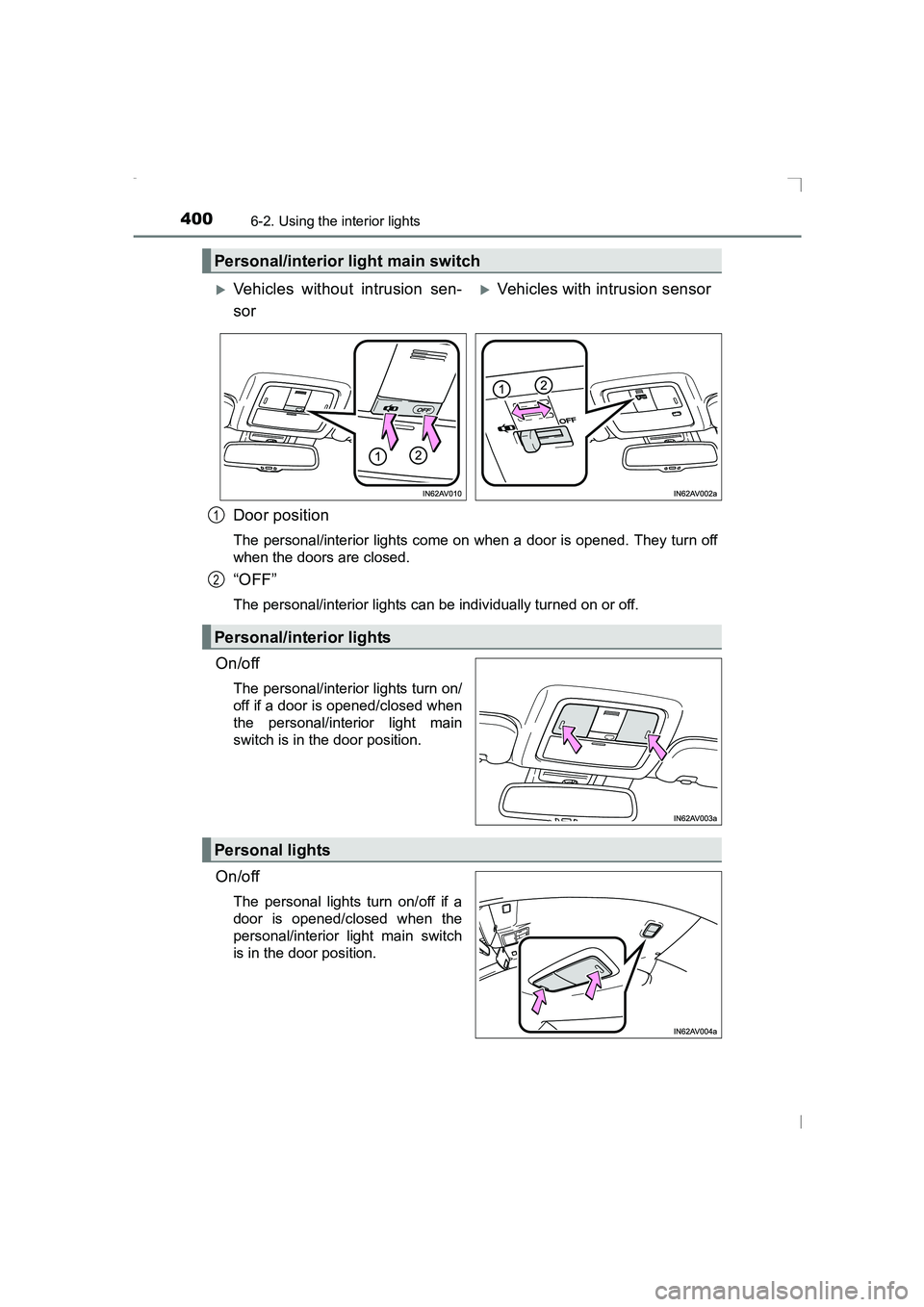

4006-2. Using the interior lights
AVENSIS_OM_OM20C20E_(EE)
Door position
The personal/interior lights come on when a door is opened. They turn off
when the doors are closed.
“OFF”
The personal/interior lights can be individually turned on or off.
On/off
The personal/interior lights turn on/
off if a door is opened/closed when
the personal/interior light main
switch is in the door position.
On/off
The personal lights turn on/off if a
door is opened/closed when the
personal/interior light main switch
is in the door position.
Personal/interior light main switch
XVehicles without intrusion sen-
sorXVehicles with intrusion sensor
Personal/interior lights
1
2
Personal lights
AVENSIS_OM_OM20C20E_(EE).book Page 400 Thursday, January 29, 2015 1:47 PM

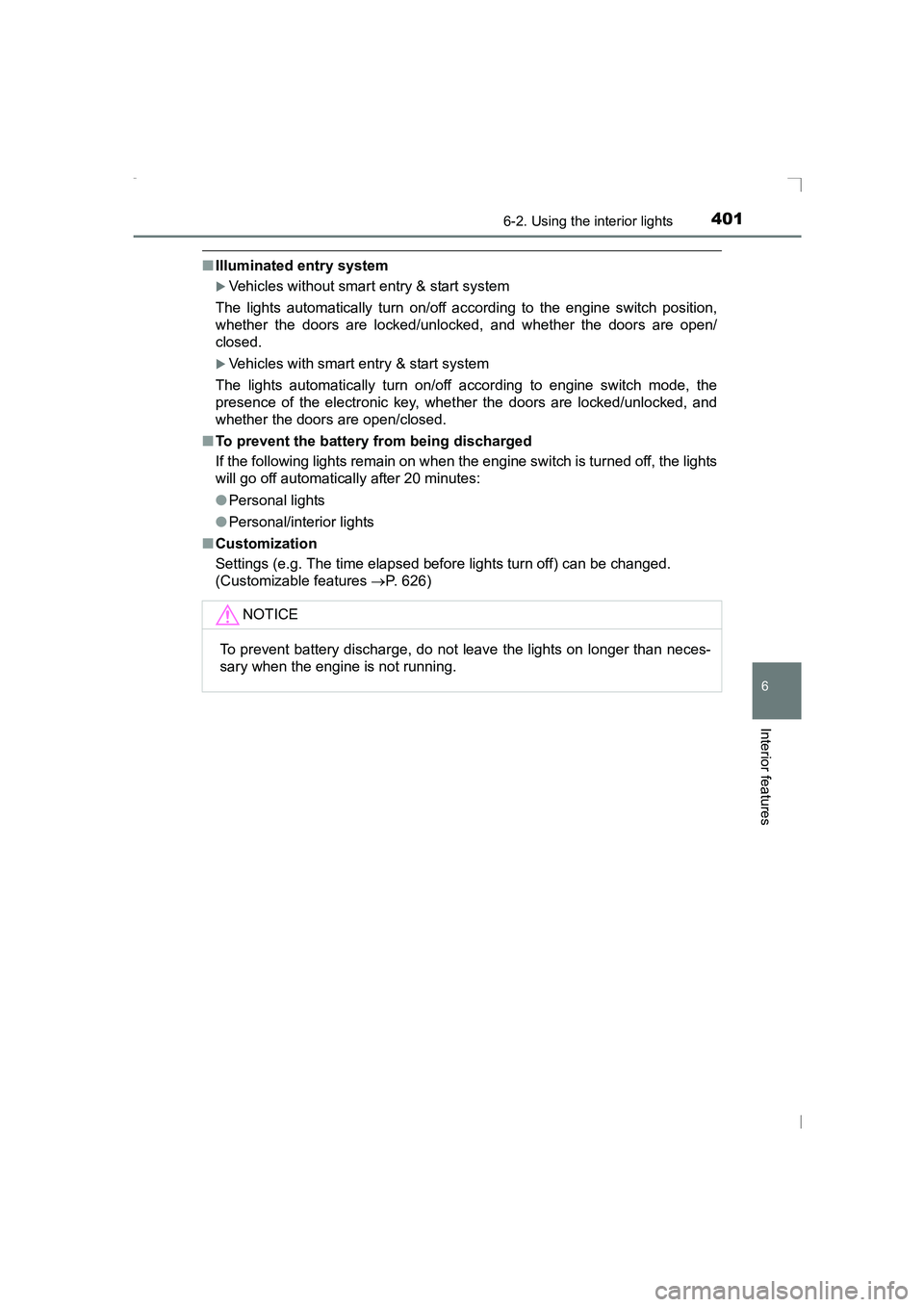

4016-2. Using the interior lights
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
■Illuminated entry system
XVehicles without smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
XVehicles with smart entry & start system
The lights automatically turn on/off according to engine switch mode, the
presence of the electronic key, whet her the doors are locked/unlocked, and
whether the doors are open/closed.
■ To prevent the battery from being discharged
If the following lights remain on when the engine switch is turned off, the lights
will go off automatically after 20 minutes:
●Personal lights
● Personal/interior lights
■ Customization
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features →P. 626)
NOTICE
To prevent battery discharge, do not leave the lights on longer than neces-
sary when the engine is not running.
AVENSIS_OM_OM20C20E_(EE).book Page 401 Thursday, January 29, 2015 1:47 PM

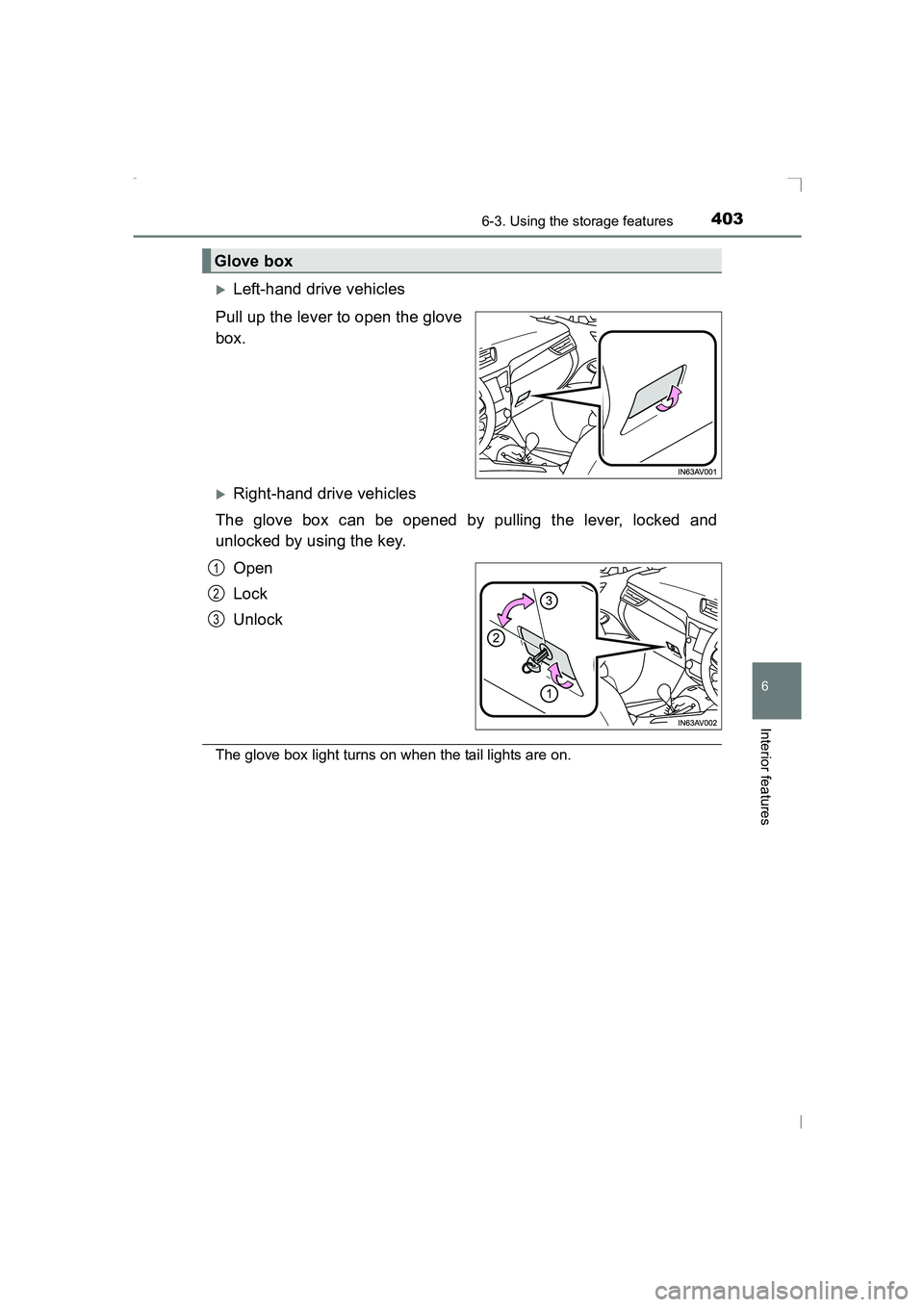

4036-3. Using the storage features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
XLeft-hand drive vehicles
Pull up the lever to open the glove
box.
XRight-hand drive vehicles
The glove box can be opened by pulling the lever, locked and
unlocked by using the key.
Open
Lock
Unlock
The glove box light turns on when the tail lights are on.
Glove box
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 403 Thursday, January 29, 2015 1:47 PM

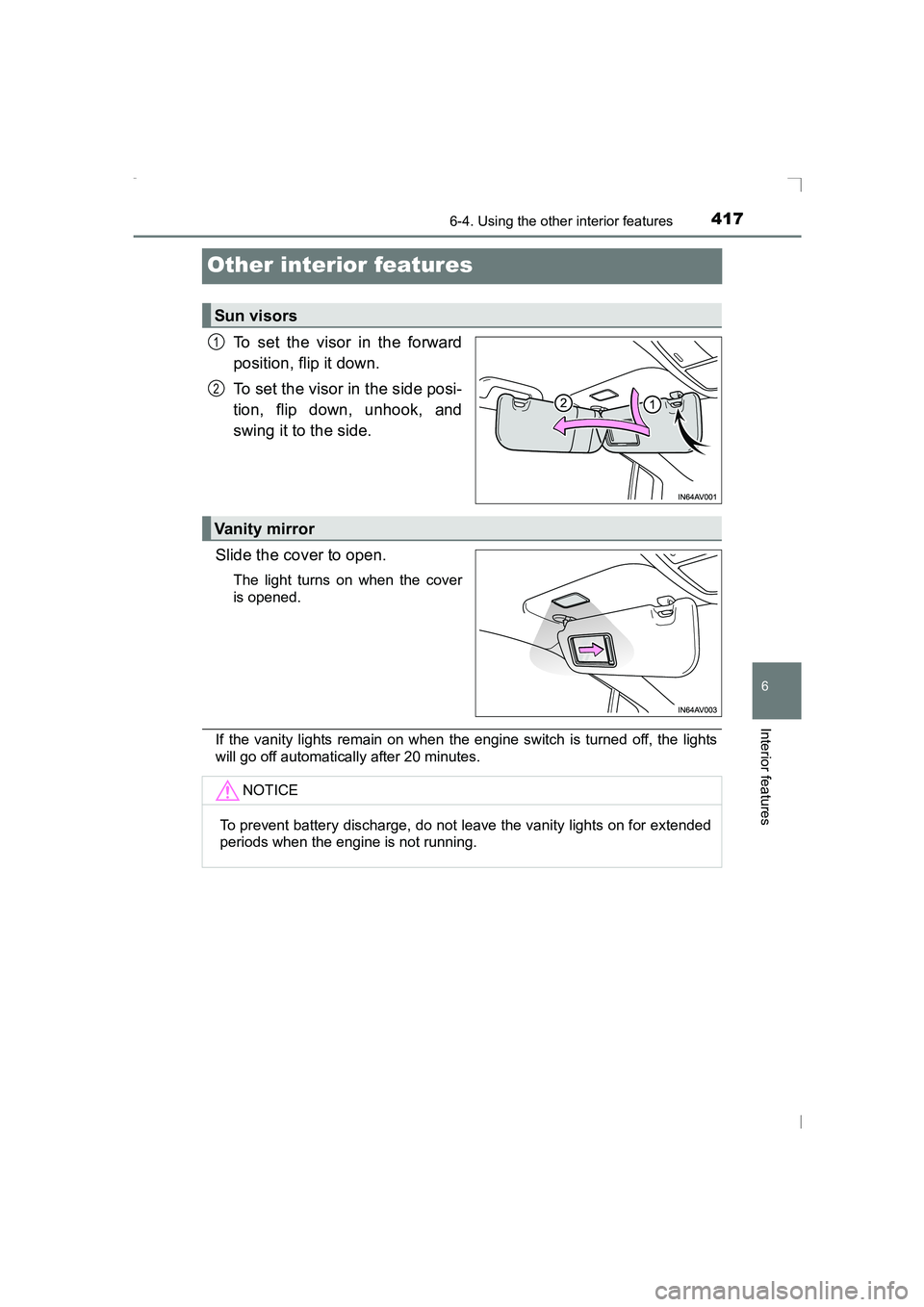

4176-4. Using the other interior features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity lights remain on when the engine switch is turned off, the lights
will go off automatically after 20 minutes.
Sun visors
1
2
Vanity mirror
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended
periods when the engine is not running.
AVENSIS_OM_OM20C20E_(EE).book Page 417 Thursday, January 29, 2015 1:47 PM

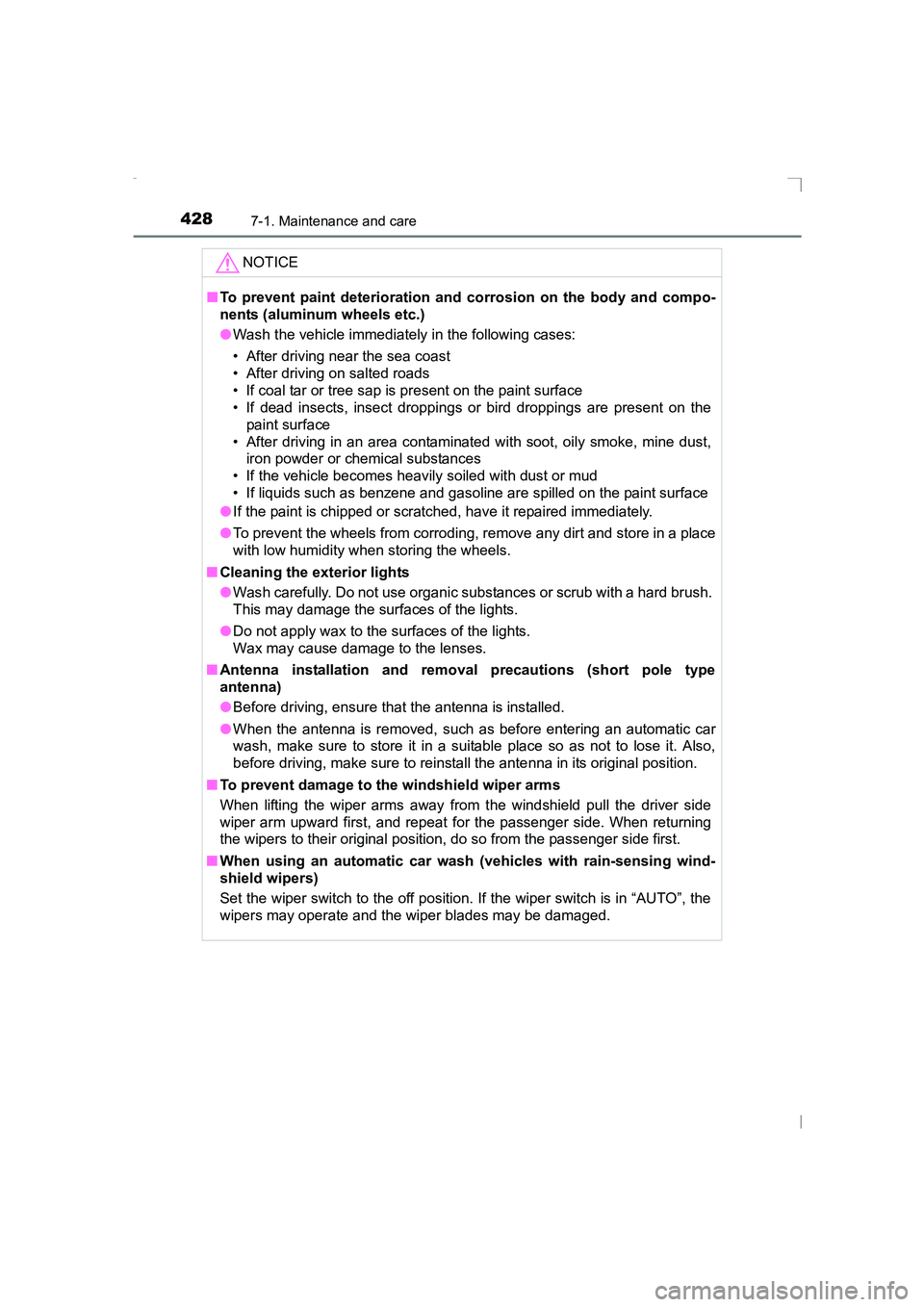

4287-1. Maintenance and care
AVENSIS_OM_OM20C20E_(EE)NOTICE
■
To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■ Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■ Antenna installation and removal precautions (short pole type
antenna)
●Before driving, ensure that the antenna is installed.
● When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.
■ To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
■ When using an automatic car wash (vehicles with rain-sensing wind-
shield wipers)
Set the wiper switch to the off position. If the wiper switch is in “AUTO”, the
wipers may operate and the wiper blades may be damaged.
AVENSIS_OM_OM20C20E_(EE).book Page 428 Thursday, January 29, 2015 1:47 PM

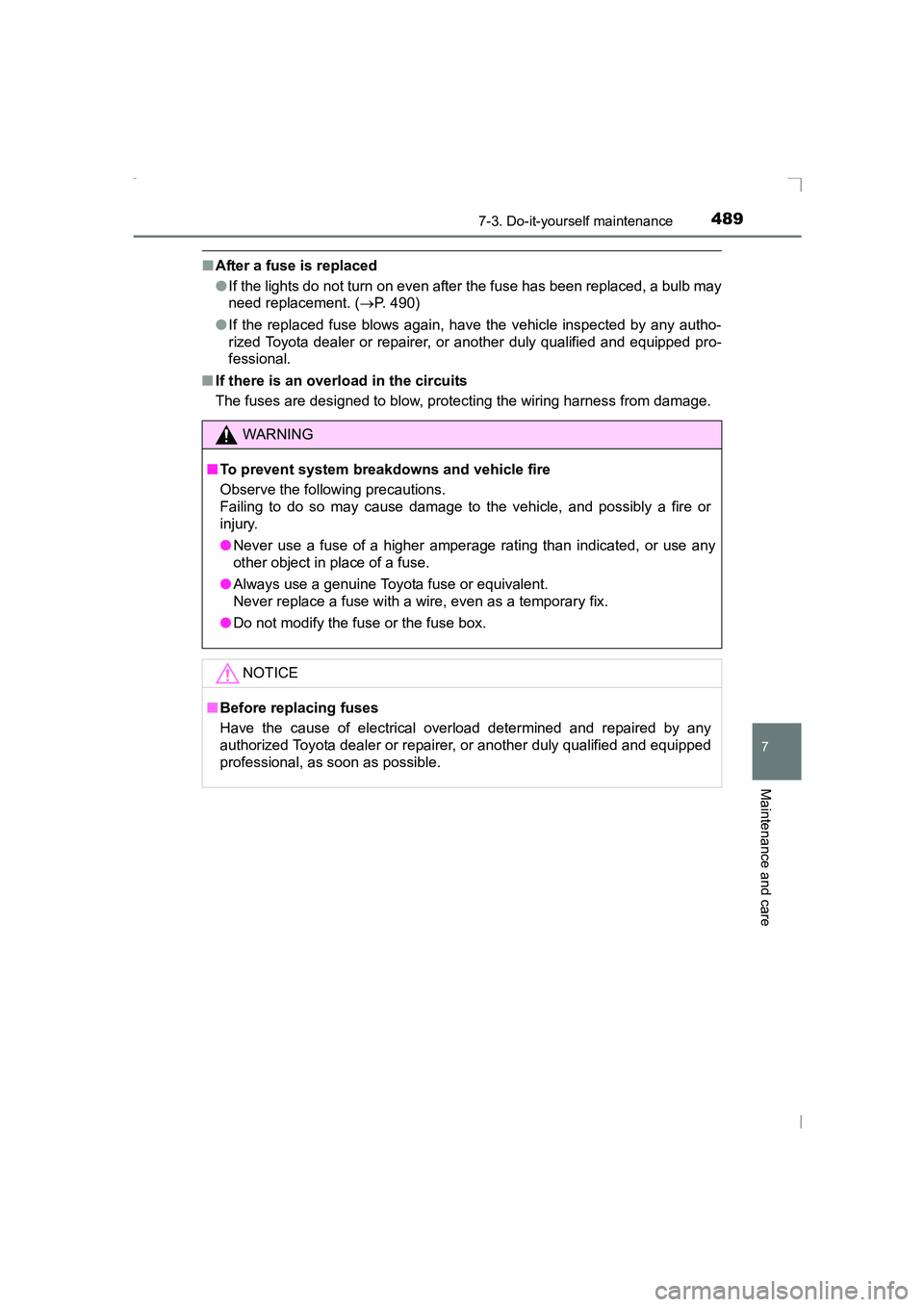

4897-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 490)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, as soon as possible.
AVENSIS_OM_OM20C20E_(EE).book Page 489 Thursday, January 29, 2015 1:47 PM
