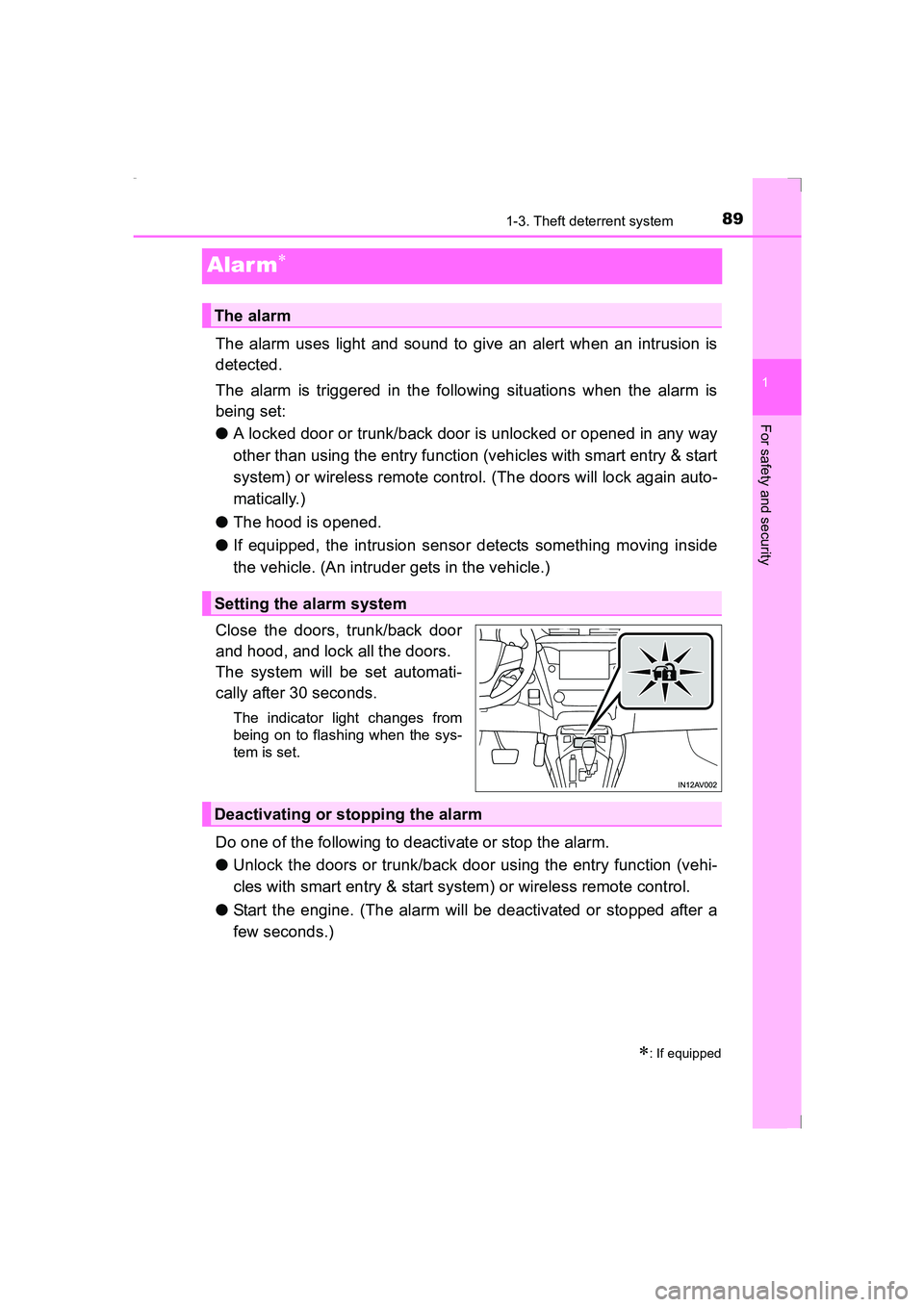

1-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
For safety and security
Alar m∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
being set:
●A locked door or trunk/back door is unlocked or opened in any way
other than using the entry function (vehicles with smart entry & start
system) or wireless remote control. (The doors will lock again auto-
matically.)
● The hood is opened.
● If equipped, the intrusion sensor detects something moving inside
the vehicle. (An intruder gets in the vehicle.)
Close the doors, trunk/back door
and hood, and lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm.
● Unlock the doors or trunk/back door using the entry function (vehi-
cles with smart entry & start system) or wireless remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
∗: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm
AVENSIS_OM_OM20C20E_(EE).book Page 89 Thursday, January 29, 2 015 1:47 PM

992. Instrument cluster
2
Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

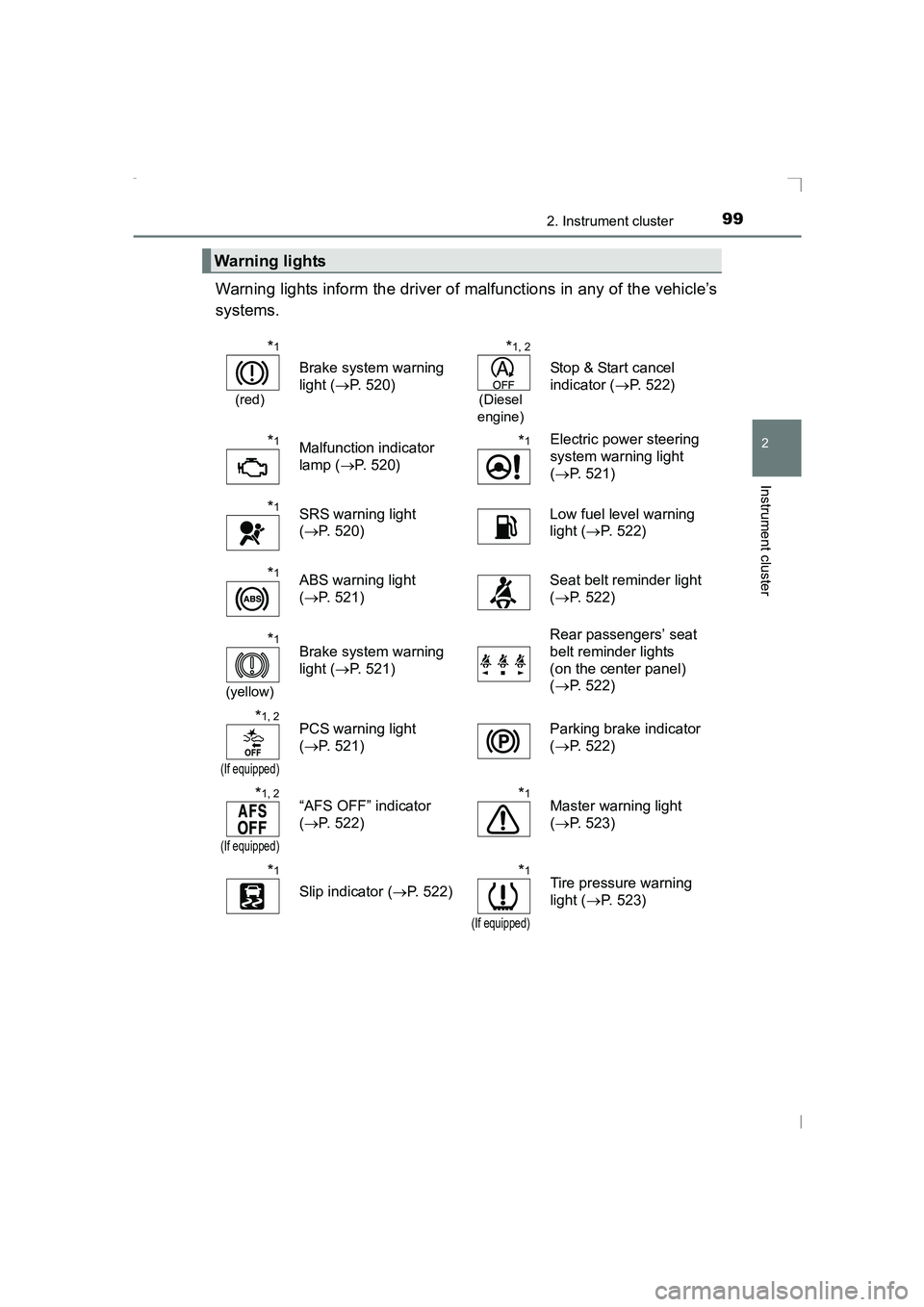

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(red)
Brake system warning
light (→P. 520)
*1, 2
(Diesel
engine)
Stop & Start cancel
indicator ( →P. 522)
*1Malfunction indicator
lamp ( →P. 520)*1Electric power steering
system warning light
(→ P. 521)
*1SRS warning light
(→ P. 520) Low fuel level warning
light (
→P. 522)
*1ABS warning light
(→ P. 521) Seat belt reminder light
(
→ P. 522)
*1
(yellow)
Brake system warning
light ( →P. 521) Rear passengers’ seat
belt reminder lights
(on the center panel)
(
→ P. 522)
*1, 2
(If equipped)
PCS warning light
(→ P. 521) Parking brake indicator
(
→ P. 522)
*1, 2
(If equipped)
“AFS OFF” indicator
(→ P. 522)*1Master warning light
(→ P. 523)
*1
Slip indicator ( →P. 522)
*1
(If equipped)
Tire pressure warning
light ( →P. 523)
AVENSIS_OM_OM20C20E_(EE).book Page 99 Thursday, January 29, 2 015 1:47 PM

1012. Instrument cluster
2
Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

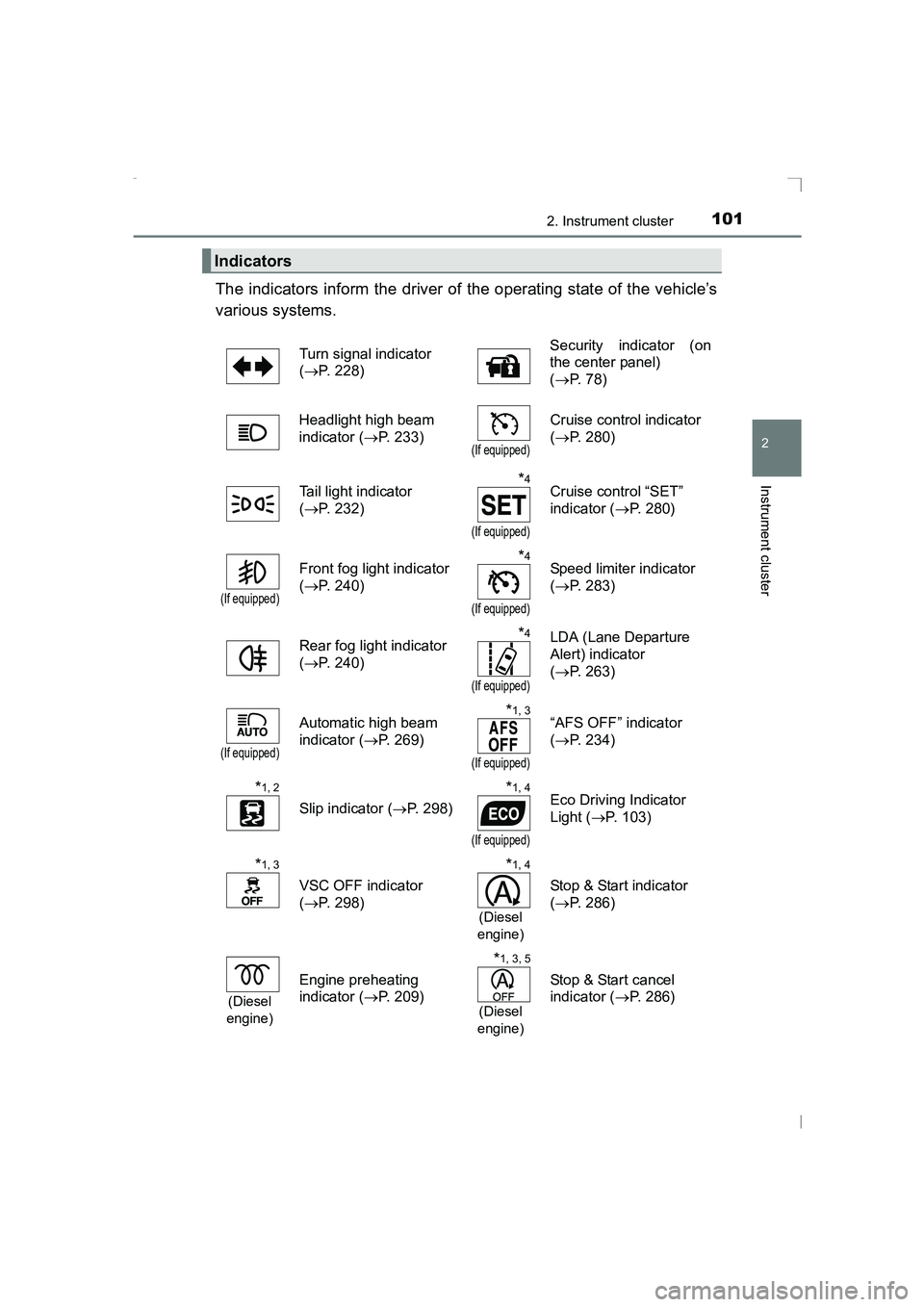

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(→ P. 228) Security indicator (on
the center panel)
(
→ P. 78)
Headlight high beam
indicator ( →P. 233)
(If equipped)
Cruise control indicator
(→ P. 280)
Tail light indicator
( → P. 232)
*4
(If equipped)
Cruise control “SET”
indicator ( →P. 280)
(If equipped)
Front fog light indicator
(→ P. 240)*4
(If equipped)
Speed limiter indicator
(→ P. 283)
Rear fog light indicator
( → P. 240)
*4
(If equipped)
LDA (Lane Departure
Alert) indicator
(→ P. 263)
(If equipped)
Automatic high beam
indicator ( →P. 269)*1, 3
(If equipped)
“AFS OFF” indicator
(→ P. 234)
*1, 2
Slip indicator ( →P. 298)
*1, 4
(If equipped)
Eco Driving Indicator
Light ( →P. 103)
*1, 3
VSC OFF indicator
(→ P. 298)
*1, 4
(Diesel
engine)
Stop & Start indicator
( → P. 286)
(Diesel
engine)
Engine preheating
indicator ( →P. 209)
*1, 3, 5
(Diesel
engine)
Stop & Start cancel
indicator ( →P. 286)
AVENSIS_OM_OM20C20E_(EE).book Page 101 Thursday, January 29, 2015 1:47 PM

1032. Instrument cluster
2
Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

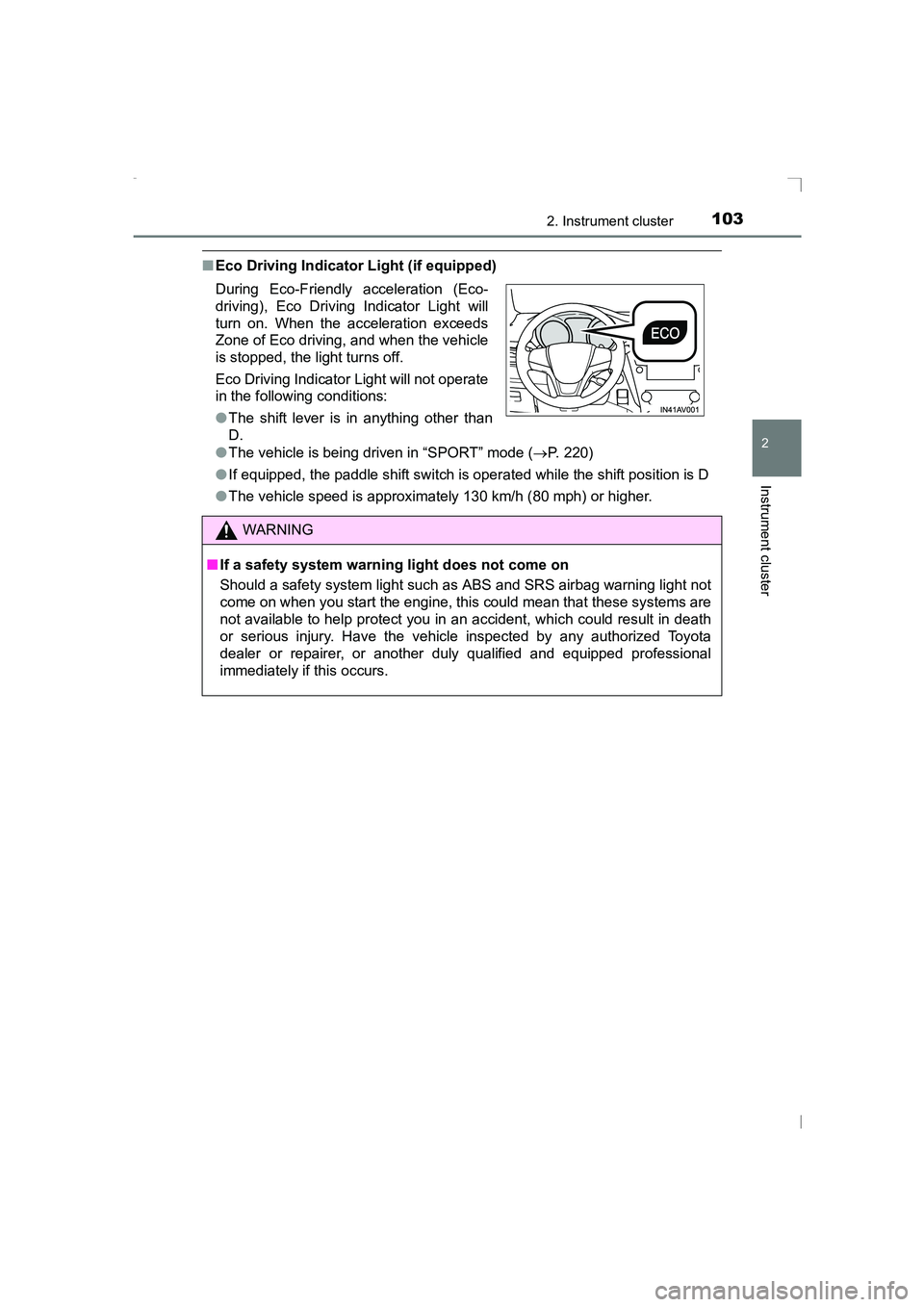

■Eco Driving Indicator Light (if equipped)
●The vehicle is being driven in “SPORT” mode ( →P. 220)
● If equipped, the paddle shift switch is operated while the shift position is D
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
During Eco-Friendly acceleration (Eco-
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light will not operate
in the following conditions:
●
The shift lever is in anything other than
D.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.
AVENSIS_OM_OM20C20E_(EE).book Page 103 Thursday, January 29, 2015 1:47 PM

1062. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

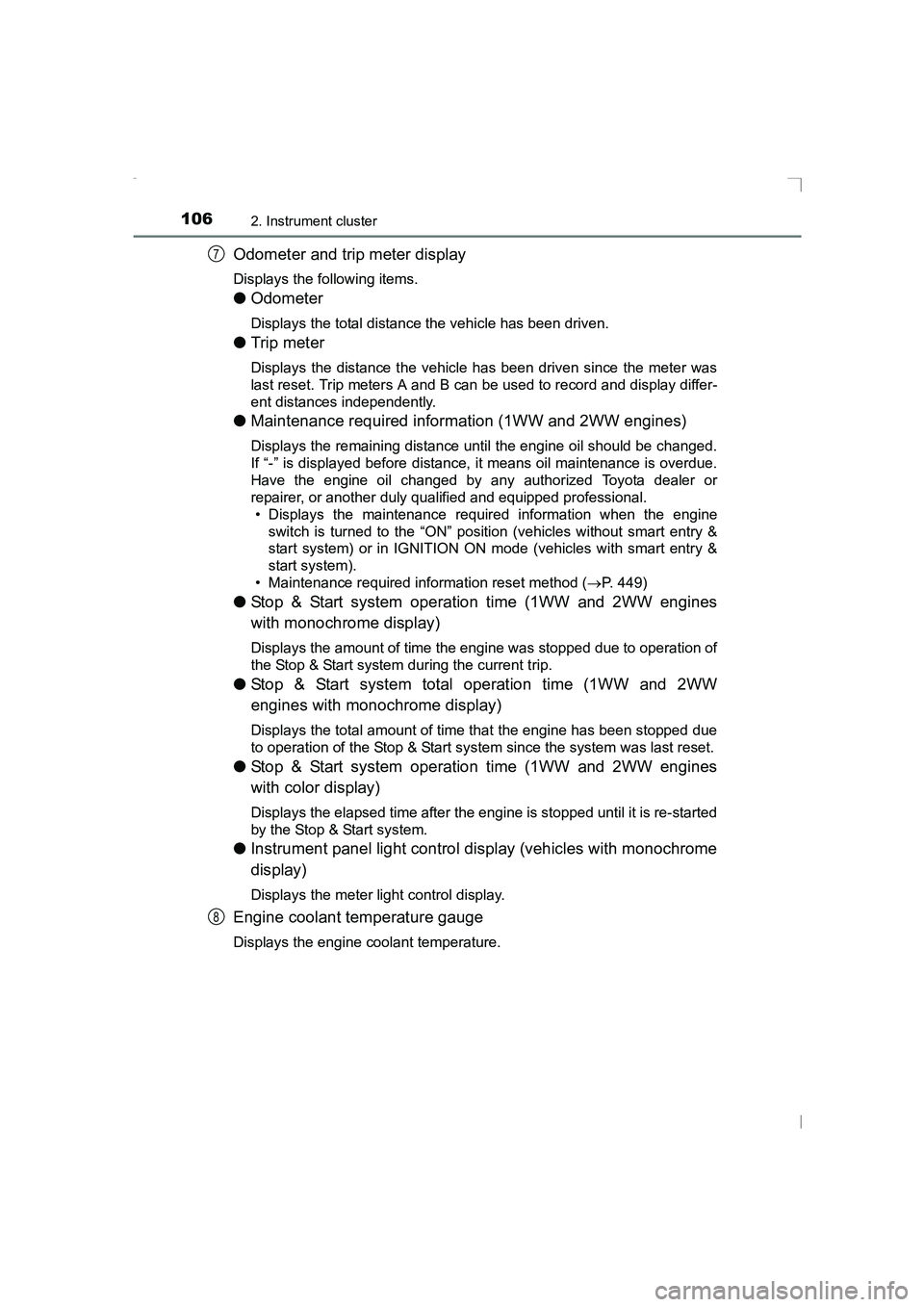

Odometer and trip meter display
Displays the following items.
●Odometer
Displays the total distance the vehicle has been driven.
●Trip meter
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
●Maintenance required information (1WW and 2WW engines)
Displays the remaining distance until the engine oil should be changed.
If “-” is displayed before distance, it means oil maintenance is overdue.
Have the engine oil changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
• Displays the maintenance required information when the engine switch is turned to the “ON” position (vehicles without smart entry &
start system) or in IGNITION ON mode (vehicles with smart entry &
start system).
• Maintenance required information reset method ( →P. 449)
● Stop & Start system operation time (1WW and 2WW engines
with monochrome display)
Displays the amount of time the engine was stopped due to operation of
the Stop & Start system during the current trip.
●Stop & Start system total operation time (1WW and 2WW
engines with monochrome display)
Displays the total amount of time that the engine has been stopped due
to operation of the Stop & Start system since the system was last reset.
●Stop & Start system operation time (1WW and 2WW engines
with color display)
Displays the elapsed time after the engine is stopped until it is re-started
by the Stop & Start system.
●Instrument panel light control display (vehicles with monochrome
display)
Displays the meter light control display.
Engine coolant temperature gauge
Displays the engine coolant temperature.
7
8
AVENSIS_OM_OM20C20E_(EE).book Page 106 Thursday, January 29, 2015 1:47 PM

1072. Instrument cluster
2
Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

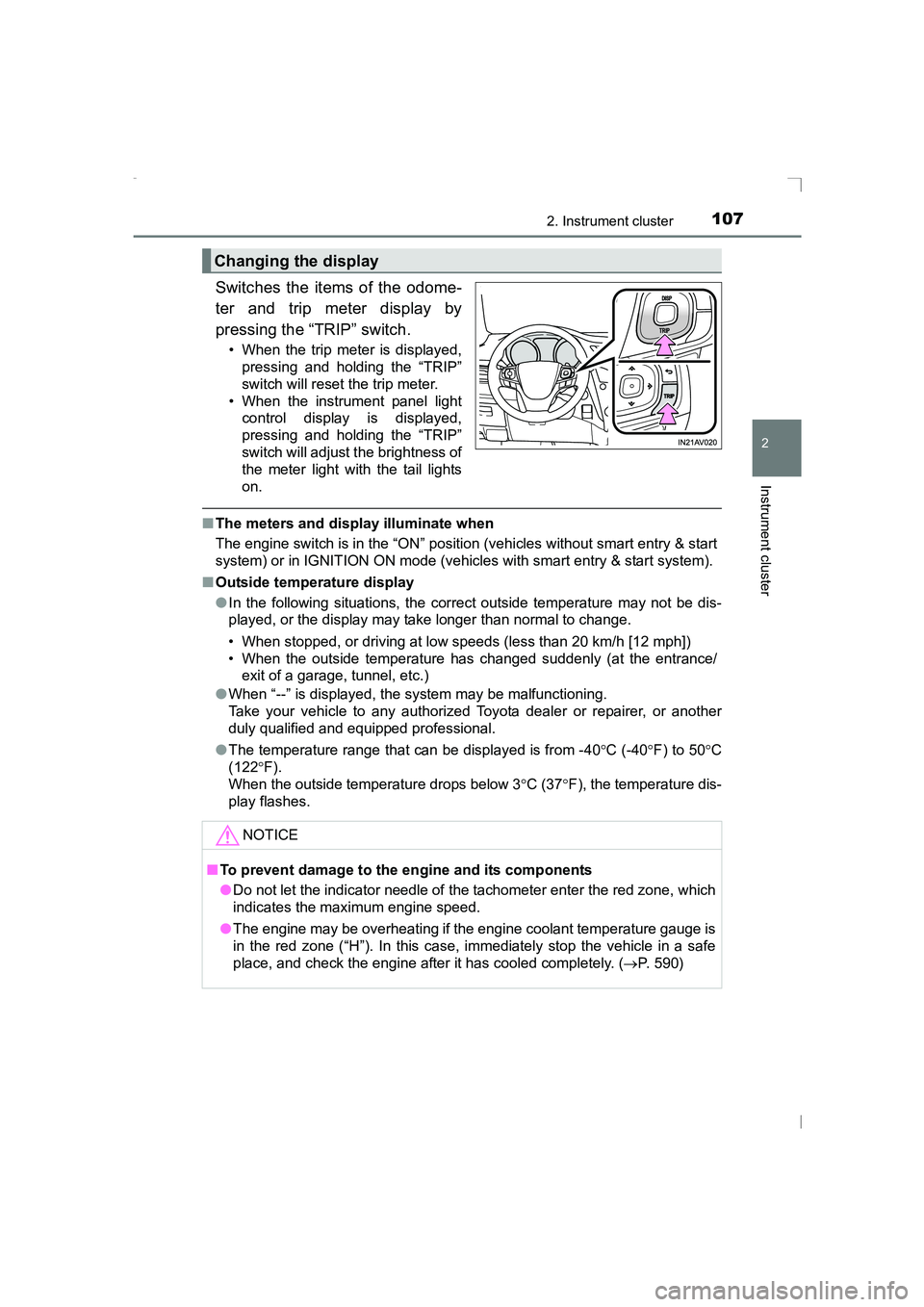

Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
• When the trip meter is displayed,pressing and holding the “TRIP”
switch will reset the trip meter.
• When the instrument panel light control display is displayed,
pressing and holding the “TRIP”
switch will adjust the brightness of
the meter light with the tail lights
on.
■The meters and display illuminate when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or in IGNITION ON mode (vehicles with smart entry & start system).
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
● The temperature range that can be displayed is from -40 °C (-40 °F) to 50 °C
(122 °F).
When the outside temperature drops below 3 °C (37 °F), the temperature dis-
play flashes.
Changing the display
NOTICE
■ To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( →P. 590)
AVENSIS_OM_OM20C20E_(EE).book Page 107 Thursday, January 29, 2015 1:47 PM

1092. Instrument cluster
2
Instrument cluster

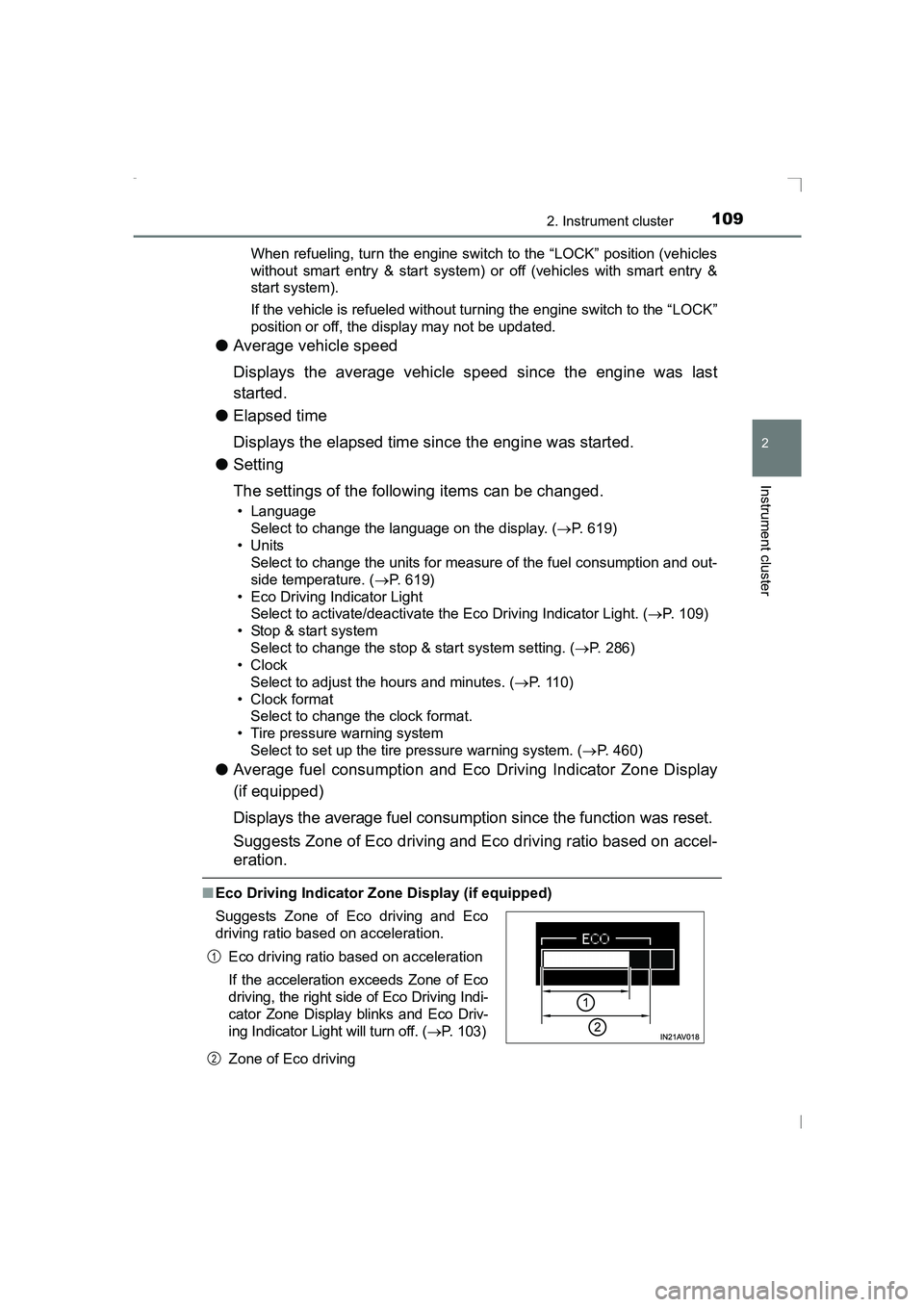

AVENSIS_OM_OM20C20E_(EE)When refueling, turn the engine switch to the “LOCK” position (vehicles
without smart entry & start system) or off (vehicles with smart entry &
start system).
If the vehicle is refueled without turning the engine switch to the “LOCK”
position or off, the display may not be updated.
●
Average vehicle speed
Displays the average vehicle speed since the engine was last
started.
● Elapsed time
Displays the elapsed time since the engine was started.
● Setting
The settings of the following items can be changed.
• Language
Select to change the language on the display. ( →P. 619)
•Units Select to change the units for measure of the fuel consumption and out-
side temperature. ( →P. 619)
• Eco Driving Indicator Light Select to activate/deactivate the Eco Driving Indicator Light. ( →P. 109)
• Stop & start system Select to change the stop & start system setting. ( →P. 286)
•Clock
Select to adjust the hours and minutes. ( →P. 110)
•Clock format Select to change the clock format.
• Tire pressure warning system Select to set up the tire pressure warning system. ( →P. 460)
● Average fuel consumption and Eco Driving Indicator Zone Display
(if equipped)
Displays the average fuel consumption since the function was reset.
Suggests Zone of Eco driving and Eco driving ratio based on accel-
eration.
■Eco Driving Indicator Zone Display (if equipped)
Zone of Eco driving
Suggests Zone of Eco driving and Eco
driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco
driving, the right side of Eco Driving Indi-
cator Zone Display blinks and Eco Driv-
ing Indicator Light will turn off. ( →P. 103)
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 109 Thursday, January 29, 2015 1:47 PM

1122. Instrument cluster
AVENSIS_OM_OM20C20E_(EE)

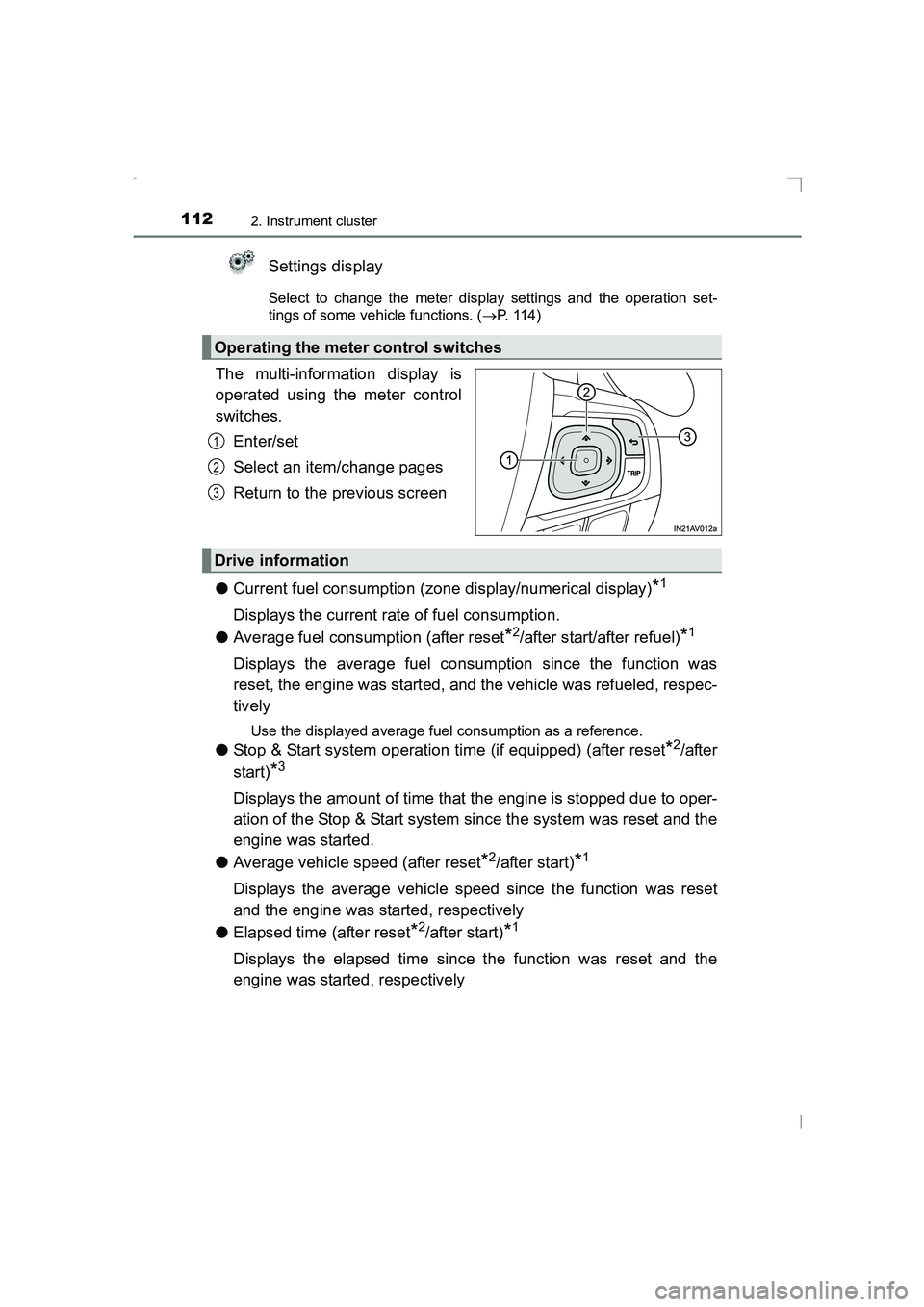

Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. (→P. 1 1 4 )
The multi-information display is
operated using the meter control
switches.
Enter/set
Select an item/change pages
Return to the previous screen
● Current fuel consumption (zone display/numerical display)
*1
Displays the current rate of fuel consumption.
● Average fuel consumption (after reset
*2/after start/after refuel)*1
Displays the average fuel consumption since the function was
reset, the engine was started, and the vehicle was refueled, respec-
tively
Use the displayed average fuel consumption as a reference.
●Stop & Start system operation time (if equipped) (after reset*2/after
start)
*3
Displays the amount of time that the engine is stopped due to oper-
ation of the Stop & Start system since the system was reset and the
engine was started.
● Average vehicle speed (after reset
*2/after start)*1
Displays the average vehicle speed since the function was reset
and the engine was started, respectively
● Elapsed time (after reset
*2/after start)*1
Displays the elapsed time since the function was reset and the
engine was started, respectively
Operating the meter control switches
1
2
3
Drive information
AVENSIS_OM_OM20C20E_(EE).book Page 112 Thursday, January 29, 2015 1:47 PM
