2015 SKODA SUPERB tailgate

Boot lid opening/closingFig. 44
Opening / closing tailgate
Read and observe
on page 58 first.
Opening
›
Press the button
A
in the direction of arrow
1
» Fig. 44 .
›
Raise the lid in the direction of the arrow
2
.
Closing
›
Grasp the mount
B
and lift in the direction of arrow
3
.
Delayed locking of the boot lid
Read and observe
on page 58 first.
If the boot lid is unlocked with the symbol key  on the key, then the door is
automatically locked after closing.
The period after which the boot lid is locked automatically can be extended by
a specialist garage.
CAUTION
There is a risk of unwanted entry into the vehicle before the boot lid is locked
automatically. We therefore recommend locking the vehicle with the symbol
key 
on the key.Electric boot lid
 Introduction
This chapter contains information on the following subjects:
Operating description
60
Set the top position of the lid
60
Malfunctions
61
Boot lid non-contact opening
61
The boot lid (hereinafter as lid) can be operated electrically and manual in the
event of an emergency » page 61.
If the lid hits an obstacle when opening or closing, it stops and an audible sig-
nal sounds. When closing the flap is lifted additionally.
WARNING■ Ensure that the lock is properly engaged after closing the lid. Otherwise,
the lid might open suddenly while the vehicle is moving, even if the lid was
locked – risk of accident!■
Never drive with the lid open or unlatched, as otherwise exhaust gases
may get into the interior of the vehicle – risk of poisoning!
■
Only open and close the lid when no one is in the opening/closing range –
risk of injury!
■
Make sure that no limbs are caught or crushed when closing the lid - risk
of injury!
CAUTION
Do not attempt to close the door manually during electrical closing process -
there is a risk of damaging the system of an electric valve operation.
CAUTION
■ Before opening or closing the lid, check if there are any objects in the open-
ing or closing range which could obstruct the movement (e.g. a load on the
roof rack or on the trailer, etc.) – risk of causing damage to the lid!■
In certain circumstances, if the lid is loaded (e.g. by a thick layer of snow), the
opening process of the lid can be interrupted. Remove the snow from the lid to
re-enable the electrical operation.
■
If the lid closes automatically (e.g. under load of snow), you will hear an inter-
mittent beep.
■
The flap is always to be close before disconnecting the battery.
59Unlocking and opening

Storage compartment in the rear centre consoleFig. 107
Open storage compartment,
open lockable storage compart-
ments
Read and observe on page 90 first.
In the rear centre console there is an equipment-dependent open storage
compartment
A
and a lockable storage compartment
B
» Fig. 107 .
The compartment
B
is equipped with an interior light which illuminates when
the parking or dipped head lights are on.
Compartment
B
open / close
›
Pull the handle on the upper section of the recess and open out the com-
partment in the direction of the arrow » Fig. 107.
Closing takes place in reverse order.
WARNINGNever use the storage compartment as an ashtray - risk of fire!
Storage compartment in the rear armrest
Fig. 108
Open storage compartment / interior of the compartment
Read and observe on page 90 first.
In the storage compartment there is a cup holder
B
, storage compartment for
the multimedia holder
C
as well as a pen holder
D
» Fig. 108 .
Open/close
›
Grasp the lid to the recess
A
» Fig. 108 .
›
Unfold the cover to the stop in the direction of arrow.
Closing takes place in reverse order.
Removable through-loading bag
Fig. 109
Tighten ribbon / secure through-loading bag
Read and observe
on page 90 first.
The removable through-loading bag (hereinafter referred to as a through-load-
ing bag) is used exclusively for transporting skis.
Stowing through-loading bag and skis
›
Open the tailgate.
›
Fold the rear armrest and the cover in the seat backrest downwards
» page 86 .
›
Place the empty through-loading bag in such a way that the end of the bag
with the zip is in the boot.
›
Push the skis into the through-loading bag from the boot » .
›
Close the through-loading bag.
Securing through-loading bag and skis
›
Tighten the strap
A
on the free end around the skis in front of the bindings
» Fig. 109 .
›
Fold the seat backrest a little forward. 

98Using the system

When transporting cargo the following the instructions must be adhered to
▶ When transporting heavy objects, the driving characteristics change due to
the shift in centre-of-gravity. The speed and style of driving must be adjus-
ted accordingly.
▶ The cargo is stowed in the luggage compartment. To prevent this from mov-
ing it should be secured with suitable lashing straps to the lashing eyes or
secured with fixing nets.
▶ Distribute loads as evenly as possible.
▶ Place heavy objects as far forward as possible.
▶ The transported items must be stowed in such a way that no objects are able
to slip forward on sudden driving or braking manoeuvres – risk of injury!
▶ Tyre pressure is to match the load.
▶ When transporting loads in the luggage compartment that has been en-
larged by folding the rear seats forward, ensure the safety of the passengers
transported on the other rear seats .
In the event of an accident, even small and light objects gain so much kinetic energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the
vehicle is travelling and the weight of the object.
Example: In the event of a frontal collision at a speed of 50 km/h, an object
with a weight of 4.5 kg produces an energy, which corresponds to 20 times its
own weight. This means that it results in a weight of approx. 90 kg “ ”.
Luggage compartment light
The warning light turns on when tailgate is opened.
The warning light turns off when the tailgate is closed.
If the boot lid is open and the ignition switched off, the light will extinguish
automatically after around 10 minutes.
The luggage compartment illumination using the removable lamp » page 114.WARNING■
Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc. Heavy objects were not secured sufficiently – risk of injury!■
If the cargo is tied down with unsuitable or damaged lashing straps, inju-
ries can occur in the event of braking manoeuvres or accidents.
■
Loose cargo can be thrown forward during a sudden manoeuvre or in case
of an accident and can injure the occupants or other road users.
■
Loose cargo could hit a deployed airbag and injure occupants – danger of
death!
CAUTION■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc. - these could be damaged.■
Make sure that transported objects with sharp edges do not damage the
threads of the following devices. ■Rear window heater.
■ Rear window with an integrated antenna.
■ Integrated antenna in the rear side windows.
Fastening elements
Fig. 127
Fastening elements: Variant 1/ Variant 2
Read and observe
and on page 106 first.
The fasteners are located on both sides of the luggage compartment.
Overview of the fastening elements » Fig. 127
Fastening elements for fastening fixing nets
Lashing eyes for fastening items of luggage and fixing nets
The maximum permissible load for the individual lashing eyes
B
is 350 kg.
For vehicles with the variable loading floor, the luggage can only be secured
using the eyelets
B
when the variable loading floor is in the lower position
» page 115 .
AB106Using the system

Removable lightFig. 143
Removable lamp
Fig. 144
Removable light: removing / Inserting
Read and observe
and on page 106 first.
The removable lamp (hereinafter referred to as a lamp) is located on the left side of the luggage compartment.
The lamp is for the illumination of the luggage compartment or it can be used
as a portable lamp.
The lamp is fitted with magnets. Thus after taking these out of the vehicle
they can for example be connected to the car body.
Description of the lamp » Fig. 143
Button for operating the lamp
Part that lights up when the lamp is in the mount
Part that lights up when the lamp is not in the mount
Lamp placed in the mount
The warning light turns on when tailgate is opened.
ABCThe warning light turns off when the tailgate is closed.
Removed from the holder›
Grasp the lamp
D
and swivel in the direction of the arrow
1
» Fig. 144 .
Use of removed light
›
Press the button
A
» Fig. 143 - the lamp lights up.
›
Press
A
button once again - the light goes out.
Reinserting the lamp the holder
›
Switch off the ignition » .
›
First insert the rear part of the lamp with the part
E
» Fig. 144 into the
mount and then to press in the direction of the arrow
2
, until it audibly
clicks into place.
Lamp charges
The lamp is supplied by three rechargeable type NiMH AAA batteries.
The rechargeable batteries are constantly charged when the engine is running.
It takes approx. 3 hours to fully charge the rechargeable batteries.
Replace batteries » page 235.
CAUTION
■
If the lamp is not switched off and it is correctly inserted in the holder, the
LED diodes in the front part of the lamp C» Fig. 143 are automatically switch-
ed off.■
If the lamp is not correctly inserted into the holder, this does not light up
when the boot lid is opened and the rechargeable batteries are not charged.
■
The lamp is not watertight and must therefore be protected against mois-
ture.
Class N1 vehicles
Read and observe
and on page 106 first.
In class N1 vehicles that are not fitted with a protective grille, a lashing set that
complies with the EN 12195 standard (1-4) must be used for fastening the load.
Proper functioning of the electrical installation is essential for safe vehicle op-
eration. It is important to ensure that the electrical installation is not damaged
during the adjustment process or when the storage area is being loaded and
unloaded.
114Using the system

Hitch and trailer
Hitch
Introduction
This chapter contains information on the following subjects:
Swinging in and out the tow bar
184
Mount accessories
185
The maximum trailer draw bar load is 90 kg/h.
The draw bar load information on the type plate of the towing device is merely
a test value for the towing device. The vehicle-specific information is detailed
in the vehicle documents.
WARNING■ Do not use the towing equipment if it is damaged or incomplete.■Do not modify or adapt the towing device in any way.
Note
■ The towing vehicle by means of the towing device » page 233.■If the towing device is removed completely, it must be replaced with the
original reinforcement of the rear bumper which is part of the mount for the
towing eye.
Swinging in and out the tow bar
Fig. 220
Tow bar: swing in and out
Read and observe on page 184 first.
The tow bar is located in the rear bumper of the vehicle.
In addition to the handle
A
» Fig. 220 there is a warning light that indicates
whether the tow bar is locked - lit green, or is not locked - flashes red.
Swing out the tow bar
›
Open the tailgate.
›
Pull the handle
A
to position
1
» Fig. 220 » .
The tow bar pivots out in the direction of arrow
2
and the indicator beside
the handle flashes red.
›
The handle
A
may retract slowly » .
›
Press the tow bar in the direction of the arrow
2
, until it audibly clicks into
place.
The indicator next to the handle lights green.
Swivel tow bar
 The trailer must be uncoupled from the tow bar.
 An adapter may not be plugged into the 13-pin socket.
›
Open the tailgate.
›
Pull the handle
A
to position
1

» Fig. 220 .
The tow bar is unlocked and the indicator beside the handle flashes red.
›
The handle
A
may retract slowly » .
›
Swing in the tow bar into the bumper in the direction of arrow
3
until it
clicks into place.
The indicator next to the handle lights green.
Check latching
Before every journey when the tow bar is swung out check whether the warn- ing light is indicating green.
If the tow bar is incorrectly locked the warning light flashes red, after the igni-
tion is switched on an acoustic signal is sounded and the following message
appears in the instrument cluster.
Check towing bracket!TOWING BRACKET PLEASE CHECK


184Driving

WARNINGThe factory-supplied lifting jack is only intended for your model of vehicle.
Under no circumstances attempt to lift heavier vehicles or other loads.
CAUTION
■ Screw the jack back into the starting position before storing in the box with
the tool kit.■
Ensure that the vehicle tool kit is safely secured in the boot.
■
Ensure that the box is always secured with the strap.
Note
The declaration of conformity is included with the jack or the log folder.
Changing a wheel
 Introduction
This chapter contains information on the following subjects:
Preparation
224
Removing/stowing the wheel
224
Full wheel trim
225
Wheel bolts
225
Anti-theft wheel bolts
225
Loosening/tightening wheel bolts
226
Raising the vehicle
226
Remove the wheel / fix
227
Follow-up tasks
227
For your own safety and the safety of the passengers, the following instruc-
tions must be observed before changing a wheel on the road.
Switch on the hazard warning lights system.
Place the warning triangle at the prescribed distance.
Park the vehicle as far away as possible from the flowing traffic.
Choose a location with a flat, solid surface.
Have all the occupants get out. The passengers should not stand on the
road (instead they should remain behind a crash barrier, for instance) while
the wheel is being changed.
Tyres with increased puncture resistance
Some vehicles may be fitted with tyres at the factory that have increased
puncture resistance (so-called “SEAL” tyres).
These vehicles are delivered without a puncture repair kit, spare wheel and
appropriate hand tools.
If the tyres with increased puncture resistance are replaced with tyres that
have no increased puncture resistance then the vehicle should be equipped
with a puncture repair kit, spare wheel and appropriate hand tools.
Preparation
Before changing the wheel, the following work must be carried out.
›
Switch off the engine.
›
For vehicles with manual transmission engage 1st gear.
›
On vehicles with
automatic transmission place the selector lever in the P po-
sition.
›
The parking brake switch.
›
Uncouple any trailers.
Removing/stowing the wheel
Fig. 242
Take out wheel
The wheel is located in a well under the floor covering in the boot and is fixed
in place with a special screw.
Take out wheel
›
Open the tailgate.
›
Lift up the floor in the luggage compartment.
›
Loosen the retaining belt and take out the box with the tool kit.
›
Unscrew the special screws in the direction of arrow » Fig. 242.
›
Remove the wheel. 
224Do-it-yourself

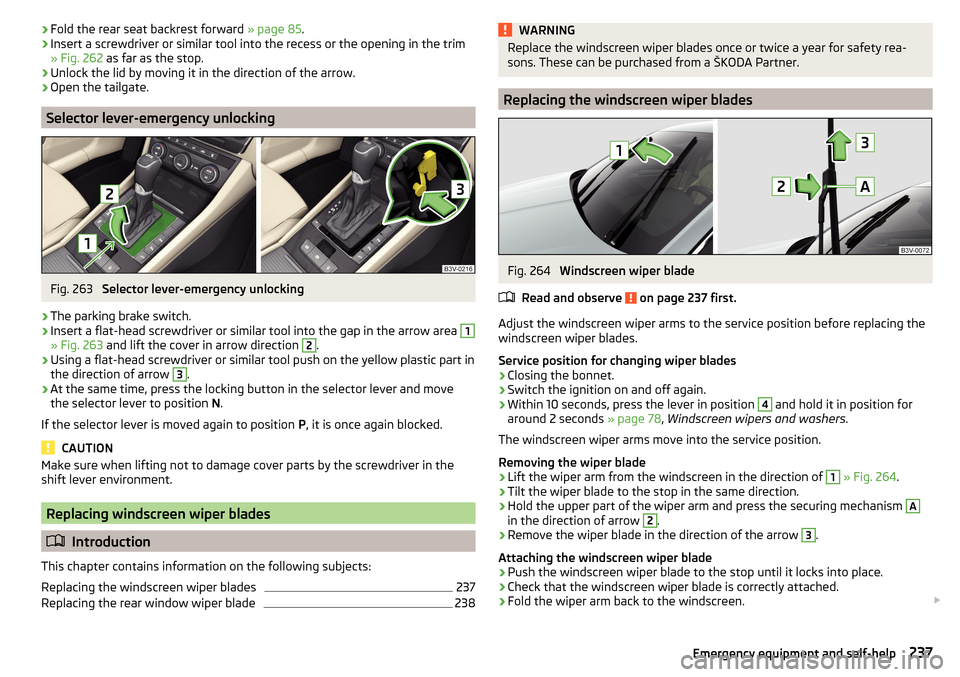

›Fold the rear seat backrest forward
» page 85.›Insert a screwdriver or similar tool into the recess or the opening in the trim
» Fig. 262 as far as the stop.›
Unlock the lid by moving it in the direction of the arrow.
›
Open the tailgate.
Selector lever-emergency unlocking
Fig. 263
Selector lever-emergency unlocking
›
The parking brake switch.
›
Insert a flat-head screwdriver or similar tool into the gap in the arrow area
1
» Fig. 263 and lift the cover in arrow direction
2
.
›
Using a flat-head screwdriver or similar tool push on the yellow plastic part in
the direction of arrow
3
.
›
At the same time, press the locking button in the selector lever and move
the selector lever to position N.
If the selector lever is moved again to position P, it is once again blocked.
CAUTION
Make sure when lifting not to damage cover parts by the screwdriver in the
shift lever environment.
Replacing windscreen wiper blades
 Introduction
This chapter contains information on the following subjects:
Replacing the windscreen wiper blades
237
Replacing the rear window wiper blade
238WARNINGReplace the windscreen wiper blades once or twice a year for safety rea-
sons. These can be purchased from a ŠKODA Partner.
Replacing the windscreen wiper blades
Fig. 264
Windscreen wiper blade
Read and observe
on page 237 first.
Adjust the windscreen wiper arms to the service position before replacing the
windscreen wiper blades.
Service position for changing wiper blades
›
Closing the bonnet.
›
Switch the ignition on and off again.
›
Within 10 seconds, press the lever in position
4
and hold it in position for
around 2 seconds » page 78, Windscreen wipers and washers .
The windscreen wiper arms move into the service position.
Removing the wiper blade
›
Lift the wiper arm from the windscreen in the direction of
1
» Fig. 264 .
›
Tilt the wiper blade to the stop in the same direction.
›
Hold the upper part of the wiper arm and press the securing mechanism
A
in the direction of arrow
2
.
›
Remove the wiper blade in the direction of the arrow
3
.
Attaching the windscreen wiper blade
›
Push the windscreen wiper blade to the stop until it locks into place.
›
Check that the windscreen wiper blade is correctly attached.
›
Fold the wiper arm back to the windscreen. 
237Emergency equipment and self-help

Replacing the bulb for the fog lightFig. 274
Remove the number plate light / replace the bulb
Read and observe
and on page 242 first.
Remove the protective grille and headlight
›
Insert your fingers into opening
A
.
›
Release the protection grill by pulling in the direction of arrow
1
.
›
Unscrew the screws
B
with the screwdriver from the tool kit » page 223,
Vehicle tool kit .
›
Remove the headlight in the direction of arrow
2
.
Replacing the light bulb
›
Press the latch on the connector in the direction of arrow
3
.
›
Remove the key in the direction of the arrow
4
.
›
Pull the lamp holder until it stops in the arrow direction
5
.
›
Remove the lamp holder in the direction of the arrow
6
.
›
Insert the new bulb into the headlight and turn counter to the direction of
arrow
5
as far as the stop.
›
Attach the connector.
Refit the headlight and grille›Replace the fog light by inserting it in the opposite direction of the arrow 2
» Fig. 274 and tighten.
›
Insert the protective grille and carefully press it in.
The protective grille must engage firmly.
Rear Light
Fig. 275
Remove light / pull out connector
Read and observe
and on page 242 first.
Removing
›
Open the tailgate.
›
Insert into opening
A
» Fig. 275 the clamps for removing the full wheel cov-
ers » page 223 , Vehicle tool kit .
›
Remove the cover by pulling the hook in the direction of arrow
1
.
›
Unscrew the screws
B
with the screwdriver from the tool kit.
›
Grasp the light and remove carefully in the direction of arrow
2
from the
stud
C
.
›
Press together the interlocks on the connector in the direction of arrow
3
. 
244Do-it-yourself
