Sun screen in the rear doorsFig. 68
Sun blind on the rear door
Read and observe
on page 75 first.
Extending
›
Pull out the sun blind with the handle
A
in the direction of arrow » Fig. 68
and hang it in the bracket
B
on the top edge of the door.
Retracting
›
Remove the sun blind from the handle
A
» Fig. 68 out of the bracket and
hold it in such a way that it can roll up slowly without being damaged.
Windscreen wipers and washers
Introduction
This chapter contains information on the following subjects:
Windscreen wipers and washers
78
Headlight cleaning system
78
The windscreen wipers and the wash system only operate if the ignition is
switched on and the bonnet and boot are closed.
Winter setting of the windscreen wiper
If the windscreen wipers are in rest position, they cannot be folded out from
the windscreen. For this reason we recommend adjusting the windscreen wip-
ers in winter so that they can be folded out from the windscreen easily.
▶ Switch on the windscreen wipers.
▶ Switch off the ignition.
The windscreen wipers remain in the position in which they were when
switching off the ignition.
The service position can also be used as a winter position » page 237.WARNING■
Properly maintained windscreen wiper blades are essential for clear visi-
bility and safe driving » page 198, Wiper blades .■
Do not use the windscreen washer system at low temperatures, without
heating the windscreen beforehand. The window washer fluid could other-
wise freeze on the windscreen and restrict the view to the front.
CAUTION
■ In cold temperatures and during the winter, check before switching on the
ignition that the wiper blades are not frozen to the windscreen. If the wind-
screen wipers are switched on when the blades are frozen to the windscreen,
this may damage both the blades and windscreen wiper motor!■
Carefully peel frozen wiper blades off the pane.
■
Remove snow and ice from the windscreen wipers before driving.
■
If the windscreen wipers are handled carelessly, there is a risk of damage to
the windscreen.
■
Do not switch on the ignition if the front wiper arms are retracted. The wiper
arms could damage the paint of the bonnet.
■
If there is an obstacle on the windscreen, the wiper will try to push away the
obstacle. The wiper stops automatically after 5 attempts to eliminate the ob-
stacle, in order to avoid a damage to the wiper. Remove the obstacle and
switch the wiper on again.
Note
■ Each time the ignition switches off for the third time, the position of the
windscreen wipers changes. This counteracts an early fatigue of the wiper rub-
bers.■
The windscreen washer nozzles for the windscreen are heated when the en-
gine is running and the outside temperature is less than approx. +10 °C.
77Lights and visibility
Opening from the boot›Push the unlock button B in the direction of the arrow » Fig. 81 and fold the
cover including the armrest forwards.
Closing›
Fold the cover and rear armrest upwards to the stop - the cover must click
into place.
Ensure that the armrest is always locked into place after closing the cover.
This is apparent as the red field above the unlocking button
B
» Fig. 81 is not
visible from the boot.
WARNINGThe through-loading channel is only intended for transporting skis that are
placed in a properly secured, through-loading bag.
Head restraints
Introduction
This chapter contains information on the following subjects:
Height adjustment
87
removing and installing
87WARNINGPlease note the following points about the head restraint settings
» page 8 , Correct and safe seated position .
Height adjustment
Fig. 82
Front head restraint: moving it
up and down
Fig. 83
Rear head restraint: moving it up / down
Read and observe
on page 87 first.
Adjust front support
›
Press and hold the safety button
A
» Fig. 82 .
›
Move the supports into the required position.
Adjust rear support
›
Grasp the restraint and move upwards in the direction of
1
» Fig. 83 .
›
In order to push the supports downward, press the safety button
B
in the
direction of arrow
2
and hold down.
›
Press in the support in the direction of arrow
3
.
removing and installing
Fig. 84
Rear head restraint: removing / fitting
Read and observe
on page 87 first.
Only the real head restraints may be removed or installed.
87Seats and head restraints
Storage compartment in the rear centre consoleFig. 107
Open storage compartment,
open lockable storage compart-
ments
Read and observe on page 90 first.
In the rear centre console there is an equipment-dependent open storage
compartment
A
and a lockable storage compartment
B
» Fig. 107 .
The compartment
B
is equipped with an interior light which illuminates when
the parking or dipped head lights are on.
Compartment
B
open / close
›
Pull the handle on the upper section of the recess and open out the com-
partment in the direction of the arrow » Fig. 107.
Closing takes place in reverse order.
WARNINGNever use the storage compartment as an ashtray - risk of fire!
Storage compartment in the rear armrest
Fig. 108
Open storage compartment / interior of the compartment
Read and observe on page 90 first.
In the storage compartment there is a cup holder
B
, storage compartment for
the multimedia holder
C
as well as a pen holder
D
» Fig. 108 .
Open/close
›
Grasp the lid to the recess
A
» Fig. 108 .
›
Unfold the cover to the stop in the direction of arrow.
Closing takes place in reverse order.
Removable through-loading bag
Fig. 109
Tighten ribbon / secure through-loading bag
Read and observe
on page 90 first.
The removable through-loading bag (hereinafter referred to as a through-load-
ing bag) is used exclusively for transporting skis.
Stowing through-loading bag and skis
›
Open the tailgate.
›
Fold the rear armrest and the cover in the seat backrest downwards
» page 86 .
›
Place the empty through-loading bag in such a way that the end of the bag
with the zip is in the boot.
›
Push the skis into the through-loading bag from the boot » .
›
Close the through-loading bag.
Securing through-loading bag and skis
›
Tighten the strap
A
on the free end around the skis in front of the bindings
» Fig. 109 .
›
Fold the seat backrest a little forward.
98Using the system
When transporting cargo the following the instructions must be adhered to
▶ When transporting heavy objects, the driving characteristics change due to
the shift in centre-of-gravity. The speed and style of driving must be adjus-
ted accordingly.
▶ The cargo is stowed in the luggage compartment. To prevent this from mov-
ing it should be secured with suitable lashing straps to the lashing eyes or
secured with fixing nets.
▶ Distribute loads as evenly as possible.
▶ Place heavy objects as far forward as possible.
▶ The transported items must be stowed in such a way that no objects are able
to slip forward on sudden driving or braking manoeuvres – risk of injury!
▶ Tyre pressure is to match the load.
▶ When transporting loads in the luggage compartment that has been en-
larged by folding the rear seats forward, ensure the safety of the passengers
transported on the other rear seats .
In the event of an accident, even small and light objects gain so much kinetic energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the
vehicle is travelling and the weight of the object.
Example: In the event of a frontal collision at a speed of 50 km/h, an object
with a weight of 4.5 kg produces an energy, which corresponds to 20 times its
own weight. This means that it results in a weight of approx. 90 kg “ ”.
Luggage compartment light
The warning light turns on when tailgate is opened.
The warning light turns off when the tailgate is closed.
If the boot lid is open and the ignition switched off, the light will extinguish
automatically after around 10 minutes.
The luggage compartment illumination using the removable lamp » page 114.WARNING■
Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc. Heavy objects were not secured sufficiently – risk of injury!■
If the cargo is tied down with unsuitable or damaged lashing straps, inju-
ries can occur in the event of braking manoeuvres or accidents.
■
Loose cargo can be thrown forward during a sudden manoeuvre or in case
of an accident and can injure the occupants or other road users.
■
Loose cargo could hit a deployed airbag and injure occupants – danger of
death!
CAUTION■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc. - these could be damaged.■
Make sure that transported objects with sharp edges do not damage the
threads of the following devices. ■Rear window heater.
■ Rear window with an integrated antenna.
■ Integrated antenna in the rear side windows.
Fastening elements
Fig. 127
Fastening elements: Variant 1/ Variant 2
Read and observe
and on page 106 first.
The fasteners are located on both sides of the luggage compartment.
Overview of the fastening elements » Fig. 127
Fastening elements for fastening fixing nets
Lashing eyes for fastening items of luggage and fixing nets
The maximum permissible load for the individual lashing eyes
B
is 350 kg.
For vehicles with the variable loading floor, the luggage can only be secured
using the eyelets
B
when the variable loading floor is in the lower position
» page 115 .
AB106Using the system
Floor coveringFig. 130
Floor fastenings: variant 1 / variant 2
Read and observe
and on page 106 first.
Fastening options for the flooring » Fig. 130
With the loop on a hook on the luggage compartment cover
With the hook on the frame of the luggage compartment lid
For version 1, the following applies.
The hook on the cargo cover is provided only for the attachment of the floor
covering.
The flooring covering can be fixed to this hook only with the boot open.
CAUTION
For version 1, the following information applies.■Do not hook any objects on the hooks of the cargo cover - there is a risk of
damage to the hook.■
Before closing the boot lid check that the flooring is not attached to the
hook - there is a risk of damage to the hook.
CAUTION
The floor covering can be fixed with Version 2 only if the variable loading floor
is folded in the upper position » Fig. 147 on page 115 .
Floor covering on both sides
Read and observe
and on page 106 first.
A double-sided floor covering can be fitted in the luggage compartment.
One side of the double-sided floor covering is made of fabric, the other side is
washable (easy to maintain).
The washable side is used to transport wet or dirty items.
Note
For easier turning of the covering, use the loop attached.
Luggage net
Fig. 131
Luggage net
Read and observe and on page 106 first.
The net at the bottom of the luggage compartment cover » Fig. 131 is provided
for transporting light and soft items.
The maximum permissible load of the net is 1.5 kg.
CAUTION
Do not place any sharp objects into the net – risk of net damage.
Luggage compartment cover
Fig. 132
Remove the luggage compartment cover
108Using the system
Fig. 133
Luggage compartment cover
stowed behind the rear seats
Read and observe and on page 106 first.
If the support straps
A
» Fig. 132 are attached to the boot lid, then opening
the lid will raise the boot lid cover (hereafter referred to as cover).
If you want to carry bulky goods, the cover can be removed from the vehicle,
and may be stowed behind the rear seat backrests » Fig. 133.
Removing
›
On both sides of the boot lid unhook the straps
A
in direction of arrow
1
» Fig. 132 .
›
Hold the raised cover.
›
Press on the two sides to the underside of the cover in the region of the re-
cess
C
.
›
Take out the cover in the direction of the arrow
2
.
Fitting
›
Position the fixture
B
of the cover over the recess
C
of the side trim
» Fig. 132 .
›
Place first the front and then the rear fixture
B
.
›
Press on the two sides to the upper side of the cover in the region of the re-
cess
C
.
The fixture
B
must lock into place of the recess
C
on both sides of the lug-
gage compartment.
›
On both sides of the boot lid unhook the straps
A
.
WARNINGNo objects should be placed on the cover. This could endanger the vehicle
occupants during sudden braking or vehicle impact.CAUTION■ When closing the boot lid, jamming and damage to the cover or the side trim
panel can occur if handled incorrectly. The following guidelines must be ob-
served. ■ The fixtures B
» Fig. 132 on the cover must be engaged in the recess of
the side trim
C
.
■ The items which are transported must not exceed the height of the cover.
■ The cover must not be jammed in the surrounding seal of the luggage com-
partment lid when it is in the raised position. ■ There must be no object in the gap between the cover in the raise position
and the rear backrest.
■
Never fold the raised cover forwards to the rear seats - there is a risk of dam-
aging the cover and the boot lid.
Roll-up cover
Fig. 134
Roll-up cover: pull out / roll up / intermediate position / remove
109Transporting and practical equipment

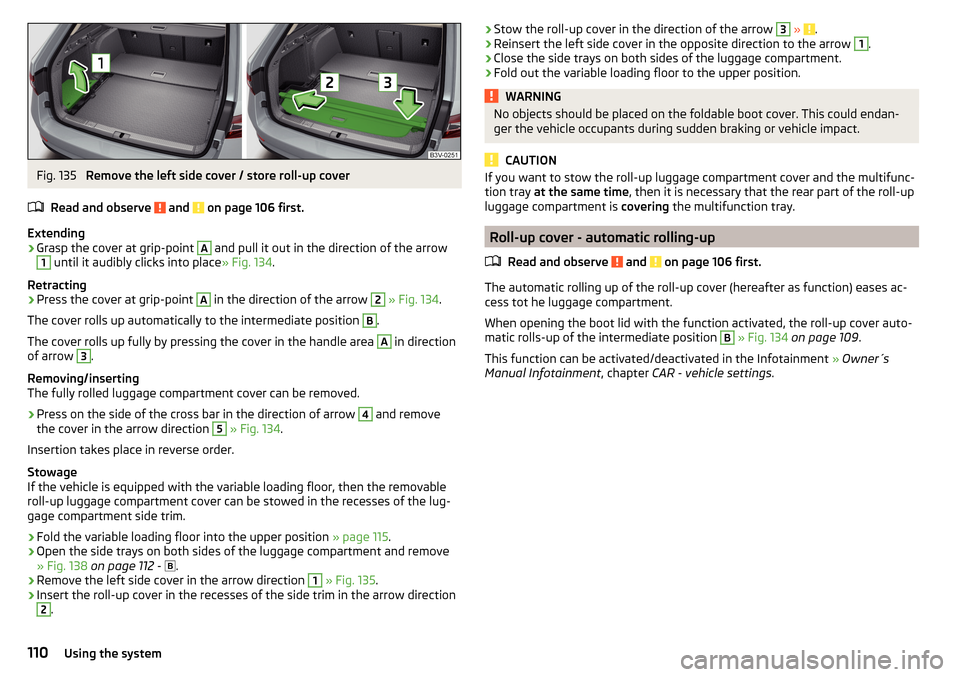

Fig. 135
Remove the left side cover / store roll-up cover
Read and observe
and on page 106 first.
Extending
›
Grasp the cover at grip-point
A
and pull it out in the direction of the arrow
1
until it audibly clicks into place » Fig. 134.
Retracting
›
Press the cover at grip-point
A
in the direction of the arrow
2
» Fig. 134 .
The cover rolls up automatically to the intermediate position
B
.
The cover rolls up fully by pressing the cover in the handle area
A
in direction
of arrow
3
.
Removing/inserting
The fully rolled luggage compartment cover can be removed.
›
Press on the side of the cross bar in the direction of arrow
4
and remove
the cover in the arrow direction
5
» Fig. 134 .
Insertion takes place in reverse order.
Stowage
If the vehicle is equipped with the variable loading floor, then the removable
roll-up luggage compartment cover can be stowed in the recesses of the lug-
gage compartment side trim.
›
Fold the variable loading floor into the upper position » page 115.
›
Open the side trays on both sides of the luggage compartment and remove
» Fig. 138 on page 112 -
.
›
Remove the left side cover in the arrow direction
1
» Fig. 135 .
›
Insert the roll-up cover in the recesses of the side trim in the arrow direction
2
.
›Stow the roll-up cover in the direction of the arrow 3
» .›Reinsert the left side cover in the opposite direction to the arrow 1.›
Close the side trays on both sides of the luggage compartment.
›
Fold out the variable loading floor to the upper position.
WARNINGNo objects should be placed on the foldable boot cover. This could endan-
ger the vehicle occupants during sudden braking or vehicle impact.
CAUTION
If you want to stow the roll-up luggage compartment cover and the multifunc-
tion tray at the same time , then it is necessary that the rear part of the roll-up
luggage compartment is covering the multifunction tray.
Roll-up cover - automatic rolling-up
Read and observe
and on page 106 first.
The automatic rolling up of the roll-up cover (hereafter as function) eases ac-cess tot he luggage compartment.
When opening the boot lid with the function activated, the roll-up cover auto-
matic rolls-up of the intermediate position
B
» Fig. 134 on page 109 .
This function can be activated/deactivated in the Infotainment » Owner´s
Manual Infotainment , chapter CAR - vehicle settings .
110Using the system
Usage of Cargo elements›Open the storage compartment » Fig. 138 on page 112 - .›
Remove the cargo elements in direction of arrow » Fig. 139 or » Fig. 140 -
.
›
Attach the Cargo elements with Velcro as close as possible to the rear seats
on the floor of the luggage compartment » Fig. 140 -
or attach to the fabric
side of the double-sided floor covering.
Storage compartments under the floor covering
Fig. 141
Variant 1: Lifting the floor covering / Storage compartments
Fig. 142
Variant 2: Lifting the floor covering / Storage compartments
Read and observe
and on page 106 first.
The storage compartments
B
» Fig. 141 or » Fig. 142 are located under the
floor covering of the luggage compartment in vehicles without a spare wheel.
Every storage compartment
B
is designed for storing small objects of up to 15
kg. in weight in total.
Transport of cargo - Version 1›Remove the fog floor covering in the direction of the arrow » Fig. 141.›
Fix the flooring with the loop
A
to the hook on the cargo cover or fold up in
the direction of the arrow.
›
Stow the cargo in the storage compartment.
›
Remove the flooring from the hook or fold back against the direction of the
arrow.
When transporting higher items in the trays
B
, the flooring must be flipped
forward, i.e. it must be attached to the hook of the luggage compartment cov-
er.
Transport of cargo - Version 2
›
Dividing the luggage compartment with variable loading floor » page 116.
›
Remove the fog floor covering in the direction of the arrow » Fig. 142.
›
Fix the hook
C
to the top edge of the variable loading floor.
›
Stow the cargo in the storage compartment.
›
Unhook the hook
C
and fold back the flooring opposite to the arrow.
When transporting high objects in the trays
B
the hook
C
must be hooked
onto the top edge of the variable loading floor.
CAUTION
■ The following instructions must be observed to avoid damage to the storage
compartments. ■Do not stored any sharp objects in the storage compartments.
■ Do not place any point-pressure in the storage compartment.
■ Carefully place the items in the storage compartments.■
Before closing the boot lid check that the flooring is not attached to the
hook with the loop
A
» Fig. 141 - there is a risk of damaging the hook.
■
Before closing the boot lid check that the cargo transported in the storage
compartments does not strike against the boot lid - there is a risk of damage
to the lid.
113Transporting and practical equipment
