2015 SKODA OCTAVIA dimensions

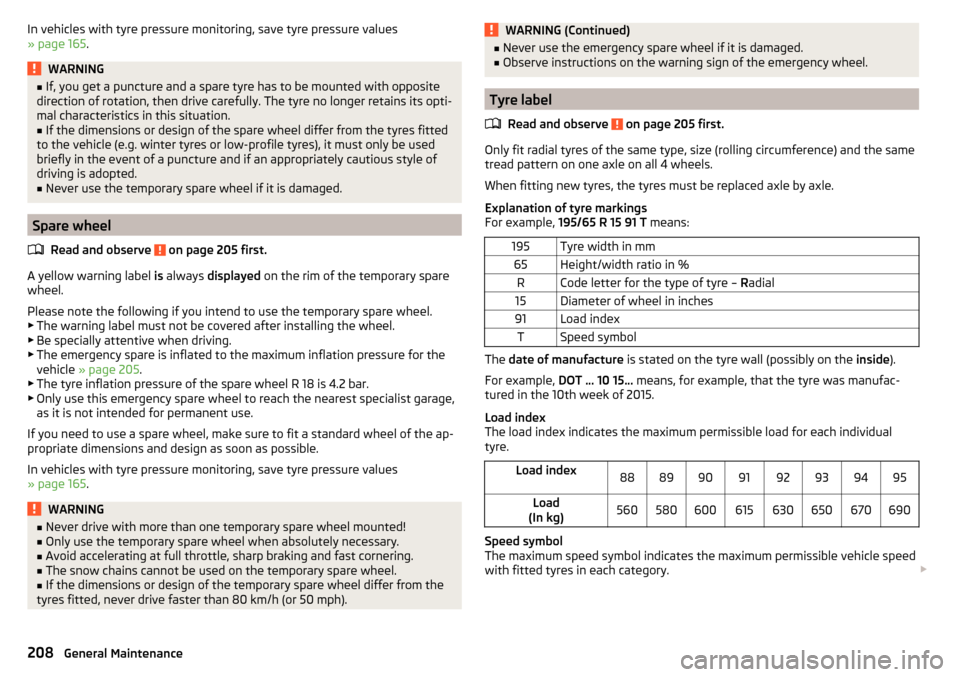

In vehicles with tyre pressure monitoring, save tyre pressure values
» page 165 .WARNING■
If, you get a puncture and a spare tyre has to be mounted with opposite
direction of rotation, then drive carefully. The tyre no longer retains its opti-
mal characteristics in this situation.■
If the dimensions or design of the spare wheel differ from the tyres fitted
to the vehicle (e.g. winter tyres or low-profile tyres), it must only be used
briefly in the event of a puncture and if an appropriately cautious style of
driving is adopted.
■
Never use the temporary spare wheel if it is damaged.
Spare wheel
Read and observe
on page 205 first.
A yellow warning label is always displayed on the rim of the temporary spare
wheel.
Please note the following if you intend to use the temporary spare wheel. ▶ The warning label must not be covered after installing the wheel.
▶ Be specially attentive when driving.
▶ The emergency spare is inflated to the maximum inflation pressure for the
vehicle » page 205 .
▶ The tyre inflation pressure of the spare wheel R 18 is 4.2 bar.
▶ Only use this emergency spare wheel to reach the nearest specialist garage,
as it is not intended for permanent use.
If you need to use a spare wheel, make sure to fit a standard wheel of the ap-
propriate dimensions and design as soon as possible.
In vehicles with tyre pressure monitoring, save tyre pressure values
» page 165 .
WARNING■
Never drive with more than one temporary spare wheel mounted!■Only use the temporary spare wheel when absolutely necessary.■
Avoid accelerating at full throttle, sharp braking and fast cornering.
■
The snow chains cannot be used on the temporary spare wheel.
■
If the dimensions or design of the temporary spare wheel differ from the
tyres fitted, never drive faster than 80 km/h (or 50 mph).
WARNING (Continued)■ Never use the emergency spare wheel if it is damaged.■Observe instructions on the warning sign of the emergency wheel.
Tyre label
Read and observe
on page 205 first.
Only fit radial tyres of the same type, size (rolling circumference) and the same
tread pattern on one axle on all 4 wheels.
When fitting new tyres, the tyres must be replaced axle by axle.
Explanation of tyre markings
For example, 195/65 R 15 91 T means:
195Tyre width in mm65Height/width ratio in %RCode letter for the type of tyre – Radial15Diameter of wheel in inches91Load indexTSpeed symbol
The date of manufacture is stated on the tyre wall (possibly on the inside).
For example, DOT ... 10 15... means, for example, that the tyre was manufac-
tured in the 10th week of 2015.
Load index
The load index indicates the maximum permissible load for each individual
tyre.
Load index8889909192939495Load
(In kg)560580600615630650670690
Speed symbol
The maximum speed symbol indicates the maximum permissible vehicle speed
with fitted tyres in each category. 
208General Maintenance

Technical data
Technical data
Basic vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle characteristics
236
Operating weight
237
Payload
238
Measurement of fuel consumption and CO 2 emissions according to ECE
Regulations and EU Directives
239
Dimensions - Octavia
240
Dimensions - Octavia estate
241
Track gauge front/rear
242
Departure angle
243
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reduc- ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with regulations and in
conditions prescribed by legal or technical provisions for determining the oper-
ating and technical data of vehicles.
The values listed are for the basic model without optional equipment.
Vehicle characteristicsFig. 254
Vehicle data sticker/type plate
Vehicle data sticker
The vehicle data sticker » Fig. 254 -
 is located on the base of the luggage
compartment and is also fixed into the service schedule.
The vehicle data sticker contains the following data. Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code
Partial vehicle description
Approved tyre diameter in inches 1)
The approved tyres and rim sizes for your vehicle are listed in the vehicle's
technical documentation (the so called COC document) and this also states the
declaration of conformity.
Type plate
The type plate » Fig. 254 -
 is located at the bottom of the B-pillar on the
right driver's side.
The type plate contains the following data. Manufacturer
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer) 
1234567891)
Only valid for some countries.
236Technical data

Dimensions - OctaviaFig. 255
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 25 5SpecificationOctaviaOctavia 4x4Octavia RSA
Height
Basic dimensions1461 a)
/1458 b)1460a)
/1459 b)1449/1464 c)Vehicles with off-road package1476a)
/1474 b)1475a)
/1474 b)-Vehicles with SPORT package1446a)
/1444 b)--BFront track
» page 242CWidth181418141814DRear track » page 242EWidth including exterior mirror201720172017F
Clearance
Basic dimensions140138128/142c)Vehicles with off-road package155154-Vehicles with SPORT package125--G
Wheel base
Basic dimensions268626802680Vehicles with 1.8 l/132 kW TSI engine2680--G-TEC vehicles2680--HLength465946594685a)
Valid for vehicles with 15" brakes
b)
Valid for vehicles with 16" brakes
c)
Only valid for some countries.
240Technical data

Dimensions - Octavia estateFig. 256
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 256SpecificationOctavia EstateOCTAVIA Estate 4x4OCTAVIA Estate RSOctavia CombiScoutA
Height
Basic dimensions1465 a)
/1463 b)1465a)
/1463 b)1452/1468 c)1531Vehicles with off-road package1480a)
/1478 b)1480a)
/1478 b)--Vehicles with SPORT package1450a)
/1448 b)---BFront track
» page 242CWidth1814181418141814DRear track » page 242EWidth including exterior mirror2017201720172017F
Clearance
Basic dimensions140139127/142c)171Vehicles with off-road package155154- Vehicles with SPORT package125---G
Wheel base
Basic dimensions2686268026802679Vehicles with 1.8 l/132 kW TSI engine2680---G-TEC vehicles2680---HLength4659465946854685a)
Valid for vehicles with 15" brakes
b)
Valid for vehicles with 16" brakes
c)
Only valid for some countries.
241Technical data
