2015 SKODA FABIA USB

Operation
Cockpit
OverviewElectric windows
57
Door opening lever
53
Electric exterior mirror adjustment
68
Air outlet vents
98
Parking ticket holder
74
Operating lever:
▶ Turn signal light, headlight and parking light, headlight
flasher
61
▶ Speed regulating system
119
▶Speed limiter
120
Steering wheel:
▶ With horn
▶ With driver’s front airbag
15
▶With buttons for the operation of the information system
39
▶With buttons for the Infotainment Control » Infotainment
Manual , chapter Device Operation
Instrument cluster
27
Operating lever:
▶ Windscreen wiper and wash system
66
▶Information system
39
Depending on equipment fitted:
▶ Storage compartment
75
▶Infotainment » User manual for Infotainment
Air outlets in the central part of the dash panel
98
Bar with keys depending on the equipment fitted: ▶  Left seat heating
71
▶
 Rear window heater
65
▶
 Central locking system
52
▶
 Hazard warning light system button
63
▶



 Warning light for the front seat passenger
airbag
19
▶  Right seat heating
71
Interior rear-view mirror
6812345678910111213Memory card slot (in the front passenger storage compartment)
» User manual Infotainment
Front passenger airbag15
Storage compartment on the front passenger side
80
Key switch for switching off the front passenger airbag (in front
passenger storage compartment)
19
Air outlet vents
98
Power window in the front passenger door
58
Door opening lever
53
Bar with keys depending on the equipment fitted:
▶  START STOP
104
▶
 Stability Control (ESC deactivation / activation of the ASR)
115
▶
 Parking aid
116
▶
 Tyre Press. Loss Indicator
126
Light switch
60
Bonnet release lever
151
Regulator for headlamp beam adjustment for the headlights
60
Lever for adjusting the steering wheel
9
Ignition lock
101
Fuse box
181
Pedals
109
Cup holder:
76
▶
with ashtray
76
▶with multimedia support
78
Coin and credit card holder
75
Handbrake lever
107
Depending on equipment fitted:
▶ Gearshift lever (manual gearbox)
108
▶Selector lever (automatic gearbox)
109
Storage compartment
75
USB / AUX input » Infotainment Manual , chapter USB/AUX In-
puts 
14151617181920212223242526272829303132333426Operation

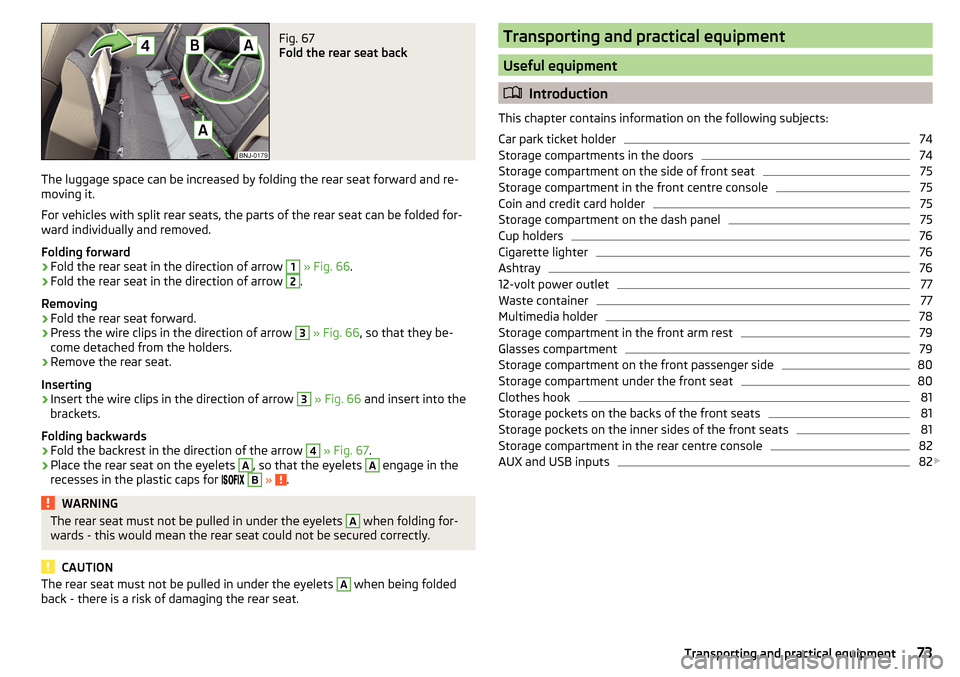

Fig. 67
Fold the rear seat back
The luggage space can be increased by folding the rear seat forward and re-
moving it.
For vehicles with split rear seats, the parts of the rear seat can be folded for-
ward individually and removed.
Folding forward
›
Fold the rear seat in the direction of arrow
1
» Fig. 66 .
›
Fold the rear seat in the direction of arrow
2
.
Removing
›
Fold the rear seat forward.
›
Press the wire clips in the direction of arrow
3
» Fig. 66 , so that they be-
come detached from the holders.
›
Remove the rear seat.
Inserting
›
Insert the wire clips in the direction of arrow
3
» Fig. 66 and insert into the
brackets.
Folding backwards
›
Fold the backrest in the direction of the arrow
4
» Fig. 67 .
›
Place the rear seat on the eyelets
A
, so that the eyelets
A
engage in the
recesses in the plastic caps for 
B

» .
WARNINGThe rear seat must not be pulled in under the eyelets A when folding for-
wards - this would mean the rear seat could not be secured correctly.
CAUTION
The rear seat must not be pulled in under the eyelets A when being folded
back - there is a risk of damaging the rear seat.Transporting and practical equipment
Useful equipment
 Introduction
This chapter contains information on the following subjects:
Car park ticket holder
74
Storage compartments in the doors
74
Storage compartment on the side of front seat
75
Storage compartment in the front centre console
75
Coin and credit card holder
75
Storage compartment on the dash panel
75
Cup holders
76
Cigarette lighter
76
Ashtray
76
12-volt power outlet
77
Waste container
77
Multimedia holder
78
Storage compartment in the front arm rest
79
Glasses compartment
79
Storage compartment on the front passenger side
80
Storage compartment under the front seat
80
Clothes hook
81
Storage pockets on the backs of the front seats
81
Storage pockets on the inner sides of the front seats
81
Storage compartment in the rear centre console
82
AUX and USB inputs
82

73Transporting and practical equipment

Storage compartment in the rear centre consoleFig. 88
Storage compartment: Version 1 / version 2
Read and observe
on page 74 first.
The open storage compartment is in the rear of the centre console » Fig. 88.
AUX and USB inputs
Fig. 89
Installation locations of the AUX
and USB inputs
Read and observe on page 74 first.
The AUX input is above the storage compartment in the front centre console
and is identified with the  mark
» Fig. 89 .
The MDI input is above the storage compartment in the front centre console
and is identified by the symbol .
Additional information » Owner´s Manual Infotainment .
Tablet holder
Introduction
This chapter contains information on the following subjects:
Install/remove
82
Handle holder
83
External devices (e.g. tablet, smartphone, etc.) measuring min. 122 mm and
max. 195 mm can be secured in the support.
The maximum permissible load of the compartment is 750 g.
CAUTION
Never exceed the maximum permissible load of the holder - there is a risk of
damage or functional impairment.
Install/remove
Fig. 90
Position adapter/install holder 
82Operation

Luggage compartment83
Cover86
Fastening elements84
Fixing nets85
Flexible storage compartment88
Lighting83
Storage compartments under the floor88
unlock manually179
Unlock the boot lid179
Variable loading floor89
Luggage compartment cover86
Other positions87
Roll-up cover87
Luggage Storage 12-volt power outlet
77
Roll-up cover87
Storage compartments86
M
Main beam
61
Warning light35
Maintenance see vehicle care
141
Manual air conditioning Control elements
95
Recirculated air mode97
Manual gear changing see Gear changing
108
MAXI DOT display42
Main menu42
Menu item assist systems45
Menu item Audio44
Menu item navigation44
Menu item telephone45
Operation43
MAXI DOT see MAXI DOT display
42
Maximum permissible weights
192
Maximum speed197
MCB116
Mechanical window lifter open and close
57
Mechanical window lifters56
Media AUX
82
see Infotainment4
USB82
Memory42
Mirror Exterior mirrors
68
Interior mirror68
Make-up65
Modifications136
Modifications and technical alterations Service
137
Multi-function display operation
40
Multi collision brake (MCB)116
Multifunction display Functions
40
Information40
Memory42
Multifunction pocket85
Multifunction steering wheel Operation
43
Multimedia AUX
82
USB82
Multimedia holder78
N
N1
89
Nameplate192
Navigation see Infotainment
4
Nets85
Notes for driving with tyre repaired173
Notes on using wheels160
O
Oil see Engine oil
153
Warning messages37
Oil pressure Warning messages
37
Onboard computer see multifunction display
40
Operating weight193
Operation in winter Diesel fuel
149
Vehicle battery158
Original accessories137
Overview Engine compartment
151
Warning lights31
P
Parking
108
Parking assistance116
Parking aid Automatic system activation when moving for-ward
119
Function117
Parking assistance116
Activation / deactivation118
Display in the Infotainment display118
parking lights60
Park Pilot116
Park the vehicle see Parking
108
Part replacement136
Passive safety Before every journey
8
Driving safety8
Passive Safety8
Pedals109
Footmats109
206Index

Switch on the ignitionKey101
Starter button103
T
Tablet holder behind the headrests
82
Handling82
Tailgate55
Taking care of your vehicle Automatic car wash system
140
High-pressure cleaner140
Washing by hand139
Wash system140
TCS Operation
115
Warning light33
Technical data192
Time31
Tiptronic110
Tools167
TOP TETHER24
Towing175
Towing a trailer135
Towing device Accessories
132
Description128
Operation and maintenance144
Towing eye Front
176
Rear177
Towing protection55
Towing vehicle175
Traction control (TCS)115
Trailer132
13-pin socket 133
connect and disconnect133
Load134
Loading133
Safety eye133
Towing a trailer135
Trailer operation127
Transmission Warning messages
36
Transport Luggage compartment
83
Roof rack93
Transporting73
Transporting children safely20
Turn signal61
Turn signal system Warning light
35
Tyre Damage
163
Explanation of the label164
see wheels164
Tyre load-bearing capacity see Wheels
164
Tyre pressure161
Warning light34
Tyre pressure monitor refer to the tyre pressure monitoring
126
Tyre pressure monitoring126
Display34
Infotainment display126
Save tyre pressure values126
Save tyre pressure values - button127
Save tyre pressure values - Infotainment126
Tyre repair General notes
172
Preparations173
Pressure test173
Sealing and inflating the tyre173
Tyres160
new111
Tyre pressure161
Wear and tear162
Wear indicators162
Tyre size164
see wheels164
U
Under-body Vehicle care
144
Under-body protection144
Unlocking Individual settings
52
KESSY51
Key50
Remote control50
Unlocking and locking49
USB82
Used vehicles Acceptance and recycling
139
Useful equipment Ashtray
76
Car park ticket holder74
Cigarette lighter76
Clothes hook81
Cup holders76
Glasses compartment79
Multimedia holder78
Storage compartment73
Useful Features 12-volt power outlet
77
Using the selector lever109
V
Variable loading floor
89
Inserting90
Lower position90
Removing90
Upper position89
Vehicle battery Automatic load deactivation
159
Charging158
Checking the battery electrolyte level158
Cover157
209Index
