2015 Seat Mii sensor

Driver assistance systems
Special driving situations Fig. 153
A: Vehicle on a bend. B: Motorcyclist
driv in
g ahe
ad out of range of the radar sen-
sor. Fig. 154
Other vehicles changing lanes The City Safety Assist function is limited by
the l
a
w

s of physics and by the nature of the
system itself. For this reason, this may pro-
duce reactions from the City Safety Assist
system in certain circumstances that are late
or unexpected by the driver. For this reason,
always pay due attention and if necessary, in-
tervene.
For example, the following driving situations
require special attention:
Driving through a bend
When entering or leaving a “long” bend, the
vehicle may decelerate when the radar sen-
sor detects a vehicle travelling in the adjoin-
ing lane ››› Fig. 153 A. To interrupt decelera-
tion you can accelerate, turn the steering
wheel or press the clutch.
Narrow vehicles in front
The radar sensor will only detect narrow vehi-
cles in front if they are in the sensor detec-
tion zone ››› Fig. 153 B. This applies especial-
ly to narrow vehicles such as motorbikes.
Other vehicles changing lanes
Vehicles moving into your lane in close prox-
imity can cause unexpected braking from the
City Safety Assist system ›››
Fig. 154. To inter-
rupt deceleration you can accelerate, turn the
steering wheel or press the clutch. Malfunction in the radar sensor
If the ra
dar sensor operation is impaired, for
example due to heavy rain, mist, snow or dirt,
the City Safety Assist system function is tem-
porarily switched off. On the instrument pan-
el display the control lamp  flashes.
When the fault in the radar sensor has been
rectified, the City Safety Assist system func-
tion automatically becomes available. The
control lamp  switches off.
The following conditions could prevent the
City Safety Assist system from functioning:
● Tight bends.
● Accelerator pressed all the way down to the
floor.
● If the C

ity Safety Assist system is switched
off or there i
s a fault ››› page 153.
● If the radar sensor is dirty, covered or over-
heated ›

›› page 153.
● In the event of snow, heavy rain or dense
fog.
● If ther

e are vehicles in front.
● Vehicles changing lanes.
● Vehicles moving in the opposite direction
in the same lane.
● V

ery dirty vehicles with a low degree of re-
flection.
● Pre

sence of thick dust.
155
Technical data
Advice
Operation
Emergencies
Safety

Care and maintenance
●
All
repairs and modifications to the vehicle
should only be performed by a specialised
workshop. Repairs and malfunctions in the air-
bag sy
s

tem When performing repairs and technical mod-
ification
s,

SEAT's directives must be ob-
served! ››› Modifications and repairs to the front bump-
er
, door
s, fr

ont seats, and repairs to the roof
or chassis should only be carried out in a
specialised workshop. These components
may contain parts or sensors belonging to
the airbag system.
If work is carried out on the airbag system or
parts have to be removed and fitted on the
system when performing other repair work,
parts of the airbag system may be damaged.
The consequence may be that, in the event of
an accident, the airbag inflates incorrectly or
does not inflate at all.
So that the effectiveness of the airbag is not
reduced and that removed parts do not cause
any injuries or environmental pollution, regu-
lations must be observed. These require-
ments are known to specialised workshops.
Modifications to the vehicle suspension may
affect the operation of the airbag system in
the event of collision. For example, if wheel and tyre combinations not approved by SEAT
are used, or if

the vehicle height is lowered,
the suspension is stiffened or the suspension
springs, telescopic arms, dampers, etc., are
modified, the results received by the airbag
sensors and sent to the control unit may not
be accurate. For example, some modifica-
tions to the suspension could increase the
force measured by the sensors and result in
the triggering of the airbag systems in colli-
sions. Under normal conditions, the meas-
ured values would be lower and the airbag
would not have been triggered. Other modifi-
cations may reduce the forces measured by
the sensors and prevent the airbags from be-
ing triggered when they should. WARNING
Repairs or modifications which are not per-
formed c orr

ectly may result in damage or er-
rors in the vehicle operation, affecting the ef-
fectiveness of the airbag systems. This could
result in serious or fatal accidents.
● All repairs and modifications to the vehicle
should on
ly be performed by a specialised
workshop.
● Airbag modules must never be repaired: if
damag
ed, they must be replaced.
● Never fit recycled or reused airbag compo-
nents in
your vehicle. WARNING
Modifications to the vehicle suspension, in-
cludin g the u

se of unauthorised wheel and
tyre combinations, may affect the perform-
ance of the airbags and increase the risk of
serious or fatal injury in the event of acci-
dent.
● Never fit suspension components which are
not identica
l to the original parts in the vehi-
cle.
● Never use wheel and tyre combinations not
appro
ved by SEAT. Retrofitting of mobile phones
An exterior aerial is required for the use of
tw
o-w
a

y radios in the vehicle.
The retro-fitting of electrical or electronic ap-
pliances in the vehicle is subject to their ap-
proval for use in your vehicle. Under certain
circumstances, this could mean that your ve-
hicle registration documents are no longer
valid.
SEAT has approved your vehicle for use with
two-way radios providing the following condi-
tions are observed:
● The exterior aerial must be mounted pro-
fes
sionally.
● The maximum transmitting power is 10
watts. »
161
Technical data
Advice
Operation
Emergencies
Safety

Advice
SEAT recommends the use of car washes
w ithout
bru
shes.
To remove traces of wax on windows and to
prevent wiper blades from scratching, please
observe the following ››› page 169, Cleaning
windows and exterior mirrors .
Washing the car by hand
When washing the car by hand, use plenty of
water to soften the dirt first, and rinse off as
well as possible.
Then clean the vehicle with a soft sponge,
glove or brush using only slight pressure.
Start at the roof and work downwards. Spe-
cial car shampoo should only be used for
very persistent dirt.
Rinse the sponge or glove thoroughly and of-
ten.
Wheels, sills and similar should be cleaned
last. Use a second sponge for this. WARNING
Sharp components on the vehicle may cause
injury .
● Pr

otect arms and hands from sharp edges
when cle
aning the vehicle undercarriage or
the interior of the wheel hubs. WARNING
After the vehicle has been washed, the brak-
ing eff ect

will be reduced (and the braking
distance increased) due to moisture (and ice
in winter) on the brakes.
● “Dry the brakes and remove ice” by braking
caref
ully. Ensure that you are not endanger-
ing other road-users or breaking traffic regu-
lations in the process. CAUTION
● The wat er t

emperature should not exceed
+60 °C (+140 °F).
● To avoid damage to the paintwork, do not
wash the
vehicle in full sun.
● Do not use rough sponges or similar which
coul
d damage the surface to clean away the
traces of insects.
● Never wipe the headlights with a dry cloth
or spong
e, always moisten first. It is best to
use soapy water.
● Washing the vehicle in low temperatures:
When washin
g the vehicle with a hose, do
not direct water into the lock cylinders or the
gaps around the doors or roof. Locks and
seals could freeze! CAUTION
To avoid any risk of damage to the vehicle,
pl e

ase check the following points before us-
ing an automatic car wash: ●
Comp ar

e the distance between the vehicle
wheels and the distance between the guide-
rails of the car wash to prevent damage to the
wheels and tyres!
● Switch off the rain sensor before taking the
vehicl
e to an automatic car wash.
● Compare the height and width of your vehi-
cle w
ith the available height and width when
entering and driving through the car wash.
● Fold in exterior mirrors Electrically retracta-
ble e
xterior mirrors must not be folded in or
out by hand. Always use the electrical power
control.
● To avoid damaging the bonnet paintwork,
res
t the windscreen wipers on the windscreen
after drying the wiper blades. Do not let them
fall!
● Lock the rear lid to prevent it from opening
unexpect
edly while inside the car wash. Washing the vehicle with a high pres-
s
ur
e c

leaner When cleaning the vehicle with a high-pres-
s
ur
e c

leaner, always follow the operating in-
structions for the equipment. Pay special at-
tention to the required pressure of the jet
and the distance between the jet and the ve-
hicle ››› .
K eep a s uit

able distance from soft materials,
such as rubber hoses or insulating material,
168

Care and maintenance
and from the parking distance warning sys-
t em sen
sor
s. The sensors of the parking dis-
tance warning system are situated on the rear
bumper ››› .
Do not u
se a no

zzle that sprays the water out
in a direct stream or one that has a rotating
jet for forcing off dirt ››› .
WARNING
The incorrect use of high pressure cleaning
equipment c ou

ld result in permanent dam-
age, visible or invisible, to the tyres or other
materials. This could result in a serious acci-
dent.
● Ensure there is a suitable distance between
the nozzl
e and the tyres.
● Never wash tyres with a concentrated jet or
so-cal
led “dirt blasters”. Even at large spray-
ing distances and short cleaning times, you
may damage the tyres. WARNING
After the vehicle has been washed, the brak-
ing eff ect

will be reduced (and the braking
distance increased) due to moisture (and ice
in winter) on the brakes.
● “Dry the brakes and remove ice” by braking
caref
ully. Ensure that you are not endanger-
ing other road-users or breaking traffic regu-
lations in the process. CAUTION
● The wat er t

emperature should not exceed
+60 °C (+140 °F).
● To avoid damage to the paintwork, do not
wash the
vehicle in full sun.
● To ensure that the system functions well,
the sensors
located on the bumper must be
kept clean and free from ice. When cleaning
with pressure hoses and steam cleaners, the
sensors should be sprayed only briefly. A dis-
tance of 10 cm between the sensors and the
steam / hose nozzle must be observed.
● Do not use a high pressure cleaner to re-
move ic
e or snow from windows
● Washing the vehicle in low temperatures:
When washin
g the vehicle with a hose, do
not direct water into the lock cylinders or the
gaps around the doors or roof. Locks and
seals could freeze! Cleaning windows and exterior mir-
r
or
s Cleaning windows and exterior mirrors
S
pr
a

y windows and exterior windows with a
standard window cleaner containing alcohol.
Dry the windows with a clean chamois leath-
er or a lint-free cloth. The chamois leathers
used on painted surfaces are not suitable for
cleaning windows because they are soiled with wax deposits which could smear the
window

s.
Use window cleaner or a silicone remover to
clean rubber, oil, grease and silicone depos-
its off ››› .
R emo
v

ing wax residue
Automatic car washes and certain car care
products may leave wax deposits on the win-
dows. These deposits can only be removed
with a special product or cleaning cloths. If
wax deposits are left on the windscreen and
the rear window, the blades can scratch the
glass. SEAT recommends you wipe the wax
deposits off the windscreen and the rear win-
dow with a soft cloth each time after you
have washed the vehicle.
A window cleaning detergent which helps to
dissolve the wax may be added to the wind-
screen washer fluid to prevent the wiper
blades from scratching the windscreen.
Please ensure you add the cleaning product
in the correct proportions. Products for re-
moving grease do not eliminate the wax de-
posits ››› .
S pec
i

al cleaning products or window cloths
are available at any technical service. To re-
move wax deposits, SEAT recommends the
following products: »
169
Technical data
Advice
Operation
Emergencies
Safety

Advice
Labels and plates Fig. 162
Warnings relating to handling the
C ity

Safety Assist system radar sensor func-
tion Some parts in the engine compartment come
fr
om the f
act

ory with certificates of safety, la-
bels or plates containing important informa-
tion regarding the operation of the vehicle,
for example, on the fuel tank flap, on the pas-
senger's sun visor, on the driver door strut, or
on the floor of the boot.
● Never remove these certificates of safety,
labels
or plates, and ensure they are kept in
good condition and are legible.
● If a vehicle part, bearing a certificate of
safety
, label or plate, is replaced, the special-
ised workshop should attach the information
back in the same place. Certificate of safety
A certific

ate of safety on the door strut states
that all the safety standards and regulations
established by the national traffic authorities
responsible for road safety were met at the
time of manufacture. It may also give the
month and year of manufacture, together
with the chassis number.
Warning of high voltage label
There is a label close to the bonnet lock
which warns of high voltage in the vehicle's
electrical system.
Warning relating to the City Safety Assist
system laser sensor
There are some warning and information
signs on the City Safety Assist system laser
sensor ››› Fig. 162.
Using your vehicle in other countries
and continents The vehicle is manufactured at the factory for
u
se in a p
ar

ticular country in accordance with
the national legislation in force at the time of
manufacture.
If the vehicle is sold in another country or
used in another country for an extended peri-
od of time, the applicable legislation of that
country should be observed. It may be necessary to fit or remove certain
pieces

of equipment or to deactivate certain
functions. Service work may also be affected.
This is particularly true if the vehicle is used
in a different climate for an extended period
of time.
As there are different types of frequency
bands around the world, you may find that
the radio system or the Portable Navigation
System (supplied by SEAT) supplied at the
factory does not work in another country. CAUTION
● SEA T doe

s not accept liability for any dam-
age to the vehicle due to the use of a lower
quality fuel, an inadequate service or the
non-availability of genuine spare parts.
● SEAT does not accept liability if the vehicle
does not
comply in part or in full with the le-
gal requirements of other countries or conti-
nents. Radio and antenna reception
For factory-fitted radio equipment, the aerial
f
or r
a

dio reception is fitted to the roof of the
vehicle. Note
If electrical equipment such as mobile tele-
phones, i s

used near a roof aerial, you may176

Index
control and warning lamps . . . . . . . . . . . . . . . 133
ru nnin
g in new br
ake pads . . . . . . . . . . . . . . . 135
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 136, 147
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Braking brake assist system . . . . . . . . . . . . . . . . . . . . . 147
Bulb fault see Changing bulbs . . . . . . . . . . . . . . . . . . . . . . 78
C Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 natural gas tank . . . . . . . . . . . . . . . . . . . . . . . . 183
windscreen washer liquid reservoir . . . . . . . . 193
Caring for paintwork . . . . . . . . . . . . . . . . . . . . . . . 170
Caring for the vehicle exterior . . . . . . . . . . . . . . . . . . . . . . . . . . 166, 167
interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 145 control and warning lamps . . . . . . . . . . . . . . . 145
malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
CCS see cruise control . . . . . . . . . . . . . . . . . . . . . . . . 25
Central locking system . . . . . . . . . . . . . . . . . . . . . . 92 after airbag deployment . . . . . . . . . . . . . . . . . . 93
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
emergency locking . . . . . . . . . . . . . . . . . . . . . . . . 9
opening doors individually . . . . . . . . . . . . . . . . 93
remote control key . . . . . . . . . . . . . . . . . . . . . . . 93
Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . 35, 71 subsequent tasks . . . . . . . . . . . . . . . . . . . . . . . . 40
wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
number plate light . . . . . . . . . . . . . . . . . . . . . . . 82 rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
side turn s
ignal . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Changing gear . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 automatic gear change . . . . . . . . . . . . . . . . . . 139
Control and warning lamps . . . . . . . . . . . . . . . 137
engaging the gears (automatic gearbox) . . . . 139
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 74
Changing the wiper blades . . . . . . . . . . . . . . . . . . 44
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . 42
Child safety seat Securing with the seat belt . . . . . . . . . . . . . . . . 18
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 65 Disabling the front passenger front airbag . . . . 15
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 19, 67
mounting child seats . . . . . . . . . . . . . . . . . . . . . 17
mounting systems . . . . . . . . . . . . . . . . . . . . . . . 17
on the front passenger seat . . . . . . . . . . . . . . . . 66
on the rear seats . . . . . . . . . . . . . . . . . . . . . . . . . 67
regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
safety instructions . . . . . . . . . . . . . . . . . . . . 16, 64
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 20
transporting children in the vehicle . . . . . . . . . 66
weight categories . . . . . . . . . . . . . . . . . . . . . . . . 66
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . 116
City Safety Assist function . . . . . . . . . . . . . . . . . . 152 control and warning lamps . . . . . . . . . . . . . . . 153
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Special driving situations . . . . . . . . . . . . . . . . 155
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 compartments . . . . . . . . . . . . . . . . . . . . . . . . . 174
dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
engine compartment . . . . . . . . . . . . . . . . . . . . 172
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 textile covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
washin
g the vehicle . . . . . . . . . . . . . . . . . . . . . 167
Washing the vehicle with high pressure clean- ers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Cleaning the vehicle high pressure cleaners . . . . . . . . . . . . . . . . . . . 168
Climate control Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 11
luggage compartment . . . . . . . . . . . . . . . . . . . . 98
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 11
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 centre console . . . . . . . . . . . . . . . . . . . . . . . . . 113
glove compartment . . . . . . . . . . . . . . . . 113, 114
passenger side . . . . . . . . . . . . . . . . . . . . 113, 114
Sunglasses storage compartment . . . . . . . . . . 113
Conformity certification . . . . . . . . . . . . . . . . . . . . 177
Consumption information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Control and warning lamps Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
catalytic converter . . . . . . . . . . . . . . . . . . . . . . 145
Changing gear . . . . . . . . . . . . . . . . . . . . . . . . . 137
City Safety Assist function . . . . . . . . . . . . . . . . 153
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Emission control system . . . . . . . . . . . . . . . . . 145
engine management . . . . . . . . . . . . . . . . . . . . 145
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
218

Index
Parking distance warning system . . . . . . . . . . . . 149 fau
lt
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
see also Parking aid . . . . . . . . . . . . . . . . . . . . . 149
Parking light remains . . . . . . . . . . . . . . . . . . . . . . 102
ParkPilot see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 149
Passenger door emergency locking . . . . . . . . . . . . 9
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47, 51
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Portable Navigation System . . . . . . . . . . . . . . . . 164
Positioning the seat belt for pregnant women . . . . . . . . . . . . . . . . . . . . . . 55
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power brake system Anti-lock system . . . . . . . . . . . . . . . . . . . . . . . . 147
Power socket 12 volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Protection of vehicle undercarriage . . . . . . . . . . 171
Puncture action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Pushing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 130
R Radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Radio-operated remote control see Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Radio reception antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . 176
Raising the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 38 lift platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 Rear
headr ests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Rear backrest Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
lifting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 see also Luggage compartment . . . . . . . . . . . . 97
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Rear vision mirror . . . . . . . . . . . . . . . . . . . . . . . . . 107 interior anti-dazzle . . . . . . . . . . . . . . . . . . . . . . 107
Rear vision mirrors adjusting the exterior mirrors . . . . . . . . . . . . . 107
see also Rear vision mirrors . . . . . . . . . . . . . . . 107
Rear windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Recommended gear . . . . . . . . . . . . . . . . . . . . . . . 141
Recycled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178 control and warning lamps . . . . . . . . . . . . . . . 181
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
mistakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
opening fuel tank flap . . . . . . . . . . . . . . . . . . . 183
Remote control key unlocking and locking . . . . . . . . . . . . . . . . . . . . 93
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160, 177 airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Repair work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . 159
Replacing bulbs See "Changing bulbs" . . . . . . . . . . . . . . . . . . . . 78
Reprogramming control units . . . . . . . . . . . . . . . 162
Retaining hooks . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Rims Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 35
Roof carrier system . . . . . . . . . . . . . . . . . . . . . . . . 122 fastening the supports . . . . . . . . . . . . . . . . . . . 123 Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Rubber seal
s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Running in brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
new engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . 200
S
SAFE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95, 132
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
disabling the front passenger front airbag . . . . 15
driving safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Safety Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Safety instructions using child seats . . . . . . . . . . . . . . . . . . . . . 16, 64
using seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 54
Sale of vehicle in other countries / continents . . . . . . . . . . . . 176
Scrapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 177
vend-of-life vehicles . . . . . . . . . . . . . . . . . . . . . 177
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 55
automatic belt retractor . . . . . . . . . . . . . . . . . . . 57
belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
belt tension limiter . . . . . . . . . . . . . . . . . . . . . . . 57
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
protective function . . . . . . . . . . . . . . . . . . . . . . . 53
purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 54
twisted belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
223

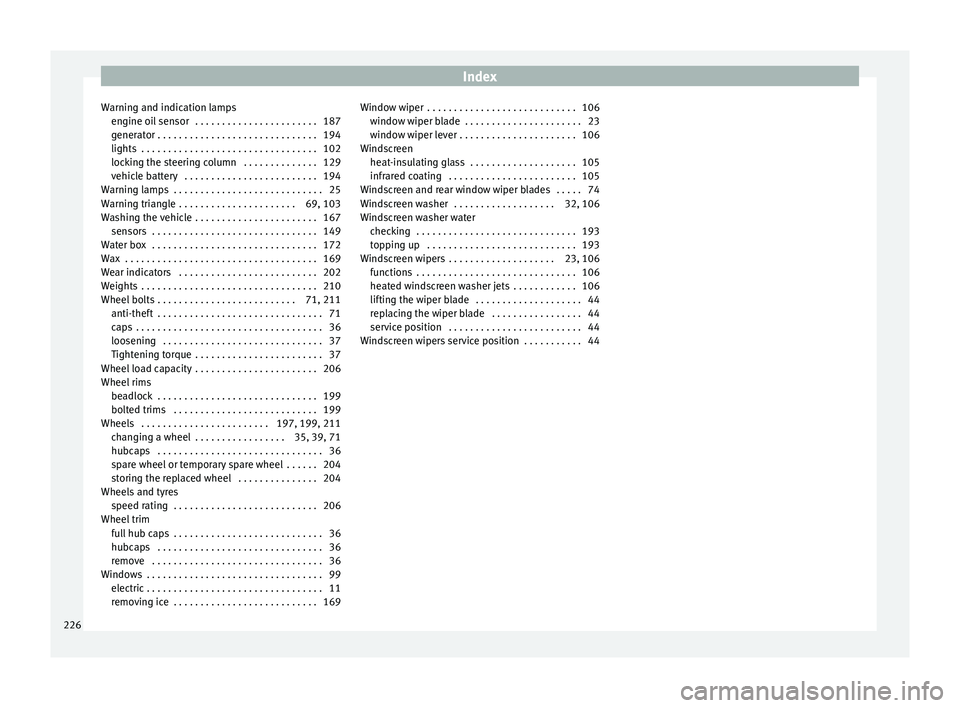

Index
Warning and indication lamps en gine oi
l
sensor . . . . . . . . . . . . . . . . . . . . . . . 187
generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
locking the steering column . . . . . . . . . . . . . . 129
vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 194
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Warning triangle . . . . . . . . . . . . . . . . . . . . . . 69, 103
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 167 sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Wax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . 71, 211 anti-theft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
loosening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Tightening torque . . . . . . . . . . . . . . . . . . . . . . . . 37
Wheel load capacity . . . . . . . . . . . . . . . . . . . . . . . 206
Wheel rims beadlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
bolted trims . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Wheels . . . . . . . . . . . . . . . . . . . . . . . . 197, 199, 211 changing a wheel . . . . . . . . . . . . . . . . . 35, 39, 71
hubcaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
spare wheel or temporary spare wheel . . . . . . 204
storing the replaced wheel . . . . . . . . . . . . . . . 204
Wheels and tyres speed rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Wheel trim full hub caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
hubcaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 electric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
removing ice . . . . . . . . . . . . . . . . . . . . . . . . . . . 169 Window wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
window w iper blade . . . . . . . . . . . . . . . . . . . . . . 23
window wiper lever . . . . . . . . . . . . . . . . . . . . . . 106
Windscreen heat-insulating glass . . . . . . . . . . . . . . . . . . . . 105
infrared coating . . . . . . . . . . . . . . . . . . . . . . . . 105
Windscreen and rear window wiper blades . . . . . 74
Windscreen washer . . . . . . . . . . . . . . . . . . . 32, 106
Windscreen washer water checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Windscreen wipers . . . . . . . . . . . . . . . . . . . . 23, 106 functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
heated windscreen washer jets . . . . . . . . . . . . 106
lifting the wiper blade . . . . . . . . . . . . . . . . . . . . 44
replacing the wiper blade . . . . . . . . . . . . . . . . . 44
service position . . . . . . . . . . . . . . . . . . . . . . . . . 44
Windscreen wipers service position . . . . . . . . . . . 44
226
