2015 Seat Mii technical data

Technical data
Engine data P etr
o
l engine 1.0 44 kW (60 PS) Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
44 (60)/5,000-6,00095/3,000-4,3003/999Super 95 RON
PerformanceManualEcomotiveStart-Stop
EcomotiveAutomatic
Top speed (km/h)160 (4)161 (4)161 (4)160 (4)
Acceleration from 0-80 km/h (seconds)9.19.19.49.4
Acceleration from 0-100 km/h (seconds)14.414.415.315.3
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle5.6/1305/1164.6/1065.3/123
Extra-urban cycle3.9/913.6/843.7/873.9/91
Combined4.5/1054.1/954/934.4/103
Weights (in kg)
Gross vehicle weight1,2901,2901,3001,290
Weight in running order (with driver)929940931932
Gross front axle weight680680680680
Gross rear axle weight640640640640
Permitted roof load50505050 212

Technical features
Petrol engine 1.0 55 kW (75 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
55 (75)/6,20095/3,000-4,3003/999Super 95 RON
PerformanceManualStart-StopStart-Stop
EcomotiveAutomatic
Top speed (km/h)171 (4)172 (4)172 (4)171 (4)
Acceleration from 0-80 km/h (seconds)8.38.39.29.2
Acceleration from 0-100 km/h (seconds)13.213.213.913.9
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle5.8/1345.1/1184.6/1065.5/127
Extra-urban cycle3.9/903.7/873.8/894/94
Combined4.6/1064.2/984.1/954.5/105
Weights (in kg)
Gross vehicle weight1,2901,2901,3001,290
Weight in running order (with driver)929940931932
Gross front axle weight680680680680
Gross rear axle weight640640640640
Permitted roof load50505050 213
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Petrol/CNG engine 1.0 50 kW (68 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm
3
)Fuel
50 (68)/6,20090/3,0003/999CNG / Super 95 RON
Performance
Top speed (km/h)164 (4)
Acceleration from 0-80 km/h (seconds)10.3
Acceleration from 0-100 km/h (seconds)16.3
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle5.5/99
Extra-urban cycle3.8/68
Combined4.4/79
Weights (in kg)
Gross vehicle weight1,370
Weight in running order (with driver)1,031
Gross front axle weight680
Gross rear axle weight640
Permitted roof load50 214

Technical features

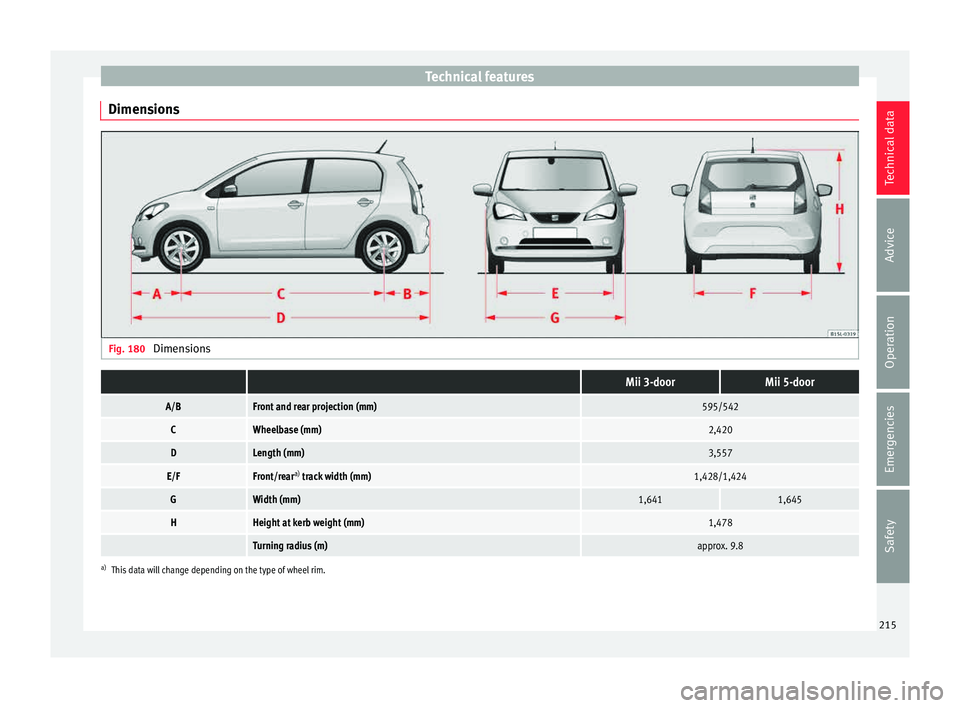

Dimensions Fig. 180
Dimensions Mii 3-doorMii 5-door
A/BFront and rear projection (mm)595/542
CWheelbase (mm)2,420
DLength (mm)3,557
E/FFront/rear a)
track width (mm)1,428/1,424
GWidth (mm)1,6411,645
HHeight at kerb weight (mm)1,478
Turning radius (m)approx. 9.8
a) This data will change depending on the type of wheel rim.
215
Technical data
Advice
Operation
Emergencies
Safety

Index
unfastened . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
w arnin
g l
amp . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Seat belt tensioner . . . . . . . . . . . . . . . . . . . . . . 13, 57
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
SEAT information system . . . . . . . . . . . . . . . . . . . . 23
SEAT Portable System . . . . . . . . . . . . . . . . . . . . . 164
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Incorrect position . . . . . . . . . . . . . . . . . . . . . . . . 49
number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 49
Rear backrest . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Service fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Service interval display . . . . . . . . . . . . . . . . . . . . . 88
Side airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 40, 211 temporary spare wheel . . . . . . . . . . . . . . . . . . . 40
Spare fuel canister . . . . . . . . . . . . . . . . . . . . . . . . 180
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Spare wheel removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Spare wheel or temporary spare wheel advice for driving . . . . . . . . . . . . . . . . . . . . . . . 204
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Speed rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Start-Stop system . . . . . . . . . . . . . . . . . . . . 156, 157 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 20
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 electromechanical . . . . . . . . . . . . . . . . . . . . . . 129
power steering . . . . . . . . . . . . . . . . . . . . . . . . . 129
steering column lock . . . . . . . . . . . . . . . . . . . . 129
tendency to pull to one side . . . . . . . . . . . . . . 202
warning and indication lamps . . . . . . . . . . . . . 129
Steering wheel adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Storage compartment . . . . . . . . . . . . . . . . . . . . . 112
centre c onsole . . . . . . . . . . . . . . . . . . . . . . . . . 114
driver side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Other storage compartments . . . . . . . . . . . . . . 115
Sunglasses storage compartment . . . . . . . . . . . 113
Sun protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Switch hazard warning lights . . . . . . . . . . . . . . . . . . . 103
Switching lights off . . . . . . . . . . . . . . . . . . . . . . . 102
Switching lights on . . . . . . . . . . . . . . . . . . . . . . . 102
Switching the ignition on and off . . . . . . . . . . . . . 20
Symbols see Control and warning lamps . . . . . . . . . . . . . 25
T TC see Brake assist systems . . . . . . . . . . . . . . . . . 148
Technical data axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
engine oil specifications . . . . . . . . . . . . . . . . . 187
kerb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
reservoir capacity . . . . . . . . . . . . . . . . . . . . . . . 193
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
total weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 200
weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
windshield washer fluid container capacity . . . 30
Technical features . . . . . . . . . . . . . . . . . . . . . . . . 209
Technical information type of fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Technical modifications . . . . . . . . . . . . . . . . . . . . 160
Technical specifications dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Temperature display liquid coolant temperature . . . . . . . . . . . . . . . . 24 Temporary spare wheel
snow c hains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Tightening torque . . . . . . . . . . . . . . . . . . . . . . . . . 211 wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . . 20
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 42, 74
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Towing the vehicle . . . . . . . . . . . . . . . . . 41, 74, 130 front towline anchorage . . . . . . . . . . . . . . . . . . . 76
special features . . . . . . . . . . . . . . . . . . . . . . . . . 75
tow bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
tow rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Towline anchorages . . . . . . . . . . . . . . . . . . . . . . . . 41
Traction control system . . . . . . . . . . . . . . . 147, 148
Traction Control (TC) . . . . . . . . . . . . . . . . . . . . . . . 148
Traction (tyres) . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Transporting driving with the rear lid open . . . . . . . . . . . . . . 111
load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
loaded vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 111
Transporting children . . . . . . . . . . . . . . . . . . . . . . . 63
Transporting items fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 121
roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
roof carrier system . . . . . . . . . . . . . . . . . 122, 123
Treadwear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Turn signal convenience function . . . . . . . . . . . . 102
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . 22, 102
Tyre load rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Tyre mobility set . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
do not use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
224

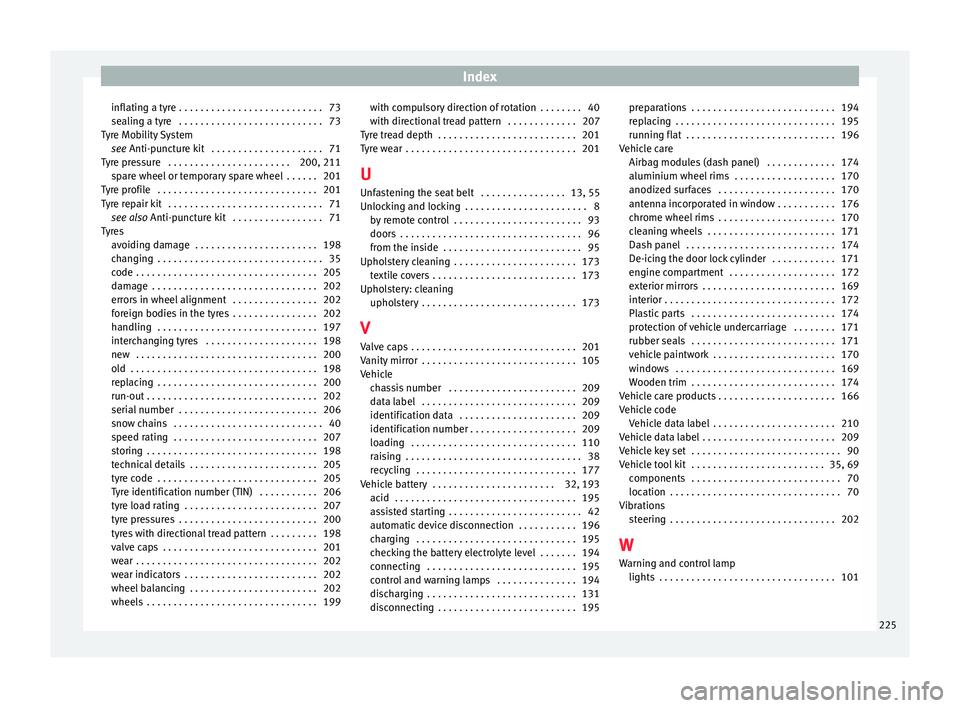

Index
inflating a tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
se alin
g a ty
re . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Tyre Mobility System see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 71
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . 200, 211 spare wheel or temporary spare wheel . . . . . . 201
Tyre profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 see also Anti-puncture kit . . . . . . . . . . . . . . . . . 71
Tyres avoiding damage . . . . . . . . . . . . . . . . . . . . . . . 198
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
errors in wheel alignment . . . . . . . . . . . . . . . . 202
foreign bodies in the tyres . . . . . . . . . . . . . . . . 202
handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
interchanging tyres . . . . . . . . . . . . . . . . . . . . . 198
new . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
old . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
run-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
serial number . . . . . . . . . . . . . . . . . . . . . . . . . . 206
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
speed rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
technical details . . . . . . . . . . . . . . . . . . . . . . . . 205
tyre code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Tyre identification number (TIN) . . . . . . . . . . . 206
tyre load rating . . . . . . . . . . . . . . . . . . . . . . . . . 207
tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 200
tyres with directional tread pattern . . . . . . . . . 198
valve caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 202
wheel balancing . . . . . . . . . . . . . . . . . . . . . . . . 202
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199 with compulsory direction of rotation . . . . . . . . 40
with direction
al tread pattern . . . . . . . . . . . . . 207
Tyre tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Tyre wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
U Unfastening the seat belt . . . . . . . . . . . . . . . . 13, 55
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . . 8 by remote control . . . . . . . . . . . . . . . . . . . . . . . . 93
doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
from the inside . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Upholstery cleaning . . . . . . . . . . . . . . . . . . . . . . . 173 textile covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Upholstery: cleaning upholstery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
V Valve caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Vehicle chassis number . . . . . . . . . . . . . . . . . . . . . . . . 209
data label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
identification data . . . . . . . . . . . . . . . . . . . . . . 209
identification number . . . . . . . . . . . . . . . . . . . . 209
loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
raising . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . 32, 193 acid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 42
automatic device disconnection . . . . . . . . . . . 196
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
checking the battery electrolyte level . . . . . . . 194
connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
control and warning lamps . . . . . . . . . . . . . . . 194
discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . 195 preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
repl
acing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
running flat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Vehicle care Airbag modules (dash panel) . . . . . . . . . . . . . 174
aluminium wheel rims . . . . . . . . . . . . . . . . . . . 170
anodized surfaces . . . . . . . . . . . . . . . . . . . . . . 170
antenna incorporated in window . . . . . . . . . . . 176
chrome wheel rims . . . . . . . . . . . . . . . . . . . . . . 170
cleaning wheels . . . . . . . . . . . . . . . . . . . . . . . . 171
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
De-icing the door lock cylinder . . . . . . . . . . . . 171
engine compartment . . . . . . . . . . . . . . . . . . . . 172
exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 169
interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
protection of vehicle undercarriage . . . . . . . . 171
rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
vehicle paintwork . . . . . . . . . . . . . . . . . . . . . . . 170
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Wooden trim . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Vehicle care products . . . . . . . . . . . . . . . . . . . . . . 166
Vehicle code Vehicle data label . . . . . . . . . . . . . . . . . . . . . . . 210
Vehicle data label . . . . . . . . . . . . . . . . . . . . . . . . . 209
Vehicle key set . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . 35, 69 components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Vibrations steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
W Warning and control lamp lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
225

SEAT S.A. is permanently concerned about continuous development of its t\
ypes and models. For this reason we ask you to under-
stand, that at any given time, changes regarding shape, equipment and te\
chnique may take place on the car delivered. For this reason
no right at all may derive based on the data, drawings and descriptions \
in this current handbook.
All texts, illustrations and standards in this handbook are based on the\
status of information at the time of printing. Except for error
or omission, the information included in the current handbook is valid a\
s of the date of closing print.
Re-printing, copying or translating, whether total or partial is not all\
owed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the “Copyright” Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.11.15
About this manual
This manual contains a description of the
equipment supplied with the vehicle at the
time this manual was published. Some of the
units described herein will not be available
until a later date or are only available in cer -
tain markets.
Because this is a general manual for the Mii,
some of the equipment and functions that are
described in this manual are not included in
all types or variants of the model; they may
vary or be modied depending on the techni -
cal requirements and on the market; this is in
no way deceptive advertising.
The illustrations are intended as a general
guide and may vary from the equipment tted
in your vehicle in some details.
The steering indications (left, right, forward,
reverse) appearing in this manual refer to the
normal driving movements of the vehicle ex -
cept when otherwise indicated.
The equipment marked with an aster -
isk* is tted as standard only in certain
versions, and is only supplied as op -
tional extras for some versions, or are
only offered in certain countries.
® All registered marks are indicated with
®. Although the copyright symbol does
not appear, it is a copyrighted mark.
>> The section is continued on the follow -
ing page.
Important warnings on a given page
Detailed contents on a given page
General information on a given page

Emergency information on a given page

WARNING
Texts preceded by this symbol contain infor -
mation on safety. They warn you about possi -
ble dangers of accident or injury.
CAUTION
Texts with this symbol draw your attention to
potential sources of damage to your vehicle.
For the sake of the environment
Texts preceded by this symbol contain rele-
vant information concerning environmental
protection.
Note
Texts preceded by this symbol contain additio -
nal information.
This manual is divided into six large parts,
which are:
1. The essentials
2. Safety
3. Emergencies
4. Operation
5. Tips
6. Technical data
At the end of this manual, there is a detailed
alphabetical index that will help you quickly
nd the information you require.
