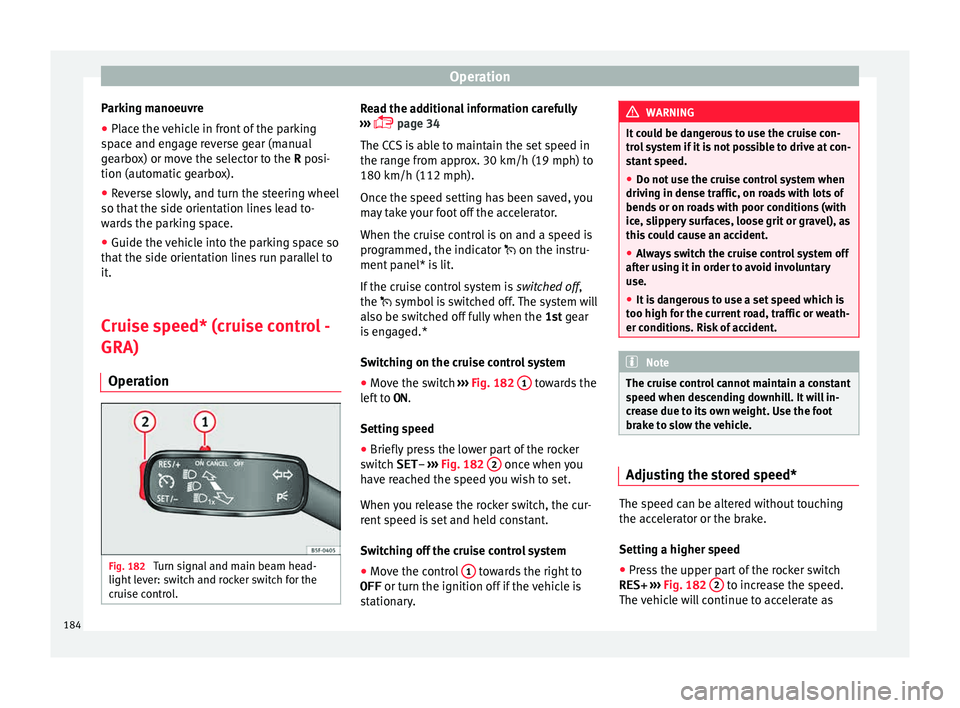

Operation
Parking manoeuvre
● Place the vehicle in front of the parking
s p
ac
e and engage reverse gear (manual
gearbox) or move the selector to the R posi-
tion (automatic gearbox).
● Reverse slowly, and turn the steering wheel
so that the s
ide orientation lines lead to-
wards the parking space.
● Guide the vehicle into the parking space so
that the s
ide orientation lines run parallel to
it.
Cruise speed* (cruise control -
GRA)
Operation Fig. 182
Turn signal and main beam head-
light l
ev

er: switch and rocker switch for the
cruise control. Read the additional information carefully
› ›
›

 page 34
The CCS is able to maintain the set speed in
the range from approx. 30 km/h (19 mph) to
180 km/h (112 mph).
Once the speed setting has been saved, you
may take your foot off the accelerator.
When the cruise control is on and a speed is
programmed, the indicator  on the instru-
ment panel* is lit.
If the cruise control system is switched off,
the  symbol is switched off. The system will
also be switched off fully when the 1st gear
is engaged.*
Switching on the cruise control system
● Move the switch ›››
Fig. 182 1 towards the
l ef
t
to ON.
Setting speed
● Briefly press the lower part of the rocker
switc
h SET– ››› Fig. 182 2 once when you
h av
e r
eached the speed you wish to set.
When you release the rocker switch, the cur-
rent speed is set and held constant.
Switching off the cruise control system
● Move the control 1 towards the right to
OFF or t
urn the ignition off if

the vehicle is
stationary. WARNING
It could be dangerous to use the cruise con-
tro l

system if it is not possible to drive at con-
stant speed.
● Do not use the cruise control system when
driving in den
se traffic, on roads with lots of
bends or on roads with poor conditions (with
ice, slippery surfaces, loose grit or gravel), as
this could cause an accident.
● Always switch the cruise control system off
after u
sing it in order to avoid involuntary
use.
● It is dangerous to use a set speed which is
too high for the c
urrent road, traffic or weath-
er conditions. Risk of accident. Note
The cruise control cannot maintain a constant
speed when de s

cending downhill. It will in-
crease due to its own weight. Use the foot
brake to slow the vehicle. Adjusting the stored speed*
The speed can be altered without touching
the ac
c
el

erator or the brake.
Setting a higher speed
● Press the upper part of the rocker switch
RES+ ›››

Fig. 182 2 to increase the speed.
The v
ehic
le will continue to accelerate as
184

Driver assistance systems
long as you keep the rocker switch pressed.
When y
ou r
elease the switch, the new speed
is stored.
Setting a lower speed
● Press the lower part of the rocker switch
SET– ›››

Fig. 182 2 to reduce the speed. The
v ehic
l
e will automatically reduce its speed for
as long as you keep the switch pressed.
When you release the switch, the new speed
is stored.
When you increase speed with the accelera-
tor and then release the pedal, the system
will automatically restore the set speed. This
will not be the case, however, if the vehicle
speed exceeds the stored speed by more
than 10 km/h (6 mph) for longer than 5 mi-
nutes. The speed will have to be stored
again.
Cruise control is switched off if you reduce
speed by depressing the brake pedal. Reacti-
vate the control by pressing once on the up-
per part of the rocker switch RES+ ››› Fig. 182
2 .
Temporary deactivation of cruise con-
tr o
l* The cruise control system will be switched off
in the f
o
l

lowing situations:
● if the brake pedal is depressed, ●
if the clut
ch pedal is depressed,
● if the vehicle is accelerated to over
180 km/h (112 mph),
● when the lever 1 is moved in the direction
of
OFF w
ithout

being fully engaged.
To resume cruise control, release the brake or
clutch pedal or reduce the vehicle speed to
less than 180 km/h (112 mph) and press
once on the upper part of the rocker switch RES+ ››› Fig. 182 2 .
Complete system deactivation Vehicles with a manual gearbox
The sy
s
t

em is completely turned off by mov-
ing the control ››› Fig. 182 1 -- all the way to
the right h

and side (set into the OFF posi-
tion), or when the vehicle is stationary,
switching off the ignition.
Vehicles with an automatic gearbox
To completely disengage the system, the se-
lector lever must be placed in one of the fol-
lowing positions: P, N, R or 1 or with the vehi-
cle stopped and the ignition turned off. “SEAT Drive Profile” system
Function and oper
ation Fig. 183
In the centre console: button to ad-
ju s
t

the "SEAT Drive Profile" system The “SEAT Drive Profile” system modifies the
s
u
s

pension system's characteristics and
power steering behaviour.
you can choose between 2 different settings
with different characteristics.
CONVEN-
IENCEBalanced setting, suitable, e.g. for day-to-
day use.
SPORTThis gives the vehicle sporty characteristics
and is suitable for a sporty driving style. Settings can be changed when the vehicle is
s
t
ation

ary or in movement. When a “SEAT
Drive Profile” setting is changed it is activa-
ted immediately. »
185

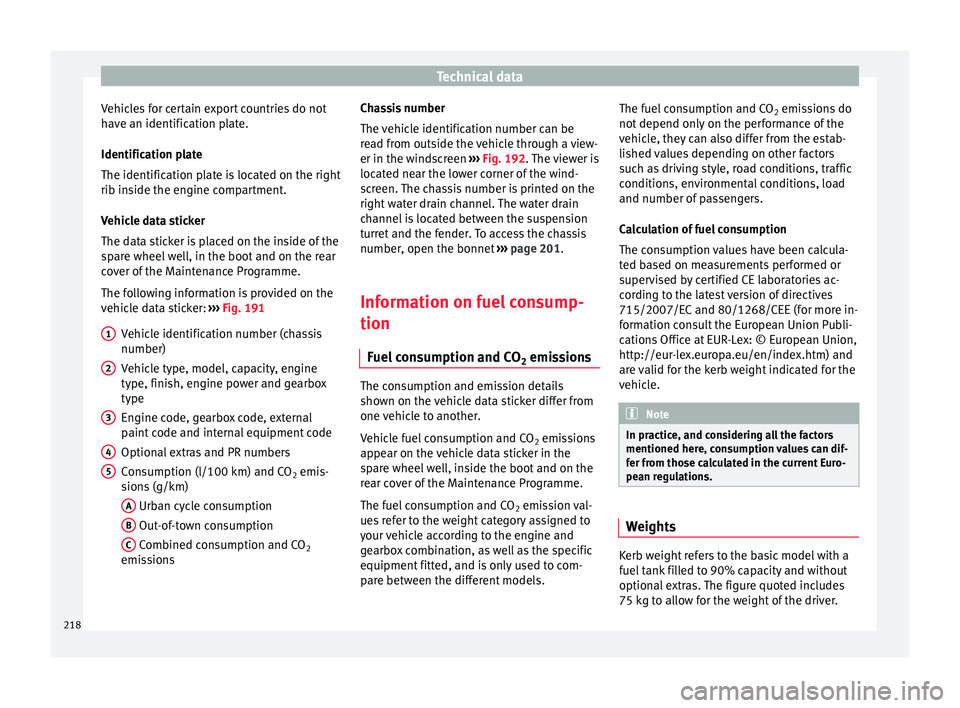

Technical data
Advice
Operation
Emergencies
Safety

Technical data
Vehicles for certain export countries do not
h av
e an identific
ation plate.
Identification plate
The identification plate is located on the right
rib inside the engine compartment.
Vehicle data sticker
The data sticker is placed on the inside of the
spare wheel well, in the boot and on the rear
cover of the Maintenance Programme.
The following information is provided on the
vehicle data sticker: ››› Fig. 191
Vehicle identification number (chassis
number)
Vehicle type, model, capacity, engine
type, finish, engine power and gearbox
type
Engine code, gearbox code, external
paint code and internal equipment code
Optional extras and PR numbers
Consumption (l/100 km) and CO 2 emis-
sions (g/km)
A Urban cycle consumption
B Out-of-town consumption
C Combined consumption and CO
2
emi s
s

ions
1 2
3
4
5 Chassis number
The
v
ehic

le identification number can be
read from outside the vehicle through a view-
er in the windscreen ››› Fig. 192. The viewer is
located near the lower corner of the wind-
screen. The chassis number is printed on the
right water drain channel. The water drain
channel is located between the suspension
turret and the fender. To access the chassis
number, open the bonnet ››› page 201.
Information on fuel consump-
tion Fuel c

onsumption and CO 2 emissions The consumption and emission details
sho
wn on the
v

ehicle data sticker differ from
one vehicle to another.
Vehicle fuel consumption and CO 2 emissions
appear on the vehicle data sticker in the
spare wheel well, inside the boot and on the
rear cover of the Maintenance Programme.
The fuel consumption and CO 2 emission val-
ues refer to the weight category assigned to
your vehicle according to the engine and
gearbox combination, as well as the specific
equipment fitted, and is only used to com-
pare between the different models. The fuel consumption and CO
2 emiss

ions do
not depend only on the performance of the
vehicle, they can also differ from the estab-
lished values depending on other factors
such as driving style, road conditions, traffic
conditions, environmental conditions, load
and number of passengers.
Calculation of fuel consumption
The consumption values have been calcula-
ted based on measurements performed or
supervised by certified CE laboratories ac-
cording to the latest version of directives
715/2007/EC and 80/1268/CEE (for more in-
formation consult the European Union Publi-
cations Office at EUR-Lex: © European Union,
http://eur-lex.europa.eu/en/index.htm) and
are valid for the kerb weight indicated for the
vehicle. Note
In practice, and considering all the factors
mentioned here, c on

sumption values can dif-
fer from those calculated in the current Euro-
pean regulations. Weights
Kerb weight refers to the basic model with a
f
uel
t

ank filled to 90% capacity and without
optional extras. The figure quoted includes
75 kg to allow for the weight of the driver.
218

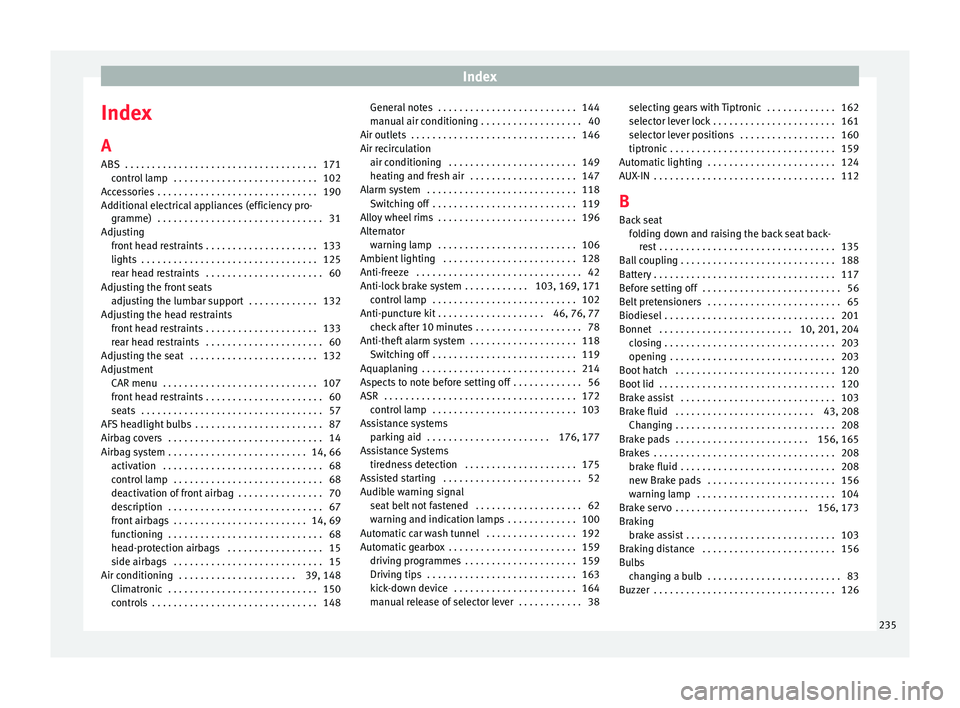

Index
Index
A
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
171
c ontr
ol lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Additional electrical appliances (efficiency pro- gramme) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Adjusting front head restraints . . . . . . . . . . . . . . . . . . . . . 133
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 60
Adjusting the front seats adjusting the lumbar support . . . . . . . . . . . . . 132
Adjusting the head restraints front head restraints . . . . . . . . . . . . . . . . . . . . . 133
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 60
Adjusting the seat . . . . . . . . . . . . . . . . . . . . . . . . 132
Adjustment CAR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
front head restraints . . . . . . . . . . . . . . . . . . . . . . 60
seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
AFS headlight bulbs . . . . . . . . . . . . . . . . . . . . . . . . 87
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 66 activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
deactivation of front airbag . . . . . . . . . . . . . . . . 70
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 14, 69
functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
head-protection airbags . . . . . . . . . . . . . . . . . . 15
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Air conditioning . . . . . . . . . . . . . . . . . . . . . . 39, 148 Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . 144
manual air c
onditioning . . . . . . . . . . . . . . . . . . . 40
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Air recirculation air conditioning . . . . . . . . . . . . . . . . . . . . . . . . 149
heating and fresh air . . . . . . . . . . . . . . . . . . . . 147
Alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Alloy wheel rims . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Alternator warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . . . 128
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Anti-lock brake system . . . . . . . . . . . . 103, 169, 171 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . 46, 76, 77 check after 10 minutes . . . . . . . . . . . . . . . . . . . . 78
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 118 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Aspects to note before setting off . . . . . . . . . . . . . 56
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Assistance systems parking aid . . . . . . . . . . . . . . . . . . . . . . . 176, 177
Assistance Systems tiredness detection . . . . . . . . . . . . . . . . . . . . . 175
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Audible warning signal seat belt not fastened . . . . . . . . . . . . . . . . . . . . 62
warning and indication lamps . . . . . . . . . . . . . 100
Automatic car wash tunnel . . . . . . . . . . . . . . . . . 192
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 159 driving programmes . . . . . . . . . . . . . . . . . . . . . 159
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
kick-down device . . . . . . . . . . . . . . . . . . . . . . . 164
manual release of selector lever . . . . . . . . . . . . 38 selecting gears with Tiptronic . . . . . . . . . . . . . 162
selector l
ever lock . . . . . . . . . . . . . . . . . . . . . . . 161
selector lever positions . . . . . . . . . . . . . . . . . . 160
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Automatic lighting . . . . . . . . . . . . . . . . . . . . . . . . 124
AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
B Back seat folding down and raising the back seat back- rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Ball coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Belt pretensioners . . . . . . . . . . . . . . . . . . . . . . . . . 65
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . 10, 201, 204 closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Brake assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 43, 208 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 156, 165
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
new Brake pads . . . . . . . . . . . . . . . . . . . . . . . . 156
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 156, 173
Braking brake assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . . 156
Bulbs changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 83
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
235

Index
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 biodie
sel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . 167
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Fuel tank see Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . 105
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . 41
Fuel tank flap opening and closing . . . . . . . . . . . . . . . . . . . . . 41
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44, 81 fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
identifying blown fuses . . . . . . . . . . . . . . . . . . . 45
Identifying by colours . . . . . . . . . . . . . . . . . . . . . 44
Preparation before replacing . . . . . . . . . . . . . . . 44
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
G Gear-change indicator . . . . . . . . . . . . . . . . . 28, 159
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
changing gears (manual gearbox) . . . . . . . . . 159
manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
manual gear change . . . . . . . . . . . . . . . . . . . . . 159
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Gear recommendation . . . . . . . . . . . . . . . . . . . . . . 28
General instrument panel controls and displays . . . . . . . . . . . . . . . . . . . . . 95
turn signal and main beam lever . . . . . . . . . . . 125
warning and indication lamps . . . . . . . . . . . . . . 35
General overview of the engine compartment . . 204 Glass
remov ing ice . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . 136
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . 155
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . 156, 157 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Hazard warning lights . . . . . . . . . . . . . . . . . 22, 127
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Head-on collisions and the laws of physics . . . . . 63
Head-protection airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 15
Headlight range control . . . . . . . . . . . . . . . . . . . . 125
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 169
fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Headlight washer . . . . . . . . . . . . . . . . . . . . . . . 130
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Front head restraints . . . . . . . . . . . . . . . . . . . . . 60
Rear head restraints . . . . . . . . . . . . . . . . . . . . . . 60
Headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Heated rear window heating element wires . . . . . . . . . . . . . . . . . . . 195
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Defrosting the windscreen . . . . . . . . . . . . . . . . 147
Demisting the windscreen and side windows 148
Heating and fresh air . . . . . . . . . . . . . . . . . . 40, 146 controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Hill driving assistant . . . . . . . . . . . . . . . . . . . . . . 158
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . 52
desc ription . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Hydraulic Brake Assist automatic hazard warning lights activation . . 171
I
Identification plate . . . . . . . . . . . . . . . . . . . . . . . . 218
Identifying letters on engine . . . . . . . . . . . . . . . . 217
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . 20, 153
Incorrect sitting position . . . . . . . . . . . . . . . . . . . . 59
Indications on the display . . . . . . . . . . . . . . . . . . . 97 assist systems submenu . . . . . . . . . . . . . . . . . . 29
compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
distance travelled . . . . . . . . . . . . . . . . . . . . . . . . 97
doors, bonnet and rear lid open . . . . . . . . . . . . 28
Driver information system . . . . . . . . . . . . . . . . . 25
ECO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
journey data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MKB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
outside temperature . . . . . . . . . . . . . . . . . . . . . . 27
recommended gear . . . . . . . . . . . . . . . . . . . . . . 98
SEAT Drive Profile . . . . . . . . . . . . . . . . . . . . . . . 186
second speed display . . . . . . . . . . . . . . . . . . . . 98
selector lever position . . . . . . . . . . . . . . . . . . . . 98
selector lever positions . . . . . . . . . . . . . . . . . . 160
service intervals . . . . . . . . . . . . . . . . . . . . . . . . . 33
speed warning . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
warning and information messages . . . . . . . . . 29
Infotainment system . . . . . . . . . . . . . . . . . . . . . . . 24
Inspection service . . . . . . . . . . . . . . . . . . . . . . . . 204
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 96
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . 96 display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96, 97
instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
239

Index
odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
ser v
ic
e interval indication . . . . . . . . . . . . . . . . . 33
warning and indication lamps . . . . . . . . . . . . . 100
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 anti-dazzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Interior view left guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
right-hand drive . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 19
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 mounting points . . . . . . . . . . . . . . . . . . . . . . . . . 48
Journey data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 data summary . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
K
Key-operated switch . . . . . . . . . . . . . . . . . . . . . . . . 70
Key by remote control unlocking and locking . . . . . . . . . . . . . . . . . . . 117
Keys replacing the battery . . . . . . . . . . . . . . . . . . . . 117
spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
synchronise . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
unlocking and locking . . . . . . . . . . . . . . . . . . . 117
vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Kick-down automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 164
L
Lamp fault control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Leaving Home Function . . . . . . . . . . . . . . . . . . . . 126
Level control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Lifting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Lighting of the in
strument panel, . . . . . . . . . . . . 125
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 123 adaptive headlights . . . . . . . . . . . . . . . . . . . . . 127
additional brake light . . . . . . . . . . . . . . . . . . . . . 92
automatic lighting . . . . . . . . . . . . . . . . . . . . . . 124
changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 83
coming home . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Daytime running lights . . . . . . . . . . . . . . . . . . . 124
fog lights with cornering function . . . . . . . . . . 127
headlight range control . . . . . . . . . . . . . . . . . . 125
interior light and front reading lights . . . . . . . . 92
interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . 128
leaving home . . . . . . . . . . . . . . . . . . . . . . . . . . 126
lighting of the instrument panel . . . . . . . . . . . 125
light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
luggage compartment light . . . . . . . . . . . . . . . . 93
main beam lever . . . . . . . . . . . . . . . . . . . . . . . . 125
main beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
number plate light . . . . . . . . . . . . . . . . . . . . . . . 92
parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 125
reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . 128
turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . 125
turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Load compartment in the luggage compartment see Loading the luggage compartment . . . . . 139
Loading the luggage compartment . . . . . . . . . . . 139
Loading the vehicle fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 140
luggage compartment . . . . . . . . . . . . . . . . . . . . . 9
roof luggage rack . . . . . . . . . . . . . . . . . . . . . . . 142
Locking and unlocking with the central lock button . . . . . . . . . . . . . . . 115
Luggage compartment . . . . . . . . . . . . . . . . . . . 9, 139 luggage compartment lighting . . . . . . . . . . . . 128
store the rear shelf . . . . . . . . . . . . . . . . . . . . . . 141 stretched luggage net . . . . . . . . . . . . . . . . . . . 141
Unlock
ing manually . . . . . . . . . . . . . . . . . . . . . . 10
see also Loading the luggage compartment . 139
Luggage compartment lid . . . . . . . . . . . . . . . . . . . 10
M Main beam headlights control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Main beam lever . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Maintenance and cleaning . . . . . . . . . . . . . . . . . 190
Maintenance intervals . . . . . . . . . . . . . . . . . . . . . 204
Malfunction gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Mobile phones . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
N
Noises tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
O Octane number . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 Reset button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Trip recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
One-touch opening and closing electric windows . . . . . . . . . . . . . . . . . . . . . . . . 121
Open and close . . . . . . . . . . . . . . . . . . . . . . . . . . 112 rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
240

Index
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
f uel
tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
tilting panoramic sunroof . . . . . . . . . . . . . . . . 122
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Opening and closing bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
by remote control . . . . . . . . . . . . . . . . . . . . . . . 117
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
in the lock cylinder . . . . . . . . . . . . . . . . . . . . . . . . 9
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
rear lid of the luggage compartment . . . . . . . . . 9
tilting panoramic sunroof . . . . . . . . . . . . . . . . 122
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
with the central lock button . . . . . . . . . . . . . . . 115
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . 27
P Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 adjusting the display and audible warnings . 180
automatic activation . . . . . . . . . . . . . . . . . . . . 179
fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
parking system plus . . . . . . . . . . . . . . . . . . . . . 178
rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . 177
sensors and camera: cleaning . . . . . . . . . . . . . 194
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 181
visual indication . . . . . . . . . . . . . . . . . . . . . . . . 180
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . 176, 178
Parking distance warning system see Parking aid . . . . . . . . . . . . . . . . . . . . 176, 178
Parking (automatic gearbox) . . . . . . . . . . . . . . . . 163
ParkPilot see Parking aid . . . . . . . . . . . . . . . . . . . . 176, 178
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Passenger
see Correct sitting position . . . . . . . . . 57, 58, 59
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Plastic parts: cleaning . . . . . . . . . . . . . . . . 194, 197
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Positioning seat belts during pregnancy . . . . . . . . . . . . . . . . . . . . . . . . 65
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Power-assisted steering . . . . . . . . . . . . . . . . . . . . 153
Power socket in the luggage compartment . . . . . . . . . . . . . . 139
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Pre-heating system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Products for vehicle maintenance . . . . . . . . . . . . 191
Puncture action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
R
Radio frequency remote control. . . . . . . . . . . . . . 117
Raising the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 48
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Rear Assist system . . . . . . . . . . . . . . . . . . . . . . . . 181 instructions for use . . . . . . . . . . . . . . . . . . . . . 182
parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
special features . . . . . . . . . . . . . . . . . . . . . . . . 182
Rear drink holder . . . . . . . . . . . . . . . . . . . . . . . . . 137
Rear fog light control lamp . . . . . . . . . . . . . . . . . . . . . . 102, 123
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10
Rear seat passengers see Correct sitting position . . . . . . . . . 57, 58, 59 Rear shelf
stor age compartments . . . . . . . . . . . . . . . . . . . 142
store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Rear View Camera . . . . . . . . . . . . . . . . . . . . . . . . . 181
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 131
Rear window automatic wiper-washer . . . . . . . . 130
Rear window wiper . . . . . . . . . . . . . . . . . . . 129, 130
Rear window wiper blade changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199 Opening fuel tank flap . . . . . . . . . . . . . . . . . . . 199
Repair work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 116
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . 190
Replacing the battery of the vehicle key . . . . . . . . . . . . . . . . . . . . . . . 117
Reset the trip recorder . . . . . . . . . . . . . . . . . . . . . . 99
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96, 97
Rims Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 47
Roll-back function tilting panoramic sunroof . . . . . . . . . . . . . . . . 123
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Roof carrier system . . . . . . . . . . . . . . . . . . . . . . . . 142
Roof luggage rack . . . . . . . . . . . . . . . . . . . . . . . . 142 attach the cross bars . . . . . . . . . . . . . . . . . . . . 143
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Rubber seals Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212 brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
241

Index
Running in En gine
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
S s
afe driving safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Safe Security system . . . . . . . . . . . . . . . . . . . . . . 113
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
deactivating the front passenger airbag . . . . . . 14
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safety instructions Coolant temperature . . . . . . . . . . . . . . . . . . . . 106
front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
head-protection airbags . . . . . . . . . . . . . . . . . . 15
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
using child seats . . . . . . . . . . . . . . . . . . . . . 16, 72
Safety notes Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . 66
Using seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 63
Saving tips (efficiency programme) . . . . . . . . . . . 31
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Seat belt position for pregnant women . . . . . . . . . . . . . . . . . . . . . . 12
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 64
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
protective function . . . . . . . . . . . . . . . . . . . . . . . 62
purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 66
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
unfastened . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . 13
contro l lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
SEAT Drive Profile System . . . . . . . . . . . . . . . . . . 185 indications on the display . . . . . . . . . . . . . . . . 186
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Selective opening . . . . . . . . . . . . . . . . . . . . . . . . 113
Selector lever (automatic gearbox) manual release . . . . . . . . . . . . . . . . . . . . . . . . . . 38
positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Service intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Service notification: read . . . . . . . . . . . . . . . . . . . . 34
Side airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 69
Side and interior bulbs . . . . . . . . . . . . . . . . . . . . . 91
Signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Single headlight bulbs . . . . . . . . . . . . . . . . . . . . . 84
Sitting position driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 50, 219
Spanner symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Speed selector lever lock control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Speed warning device . . . . . . . . . . . . . . . . . . . . . . 32
Sport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Start-Stop Activating and deactivating . . . . . . . . . . . . . . . 174
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Start-Stop System . . . . . . . . . . . . . . . . . . . . . . . . . 173
Starting the engine . . . . . . . . . . . . . . . . . . 154, 155 after the fuel tank has been run dry . . . . . . . . 155
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 20 Steel wheel rims
cle aning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 153 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
electromechanical . . . . . . . . . . . . . . . . . . . . . . 153
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
power-assisted steering . . . . . . . . . . . . . . . . . . 153
steering column lock . . . . . . . . . . . . . . . . . . . . 153
Steering wheel adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Steering wheel controls . . . . . . . . . . . . . . . . . . . . 108
Steering wheel height adjustment . . . . . . . . . . . . 58
Storage compartments . . . . . . . . . . . . . . . 136, 142 glove compartment lighting . . . . . . . . . . . . . . 128
of front door panel . . . . . . . . . . . . . . . . . . . . . . 137
on the driver side . . . . . . . . . . . . . . . . . . . . . . . 136
on the front passenger side . . . . . . . . . . . . . . . 136
right front seat . . . . . . . . . . . . . . . . . . . . . . . . . 136
storage pocket in the seat . . . . . . . . . . . . . . . . 137
Stretched luggage net . . . . . . . . . . . . . . . . . . . . . 141
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129 Sliding/tilting sunroof . . . . . . . . . . . . . . . . . . . 122
Switch hazard warning lights . . . . . . . . . . . . . . . . . . . 127
Switching off the engine . . . . . . . . . . . . . . . . . . . 156
Switching off the lights . . . . . . . . . . . . . . . . . . . . 123
Switching on the lights . . . . . . . . . . . . . . . . . . . . 123
Switching the ignition on and off . . . . . . . . 20, 153
System Easy Connect . . . . . . . . . . . . . . . . . . . . . . 107
T
Tail light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Tail lights access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Taking care of your vehicle . . . . . . . . . . . . . . . . . 191
242
