Transport and practical equipment
Note
The ventilating slits between the heated rear
window and the shelf must not be covered so
that used air can escape from the vehicle. Folding down rear seats to create load
space
Fig. 87
Second row of seats: folding the rear
seat A, rear seat as load space B. Fig. 88
Third row of seats: fold down the rear
seat to load A then return to position B Each rear seat can fold down individually to
extend the luggage compartment.
Folding the seats in the second row of seats
for loading
●
If necessary, open the belt loop and wind
up the seat belt by hand. ●
If required, remove the head restraints from
the integrated seats for children and refit
them ››› page 33 .
● If nec
essary, raise the armrests.
● Remove objects from the footwell in front of
and behind the rear seat ››› .
● Move the rear seat all the way back.
● Push the head restraint down as far as it
will go ››› page 6 .
● In the mid dl

e seat, close the drinks carrier
in the rear of the centre console, if necessary.
● Pull lever ››› Fig. 87
1 back and fold the
seat backrest forwards. The complete rear
seat folds forward ››› .
● Fold the seat backrest forwards until it
locks into the load surface position ››› Fig. 87
B .
● If nec

essary, pull on the lever ››› Fig. 88 2 to move the seat to the required position.
●
When the seat is folded down, no adults or
children should travel in it ››› .
Folding the seats in the third row of seats for
loading
● If necessary, open the belt loop and wind
up the seat belt by hand.
● Open the rear lid.
● Push the head restraint down as far as it
will go ››› page 6 .
»
101
Technical specifications
Advice
Operation
Safety

Transport and practical equipment
Rear shelf* Fig. 89
In the luggage compartment: rear
shelf Fig. 90
Remove the shelf supports A then put
them away safely B. The rear shelf can be fitted behind the sec-
ond or third row of seats
››› .
Opening the shelf
● Pull the shelf handle ›››
Fig. 89 A back-
wards. ●
Release the shelf upwards by the side sup-
ports and guide it forward.
Closing the shelf
● Pull the unfolded shelf evenly on the guide
backwards.
● Secure the shelf using the left and right
side supports.
Installing the shelf behind the second row of
seats
● Place the shelf in its position in the side
lining, left-hand side first.
● Release the shelf in the direction of the ar-
row ››› Fig. 89 B .
● Insert the shelf into the right-hand support,
pressing down.
Installing the shelf behind the third row of
seats
● Remove the shelf from the support in the
side lining ››› Fig. 90
A. To do this, press the
shelf upwards (arrow) and remove it.
● Open the compartment in the left-hand
side boot lining ››› page 112 and hook the
shelf to the rear of the compartment lid
››› Fig. 90 B
.
● Close the rear left-hand side lining com-
partment.
● Place the shelf in its position in the side
lining, left-hand side first. »
103
Technical specifications
Advice
Operation
Safety

Transport and practical equipment
● Hook in the net partition on the rear right-
hand side roof support by pressing on the
rod.
● Secure the net partition hooks into the
straps in the front of the boot ››› Fig. 92 then
tight en the belts.
In
stalling the net partition behind the front
seats
● Hook in the net partition on the front left-
hand side roof support ››› Fig. 92. To do this,
guide the rod fr

om up to down.
● Hook in the net partition on the rear right-
hand side roof support by pressing on the
rod.
● Secure the hooks of the net partition to the
attachment rings in the left and right hand
side footwells on the second row of seats
then tighten the straps.
Removing the net partition
● Loosen the net partition straps.
● Release the net partition hooks from the
rings ››› Fig. 92.
● Unhook the net

partition on the right-hand
side roof support ››› Fig. 92 by pressing on
the rod.
● Unhook

the net partition from the left-hand
side roof support. Folding in the net partition
●
Press on the release button ››› Fig. 91 2 and bend the rod
A in the direction of the
arrow with the release button pressed.
● Press on the release button ››› Fig. 91 3 and bend the rod
B in the direction of the
arrow with the release button pressed.
● Store the net partition securely in the vehi-
cle. WARNING
Loose objects in the vehicle interior can be vi-
olently thrown in case of a sudden manoeu-
vre or braking and especially in accidents
causing serious injury.
● Ensure that the rods are correctly locked in
place.
● Even when the net partition is correctly fit-
ted, objects must be secured.
● When driving with the net partition, no pas-
sengers should be behind it. Fastening rings*
Fig. 93
In the luggage compartment: fasten-
ing rings To the front and rear of the luggage compart-
ment, there are fastening rings for securing
objects
››› Fig. 93 (arrows). On some models,
the f a

stening rings are located right at the
the back, in the area of the lock carrier plate.
There are other fastening rings located to the
left and right hand side of the second row
footrests.
Some models of fastening rings must be lif-
ted to use them. WARNING
Unsuitable or damaged ropes or straps may
be released in case of sudden braking or an
accident. As a result, objects may be fired
through the vehicle interior causing serious
injury or death. » 105
Technical specifications
Advice
Operation
Safety

Transport and practical equipment
●
Always ensure that the movable attach-
ment elements are correctly inserted into the
guides. WARNING
Unsuitable or damaged ropes or straps may
be released in case of sudden braking or an
accident. As a result, objects may be fired
through the vehicle interior causing serious
injury or death.
● Always use the attachment straps of the
rail and attachment system.
● Secure the attachment straps firmly to the
attachment elements.
● Loose objects in the luggage compartment
can suddenly slide and change the way the
vehicle handles.
● Secure all objects, little and large.
● Never secure a child seat to the attachment
elements. CAUTION
● The attachment elements placed on the rail
system can be damaged when folding down
seats from the third row or putting them back
into position and these can also damage the
seats themselves. Before folding down or re-
positioning the seats, remove the attachment
elements and supports for the net from the
rail system. 107Technical specifications
Advice
Operation
Safety

Transport and practical equipment
Removing the baggage net supports
● Remove the net attachment element from
the rail and pull it out downwards. WARNING
In case of an accident or sudden braking, the
net attachment elements in the parts of the
rails close to the seats of the third row could
injure seat occupants.
● Whenever the seats on the third row are to
be occupied, remove the attachment ele-
ments from the rails or move them all the way
back. WARNING
Baggage net supports that are not secured
correctly can be released from the guide in
case of the sudden braking or accident. As a
result, objects may be fired through the vehi-
cle interior causing serious injury or death.
● Always ensure that the baggage net sup-
ports are correctly inserted into the rails; the
red mark should not be visible.
● Never secure a child seat to the baggage
net supports. CAUTION
● The baggage net supports placed on the
rail system can be damaged when folding
down seats from the third row or putting
them back into position and these can also
damage the seats themselves. Before folding down or repositioning the seats, remove the
baggage net supports from the rail system.
Retaining hooks
Fig. 97
In the luggage compartment: retain-
ing hooks On the right-hand side of the luggage com-
partment, there are folding retaining hooks
››› Fig. 97 that can be used to secure light
shop pin
g bags.
● Press the retaining hooks down ››› Fig. 97
(arrow) and fold them.
● Hook the bags in place.
● After use, raise the hooks again. WARNING
Never use these hooks to secure objects. In
the event of sudden braking or an accident,
they could be pulled out. CAUTION
The hooks can support a maximum of 2.5 kg
(about 5 lbs). Luggage net*
Fig. 98
In the luggage compartment: net
used on secured baggage The baggage net can be used to secure light-
er items.
Hooking the baggage net into the boot floor
● Hook the baggage net into the fastening
rings ››› Fig. 98 1 and
2 .
Releasing the baggage net
The secured baggage net is taut ››› .
● Carefully unhook the baggage net hooks
from the fastening rings ››› Fig. 98 1 .
»
109
Technical specifications
Advice
Operation
Safety

Transport and practical equipment
roof. All these system components are
available from a technical service centre.
Securing the base supports and roof carrier
system
Always secure the base supports and roof
carrier system correctly.
The roof carrier system must always be instal-
led exactly according to the instructions pro-
vided.
The position openings are located on the in-
ner side of the side roof rods ››› Fig. 99 . WARNING
If the base supports and the roof carrier sys-
tem are incorrectly fitted or used in an unsuit-
able manner, the entire system could break
free causing accident and injury.
● Always take the manufacturer assembly in-
structions into account.
● Only use base supports and roof carrier
systems that are not damaged and are cor-
rectly fitted.
● The base support should only be fitted to
the points indicated in the diagram ››› Fig. 99.
● Sec ur
e the base supports and roof carrier
system correctly.
● Check the screws and attachments before
driving and after a short distance. During
each long journey, check the attachments
during every break. ●
Always fit the roof carrier system correctly
for wheels, skis, surfboards, etc.
● Never modify or repair the basic supports
or roof carrier system. Note
Read and take into account the instructions
included with the roof carrier system fitted
and keep them in the vehicle. Loading the roof carrier system
Loads can only be correctly secured when the
roof carrier system is correctly fitted
››› .
Maximum authorised roof load
The maximum authorised roof load is 100 kg
(about 220 lbs) . The roof load includes the
r oof

carrier system and the load being trans-
ported ››› .
Always check the roof carrier system weight
and the weight of the load to be transported
and, if necessary, weigh them. Never exceed
the maximum authorised roof load.
If you are using a roof carrier with a lower
weight rating, you cannot transport the maxi-
mum roof load. Do not exceed the maximum
weight limit for the roof carrier given in the
fitting instructions. Distributing a load
Uniformly distribute loads and secure them
correctly
››› .
Check attachments
After fitting the base supports and the roof
carrier system, always check the attachments
after a short trip and at regular intervals. WARNING
Exceeding the maximum authorised roof load
can result in accidents and/or vehicle dam-
age.
● Never surpass the maximum authorised
weight for the roof, the maximum authorised
weight on the axles and the total maximum
authorised weight of the vehicle.
● Never exceed the capacity of the roof carri-
er system even if this is less than the maxi-
mum authorised roof load.
● Secure heavy items as far forward as possi-
ble and, in general, distribute the vehicle
load uniformly. WARNING
Loose and incorrectly secured loads can fall
from the roof carrier system causing acci-
dents and injury.
● Always use suitable ropes and straps in
good condition.
● Always secure loads correctly. 111
Technical specifications
Advice
Operation
Safety

Transport and practical equipment
Storage compartment on the roof
console Fig. 101
On the roof console: storage com-
partment To
open
press the button and release it
›
›› Fig. 101.
To
close, press the storage compartment up-
wards until it clicks into place.
To ensure interior monitoring works properly,
the storage compartments must be closed
when the vehicle is locked ››› page 62. Compartment on the instrument
panel*
Fig. 102
Storage compartment on the dash
panel The storage compartment on the instrument
panel may have a cover.
To
open
, press the button on the cover
›
›› Fig. 102 (arrow).
To
close, press the cover down until it clicks
into place. Compartment on the centre console Fig. 103
Compartment in the front centre con-
sole. There is an open compartment on the centre
console
››› Fig. 103 in which there may be a
12 v

olt power socket ››› page 119.
113
Technical specifications
Advice
Operation
Safety

Transport and practical equipment

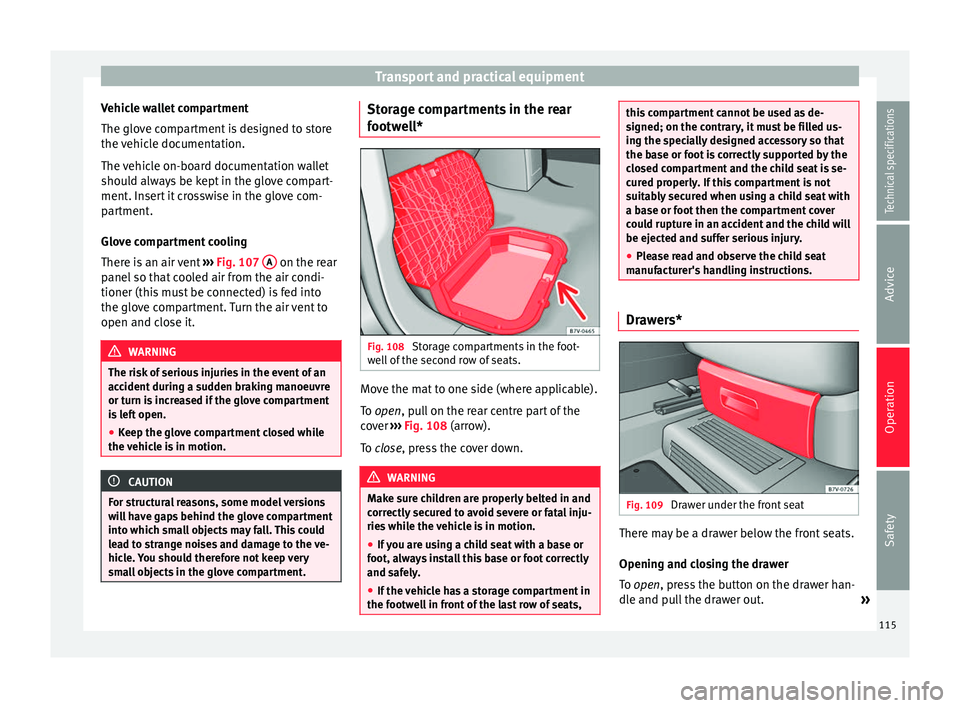

Vehicle wallet compartment
The glove compartment is designed to store
the vehicle documentation.
The vehicle on-board documentation wallet
should always be kept in the glove compart-
ment. Insert it crosswise in the glove com-
partment.
Glove compartment cooling
There is an air vent ››› Fig. 107 A on the rear
panel so that cooled air from the air condi-
tioner (this must be connected) is fed into
the glove compartment. Turn the air vent to
open and close it. WARNING
The risk of serious injuries in the event of an
accident during a sudden braking manoeuvre
or turn is increased if the glove compartment
is left open.
● Keep the glove compartment closed while
the vehicle is in motion. CAUTION
For structural reasons, some model versions
will have gaps behind the glove compartment
into which small objects may fall. This could
lead to strange noises and damage to the ve-
hicle. You should therefore not keep very
small objects in the glove compartment. Storage compartments in the rear
footwell*
Fig. 108
Storage compartments in the foot-
well of the second row of seats. Move the mat to one side (where applicable).
To
open
, pull on the rear centre part of the
c
over ›››
Fig. 108 (arrow).
To
close, press the cover down. WARNING
Make sure children are properly belted in and
correctly secured to avoid severe or fatal inju-
ries while the vehicle is in motion.
● If you are using a child seat with a base or
foot, always install this base or foot correctly
and safely.
● If the vehicle has a storage compartment in
the footwell in front of the last row of seats, this compartment cannot be used as de-
signed; on the contrary, it must be filled us-
ing the specially designed accessory so that
the base or foot is correctly supported by the
closed compartment and the child seat is se-
cured properly. If this compartment is not
suitably secured when using a child seat with
a base or foot then the compartment cover
could rupture in an accident and the child will
be ejected and suffer serious injury.
●
Please read and observe the child seat
manufacturer's handling instructions. Drawers*
Fig. 109
Drawer under the front seat There may be a drawer below the front seats.
Opening and closing the drawer
To
open
, press the button on the drawer han-
dl

e and pull the drawer out. »
115
Technical specifications
Advice
Operation
Safety
