2015 RENAULT MEGANE COUPE CABRIOLET ignition

1.10
OPENING AND CLOSING THE DOORS (2/3)
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a re-
minder buzzer will sound when a door
is opened.
Card reminder buzzer
On opening the driver’s door, if the
card is still in the reader, the message
“Please remove keycard” is displayed
on the instrument panel accompanied
by a warning beep.
Door/tailgate open buzzer
If an opening element (door or boot) is
open or not properly closed, as soon
as the vehicle reaches a speed of ap-
proximately 6 mph (10 km/h), the mes-
sage “Boot open” or “Door open” (de-
pending on which is open) will appear
on the instrument panel accompanied
by a warning light.
Special note
Once the engine has been switched off,
the lights and accessories (radio, etc.)
will continue to operate until the driver’s
door is opened.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

1.13
LOCKING/UNLOCKING THE DOORS (2/2)
Interior locking/unlocking
door control
Switch 4 controls the doors, tailgate
and, depending on the vehicle, the fuel
filler flap simultaneously. If a door or
the tailgate is open or not closed prop-
erly, the doors and tailgate lock/unlock
quickly.
If transporting an object with the tail-
gate open, you can still lock the doors:
with the engine stopped, press and
hold switch 4 for more than five sec-
onds to lock the other doors. Switch 4
can be used to unlock the
glove box.
Locking the doors without
the RENAULT card
For example, in the event of a dis-
charged battery or the RENAULT card
temporarily not working, etc.
With the engine switched off and a
door or tailgate open, press and hold
switch 4 for more than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking the vehicle from the outside
is only possible with the RENAULT card
in the vehicle's access zone or using
the key integrated in the RENAULT
card.
Door and tailgate status
indicator
When the ignition is on, the indicator
light integrated in switch 4 informs you
of the status of the doors and tailgate:
– indicator light on, the doors and tail- gate are locked;
– indicator light off, the doors and tail- gate are unlocked.
With the ignition off , the indicator light
remains lit and then goes out when you
lock the doors.
Never leave your vehicle
with the RENAULT card
inside.
4
After locking/unlocking the vehicle
or the tailgate only using the but-
tons on the RENAULT card, remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

1.23

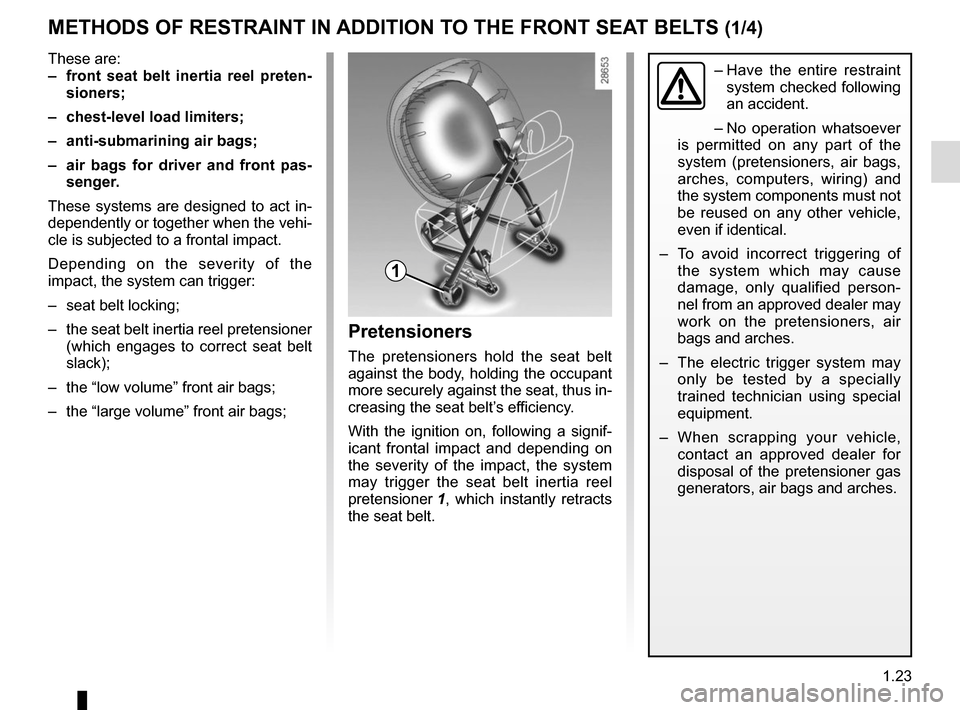

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/4)
These are:
– front seat belt inertia reel preten-sioners;
– chest-level load limiters;
– anti-submarining air bags;
– air bags for driver and front pas- senger.
These systems are designed to act in-
dependently or together when the vehi-
cle is subjected to a frontal impact.
Depending on the severity of the
impact, the system can trigger:
– seat belt locking;
– the seat belt inertia reel pretensioner (which engages to correct seat belt
slack);
– the “low volume” front air bags;
– the “large volume” front air bags;
Pretensioners
The pretensioners hold the seat belt
against the body, holding the occupant
more securely against the seat, thus in-
creasing the seat belt’s efficiency.
With the ignition on, following a signif-
icant frontal impact and depending on
the severity of the impact, the system
may trigger the seat belt inertia reel
pretensioner 1, which instantly retracts
the seat belt.
– Have the entire restraint
system checked following
an accident.
– No operation whatsoever
is permitted on any part of the
system (pretensioners, air bags,
arches, computers, wiring) and
the system components must not
be reused on any other vehicle,
even if identical.
– To avoid incorrect triggering of the system which may cause
damage, only qualified person-
nel from an approved dealer may
work on the pretensioners, air
bags and arches.
– The electric trigger system may only be tested by a specially
trained technician using special
equipment.
– When scrapping your vehicle, contact an approved dealer for
disposal of the pretensioner gas
generators, air bags and arches.
1

1.25
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/4)
Operation
This system is only operational when
the ignition is switched on.
In a severe frontal impact, the air bags
inflate rapidly, cushioning the impact
of the driver’s head and chest against
the steering wheel and the front pas-
senger against the dashboard. The air
bags then deflate immediately so that
the passengers are not in any way hin-
dered from leaving the vehicle.
Special feature of the front air
bag
After a violent impact, it has two deploy-
ment volumes and integrates a ventila-
tion system:
– small volume air bag, this is the first stage of operation;
– large volume air bag, the air bag seams rip so that a larger volume of
gas is released into the bag (for the
most severe impacts).

1.29
ADDITIONAL METHODS OF RESTRAINT
The air bag is designed to complement the action of the seat belt. Both \
the air bags and seat belts are integral parts of the same protection
system. It is therefore essential to wear seat belts at all times. If se\
at belts
are not worn, the occupants are exposed to the risk of serious injury in\

the event of an accident. It may also increase the risk of minor superfi\
cial injuries
occurring when the air bag is deployed, although such minor injuries are\
always
possible with air bags.
The air bags are not always triggered if the vehicle should overturn or \
in the event
of a rear impact, however severe. Impacts to the underside of the vehicl\
e, e.g.
from pavements, potholes or stones, can all trigger these systems.
– No work or modification whatsoever may be carried out on any part of the air
bag system (air bags, arches, pretensioners, computer, wiring harness, etc.),
except by qualified personnel from an approved dealer.
– To ensure that the system is in good working order and to avoid accidenta\
l trig- gering of the system which may cause injury, only qualified Network personnel
may work on the air bag system.
– As a safety precaution, have the air bag system checked if your vehicle \
has been involved in an accident, or is stolen or broken into.
– When selling or lending the vehicle, inform the user of these points and\
hand over this driver’s handbook with the vehicle.
– When scrapping your vehicle, contact your approved dealer for disposal o\
f the gas generator(s).
Operating faults
Warning light 1 will light up on the in-
strument panel when the ignition is
switched on and then go out after a few
seconds.
If it does not come on when the igni-
tion is switched on, or if it comes on
when the engine is running, there is a
fault with the system (air bags, preten-
sioners in the front and/or rear seats,
arches, etc.).
Contact your approved dealer as soon
as possible. Your protection will be re-
duced until this fault is rectified.
1
All of the warnings below are given so that the air bag is not obstructed in any
way when it is inflated and also to prevent the risk of serious injuries caused
by items which may be dislodged when the air bag inflates.

1.30
PROTECTION DEVICES IF THE VEHICLE OVERTURNS
Do not place any objects, or
sit on the arches 1 located
behind the headrests or on
shelf 2 located behind the
arches.
1
Automatic safety bars
The system comprises:
– a sensor that detects when the vehi- cle is overturning;
– two deploying arches 1.
If the vehicle overturns, the arches
deploy to increase the size of the safe
area underneath the vehicle.
Operating faults
Warning light 3 will light up on the in-
strument panel when the ignition is
switched on and then go out after a few
seconds.
If it does not come on when the igni-
tion is switched on, or comes on when
the engine is running, there is a fault in
the system.
Contact your approved dealer as soon
as possible. Your protection will be re-
duced until this fault is rectified.
3
2
Precautions
Observe the safety instructions indi-
cated on the arches 1.

1.40
2
Deactivating the front
passenger air bags
(on equipped vehicles)
You must deactivate certain devices
in addition to the front passenger seat
belt before fitting a child seat in the front
passenger seat. To deactivate the air bags: with the
vehicle stationary, push and turn
lock 1 to the OFF position.
With the ignition on, you
must check
that warning light 2
¹ is lit on the
central display and, depending on the
vehicle, that the message “Passenger
airbag off” is displayed.
This light remains permanently lit to
let you know that you can fit a child
seat.The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
CHILD SAFETY: deactivating/activating the front passenger air bag (1/3)
1
DANGER
Since front passenger
airbag triggering and the
position of a rear-facing
child seat are incompatible, NEVER
use a restraining device for rear-
facing children on a seat with an
ACTIVATED AIRBAG in front of it.
This provides a risk of DEATH or
SERIOUS INJURY to the CHILD.

1.42
CHILD SAFETY: deactivating/activating the front passenger air bag (3/3)
4
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
air bag activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.
If warning lights
› and ¹ are
lit at the same time.
Contact your approved dealer as soon
as possible.
Activating the front
passenger air bags
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of the front passenger in the
event of an impact.
1
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
To reactivate the air bags: when the
vehicle is stationary, push and turn
lock 1 to the ON position.
With the ignition on, it is essential to
check that warning light 4
› is lit
on the central display, and that it goes
out after a few seconds.
