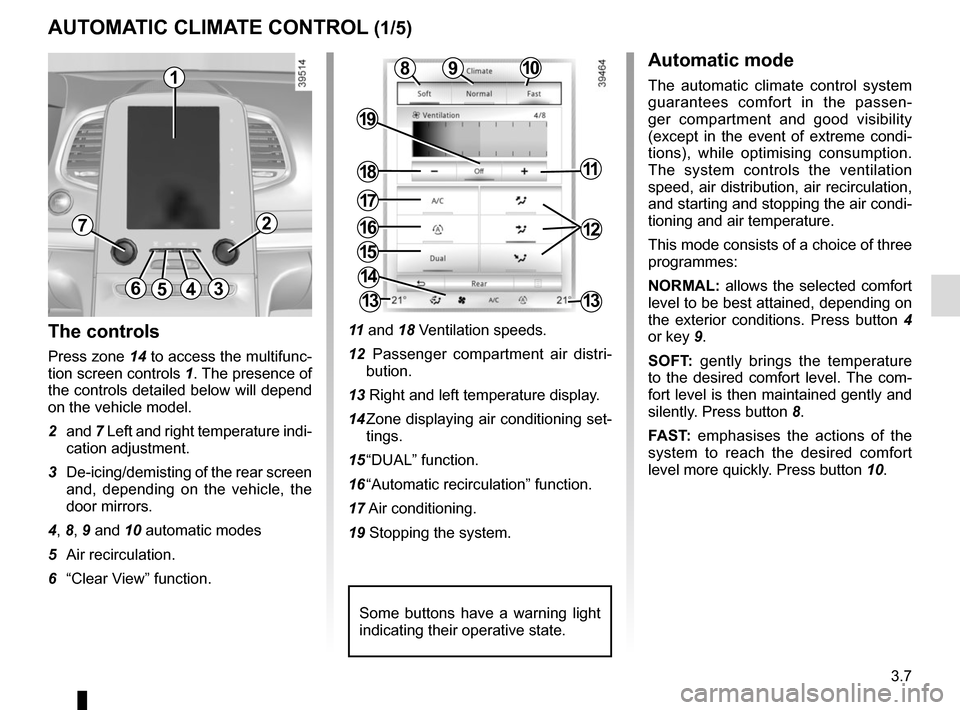

AUTOMATIC CLIMATE CONTROL (1/5)
15
6543
9
1216
17
18
19
11
The controls
Press zone 14 to access the multifunc-
tion screen controls 1. The presence of
the controls detailed below will depend
on the vehicle model.
2 and 7 Left and right temperature indi-
cation adjustment.
3 De-icing/demisting of the rear screen and, depending on the vehicle, the
door mirrors.
4, 8, 9 and 10 automatic modes
5 Air recirculation.
6 “Clear View” function. 11
and 18 Ventilation speeds.
12 Passenger compartment air distri- bution.
13 Right and left temperature display.
14 Zone displaying air conditioning set- tings.
15 “DUAL” function.
16 “Automatic recirculation” function.
17 Air conditioning.
19 Stopping the system.
Automatic mode
The automatic climate control system
guarantees comfort in the passen-
ger compartment and good visibility
(except in the event of extreme condi-
tions), while optimising consumption.
The system controls the ventilation
speed, air distribution, air recirculation,
and starting and stopping the air condi-
tioning and air temperature.
This mode consists of a choice of three
programmes:
NORMAL: allows the selected comfort
level to be best attained, depending on
the exterior conditions. Press button 4
or key 9.
SOFT: gently brings the temperature
to the desired comfort level. The com-
fort level is then maintained gently and
silently. Press button 8.
FAST: emphasises the actions of the
system to reach the desired comfort
level more quickly. Press button 10.8
14
13
72
13
1
Some buttons have a warning light
indicating their operative state.

7.1
ALPHABETICAL INDEX (1/5)
A
ABS ....................................................................\
...2.26 → 2.37
accessories.............................................................\
........... 5.26
accessories socket ................................................... 3.28, 3.44
adaptive cruise control...........................................2.56 → 2.62
additional air conditioning ....................................... 3.12 – 3.13
additional methods of restraint .....................1.32 → 1.35, 1.38
side protection ............................................................. 1.37
to the rear seat belts ........................................1.32 → 1.36
adjusting your driving position ........................................... 1.28
advice on antipollution ....................................................... 2.21
air bag.................................................................\
...1.32 → 1.38
activating the front passenger air bags ........................ 1.61
deactivating the front passenger air bags .................... 1.59
air conditioning ........................................................3.7 → 3.14
air vents .....................................................................3.4 → 3.6
anti-corrosion check ..............................................6.14 → 6.18
anti-corrosion protection .................................................... 4.14
anti-lock braking system: ABS ...............................2.26 → 2.37
antipollution advice .................................................................\
......... 2.21
armrest: front ..................................................................\
............ 3.25
ashtray ................................................................\
............... 3.28
assisted parking............................... 2.63 → 2.66, 2.69 → 2.72
automatic gearbox (use) ........................................2.74 → 2.79
automatic gearbox selector lever...........................2.74 → 2.79
B
battery.................................................................\
.... 4.10 – 4.11 troubleshooting ................................................. 5.23 – 5.24
blind spot warning signal .......................................2.41 → 2.43
blind spot: warning signal ......................................2.41 → 2.43
bonnet..................................................................\
....... 4.2 – 4.3
brake fluid ........................................................................\
.... 4.8 bulbs
changing ..........................................................5.15 \
→ 5.18
C
catalytic converter................................................... 2.10 – 2.11
central door locking ........................................1.8 → 1.10, 1.14
changing a bulb .....................................................5.15 → 5.18
changing a wheel.................................................... 5.10 – 5.11
changing gear ...............................................2.12, 2.74 → 2.79
child restraint/seat .............................1.39 – 1.40, 1.42 → 1.58
child safety.........1.2, 1.5, 1.13, 1.39 – 1.40, 1.42 → 1.58, 3.15
child seats..........................................1.39 – 1.40, 1.4\
2 → 1.58
children .......................................................... 1.39 – 1.40, 1.40
children (safety) .......................................... 1.2, 1.5, 1.13, 3.15
cigar lighter ........................................................................\
3.28
cleaning: inside the vehicle .............................................. 4.16 – 4.17
clock ..................................................................\
................ 1.85
closing the doors .....................................................1.8 → 1.13
control instruments ................................................. 1.74 – 1.75
controls ................................................................... 1.62 – 1.63
coolant ................................................................\
................. 4.7
courtesy light ...................................... 3.20 – 3.21, 5.19 – 5.20
courtesy mirrors ................................................................. 3.22
cruise control ................................... 2.46 → 2.48, 2.52 → 2.55
cruise control-speed limiter.............. 2.46 → 2.48, 2.52 → 2.55
customised vehicle settings .............................................. 1.84
customising the vehicle settings ....................................... 1.84
D
dashboard...............................................................\
1.62 – 1.63
daytime running lights..................................................\
...... 1.93
dimensions .............................................................\
............. 6.4
display ..........................................................1.64 → 1.73, 3.43
doors...................................................................\
... 1.11 → 1.14
driver assistance....................................................2.2\
6 → 2.72
