2015 RENAULT DUSTER engine

JauneNoir Noir texte
1.42
ENG_UD39234_5

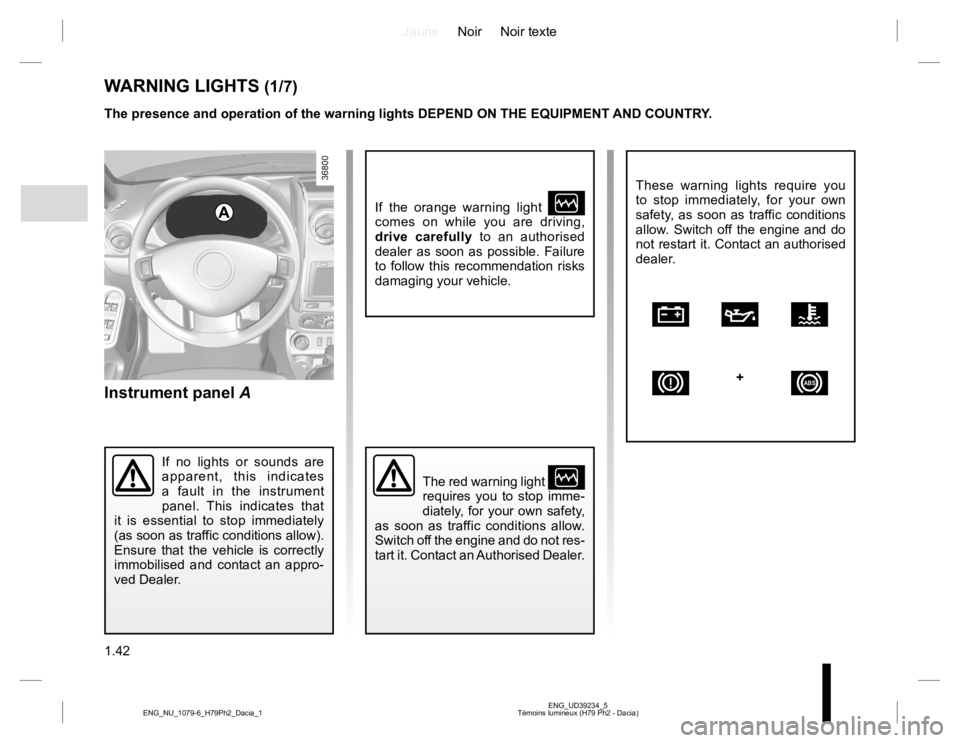

Témoins lumineux (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
Instrument panel A
WARNING LIGHTS (1/7)
A
If no lights or sounds are
apparent, this indicates
a fault in the instrument
panel. This indicates that
it is essential to stop immediately
(as soon as traffic conditions allow).
Ensure that the vehicle is correctly
immobilised and contact an appro-
ved Dealer.
If the orange warning light Ò
comes on while you are driving,
drive carefully to an authorised
dealer as soon as possible. Failure
to follow this recommendation risks
damaging your vehicle.
The red warning light Ò
requires you to stop imme-
diately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not res-
tart it. Contact an Authorised Dealer.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
These warning lights require you
to stop immediately, for your own
safety, as soon as traffic conditions
allow. Switch off the engine and do
not restart it. Contact an authorised
dealer.
ÚÀÔ
D
+x

JauneNoir Noir texte
1.43
ENG_UD39234_5
Témoins lumineux (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
WARNING LIGHTS (2/7)
A
DHandbrake “on” warning
light and brake circuit inci-
dent warning light
This comes on when the ignition is
switched on. If it comes on during brak-
ing or driving and, depending on the ve-
hicle, is accompanied by a beep, it in-
dicates that the fluid level in the circuit
is low; it may be dangerous to continue
driving – please contact an authorised
dealer.
ÒWarning light malfunction
(red or orange)
Urgent stop warning light (red)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately,
for your own safety, as soon as traffic
conditions allow. Switch off the engine
and do not restart it.
Contact an approved Dealer.
Warning light (orange)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It may comes on
in conjunction with other warning lights
on the instrument panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this rec-
ommendation, you risk damaging your
vehicle.ÔCoolant temperature war-
ning light
It goes out as soon as the engine starts.
If this remains lit while driving and, de-
pending on the vehicle, is accompanied
by a beep, this means the engine is
overheating. Stop and allow the engine
to run at idle speed for a minute or two.
The temperature should drop. If not,
stop the engine. Let it cool down before
checking the coolant level. Contact an
authorised dealer if necessary. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

JauneNoir Noir texte
1.44
ENG_UD39234_5
Témoins lumineux (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
WARNING LIGHTS (3/7)
A
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it lights up on the road and, depend-
ing on the vehicle, is accompanied by
a beep, stop immediately and cut the
ignition.
Check the oil level (refer to “Engine oil
level: general information” in Section
4). If the level is normal, the light has
come on for another reason: Consult an
authorised dealer straight away.
ÉPreheating warning light (on
diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. It goes
out after preheating is sufficient and the
engine can be started.
åAirbag warning light
This lights up when the igni-
tion is switched on and goes out after
a few seconds. If it does not light up
when the ignition is switched on, if it
lights up when the engine is running,
or if it flashes, it indicates a fault in the
system.
Contact an approved Dealer as soon as
possible.
ÚBattery charge warning light
It should go out as soon as the
engine starts.
If it comes on when you are driving, it
indicates that the circuit is overcharged
or has discharged. Stop and consult an
authorised dealer as soon as possible.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS
system.
Contact an approved Dealer as soon as
possible.
LLow fuel level warning light
This comes on when the igni-
tion is switched on and goes out after
a few seconds. If it comes on when
driving and, depending on the vehicle,
is accompanied by a beep, fill up with
fuel as soon as possible. There is only
approximately 30 miles (50 km) worth
of fuel left after the warning light first
comes on. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

JauneNoir Noir texte
1.46
ENG_UD39234_5
Témoins lumineux (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
áMain beam headlight tell-tale
light
kDipped beam headlight tell-
tale
gFront fog light tell-tale light
fRear fog light tell-tale
cLeft-hand direction indicator
tell-tale
bRight-hand direction indica-
tor tell-tale
ä æGear change indicator
This lights up to advise
you to change to a higher gear (up
arrow) or lower gear (down arrow).
Excess speed warning light
A beep will sound and the warn-
ing light will come on if the vehicle ex-
ceeds 70 mph (120 km/h).
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
A
#Engine oil change warning
light
This lights up on the instrument panel
when an oil change is required.
Change the oil or have it changed as
soon as possible.
Only the distance travelled between two
oil changes is taken into account; the
time interval between two oil changes
is not.
The oil should always be changed
when the first threshold is reached, i.e.
either the distance travelled or the in-
terval specified in your vehicle’s main-
tenance document. This means you
may have to change the oil before the
warning light comes on.
Refer to the information on the “Oil
change” in Section 4.
VRear screen de-icing/demis-
ting indicator light
dDirection indicator tell-tale
light
êEngine immobiliser system
warning light
This light performs several functions.
Refer to the information on the “Engine
immobiliser” in Section 1.
WARNING LIGHTS (5/7)

JauneNoir Noir texte
1.47
ENG_UD39234_5
Témoins lumineux (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
6
Electronic fault or diesel
preheating warning light
With the ignition switched on,
this light comes on; it indicates that the
heater plugs are operating.
It goes out after preheating is sufficient
and the engine can be started.
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible.
ÆSTOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately,
for your own safety, as soon as traffic
conditions allow.
Switch off the engine and do not res-
tart it.
Consult an approved dealer.
ÄWarning light for monitoring
exhaust gas
It comes on when the ignition is
switched on and then goes out.
– If it lights up continuously, consult an
authorised dealer as soon as pos-
sible;
– If it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and anti-pollution advice”
in Section 2.
ùIndicator light ESC
See “Electronic Stability
Program ESC with understeer control
and traction control” in Section 2.
Tyre pressure loss warning
Please refer to the information
on the “Tyre pressure loss warning” in
Section 2.
Engine standby warning
light
Please see information in the para-
graph on “Stop and Start Function” in
Section 2.
Unavailability of engine
standby warning light
Please see information in the para-
graph on “Stop and Start Function” in
Section 2.
ÜNot used
îNot used
A
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
WARNING LIGHTS (6/7)

JauneNoir Noir texte
1.48
ENG_UD39234_5
Témoins lumineux (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
WARNING LIGHTS (7/7)
Warning lights on the
console B or C
]Front passenger air bag
deactivation warning light.
Refer to the information on “Child
safety: deactivating, activating the front
passenger airbag".
BC
ßSeat belt reminder light
It comes on when the engine
is started if the driver and/or passenger
seat belt is not fastened (depending on
the vehicle). When the vehicle is being
driven, it comes on and a beep sounds
for approximately 2 minutes until the
driver’s seat belt is fastened. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

JauneNoir Noir texte
1.52
ENG_UD39241_4
Ordinateur de bord (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
Interpreting some of the
values displayed after
resetting
The values showing average fuel
consumption, range and average
speed will become more stable and re-
liable the further you travel after pres-
sing the reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the fuel consumption may decrease
when:
– the vehicle stops accelerating,
– the engine reaches its operating
temperature (engine cold when
reset button pressed),
– when driving from a built-up area
onto the open road.
Therefore, if the average fuel
consumption decreases, the
range will increase.– You may also notice that the ave-
rage fuel consumption increases
when the vehicle is stationary and
the engine idling.
This is normal, since the computer
takes account of fuel used during
idling.
Manually resetting the journey para-
meters: with the display showing one
of the journey parameters, press the
button 2 until the display is reset.
Automatically resetting the journey
parameters: the reset is automatic
when the capacity of one of the memo-
ries is exceeded.
ON-BOARD COMPUTER (2/6)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

JauneNoir Noir texte
1.57
ENG_UD32128_1
Volant de direction/Direction assistée (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_1
STEERING WHEEL, POWER-ASSISTED STEERING
Power Assisted Steering
With the engine running, do not leave
the steering wheel at full lock while sta-
tionary as this may damage the power-
assisted steering pump.
With the engine switched off, or if there
is a system fault, it is still possible to
turn the steering wheel. The force re-
quired will be greater.
Adjusting the steering wheel
Depending on the vehicle, the steering
wheel position is adjustable.
Lift lever 1 and place the steering wheel
in the required position; raise the lever
to lock the steering wheel in place.
Make sure that the steering wheel is
correctly locked.
For safety reasons, only
adjust the steering wheel
when the vehicle is station-
ary.
Never switch off the igni-
tion when travelling down-
hill, and avoid doing so in
normal driving (assistance
is not provided).
1
