Without lifting (4 wheels on the
road)
You should always use a towing arm.

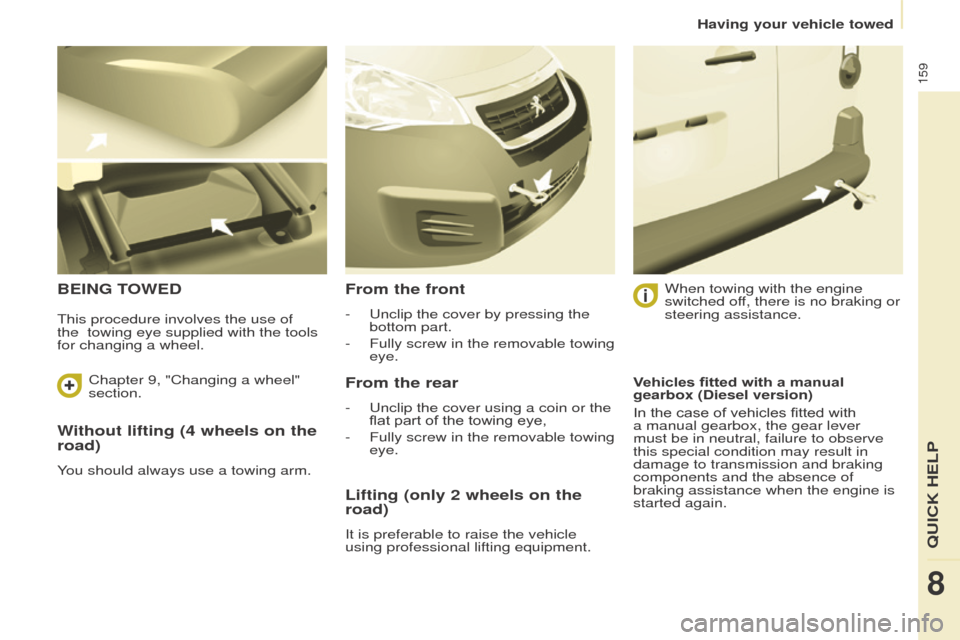

BEING TOWEDFrom the front
- Unclip the cover by pressing the
bottom part.
-

Fully screw in the removable towing
eye.
From the rear
- Unclip the cover using a coin or the
flat part of the towing eye,
-

Fully screw in the removable towing
eye. When towing with the engine
switched of

f, there is no braking or
steering assistance.
Lifting (only 2 wheels on the
road)
It is preferable to raise the vehicle
using professional lifting equipment.
This procedure involves the use of
the

towing eye supplied with the tools
for changing a wheel.
Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with
a manual gearbox, the gear lever
must be in neutral, failure to observe
this special condition may result in
damage to transmission and braking
components and the absence of
braking assistance when the engine is
started again.
Chapter 9, "Changing a wheel"
section.
Having your vehicle towed
QUICK HELP
8

160
Partner-2-VU_en_Chap08_Aide-rapide_ed01-2015

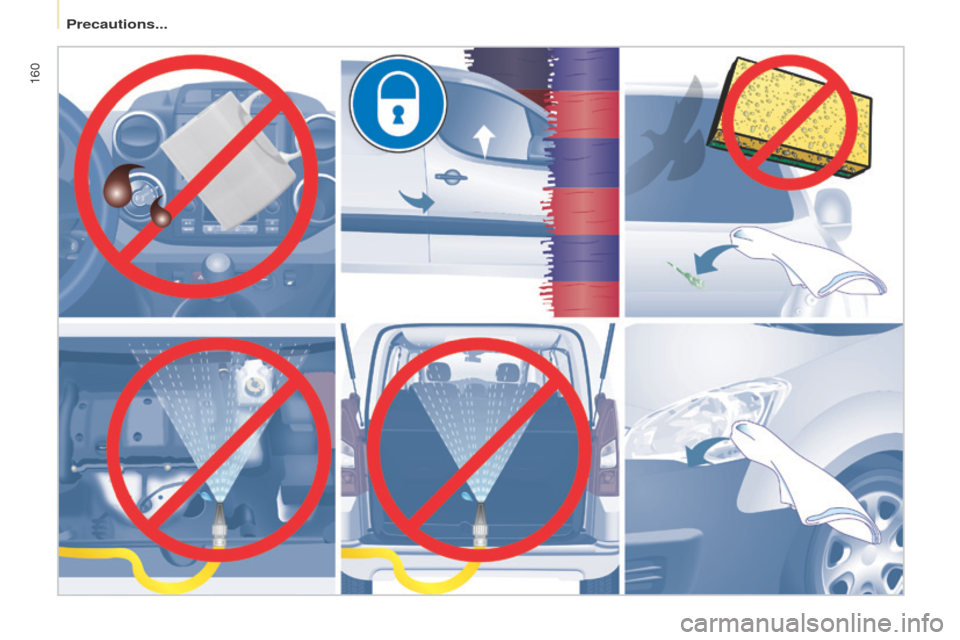

Precautions...

161
Partner-2-VU_en_Chap08_Aide-rapide_ed01-2015
QUICK HELP
8

162
Partner-2-VU_en_Chap09_Caract-technique_ed01-2015

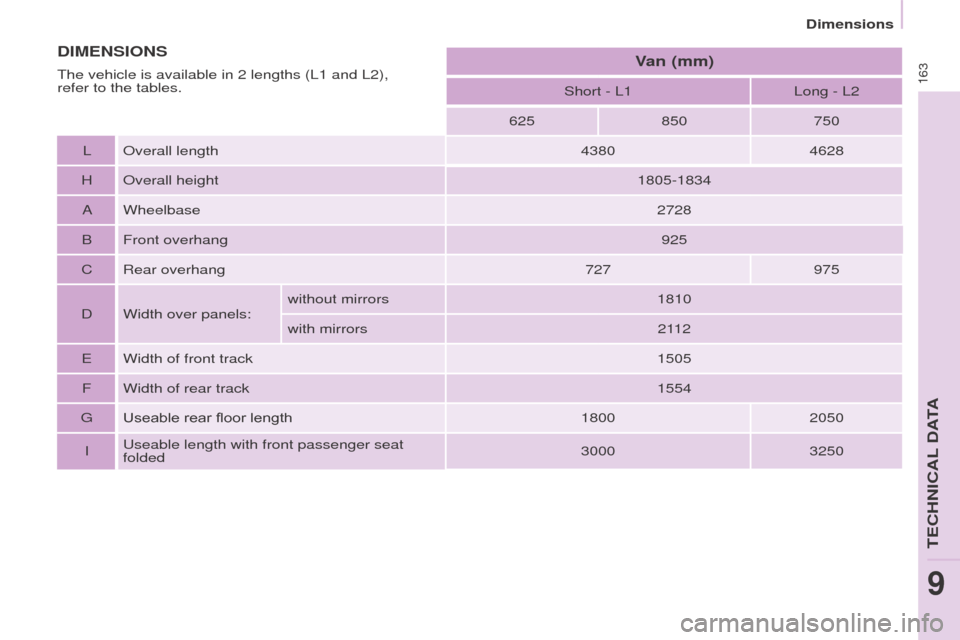

Dimensions

163
Partner-2-VU_en_Chap09_Caract-technique_ed01-2015
Short - L1Long - L2
625 850750
L Overall length 43804628
H Overall height 1805-1834
A Wheelbase 2728
B Front overhang 925
C Rear overhang 727975
D Width over panels: without mirrors
1810
with mirrors 2112
E Width of front track 1505
F Width of rear track 1554
G Useable rear floor length 18002050
I Useable length with front passenger seat
folded 3000
3250
DIMENSIONSV
an (mm)
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables.
Dimensions
TECHNICAL DATA
9

164
Partner-2-VU_en_Chap09_Caract-technique_ed01-2015
L1 - 625L1 - 850 L2

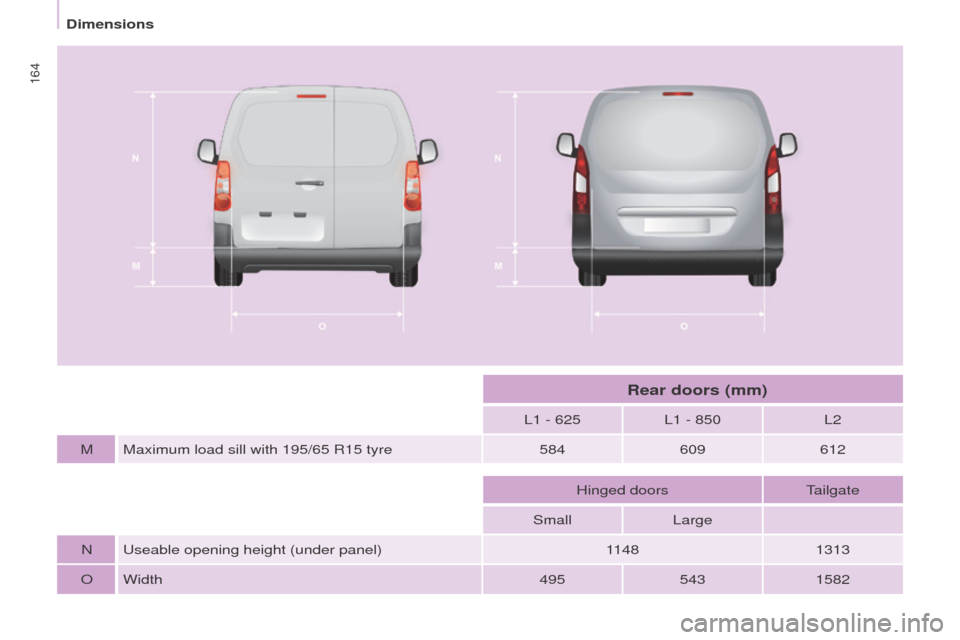

M Maximum load sill with 195/65 R15 tyre 584609612
Hinged doors Tailgate
Small Large
N Useable opening height (under panel) 11481313
O Width 4955431582
Rear doors (mm)
Dimensions

165
Partner-2-VU_en_Chap09_Caract-technique_ed01-2015
L1L2

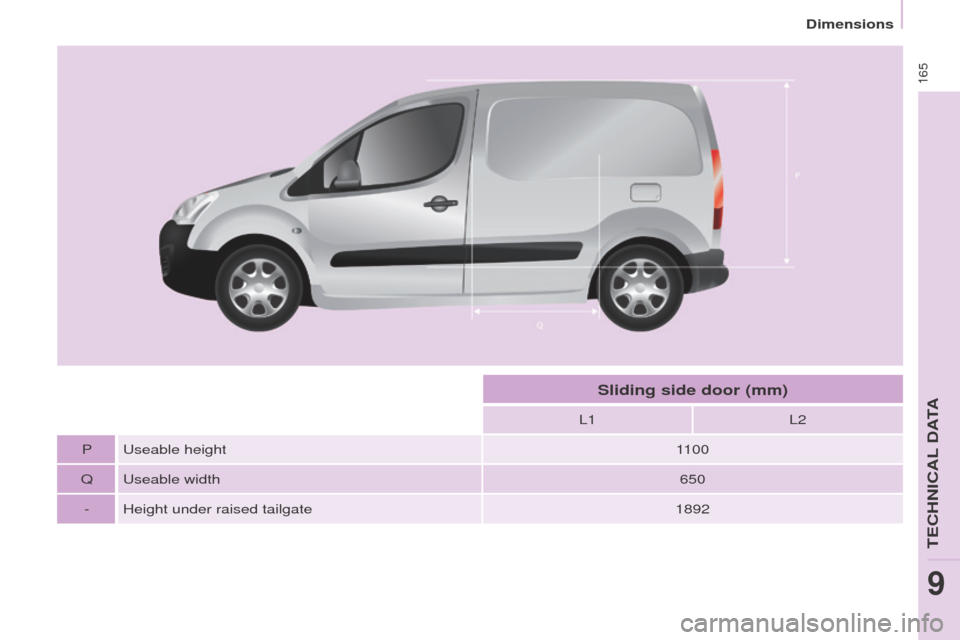

P Useable height 1100
Q Useable width 650
- Height under raised tailgate 1892
Sliding side door (mm)
Dimensions
TECHNICAL DATA
9

166
Partner-2-VU_en_Chap09_Caract-technique_ed01-2015

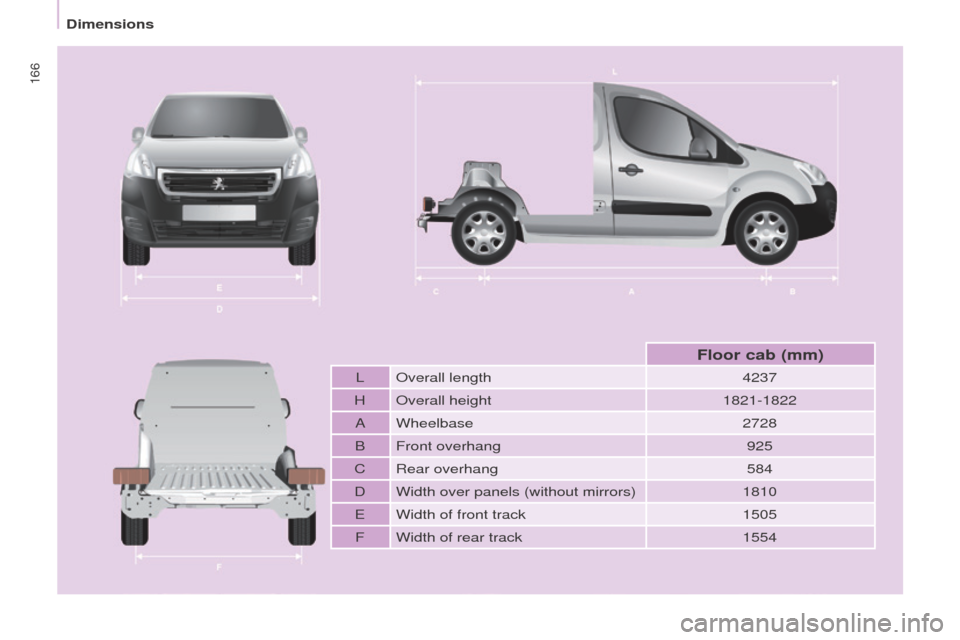

L Overall length4237
H Overall height 1821-1822
A Wheelbase 2728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1810
E Width of front track 1505
F Width of rear track 1554
Floor cab (mm)
Dimensions
