2015 PEUGEOT 4C engine

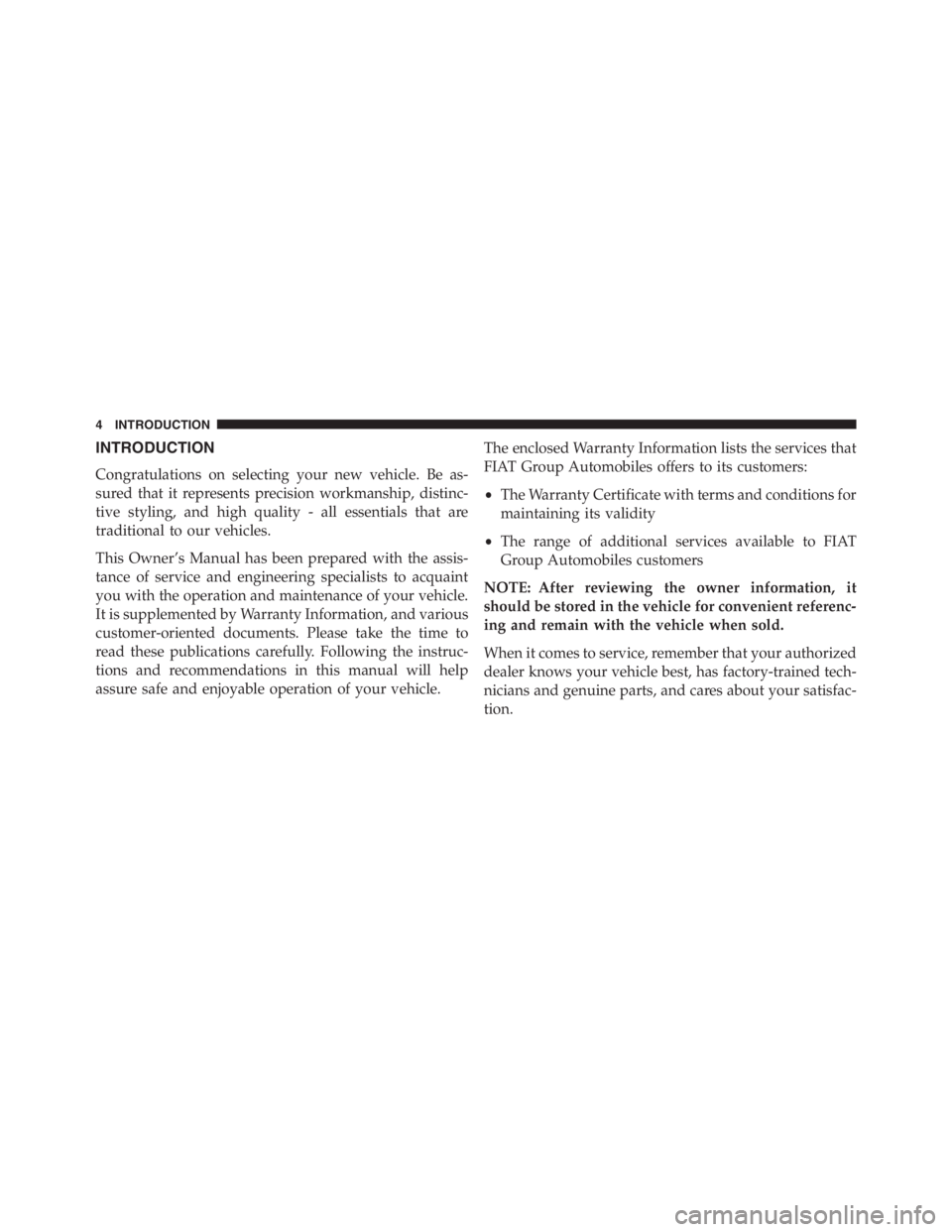

INTRODUCTION
Congratulations on selecting your new vehicle. Be as-
sured that it represents precision workmanship, distinc-
tive styling, and high quality - all essentials that are
traditional to our vehicles.
This Owner’s Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by Warranty Information, and various
customer-oriented documents. Please take the time to
read these publications carefully. Following the instruc-
tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.The enclosed Warranty Information lists the services that
FIAT Group Automobiles offers to its customers:
•The Warranty Certificate with terms and conditions for
maintaining its validity
•The range of additional services available to FIAT
Group Automobiles customers
NOTE: After reviewing the owner information, it
should be stored in the vehicle for convenient referenc-
ing and remain with the vehicle when sold.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained tech-
nicians and genuine parts, and cares about your satisfac-
tion.
4 INTRODUCTION

▫Central Door Locking/Unlocking...........23
▫Locking/Unlocking Doors From The Inside . . .25
▫Emergency Door Locking Device...........25
▫Door Opening/Closing Mechanism Reset.....26
WINDOWS...........................27
▫Power Windows.......................27
DECKLID.............................29
OCCUPANT RESTRAINT SYSTEMS..........32
▫Seat Belt Systems......................33
▫Supplemental Restraint System (SRS)........44▫Child Restraints.......................57
ENGINE BREAK-IN RECOMMENDATIONS....68
SAFETY TIPS..........................69
▫Transporting Passengers.................69
▫Exhaust Gas.........................70
▫Safety Checks You Should Make Inside The
Vehicle.............................71
▫Periodic Safety Checks You Should Make Outside
The Vehicle..........................72
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

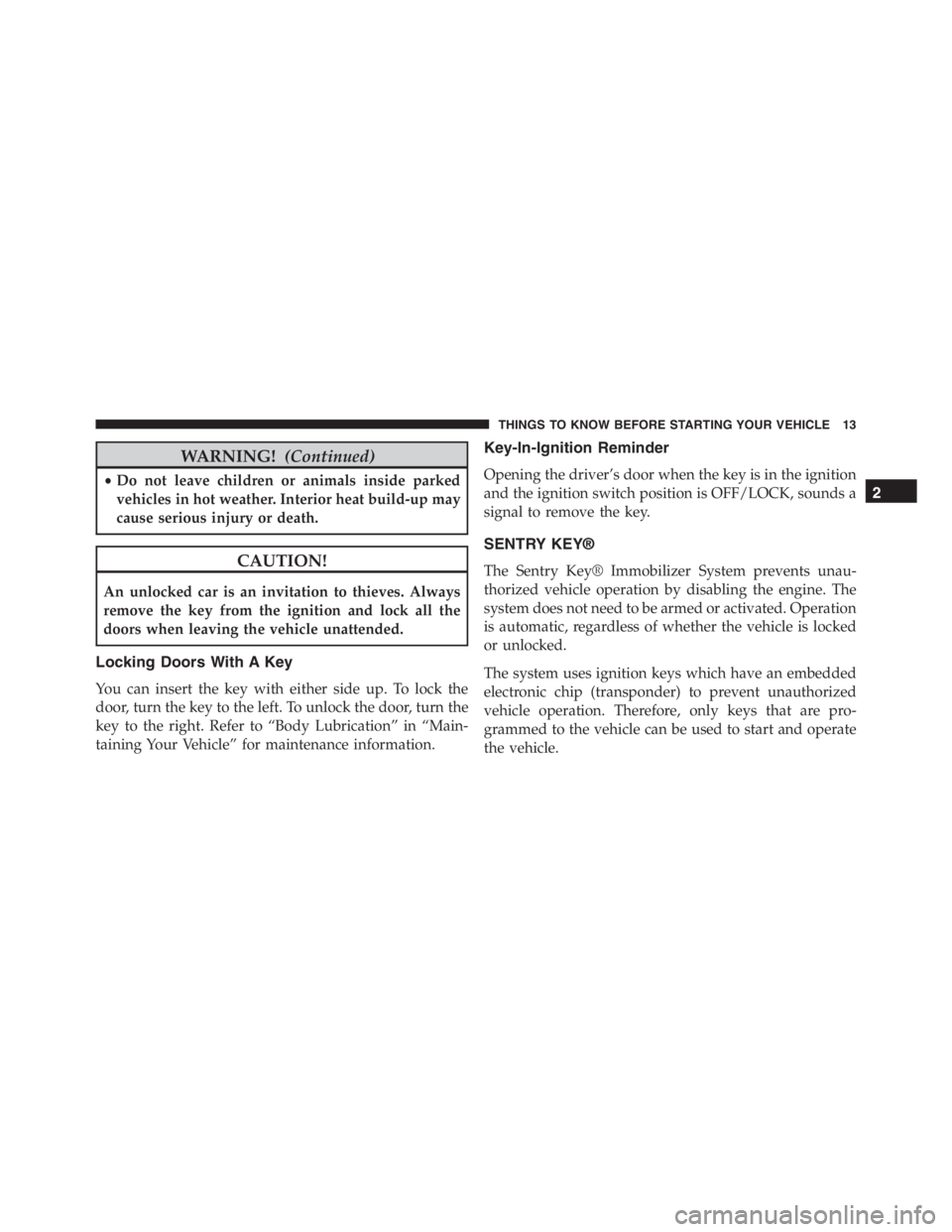

WARNING!(Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all the
doors when leaving the vehicle unattended.
Locking Doors With A Key
You can insert the key with either side up. To lock the
door, turn the key to the left. To unlock the door, turn the
key to the right. Refer to “Body Lubrication” in “Main-
taining Your Vehicle” for maintenance information.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition switch position is OFF/LOCK, sounds a
signal to remove the key.
SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

NOTE:
•The engine locking function is guaranteed by the Alfa
Romeo CODE, which is automatically activated when
the key is extracted from the ignition switch.
•The alarm is adapted to meet requirements in various
countries.
To Arm The System
With the doors and decklid closed and the ignition key
either turned to STOP or removed, point the key towards
the vehicle then push and release the lock button.
The system emits an acoustic and visual signal and
activates door locking.
A self-diagnosis stage lasting approximately 30 seconds
precedes the activation of the alarm. During the self-
diagnosis, the vehicle security light flashes in the instru-
ment panel at a frequency of about one flash per second.After the self-diagnosis stage, the vehicle security light
flashes at a lower frequency (approximately one flash
every three seconds).
If, after the alarm is switched on, a second acoustic signal
is emitted and/or a visual signal via the vehicle security
light in the instrument panel, wait about four seconds
and switch off the alarm by pushing the lock button,
check that the doors and decklid are closed correctly and
then reactivate the system by pushing the unlock button.
If the alarm emits an acoustic signal even when the doors
and decklid are closed correctly, a system malfunction
has occurred: in this case, contact a dedicated Alfa Romeo
Dealership.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

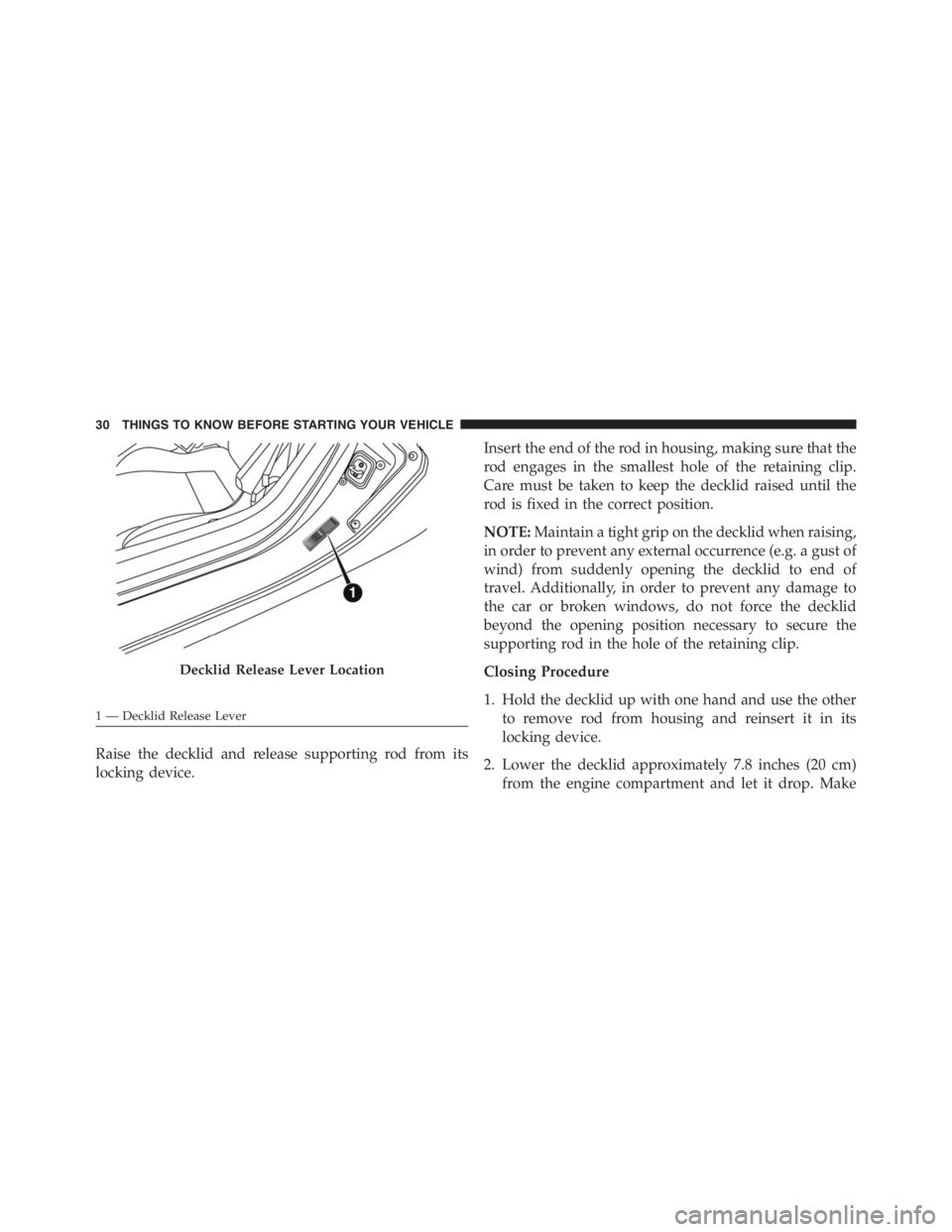

Raise the decklid and release supporting rod from its
locking device.Insert the end of the rod in housing, making sure that the
rod engages in the smallest hole of the retaining clip.
Care must be taken to keep the decklid raised until the
rod is fixed in the correct position.
NOTE:Maintain a tight grip on the decklid when raising,
in order to prevent any external occurrence (e.g. a gust of
wind) from suddenly opening the decklid to end of
travel. Additionally, in order to prevent any damage to
the car or broken windows, do not force the decklid
beyond the opening position necessary to secure the
supporting rod in the hole of the retaining clip.
Closing Procedure
1. Hold the decklid up with one hand and use the other
to remove rod from housing and reinsert it in its
locking device.
2. Lower the decklid approximately 7.8 inches (20 cm)
from the engine compartment and let it drop. Make
Decklid Release Lever Location
1 — Decklid Release Lever 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

sure that the decklid is completely closed and not only
fastened in safety position by trying to open it. If it is
not completely closed, do not push the decklid down,
but raise it and repeat the procedure.
NOTE:Always check that the decklid is closed correctly
to prevent it from opening while the car is travelling.
WARNING!
•The maximum permitted load in the luggage com-
partment, in addition to the kits provided, is
33.1 lbs. (15 kg). Do not exceed the maximum
permitted load in the luggage compartment.
•When accessing the rear luggage compartment, do
not come into contact with engine, or other compo-
nents, that may be hot and could burn you if
touched.
(Continued)
WARNING!(Continued)
•Access the luggage compartment only with the
vehicle stationary. Before exiting a vehicle, you
should always shift the vehicle into gear, remove
the key fob from the ignition, and apply the
parking brake to secure the vehicle against un-
wanted movement.
•The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
•The decklid must always be closed properly, and
the lock engaged, while the car is in motion.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

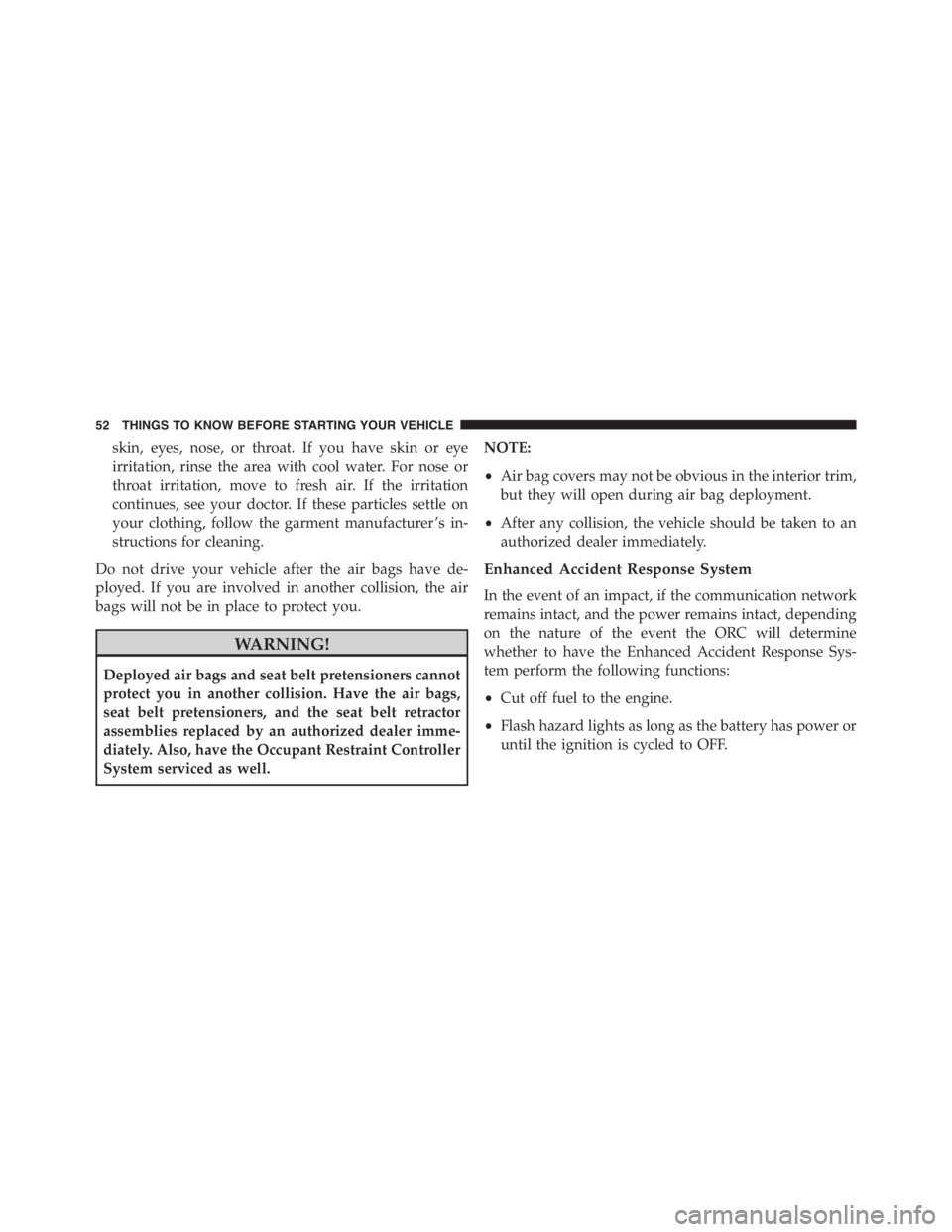

skin, eyes, nose, or throat. If you have skin or eye
irritation, rinse the area with cool water. For nose or
throat irritation, move to fresh air. If the irritation
continues, see your doctor. If these particles settle on
your clothing, follow the garment manufacturer ’s in-
structions for cleaning.
Do not drive your vehicle after the air bags have de-
ployed. If you are involved in another collision, the air
bags will not be in place to protect you.
WARNING!
Deployed air bags and seat belt pretensioners cannot
protect you in another collision. Have the air bags,
seat belt pretensioners, and the seat belt retractor
assemblies replaced by an authorized dealer imme-
diately. Also, have the Occupant Restraint Controller
System serviced as well.NOTE:
•Air bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.
•After any collision, the vehicle should be taken to an
authorized dealer immediately.
Enhanced Accident Response System
In the event of an impact, if the communication network
remains intact, and the power remains intact, depending
on the nature of the event the ORC will determine
whether to have the Enhanced Accident Response Sys-
tem perform the following functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the ignition is cycled to OFF.
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

6. Turn Left Turn Signal
Switch ON.Left Turn Light is ON
SOLID. Right Turn Light
is ON SOLID.
7. Turn Left Turn Signal
Switch OFF. (Turn Signal
Switch Must be placed in
Neutral State).Left Turn Light is OFF.
Right Turn Light is OFF.
8. Turn ignition OFF. System is now reset and
the engine may be
started.
9. Turn Hazard Flashers
OFF (Manually).
If a reset procedure step is not completed within 45
seconds, then the turn signal lights will turn off and the
reset procedure must be performed again in order to be
successful.Air Bag Warning Light
The air bags must be ready to inflate for your protection
in a collision. The Air Bag Warning Light
monitors the internal circuits and interconnect-
ing wiring associated with air bag system elec-
trical components.
The ORC monitors the readiness of the electronic parts of
the air bag system whenever the ignition switch is in the
START or ON/RUN position. If the ignition switch is in
the OFF position the air bag system is not on and the air
bags will not inflate.
The ORC contains a backup power supply system that
may deploy the air bags even if the battery loses power or
it becomes disconnected prior to deployment.
Also, the ORC turns on the Air Bag Warning Light in the
instrument panel for approximately four to eight seconds
for a self-check when the ignition is first turned to the
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
