2015 PEUGEOT 4C stop start

control panel (it is not necessary to press the brake pedal)
the transmission will immediately engage the correct
gear according to the car ’s speed.
If the vehicle is stationary with the engine running and
FIRST (1st) gear or REVERSE (R) engaged, the system
activates an acoustic signal and automatically places the
transmission in NEUTRAL (N) when:
The accelerator and/or brake pedal are not operated for
at least three minutes.
The brake pedal is pressed for longer than 10 minutes.
The driver ’s door is opened and the accelerator pedal or
the brake pedal are not operated for at least one and a
half seconds.
A fault has been detected in the transmission.Parking The Vehicle
When parking and leaving the car, proceed as follows:
1. Press the brake pedal and shift the transmission into
First (1st).
2. Stop the engine and firmly engage the parking brake.
3. Release the brake pedal.
When parking on an incline, turn the front wheels toward
the curb on a downhill slope and away from the curb on
an uphill slope. Always chock the wheels when parking
on steep grades.
General Notes
When the vehicle is stopped and in gear, always keep the
brake pedal pressed until you decide to set off, then
release the brake and accelerate gradually.
162 STARTING AND OPERATING

During prolonged stops with the engine running, it is
advisable to keep the transmission in NEUTRAL (N).
When stopped on an incline, always hold the vehicle in
place using the brakes. On steep inclines, Hill Start Assist
(HSA) will temporarily hold the car in position when the
brake pedal is released. If the accelerator pedal is not
applied after a short time, the car will roll back. Either
reapply the brake (to hold the vehicle) or press the
accelerator to climb the hill.
Only shift between FIRST (1st) and REVERSE (R) when
completely stopped, with the brake pedal pressed.
When necessary, it is possible to engage FIRST (1st),
REVERSE (R) or NEUTRAL (N) with the engine off, the
key at MAR-ON and the brake pressed. In this case, wait
at least five seconds between one gear change and the
next, in order to safeguard the operation of the hydraulic
system, and the pump in particular.For uphill departures, it is advisable to accelerate gradu-
ally but fully immediately after releasing the parking
brake or the brake pedal; this allows the engine to
temporarily increase the number of revs and tackle the
steepest gradients with more torque at the wheels.
ALFA DNA SYSTEM (DYNAMIC CAR CONTROL
SYSTEM)
This vehicle is equipped with a “Alfa DNA” system lever
(located on the center console). There are four modes of
operation to be selected according to driving style and
road conditions:
Dynamic (This mode alters the transmission’s automatic
shift schedule for sportier driving [D]).
Natural (mode for driving in normal conditions [N]).
All Weather (mode for driving in poor grip conditions,
such as rain and snow [A]).5
STARTING AND OPERATING 163

Traction
When driving on wet or slushy roads, it is possible for a
wedge of water to build up between the tire and road
surface. This is known as hydroplaning and may cause
partial or complete loss of vehicle control and stopping
ability. To reduce this possibility, the following precau-
tions should be observed:
•Slow down during rainstorms or when the roads are
slushy.
•Slow down if the road has standing water or puddles.
•Replace tires when tread wear indicators first become
visible.
•Keep tires properly inflated.
•Maintain sufficient distance between your vehicle and
the vehicle in front of you to avoid a collision in a
sudden stop.Your vehicle may be equipped with a Limited Slip
Differential (LSD) that reduces, but does not eliminate,
the amount of wheel slip across a given axle for im-
proved handling.
DRIVING THROUGH WATER
Driving through water more than a few inches/
centimeters deep will require extra caution to ensure
safety and prevent damage to your vehicle.
170 STARTING AND OPERATING

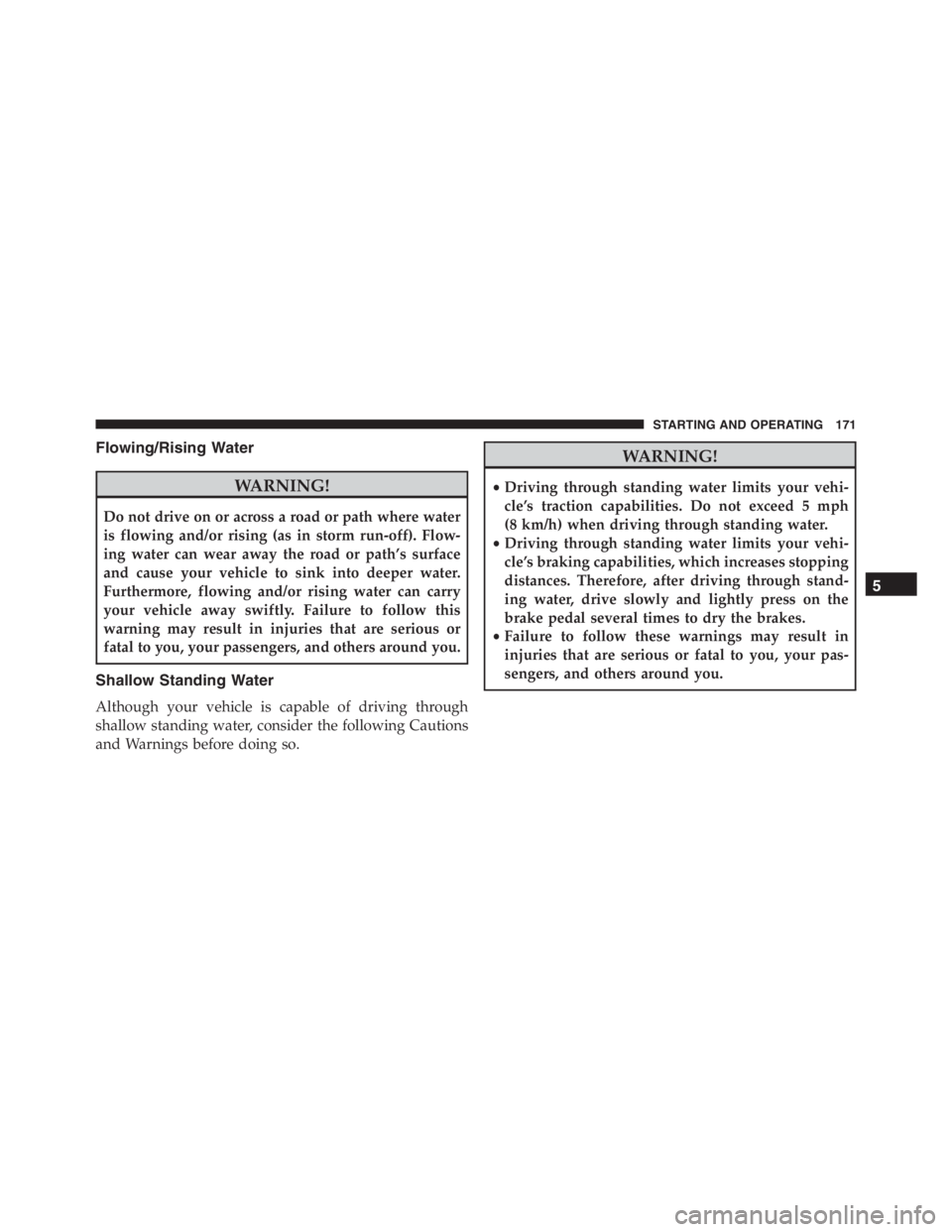

Flowing/Rising Water
WARNING!
Do not drive on or across a road or path where water
is flowing and/or rising (as in storm run-off). Flow-
ing water can wear away the road or path’s surface
and cause your vehicle to sink into deeper water.
Furthermore, flowing and/or rising water can carry
your vehicle away swiftly. Failure to follow this
warning may result in injuries that are serious or
fatal to you, your passengers, and others around you.
Shallow Standing Water
Although your vehicle is capable of driving through
shallow standing water, consider the following Cautions
and Warnings before doing so.
WARNING!
•Driving through standing water limits your vehi-
cle’s traction capabilities. Do not exceed 5 mph
(8 km/h) when driving through standing water.
•Driving through standing water limits your vehi-
cle’s braking capabilities, which increases stopping
distances. Therefore, after driving through stand-
ing water, drive slowly and lightly press on the
brake pedal several times to dry the brakes.
•Failure to follow these warnings may result in
injuries that are serious or fatal to you, your pas-
sengers, and others around you.
5
STARTING AND OPERATING 171

CAUTION!
If the Brake Warning Light remains on with the
parking brake released, a brake system malfunction
is indicated. Have the brake system serviced by an
authorized dealer immediately.
BRAKE SYSTEM
Your vehicle is equipped with dual hydraulic brake
systems. If either of the two hydraulic systems loses
normal capability, the remaining system will still func-
tion. However, there will be some loss of overall braking
effectiveness. You may notice increased pedal travel
during application, greater pedal force required to slow
or stop, and potential activation of the “Brake System
Warning Light.”In the event power assist is lost for any reason (i.e.,
repeated brake applications with the engine off) the
brakes will still function. However, the effort required to
brake the vehicle will be much greater than that required
with the power system operating.
ESC (ELECTRONIC STABILITY CONTROL)
SYSTEM
The ESC system improves the directional control and
stability of the vehicle in various driving conditions.
The ESC system corrects the car ’s understeer and over-
steer, distributing the brake force on the appropriate
wheels. The torque supplied by the engine can also be
reduced in order to maintain control of the car.5
STARTING AND OPERATING 175

This guarantees greater braking stability for the vehicle,
preventing sudden locking of the rear wheels and the
consequent instability of the vehicle.
Four-Wheel Anti-Lock Brake System (ABS)
The Four-Wheel ABS is designed to aid the driver in
maintaining vehicle control under adverse braking con-
ditions. The system operates with a separate computer to
modulate hydraulic pressure, to prevent wheel lock-up
and to help avoid skidding on slippery surfaces.
The system’s pump motor runs during an ABS stop to
provide regulated hydraulic pressure. The pump motor
makes a low humming noise during operation, which is
normal.
The ABS includes an amber ABS Warning Light. When
the light is illuminated, the ABS is not functioning. The
system reverts to standard non-anti-lock brakes. Turningthe ignition Off and On again may reset the ABS if the
fault detected was only momentary.
WARNING!
•When the ABS intervenes and you feel the brake
pedal pulsating, do not reduce the pressure, but
hold it down firmly and confidently; in doing so
you will brake in the shortest distance possible,
depending on the current road conditions.
•For maximum efficiency of the braking system, a
bedding-in period of about 311 miles (500 km) is
required: during this period it is advisable to avoid
sharp, repeated and prolonged braking.
•If the ABS intervenes, this indicates that the grip of
the tires on the road is nearing its limit: you must
slow down to a speed compatible with the avail-
able grip.
(Continued)
178 STARTING AND OPERATING

WARNING!(Continued)
•The ABS can’t overrule the natural laws of physics,
and can’t increase the grip available according to
the condition of the road.
•The ABS cannot prevent accidents, including those
due to excessive speed on corners, driving on
low-grip surfaces or aquaplaning.
•The capability of the ABS must never be tested
irresponsibly and dangerously, in such a way as to
compromise personal safety and the safety of oth-
ers.
•For the correct operation of the ABS, the tires must
of necessity be the same make and type on all
wheels, in perfect condition and, above all, of the
prescribed type and dimensions.When you are in a severe braking condition involving the
use of the ABS, you will experience some pedal drop as
the vehicle comes to a stop. This is the result of the
system reverting to the base brake system.
Engagement of the ABS may be accompanied by a
pulsing sensation. You may also hear a clicking noise.
These occurrences are normal and indicate that the
system is functioning properly.
System Intervention
A slight pulsing of the brake pedal and noise indicates
the intervention of the ABS: this is completely normal
when the system intervenes.
5
STARTING AND OPERATING 179

Electronic Q2 System (E-Q2)
TheElectronic Q2system intervenes during accelera-
tion on corners, braking the inner drive wheel and thus
increasing the traction of the outer wheel (which bears
more of the car ’s weight): the torque is thus distributed
optimally between the drive wheels in accordance with
the driving conditions and road surface, permitting par-
ticularly effective, sporty driving.
Ready Alert Brake System (RAB)
This function activates automatically if the accelerator
pedal is released rapidly, reducing the brake pad travel
(both at front and back), with the aim of preparing the
braking system and enhancing its responsiveness, thus
reducing the stopping distance in the event of subse-
quent braking.
TIRE SAFETY INFORMATION
Tire Markings
1 — U.S. DOT Safety Standards
Code (TIN)4 — Maximum Load
2 — Size Designation 5 — Maximum Pressure
3 — Service Description 6 — Treadwear, Traction and
Temperature Grades 184 STARTING AND OPERATING
