2015 PEUGEOT 4C engine

Mileage or time passed (whichever comes first)
12,000
24,000
36,000
48,000
60,000
72,000
Or Months: 12 24 36 48 60 72
Or Kilometers:
20,000
40,000
60,000
80,000
100,000
120,000
Check cleanliness of hood and deck lid locks, as well as cleanli-
ness and lubrication of associated linkagesXX X X X X
Visually inspect condition of: exterior bodywork, carbon monocoque,
aerodynamic bottom, pipes and hoses (exhaust, fuel supply system,
brakes), rubber elements (boots, driveshaft boots, sleeves, bushes,
etc.)XX X X X X
Check condition and wear of front brake pads and discs, and op-
eration of pad wear indicatorXX X X X X
Check condition and wear of rear brake pads and discs, and opera-
tion of pad wear indicatorXX X X X X
Check and top off, if required, fluid levels (engine coolant, brake/
hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)XX X X X X
Visually inspect the condition of accessory drive belt(s) X
8
MAINTENANCE SCHEDULES 317

Mileage or time passed (whichever comes first)
12,000
24,000
36,000
48,000
60,000
72,000
Or Months: 12 24 36 48 60 72
Or Kilometers:
20,000
40,000
60,000
80,000
100,000
120,000
Check condition of timing belt X
Check handbrake lever travel and adjust, if necessary (or every 12
months)XX X X X X
Check exhaust gas emissions, or as required by applicable laws X X X
Check engine control system operation (via diagnostic tool) X X X X X X
Check and, if necessary, top off oil level of dual clutch automatic
transmissionX
Replace accessory drive belt(s)X
Replace spark plugs (#) X X
Replace toothed timing drive belt (*)X
Change engine oil and oil filter (**)
Change brake fluid (or every 24 months) X X X
318 MAINTENANCE SCHEDULES

Mileage or time passed (whichever comes first)
12,000
24,000
36,000
48,000
60,000
72,000
Or Months: 12 24 36 48 60 72
Or Kilometers:
20,000
40,000
60,000
80,000
100,000
120,000
Replace air filter cartridge (***) X X X X X X
(⌂) Recommend using Midtronics tester to check charge
status and, if necessary, recharge battery.
(#) The spark plug change interval is mileage based only,
yearly intervals do not apply. The following are essential
to ensure correct operation and prevent serious damage
to the engine:
•Only use spark plugs of the same make and type
which are specially certified for such engines (refer to
“Fluids, Lubricants and Genuine Parts” in “Maintain-
ing Your Vehicle” for further information).•Strictly comply with the spark plug replacement inter-
val given in the maintenance schedule for spark plug
replacement.
•Contact your Alfa Romeo Dealer if you have questions.
(*) Regardless of the distance covered, the timing belt
must be changed every 4 years for particularly demand-
ing use (cold climates, city driving, long periods of
idling) or at least every 5 years.
8
MAINTENANCE SCHEDULES 319

(**) The actual interval for changing the oil and replacing
the engine oil filter depends on the vehicle usage condi-
tions and is signalled by the warning light or message (if
present) on the instrument panel or every 12 months.
(***) If the vehicle is operated in a dusty or dirty
environment the engine air filter has to be changed every
6,500 miles (10,000 km).WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
•Failure to properly inspect and maintain your ve-
hicle could result in a component malfunction and
effect vehicle handling and performance. This
could cause an accident.
320 MAINTENANCE SCHEDULES

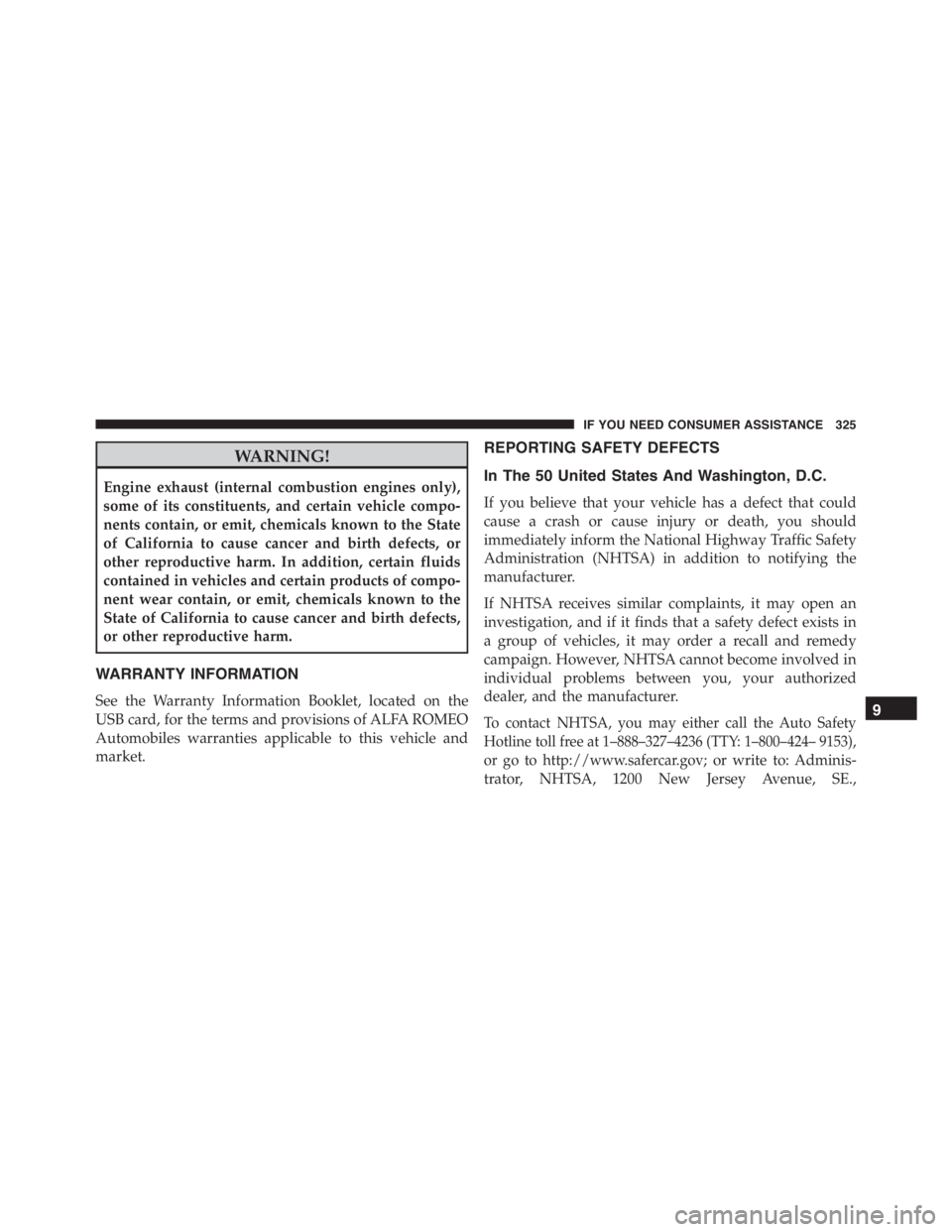

WARNING!
Engine exhaust (internal combustion engines only),
some of its constituents, and certain vehicle compo-
nents contain, or emit, chemicals known to the State
of California to cause cancer and birth defects, or
other reproductive harm. In addition, certain fluids
contained in vehicles and certain products of compo-
nent wear contain, or emit, chemicals known to the
State of California to cause cancer and birth defects,
or other reproductive harm.
WARRANTY INFORMATION
See the Warranty Information Booklet, located on the
USB card, for the terms and provisions of ALFA ROMEO
Automobiles warranties applicable to this vehicle and
market.
REPORTING SAFETY DEFECTS
In The 50 United States And Washington, D.C.
If you believe that your vehicle has a defect that could
cause a crash or cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying the
manufacturer.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your authorized
dealer, and the manufacturer.
To contact NHTSA, you may either call the Auto Safety
Hotline toll free at 1–888–327–4236 (TTY: 1–800–424– 9153),
or go to http://www.safercar.gov
; or write to: Adminis-
trator, NHTSA, 1200 New Jersey Avenue, SE.,
9
IF YOU NEED CONSUMER ASSISTANCE 325

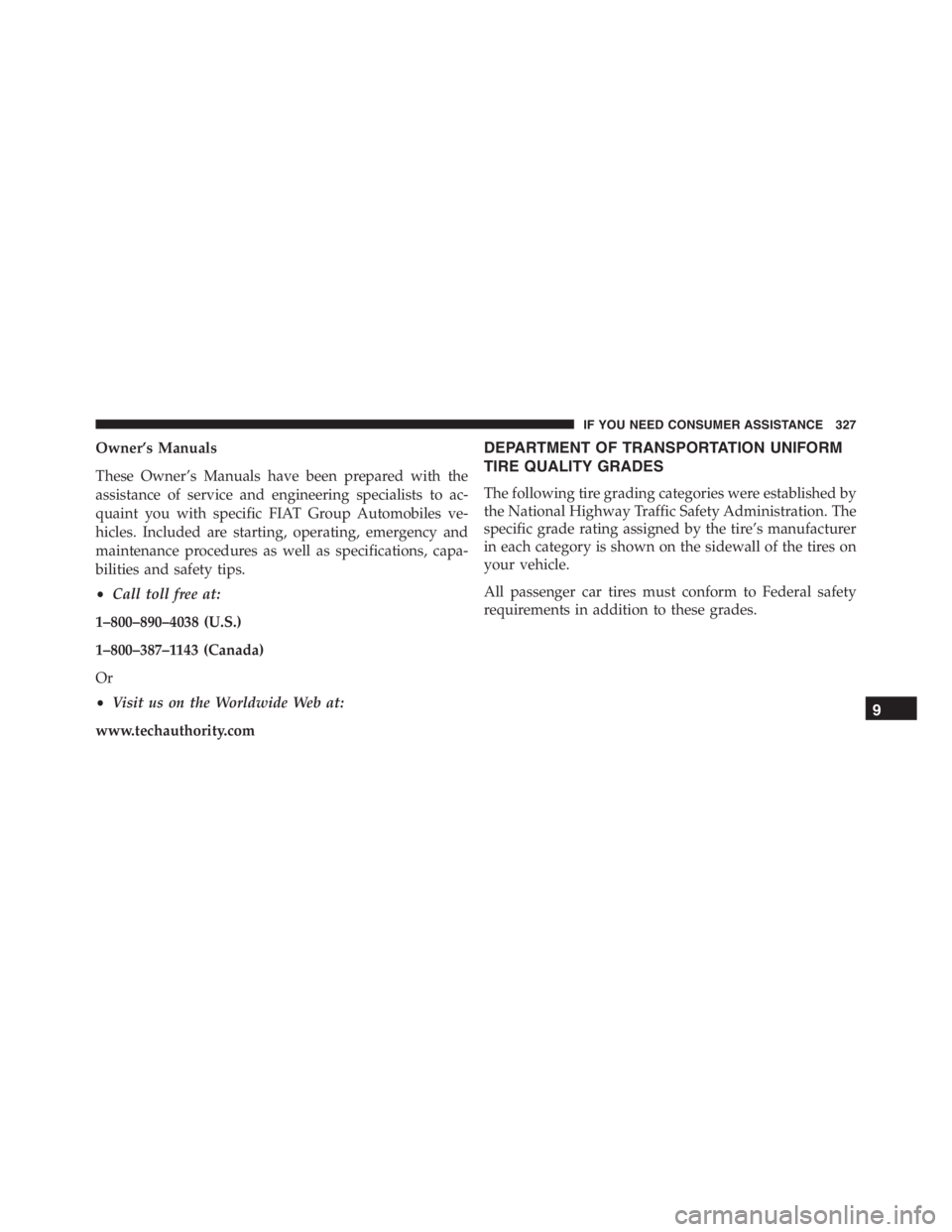

Owner’s Manuals
These Owner’s Manuals have been prepared with the
assistance of service and engineering specialists to ac-
quaint you with specific FIAT Group Automobiles ve-
hicles. Included are starting, operating, emergency and
maintenance procedures as well as specifications, capa-
bilities and safety tips.
•Call toll free at:
1–800–890–4038 (U.S.)
1–800–387–1143 (Canada)
Or
•Visit us on the Worldwide Web at:
www.techauthority.comDEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
9
IF YOU NEED CONSUMER ASSISTANCE 327

Adding Engine Coolant (Antifreeze)............270
Adding Fuel.............................219
Adding Washer Fluid......................262
Additives, Fuel...........................217
Airbag.................................44
Air Bag
Knee Impact Bolsters.....................51
Air bag Deployment........................44
Air bag Light.............................54
Air bag Maintenance........................56
Air Cleaner, Engine (Engine Air Cleaner Filter). . . .254
Air Conditioner Maintenance.................257
Air Conditioning Refrigerant.................257
Air Conditioning System....................257
Air Pressure, Tires.........................197
Alarm System (Security Alarm)................15
Alfa DNA System (Dynamic Car Control System) . .163
Alfa Twin Clutch Transmission................156
Fluid Type............................279Alterations/Modifications, Vehicle...............8
Antifreeze (Engine Coolant)..................269
Capacities............................306
Disposal..............................272
Anti-Lock Brake System (ABS)................178
Appearance Care.........................280
Automatic Door Locks......................25
Automatic Transaxle........................11
Automatic Transmission....................156
Fluid Type............................309
Auto Unlock, Doors........................25
Auxiliary Electrical Outlet (Power Outlet)........101
Battery.................................256
Keyless Transmitter Replacement (RKE)........21
Belts, Seat...............................32
Body Mechanism Lubrication.................258
B-Pillar Location..........................191
Brake Fluid.............................309
332 INDEX

Brake, Parking...........................173
Brakes.................................274
Brake System............................175
Anti-Lock (ABS)........................178
Master Cylinder........................274
Parking..............................173
Break-In Recommendations, New Vehicle.........68
Bulb Replacement.........................292
Bulbs, Light..............................72
Capacities, Antifreeze (Engine Coolant)..........306
Capacities, Fluid..........................306
Caps, Filler
Oil (Engine)...........................253
Carbon Monoxide Warning...................70
Car Washes.............................281
Cellular Phone...........................142
Chains, Tire.............................208
Chart, Tire Sizing.........................186Checking Your Vehicle For Safety...............69
Checks, Safety............................69
Child Restraint............................57
Clean Air Gasoline........................216
Cleaning
Wheels...............................282
Windshield Wiper Blades..................259
Climate Control..........................143
Manual..............................143
Clutch.................................274
Clutch Fluid.............................274
Compact Spare Tire........................203
Contract, Service..........................324
Coolant (Antifreeze).......................306
Cooling System...........................268
Adding Coolant (Antifreeze)...............270
Coolant Level..........................268
Disposal of Used Coolant.................272
Drain, Flush, and Refill...................268
10
INDEX 333
