2015 Peugeot 308 Owner's Manual

103
308_en_Chap03_confort_ed01-2015
Manual air conditioning (touch screen)
Temperature adjustment
F Press one of these buttons to reduce or
increase the value.
th

e air conditioning system operates with the
engine running.
Air flow adjustment
Press one of these buttons to
increase or decrease the speed of
the air booster fan.
th

e air flow symbol (a fan) fills progressively
according to the quantity of air wanted.
By reducing the air flow to minimum, you are
stopping ventilation.
Avoid driving too long without ventilation
(risk of misting and deterioration of air
quality).
Press the button for the "
Air
conditioning " menu to display the
system controls page.
3
Comfort

104
308_en_Chap03_confort_ed01-2015
the air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
Air conditioning On / Off
Switching on
Switching off
the air conditioning does not operate
when the air flow adjustment is set
to

off.F

P
ress this button, its indicator
lamp comes on.
It enables you to:
-

l

ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
F
P
ress this button again, its
indicator lamp goes off.
Air distribution adjustment
these buttons are used to arrange
the distribution of air in the passenger
compartment by combining several air outlets.
Windscreen.
th

e air distribution can be adapted by using
several buttons: illumination of the indicator
lamp confirms the presence of fan boosted air
in the direction indicated, the indicator lamp off
indicates the absence of fan boosted air in the
direction indicated.
For a uniform distribution of air in the
passenger compartment, the three buttons can
be activated simultaneously. Footwells. Central and side vents.
Switching off may result in some discomfort
(humidity, misting).
to o
btain cool air more quickly, you can use
interior air recirculation for a few moments.
th

en return to the intake of exterior air.
Comfort

105
308_en_Chap03_confort_ed01-2015
Dual-zone digital air conditioning (touch screen)
this air conditioning system operates with the engine running, but the ventilation and its controls
are available with the ignition on.
Operation of the air conditioning and regulation of temperature, air flow and air distribution in the
passenger compartment are automatic according to the temperature in the passenger compartment
and the temperature setting.Temperature adjustment
the driver and front passenger can each set
the temperature.
F

P
ress one of these buttons to
increase the value.
th

e value indicated corresponds to a level of
comfort and not to a temperature in degrees
Centigrade or Fahrenheit (depending on the
units chosen).
A setting around 21 provides an optimum level
of comfort. Depending on your requirements, a
setting between 18 and 24 is normal.
In addition, it is recommended that you avoid a
difference between the left and right setting of
more than 3.
Press the button for the "
Air conditioning" menu to display the controls for the air
conditioning system. F

P
ress one of these buttons to
decrease the value.
3
Comfort

106
308_en_Chap03_confort_ed01-2015
In cold conditions and when the engine
is cold, to limit distribution of cold air
in the passenger compartment, the
air flow will change gradually until the
comfort setting is reached.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value setting, there
is no need to alter the value displayed
in order to reach more quickly the
required level of comfort. t
h
e system
compensates automatically and
corrects the temperature difference as
quickly as possible.
th

is setting is associated with A
u
t
O m
ode
only. However, on deactivation of A
u
t
O m
ode,
the indicator for the last setting remains on.
Changing the setting does not reactivate A
u
t
O

mode if deactivated.
When the indicator lamp in the button is on, the
air conditioning system operates automatically:
the system manages the temperature, air
flow and air distribution in the passenger
compartment in an optimum way according to
the comfort level you have selected. F

P

ress the "AUTO"
button
to activate or deactivate the
automatic mode of the air
conditioning system.
Automatic comfort
programme
to change the current setting, shown by the
green indicator lamp, press the button for the
desired mode:
"Soft": provides soft and quiet
operation by limiting air flow.
"Normal": offers the best compromise
between a comfortable temperature
and quiet operation (default setting).
"Fast": provides strong and effective
air f low.
It is possible to modulate the intensity
of the automatic comfort programme
by choosing one of three mode
settings offered in a secondary page
of the "
Air conditioning " menu.
Comfort

107
308_en_Chap03_confort_ed01-2015
You can modulate the distribution of air in the
passenger compartment using these three buttons.
Air flow adjustment
Avoid driving for too long with the
ventilation off (risk of misting and
deterioration of air quality).
Air distribution adjustment
F Press one of these buttons to increase or decrease the
speed of the booster fan.
th

e air flow symbol (a fan) is filled in
progressively in relation to the quantity of air
wanted.
By reducing the air flow to minimum, you are
stopping ventilation.
" OFF " is displayed alongside the fan. Windscreen.
Centre and side vents. Footwells.
ea

ch press on a button activates or deactivates
the function.
t
h
e indicator lamp is on when the
button is activated. For a uniform distribution in
the passenger compartment, all three buttons
can be pressed simultaneously.
Resuming manual control
You can manually adjust one or more settings,
while retaining automatic control of the other
functions:
-

a
ir flow,
-
a

ir distribution.
F

P
ress the "AUTO" button again
to activate the automatic comfort
programme again.
As soon as you modify a setting, the indicator
lamp in the "
AUTO" button goes off.
In A
u

t
O m
ode, the indicator lamps in all three
buttons are off.
3
Comfort

108
308_en_Chap03_confort_ed01-2015

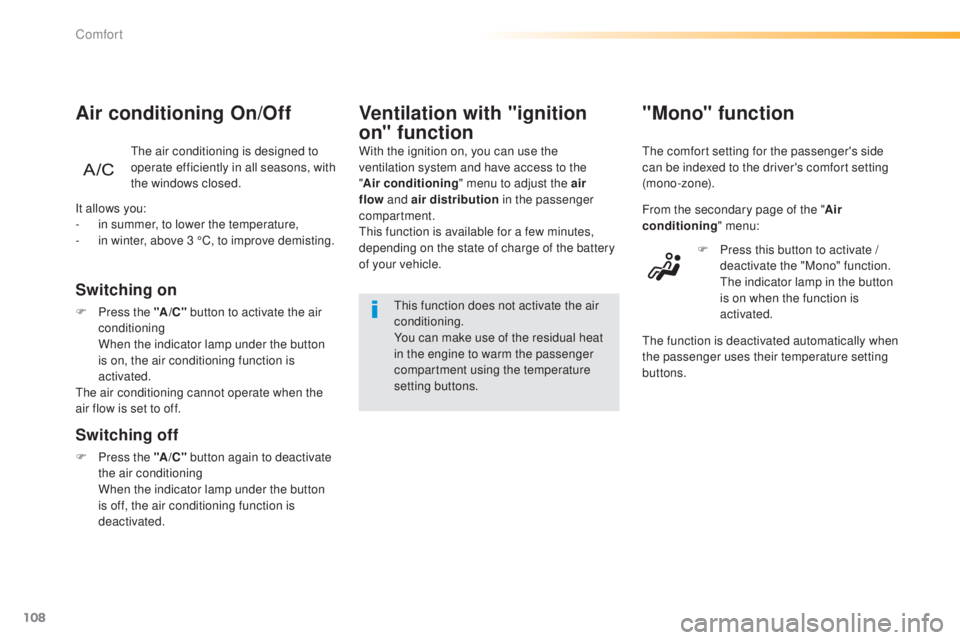

"Mono" function
the comfort setting for the passenger's side
can be indexed to the driver's comfort setting
(mono-zone).
From the secondary page of the "Air
conditioning " menu:
F

P
ress this button to activate /
deactivate the "Mono" function.


t
h
e indicator lamp in the button
is on when the function is
activated.
the

function is deactivated automatically when
the passenger uses their temperature setting
buttons.
It allows you:
-

i

n summer, to lower the temperature,
-

i

n winter, above 3 °C, to improve demisting.
Switching off
F Press the "A /C " button again to deactivate
the air conditioning
W

hen the indicator lamp under the button
is off, the air conditioning function is
deactivated.
Switching on
F Press the " A/C" button to activate the air
conditioning
W

hen the indicator lamp under the button
is on, the air conditioning function is
activated.
th

e air conditioning cannot operate when the
air flow is set to off.
Air conditioning On/Off
the air conditioning is designed to
operate efficiently in all seasons, with
the windows closed.
Ventilation with "ignition
on" function
With the ignition on, you can use the
ventilation system and have access to the
" Air conditioning " menu to adjust the air
flow and air distribution in the passenger
compartment.
th

is function is available for a few minutes,
depending on the state of charge of the battery
of your vehicle.
th

is function does not activate the air
conditioning.
You can make use of the residual heat
in the engine to warm the passenger
compartment using the temperature
setting buttons.
Comfort

109
308_en_Chap03_confort_ed01-2015

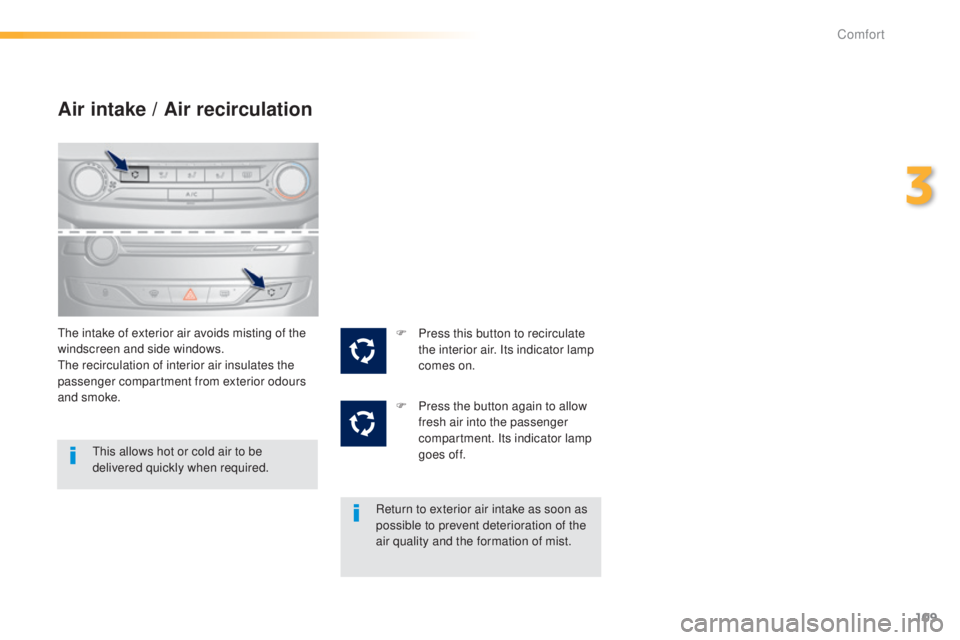

Air intake / Air recirculation
the intake of exterior air avoids misting of the
windscreen and side windows.
th
e recirculation of interior air insulates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and the formation of mist.
th

is allows hot or cold air to be
delivered quickly when required. F
P ress this button to recirculate
the interior air. Its indicator lamp
comes on.
F

P
ress the button again to allow
fresh air into the passenger
compartment. Its indicator lamp
goes off.
3
Comfort

110
308_en_Chap03_confort_ed01-2015
Front demist - defrost
these markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.
With manual air
conditioning
With Stop & Start, when demisting has
been activated, the StOP mode is not
available.
With manual or dual-zone
digital air conditioning
F Put the air flow, temperature and distribution controls to the dedicated
marked position.
F

P
ress the "A /C " button for air conditioning;
the indicator lamp in the button comes on. F
P ress this button to demist or
defrost the windscreen and side
windows as quickly as possible.
(with the touch screen)
the system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
F
t
o s
top, press this button again or on
"AUTO" .
the

system reverts to the previous settings.
Comfort
