2015 OPEL ZAFIRA TOURER Owners Manual

In brief7
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 38, Seat adjustment
3 38.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 38, Seat adjustment
3 38.
Seat inclination
Lever pumping motion
up=front end higherdown=front end lower
Seat position 3 38, Seat adjustment
3 38.

8In brief
Power seat adjustment
Operate switch 1:
forwards/back‐
wards=lengthwise
adjustmentupwards/down‐
wards=height adjustmentupwards/down‐
wards at front=inclination
adjustment
Operate switch 2:
forwards/
backwards at
the top=backrest adjustment
Power seat adjustment 3 41.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 36.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 38, Seat belts
3 50, Airbag system 3 54.

In brief9Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 30, Automatic anti-
dazzle interior mirror 3 30.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 29,
Electric adjustment 3 29, Folding
exterior mirrors 3 29, Heated
exterior mirrors 3 30.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 54, Ignition
positions 3 155.

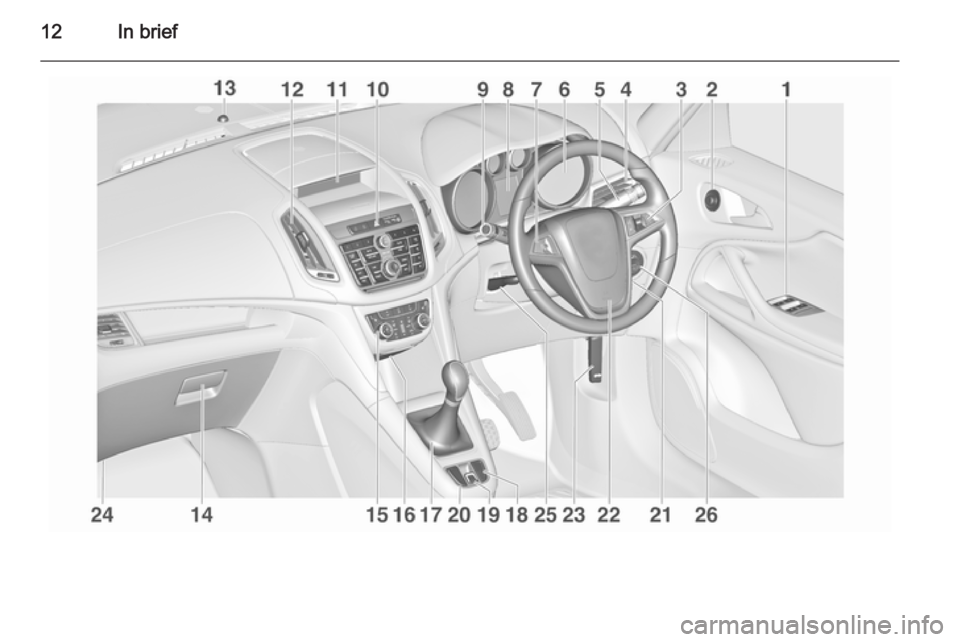

10In briefInstrument panel overview

In brief11
1Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................174
Speed limiter ....................... 176
Adaptive cruise control .......177
Forward collision alert .........184
4 Side air vents ...................... 151
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist ................140
Exit lighting ......................... 143
Parking lights ...................... 141
Buttons for Driver
Information Centre ..............115
6 Instruments ........................ 102
7 Steering wheel controls .......94
8 Driver Information Centre .... 115
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................9610Central locking system ..........22
Hazard warning flashers ....140
Sport mode ........................ 172
Tour mode .......................... 172
Fuel selector ....................... 103
Control indicator for airbag
deactivation ........................ 109
Control indicator for front
passenger seat belt ...........108
11 Info-Display ........................ 119
12 Centre air vents .................. 151
13 Anti-theft alarm system
status LED ........................... 26
14 Glovebox .............................. 63
15 Climate control system ........ 145
16 AUX input, USB input, SD
card slot ................................ 10
Power outlet ........................ 100
17 Selector lever, manual
transmission ....................... 167
Automatic transmission ......16418Traction Control system .....171
Electronic Stability Control . 172
Lane departure warning .....202
19 Electric parking brake .........169
20 Parking assist systems .......190
Eco button for stop-start
system ................................. 157
21 Ignition switch with
steering wheel lock ............155
22 Horn ..................................... 95
Driver airbag ........................ 54
23 Bonnet release lever ..........220
24 Fuse box ............................ 239
Storage compartment ...........65
25 Steering wheel adjustment ..94
26 Light switch ........................ 133
Headlight range
adjustment ......................... 135
Front fog lights ...................140
Rear fog light ...................... 141
Instrument illumination .......142

12In brief

In brief13Exterior lighting
Turn light switch:
7=lights off8=sidelights9=low beam
Automatic light control
AUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation of
the automatic light control8=sidelights9=low beam
Fog lights
Press light switch:
>=front fog lightsr=rear fog light
Lighting 3 133.
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 134, High
beam 3 134, High beam assist
3 134, Headlight flash 3 135,
Adaptive forward lighting 3 136.

14In brief
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 140, Parking lights 3 141.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 140.
Horn
Press j.
