2015 NISSAN VERSA SEDAN Owners Manual

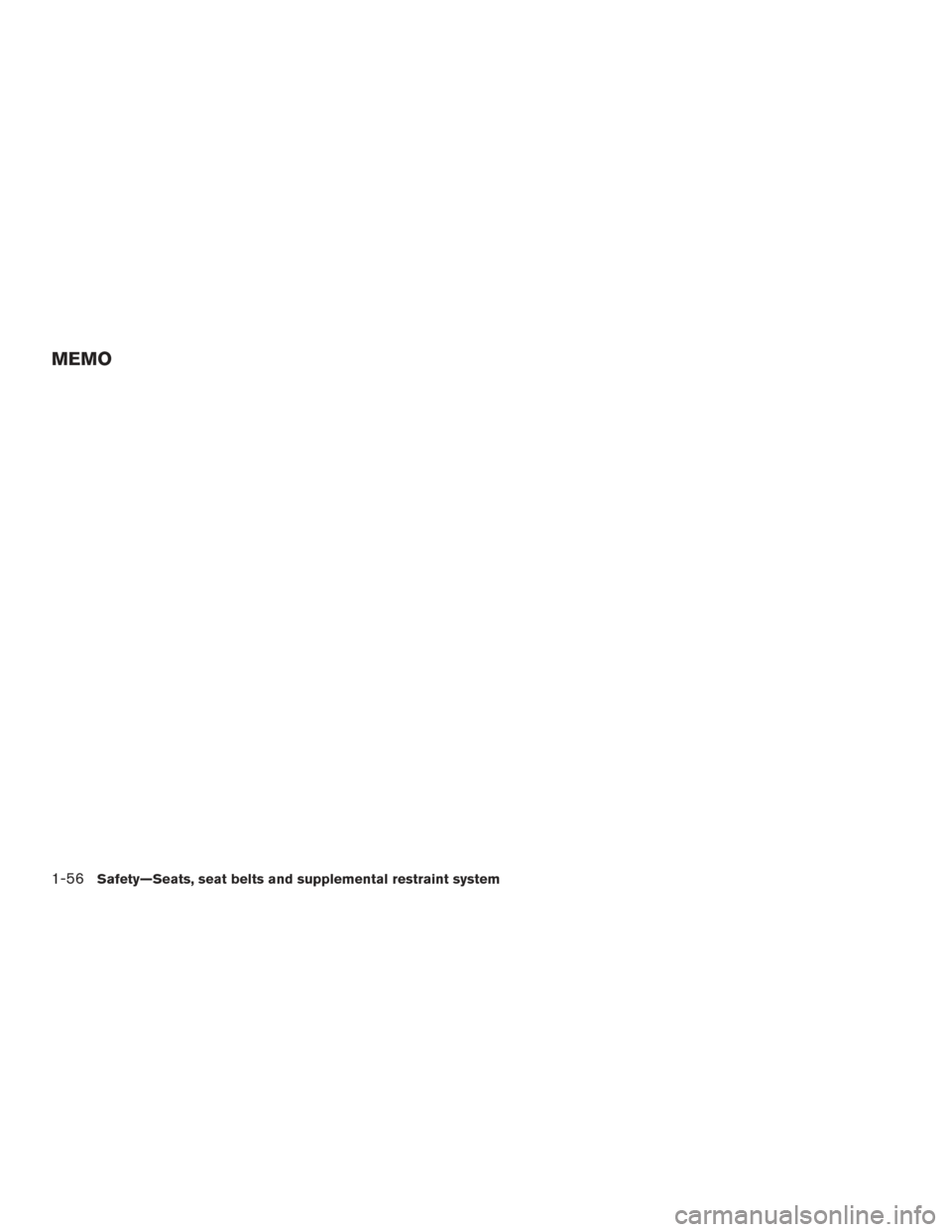

MEMO
1-56Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-5
Tachometer ....................................2-7
Engine coolant temperature gauge
(if so equipped) ................................2-8
Fuel gauge ....................................2-9
Trip computer ..................................2-9
Warning/indicator lights and audible reminders ......2-11
Checking bulbs ............................... 2-12
Warning lights ................................ 2-12
Indicator lights ................................ 2-16
Audible reminders ............................. 2-19
Security systems ................................. 2-19
NISSAN vehicle immobilizer system
(if so equipped) ............................... 2-19
Windshield wiper and washer switch ...............2-20
Switch operation .............................. 2-20
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-22
Headlight and turn signal switch ....................2-22Headlight control switch
........................ 2-22
Daytime running light system (Canada only) ......2-23
Instrument brightness control ...................2-24
Turn signal switch ............................. 2-24
Fog light switch (if so equipped) ................2-25
Horn ............................................ 2-25
Vehicle Dynamic Control (VDC) off switch ...........2-26
Power outlet ..................................... 2-26
Storage ......................................... 2-27
Map pockets .................................. 2-27
Seatback pocket (if so equipped) . . .............2-27
Storage trays ................................. 2-27
Cup holders .................................. 2-28
Glove box .................................... 2-29
Windows ........................................ 2-29
Power windows (if so equipped) ................2-29
Manual windows (if so equipped) ................2-31
Interior light ...................................... 2-31
Map
light (if so equipped) ......................... 2-32
Trunk light ....................................... 2-33

1. Headlight/turn signal switch (P. 2-22)
2. Driver’s supplemental air bag/horn(P. 1-39, 2-25)
3. Meters and gauges (P. 2-3)
4. Windshield wiper/washer switch
(P. 2-20) 5. Center vents (P. 4-14)
6. Rear window defroster switch (P. 2-22)
7. Front passenger air bag status light
(P. 2-17)
8. Hazard warning flasher switch (P. 6-2)
9. Climate controls (P. 4-15) 10. Audio system (P. 4-23, 4-23)
11. Passenger’s supplemental air bag
(P. 1-39)
12. Side vents (P. 4-14)
13. Electronic outside rearview mirror con-
trol switch (if so equipped) (P. 3-32)
14. Fuel-filler lid release lever (P. 3-27)/
Hood release lever (P. 3-24)
15. Vehicle Dynamic Control (VDC) off
switch (P. 2-26)
16. Audio control switches (if so equipped)
(P. 4-61)
17. Cruise control (if so equipped)
(P. 5-27)
18. Ignition switch/Push button ignition
switch (if so equipped) (P. 5-8,
P. 5-11)
19. Cup holders (P. 2-28)
20. Shift lever (P. 5-16)
21. Glove box (P. 2-27)
See the page number indicated in paren-
theses for operating details.LIC2753
INSTRUMENT PANEL
2-2Instruments and controls

1. Tachometer
2. Speedometer
3. Trip odometer reset switch/trip com-puter mode
4. Instrument brightness control 5. Continuously Variable Transmission
(CVT) / AT Automatic Transmission po-
sition indicator (CVT / A/T models only)
6. Odometer/twin trip odometer/trip com-
puter 7. Fuel gauge
Type A (if so equipped)
LIC2283
METERS AND GAUGES
Instruments and controls2-3

1. Tachometer
2. Temperature gauge
3. Odometer/twin trip odometer/trip com-puter
4. Fuel gauge 5. Speedometer
6. Trip odometer reset switch/trip com-
puter mode 7. Continuously Variable Transmission
(CVT) / Manual Transmission shift indi-
catorposition indicator
8. Instrument brightness control
Type B (if so equipped)
LIC2146
2-4Instruments and controls

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
1records the total distance the
vehicle has been driven.
The twin trip odometer
2records the distance
of individual trips.
Type A (if so equipped)
LIC2118
Type B (if so equipped)
LIC2136
Type A (if so equipped)
LIC2284
Instruments and controls2-5

Changing the display:
Press the change/reset button
3to change the
display as follows:
Odometer (ODO) →Trip→Trip→
Instant fuel consumption →Average fuel con-
sumption →DTE (cruising range) →Outside air
temperature (if so equipped) →Odometer (ODO)
Resetting the trip odometer:
Press the change/reset button
3for more than
1 second to reset the currently displayed trip
odometer to zero.
Loose fuel cap warning message
Push the reset buttonAfor more than 1 second
to reset the LOOSE FUEL CAP warning mes-
sage after the fuel cap has been tightened. For
additional information, refer to “Fuel-filler cap” in
the “Pre-driving checks and adjustments” section
of this manual.
Type B (if so equipped)
LIC2139
Type A (if so equipped)
LIC2285
Type B (if so equipped)
LPD2025
2-6Instruments and controls

Check tire pressure warning message
(if so equipped)
The CHECK TIRE PRES warning message is
displayed when the low tire pressure warning
light is illuminated and low tire pressure is de-
tected. Check and adjust the tire pressure to the
recommended COLD tire pressure shown on the
Tire and Loading Information label. The CHECK
TIRE PRES warning message can be turned off
using the reset button
Aon the meter, the low
tire pressure warning light will not be turned off. The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom-
mended COLD tire pressure. The CHECK TIRE
PRES warning message is displayed each time
the ignition switch is placed in the ON position as
long as the low tire pressure warning light re-
mains illuminated. For additional information, re-
fer to “Low tire pressure warning light” in the
“Instruments and controls” section, “Tire Pres-
sure Monitoring System (TPMS)” in the “Starting
and driving” section, and “Wheels and tires” in
the “Maintenance and do-it-yourself” section of
this Owner’s Manual.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) .
Do not rev the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
Type A (if so equipped)
LIC2436
Type B (if so equipped)
LPD2128
Type A (if so equipped)
LIC2107
Instruments and controls2-7
