3-14Pre-driving checks and adjustments
computer.
. When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depending
on the operating conditions, the battery's life is
approximately 2 years. If the battery is dis-
charged, replace it with a new one.
Since the Intelligent Key is continuously receiv-
ing radio signals, if the key is left near equipment
which transmits strong radio signals such as
from a TV and personal computer, the battery life
may become shorter.
For information regarding replacement of a
battery, see ªIntelligent Key battery replacementº
(P.8-23) .
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information about
the purchase and use of additional Intelligent
Keys, contact a NISSAN dealer.
CAUTION
. Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with water or salt water. This could affect
the system function.
. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key
sharply against another object.
. Do not change or modify the Intel-
ligent Key.
. Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet,
immediately wipe until it is comple-
tely dry.
. If the outside temperature is below
148F (


> (GLW    0RGHO (' @
3-20Pre-driving checks and adjustments

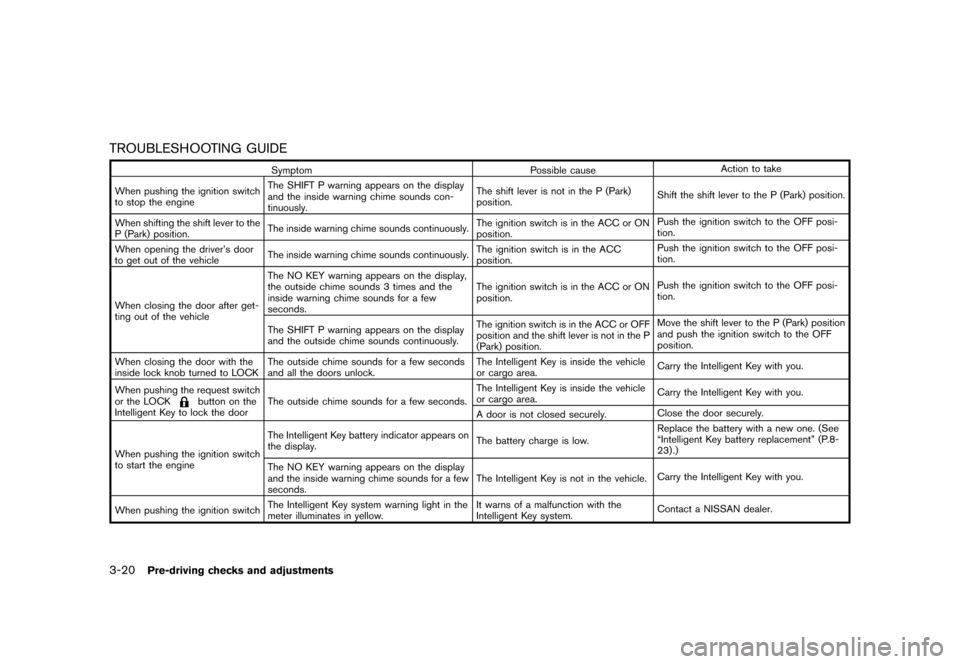

TROUBLESHOOTING GUIDEGUID-E5644696-3086-4358-A85E-26AB11D34774
SymptomPossible causeAction to take
When pushing the ignition switch
to stop the engine The SHIFT P warning appears on the display
and the inside warning chime sounds con-
tinuously.
The shift lever is not in the P (Park)
position.
Shift the shift lever to the P (Park) position.
When shifting the shift lever to the
P (Park) position. The inside warning chime sounds continuously.
The ignition switch is in the ACC or ON
position.Push the ignition switch to the OFF posi-
tion.
When opening the driver's door
to get out of the vehicle The inside warning chime sounds continuously. The ignition switch is in the ACC
position.Push the ignition switch to the OFF posi-
tion.
When closing the door after get-
ting out of the vehicle The NO KEY warning appears on the display,
the outside chime sounds 3 times and the
inside warning chime sounds for a few
seconds.
The ignition switch is in the ACC or ON
position.
Push the ignition switch to the OFF posi-
tion.
The SHIFT P warning appears on the display
and the outside chime sounds continuously. The ignition switch is in the ACC or OFF
position and the shift lever is not in the P
(Park) position.Move the shift lever to the P (Park) position
and push the ignition switch to the OFF
position.
When closing the door with the
inside lock knob turned to LOCK The outside chime sounds for a few seconds
and all the doors unlock. The Intelligent Key is inside the vehicle
or cargo area.
Carry the Intelligent Key with you.
When pushing the request switch
or the LOCK
button on the
Intelligent Key to lock the door The outside chime sounds for a few seconds. The Intelligent Key is inside the vehicle
or cargo area.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When pushing the ignition switch
to start the engine The Intelligent Key battery indicator appears on
the display.
The battery charge is low.Replace the battery with a new one. (See
ªIntelligent Key battery replacementº (P.8-
23) .)
The NO KEY warning appears on the display
and the inside warning chime sounds for a few
seconds. The Intelligent Key is not in the vehicle.
Carry the Intelligent Key with you.
When pushing the ignition switch The Intelligent Key system warning light in the
meter illuminates in yellow. It warns of a malfunction with the
Intelligent Key system.
Contact a NISSAN dealer.
&RQGLWLRQ


> (GLW    0RGHO (' @
3-30Pre-driving checks and adjustments
SPA2824
LIFT GATE RELEASEGUID-E4CC93EC-80CA-424A-908E-2CCB6B10AC83If the lift gate cannot be opened due to a
discharged battery, follow these steps.
1. Remove the cover
*1inside of the lift gate
with a suitable tool.
2. Move the lever
*2as illustrated to open the
lift gate.
Have the vehicle checked by a NISSAN dealer.
GUID-C38D74A3-B5E4-45F1-B8DD-D64040636D5B
SPA2861
OPENING FUEL-FILLER DOORGUID-E9391A06-17F2-4C74-A1CF-382481649761To open the fuel-filler door, pull the fuel-filler
door opener handle
*1.
FUEL-FILLER CAPGUID-44612B06-98FA-409F-B78B-77A787FE5AFE
WARNING
. Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-
function indicator light to come on.
FUEL-FILLER DOOR
&RQGLWLRQ


> (GLW    0RGHO (' @

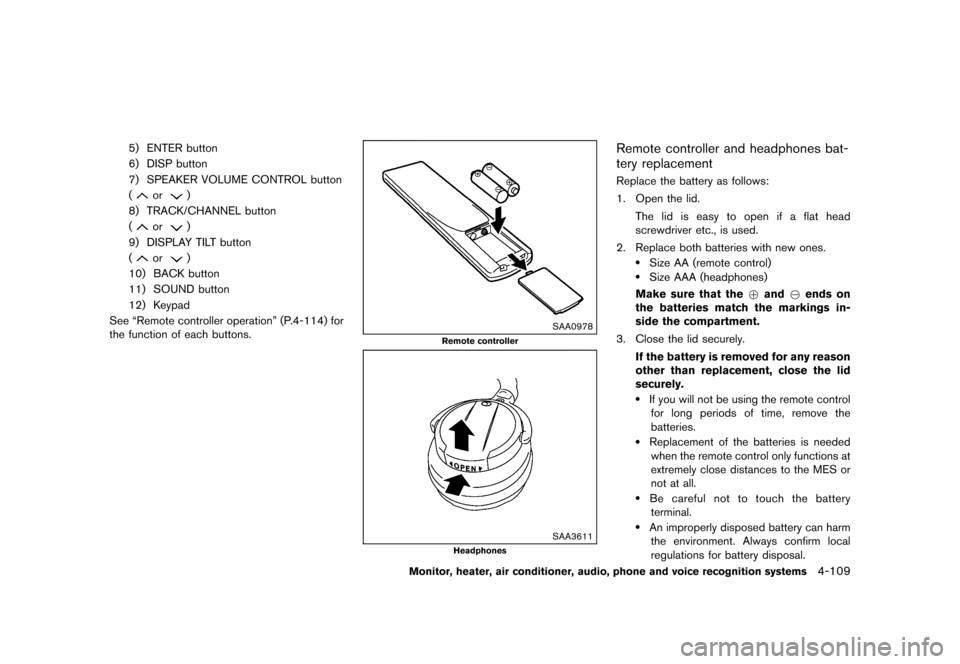

5) ENTER button
6) DISP button
7) SPEAKER VOLUME CONTROL button
(
or)
8) TRACK/CHANNEL button
(
or)
9) DISPLAY TILT button
(
or)
10) BACK button
11) SOUND button
12) Keypad
See ªRemote controller operationº (P.4-114) for
the function of each buttons.
SAA0978
Remote controller
SAA3611
Headphones
Remote controller and headphones bat-
tery replacement
GUID-8A1D3DE9-0E1F-4753-9D1D-E5F067E6239FReplace the battery as follows:
1. Open the lid.
The lid is easy to open if a flat head
screwdriver etc., is used.
2. Replace both batteries with new ones.
.Size AA (remote control).Size AAA (headphones)
Make sure that the +and 7ends on
the batteries match the markings in-
side the compartment.
3. Close the lid securely.
If the battery is removed for any reason
other than replacement, close the lid
securely.
.If you will not be using the remote controlfor long periods of time, remove the
batteries.
.Replacement of the batteries is neededwhen the remote control only functions at
extremely close distances to the MES or
not at all.
.Be careful not to touch the batteryterminal.
.An improperly disposed battery can harm the environment. Always confirm local
regulations for battery disposal.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-109
&RQGLWLRQ


> (GLW    0RGHO (' @
SSD0944
INTELLIGENT KEY BATTERY DIS-
CHARGE
GUID-32EAE25A-244A-4FE6-B7B9-0A44E3665695If the battery of the Intelligent Key is discharged,
or environmental conditions interfere with the
Intelligent Key operation, start the engine
according to the following procedure:
1. Move the shift lever to the P (Park) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the IntelligentKey as illustrated. (A chime will sound.)
4. Push the ignition switch while depressing the brake pedal within 10 seconds after the
chime sounds. The engine will start.
After step 3 is performed, when the ignition switch is pushed without depressing the brake
pedal, the ignition switch position will change to
ACC.
NOTE:
.
When the ignition switch is pushed to
the ACC or ON position or the engine is
started by the above procedures, the
Intelligent Key battery discharge indi-
cator appears on the vehicle informa-
tion display even if the Intelligent Key
is inside the vehicle. This is not a
malfunction. To turn off the Intelligent
Key battery discharge indicator, touch
the ignition switch with the Intelligent
Key again.
. If the Intelligent Key battery discharge
indicator appears, replace the battery
as soon as possible. (See ªIntelligent
Key battery replacementº (P.8-23) .)
GUID-D80103F1-BD55-4C4A-B18B-FCA59EEB6917.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seats and adjust head restraints/
headrests.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See ªWarning/indicator lights and
audible remindersº (P.2-11) .)
Starting and driving5-11
BEFORE STARTING THE ENGINE
&RQGLWLRQ


> (GLW    0RGHO (' @
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where to go for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation of maintenance items ...
................................... 8-2

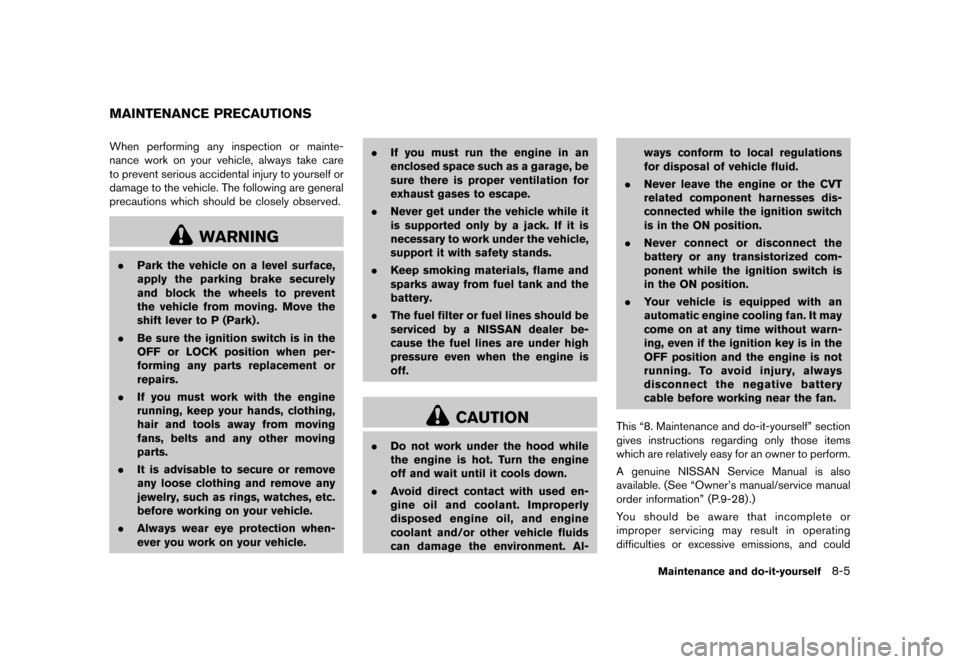

Maintenance precautions ...
........................................................ 8-5
Engine compartment check locations ...
.................................. 8-6
VQ35DE engine ...
.................................................................. 8-6
Engine cooling system ...
............................................................. 8-7
Checking engine coolant level ...
......................................... 8-8
Changing engine coolant ...
.................................................. 8-8
Engine oil ...
........................................................................\
............ 8-8
Checking engine oil level ...
.................................................. 8-8
Changing engine oil and filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT) fluid ...
............ 8-11
Power steering fluid ...
............................................................... 8-11
Brake fluid ...
........................................................................\
........ 8-12
Window washer fluid ...
............................................................ 8-13
Battery ...
........................................................................\
............... 8-13
Jump starting ...
..................................................................... 8-15
Variable voltage control system ...
.......................................... 8-15
Drive belt ...
........................................................................\
.......... 8-15 Spark plugs
...
........................................................................\
..... 8-16
Replacing spark plugs ...
.................................................. 8-16
Air cleaner ...
........................................................................\
....... 8-17
Windshield wiper blades ...
..................................................... 8-17
Cleaning ...
........................................................................\
... 8-17
Replacing ...
........................................................................\
. 8-18
Washer nozzle ...
................................................................ 8-19
Rear window wiper blade ...
................................................... 8-20
Brakes ...
........................................................................\
.............. 8-20
Self-adjusting brakes ...
.................................................... 8-20
Brake pad wear warning ...
.............................................. 8-20
Fuses ...
........................................................................\
................ 8-21
Engine compartment ...
..................................................... 8-21
Passenger compartment ...
.............................................. 8-22
Intelligent Key battery replacement ...
................................... 8-23
Lights ...
........................................................................\
................ 8-25
Headlights ...
........................................................................\
8-26
Exterior and interior lights ...
............................................ 8-27
Wheels and tires ...
................................................................... 8-30
Tire pressure ...
................................................................... 8-30
Tire labeling ...
..................................................................... 8-33
Types of tires ...
................................................................... 8-35
Tire chains ...
....................................................................... 8-36
Changing wheels and tires ...
.......................................... 8-37
&RQGLWLRQ


> (GLW    0RGHO (' @
GUID-BBA85C43-BB85-45D3-8373-8C677304A223When performing any inspection or mainte-
nance work on your vehicle, always take care
to prevent serious accidental injury to yourself or
damage to the vehicle. The following are general
precautions which should be closely observed.
WARNING
.Park the vehicle on a level surface,
apply the parking brake securely
and block the wheels to prevent
the vehicle from moving. Move the
shift lever to P (Park) .
. Be sure the ignition switch is in the
OFF or LOCK position when per-
forming any parts replacement or
repairs.
. If you must work with the engine
running, keep your hands, clothing,
hair and tools away from moving
fans, belts and any other moving
parts.
. It is advisable to secure or remove
any loose clothing and remove any
jewelry, such as rings, watches, etc.
before working on your vehicle.
. Always wear eye protection when-
ever you work on your vehicle. .
If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.
. Never get under the vehicle while it
is supported only by a jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Keep smoking materials, flame and
sparks away from fuel tank and the
battery.
. The fuel filter or fuel lines should be
serviced by a NISSAN dealer be-
cause the fuel lines are under high
pressure even when the engine is
off.
CAUTION
.Do not work under the hood while
the engine is hot. Turn the engine
off and wait until it cools down.
. Avoid direct contact with used en-
gine oil and coolant. Improperly
disposed engine oil, and engine
coolant and/or other vehicle fluids
can damage the environment. Al- ways conform to local regulations
for disposal of vehicle fluid.
. Never leave the engine or the CVT
related component harnesses dis-
connected while the ignition switch
is in the ON position.
. Never connect or disconnect the
battery or any transistorized com-
ponent while the ignition switch is
in the ON position.
. Your vehicle is equipped with an
automatic engine cooling fan. It may
come on at any time without warn-
ing, even if the ignition key is in the
OFF position and the engine is not
running. To avoid injury, always
disconnect the negative battery
cable before working near the fan.
This ª8. Maintenance and do-it-yourselfº section
gives instructions regarding only those items
which are relatively easy for an owner to perform.
A genuine NISSAN Service Manual is also
available. (See ªOwner's manual/service manual
order informationº (P.9-28) .)
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and could
Maintenance and do-it-yourself8-5
MAINTENANCE PRECAUTIONS
&RQGLWLRQ


> (GLW    0RGHO (' @
NOTE:
If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the extended storage fuse switch,be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on each
side of the storage fuse switch.
5. Pull the storage fuse switch straight out from the fuse box
*2.
GUID-CA8545B0-9BF6-43C6-A676-EFA5AA3A5260
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
SDI2451
Replace the battery as follows:
1. Remove the mechanical key from the key.
2. Insert a small screwdriver into the slit of thecorner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
Maintenance and do-it-yourself8-23
INTELLIGENT KEY BATTERY
REPLACEMENT
&RQGLWLRQ
