2015 NISSAN QUEST battery replacement


> (GLW    0RGHO (' @

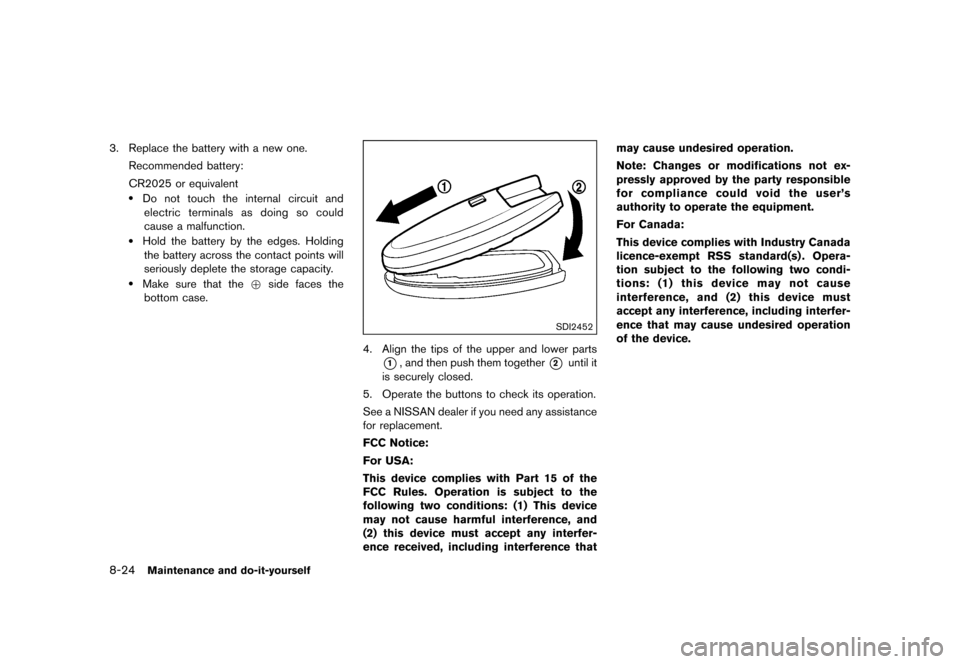

8-24Maintenance and do-it-yourself
3. Replace the battery with a new one.Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom case.
SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together*2until it
is securely closed.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
&RQGLWLRQ


> (GLW    0RGHO (' @
8-26Maintenance and do-it-yourself
HEADLIGHTSGUID-1DDF8B44-6A31-4E64-A9A2-A7AC87475D78Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-B4433D6E-5EF8-404D-ABE2-E3D27A5E9E7FIf replacement is required, see a NISSAN dealer.
Xenon headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
ªHeadlight and turn signal switchº (P.2-
33) . Halogen headlight model:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
.
Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the plastic base when
handling the bulb. Never touch the
glass envelope.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed as shown in the chart.
SDI2719
Disconnect the battery negative cable before
replacing bulbs.
&RQGLWLRQ


> (GLW    0RGHO (' @
10-4
Lights, Exterior and interior light replacement...
..... 8-27
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-7
Door locks ...
................................................................. 3-5
Lift gate lock ...
.......................................................... 3-26
Power door lock ...
...................................................... 3-5
Locking with mechanical key ...
...................................... 3-5
Loose fuel cap warning ...
................................. 2-21, 3-30
Low outside temperature warning ...
.......................... 2-21
Low tire pressure warning light ...
............................... 2-14
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance indicators ...
....................................... 2-22
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-24
Malfunction indicator light (MIL) ...
.............................. 2-17
Manual air conditioner ...
................................................ 4-44
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-56
Master warning light ...
................................................... 2-15
Mechanical key (Intelligent Key system) ...
................. 3-4
Memory storage, Automatic drive positioner ...
....... 3-37
Meter Trip computer ...
........................................................ 2-23
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-37 Mirror
Inside mirror ...
........................................................... 3-33
Outside mirrors ...
..................................................... 3-35
Vanity mirror ...
........................................................... 3-36
Monitor, RearView Monitor ...
....................................... 4-24
Mood lights ...
................................................................... 2-58
Moonroof ...
....................................................................... 2-53
Moving Object Detection (MOD) function ...
........... 4-38
Multi-function controller ...
............................................... 4-6
N
New vehicle break-in ...
.................................................. 5-25
NISSAN Mobile entertainment
system (MES) ...
........................................................... 4-104
NISSAN Vehicle Immobilizer System ...
..................... 2-29
NISSAN voice recognition system ...
...................... 4-148
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-7
Oil Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-8
Engine oil ...
................................................................... 8-8
Engine oil viscosity ...
.................................................. 9-5
Oil filter replacement indicator ...
......................... 2-22
Operation, Operational indicators ...
........................... 2-20
Outside air temperature display ...
.............................. 2-25
Outside mirrors ...
............................................................ 3-35
Overdrive OFF switch ...
................................................ 5-15
Overheat, If your vehicle overheats ...
........................ 6-12 Owner's Manual/Service Manual
order information
...
......................................................... 9-28
P
Panic alarm ...
................................................................... 3-23
Parking Brake break-in ...
....................................................... 5-29
Parking brake operation ...
..................................... 5-16
Parking on hills ...
..................................................... 5-27
Phone Bluetooth
