2015 NISSAN QUEST bluetooth


> (GLW    0RGHO (' @

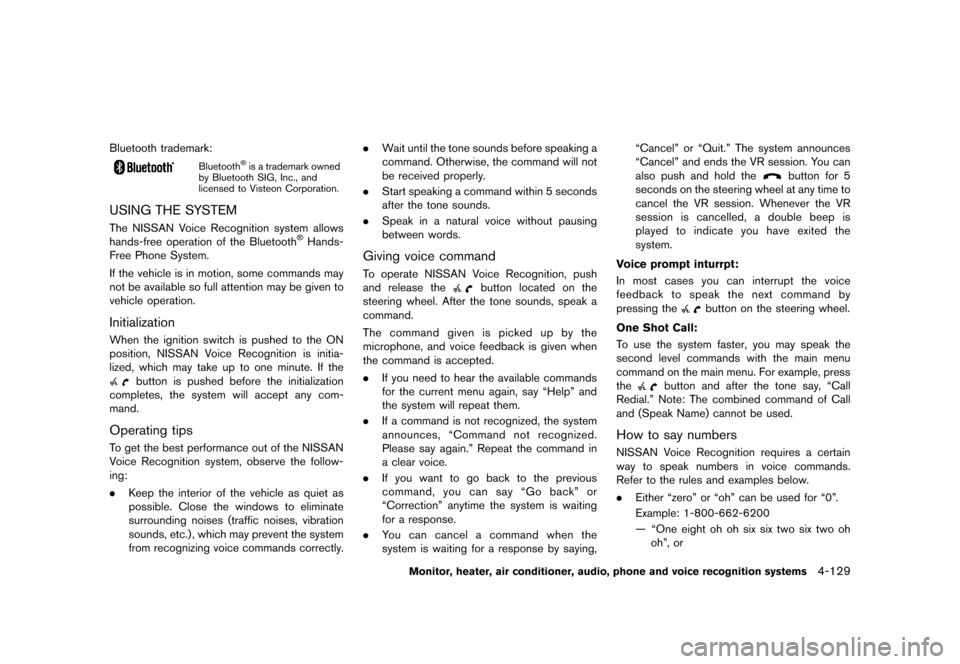

Bluetooth trademark:
Bluetooth


> (GLW    0RGHO (' @
SAA1858
CONTROL BUTTONSGUID-1E7F6DCF-3CF5-4DC4-976E-0463D905B41FThe control buttons for the Bluetooth


> (GLW    0RGHO (' @
4-132Monitor, heater, air conditioner, audio, phone and voice recognition systems
NOS2623

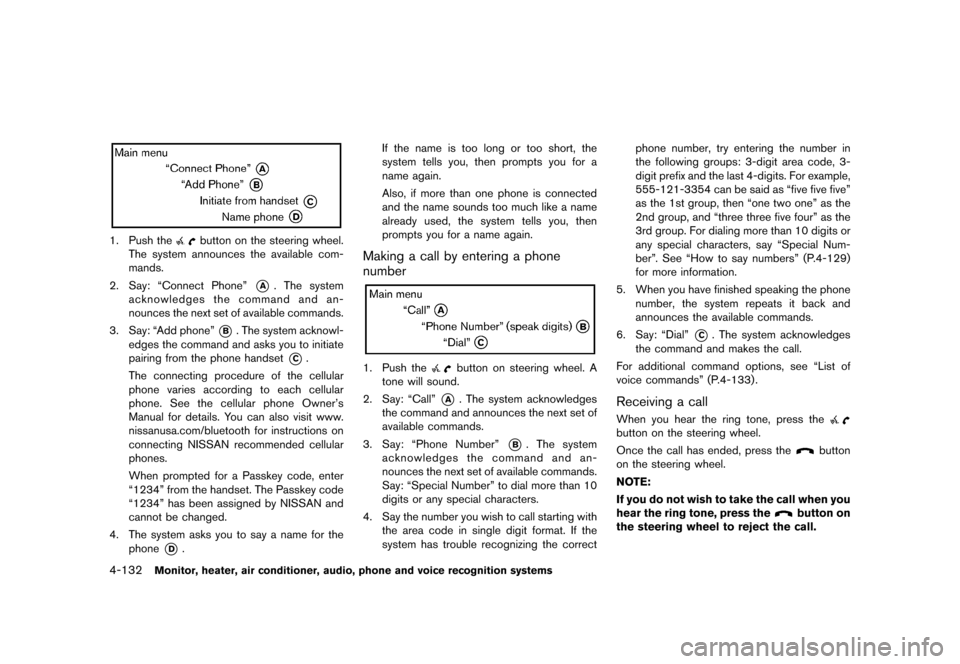

1. Push thebutton on the steering wheel.
The system announces the available com-
mands.
2. Say: ªConnect Phoneº
*A. The system
acknowledges the command and an-
nounces the next set of available commands.
3. Say: ªAdd phoneº
*B. The system acknowl-
edges the command and asks you to initiate
pairing from the phone handset
*C.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner's
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
connecting NISSAN recommended cellular
phones.
When prompted for a Passkey code, enter
ª1234º from the handset. The Passkey code
ª1234º has been assigned by NISSAN and
cannot be changed.
4. The system asks you to say a name for the phone
*D. If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if more than one phone is connected
and the name sounds too much like a name
already used, the system tells you, then
prompts you for a name again.
Making a call by entering a phone
number
GUID-E86F36A9-830C-4B10-95AA-DAA46434BD8F
NOS2624
1. Push thebutton on steering wheel. A
tone will sound.
2. Say: ªCallº
*A. The system acknowledges
the command and announces the next set of
available commands.
3. Say: ªPhone Numberº
*B. The system
acknowledges the command and an-
nounces the next set of available commands.
Say: ªSpecial Numberº to dial more than 10
digits or any special characters.
4. Say the number you wish to call starting with the area code in single digit format. If the
system has trouble recognizing the correct phone number, try entering the number in
the following groups: 3-digit area code, 3-
digit prefix and the last 4-digits. For example,
555-121-3354 can be said as ªfive five fiveº
as the 1st group, then ªone two oneº as the
2nd group, and ªthree three five fourº as the
3rd group. For dialing more than 10 digits or
any special characters, say ªSpecial Num-
berº. See ªHow to say numbersº (P.4-129)
for more information.
5. When you have finished speaking the phone number, the system repeats it back and
announces the available commands.
6. Say: ªDialº
*C. The system acknowledges
the command and makes the call.
For additional command options, see ªList of
voice commandsº (P.4-133) .
Receiving a callGUID-6B217C4D-18F6-441E-A0DB-127696EB93E9When you hear the ring tone, press the
button on the steering wheel.
Once the call has ended, press the
button
on the steering wheel.
NOTE:
If you do not wish to take the call when you
hear the ring tone, press the
button on
the steering wheel to reject the call.
&RQGLWLRQ


> (GLW    0RGHO (' @
4-134Monitor, heater, air conditioner, audio, phone and voice recognition systems

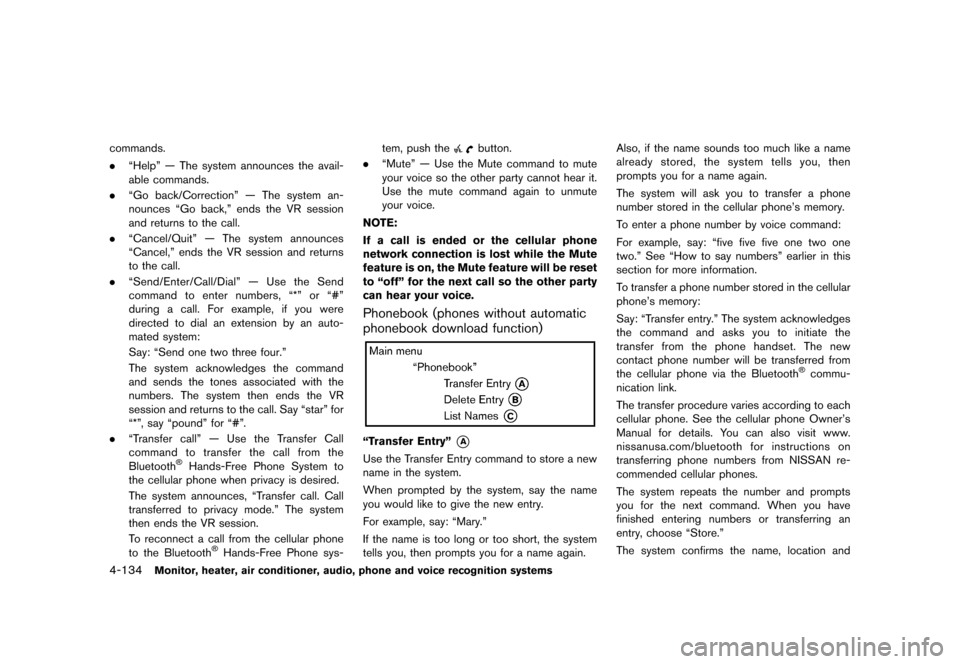

commands.
.ªHelpº Ð The system announces the avail-
able commands.
. ªGo back/Correctionº Ð The system an-
nounces ªGo back,º ends the VR session
and returns to the call.
. ªCancel/Quitº Ð The system announces
ªCancel,º ends the VR session and returns
to the call.
. ªSend/Enter/Call/Dialº Ð Use the Send
command to enter numbers, ª*º or ª#º
during a call. For example, if you were
directed to dial an extension by an auto-
mated system:
Say: ªSend one two three four.º
The system acknowledges the command
and sends the tones associated with the
numbers. The system then ends the VR
session and returns to the call. Say ªstarº for
ª*º, say ªpoundº for ª#º.
. ªTransfer callº Ð Use the Transfer Call
command to transfer the call from the
Bluetooth


> (GLW    0RGHO (' @

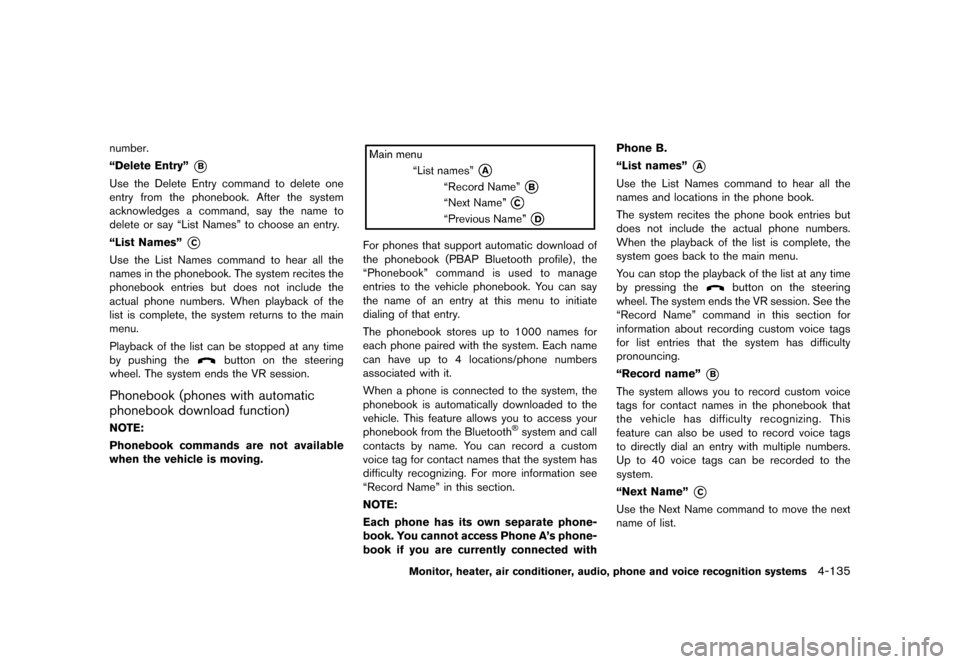

number.
ªDelete Entryº
*B
Use the Delete Entry command to delete one
entry from the phonebook. After the system
acknowledges a command, say the name to
delete or say ªList Namesº to choose an entry.
ªList Namesº
*C
Use the List Names command to hear all the
names in the phonebook. The system recites the
phonebook entries but does not include the
actual phone numbers. When playback of the
list is complete, the system returns to the main
menu.
Playback of the list can be stopped at any time
by pushing the
button on the steering
wheel. The system ends the VR session.
Phonebook (phones with automatic
phonebook download function)
GUID-FCDF9BA5-19BC-4FC3-8C13-450D2FE9E431NOTE:
Phonebook commands are not available
when the vehicle is moving.
JI0200
For phones that support automatic download of
the phonebook (PBAP Bluetooth profile) , the
ªPhonebookº command is used to manage
entries to the vehicle phonebook. You can say
the name of an entry at this menu to initiate
dialing of that entry.
The phonebook stores up to 1000 names for
each phone paired with the system. Each name
can have up to 4 locations/phone numbers
associated with it.
When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth


> (GLW    0RGHO (' @
4-136Monitor, heater, air conditioner, audio, phone and voice recognition systems

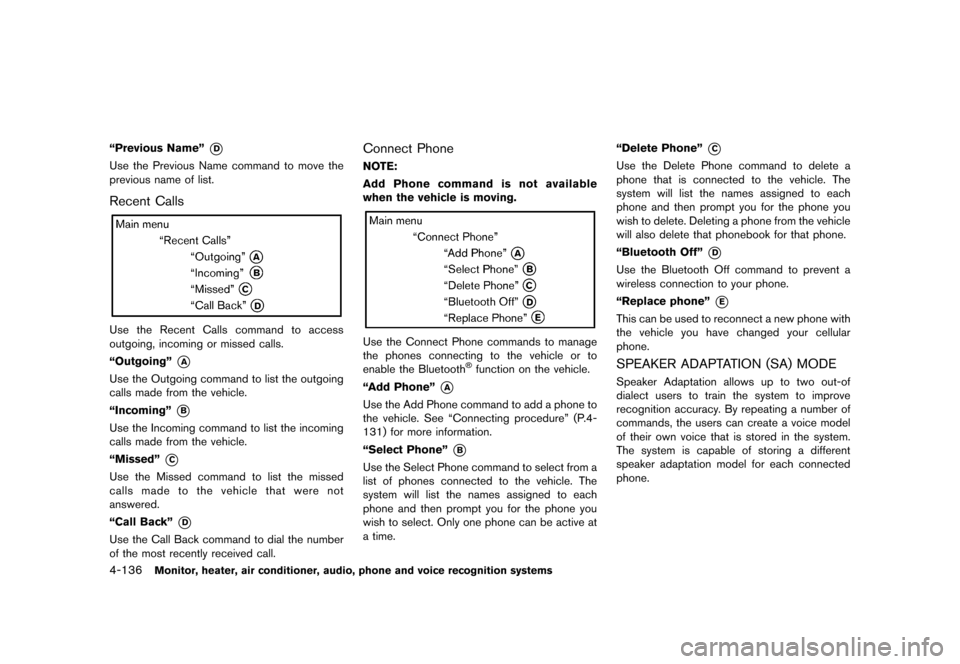

ªPrevious Nameº*D
Use the Previous Name command to move the
previous name of list.
Recent CallsGUID-64BC3C59-16C1-4F63-9A3A-A168804350EF
JI0201
Use the Recent Calls command to access
outgoing, incoming or missed calls.
ªOutgoingº
*A
Use the Outgoing command to list the outgoing
calls made from the vehicle.
ªIncomingº
*B
Use the Incoming command to list the incoming
calls made from the vehicle.
ªMissedº
*C
Use the Missed command to list the missed
calls made to the vehicle that were not
answered.
ªCall Backº
*D
Use the Call Back command to dial the number
of the most recently received call.
Connect PhoneGUID-B506C8EB-F6C0-46EF-A799-3FD7BF097D09NOTE:
Add Phone command is not available
when the vehicle is moving.
JI0202
Use the Connect Phone commands to manage
the phones connecting to the vehicle or to
enable the Bluetooth


> (GLW    0RGHO (' @

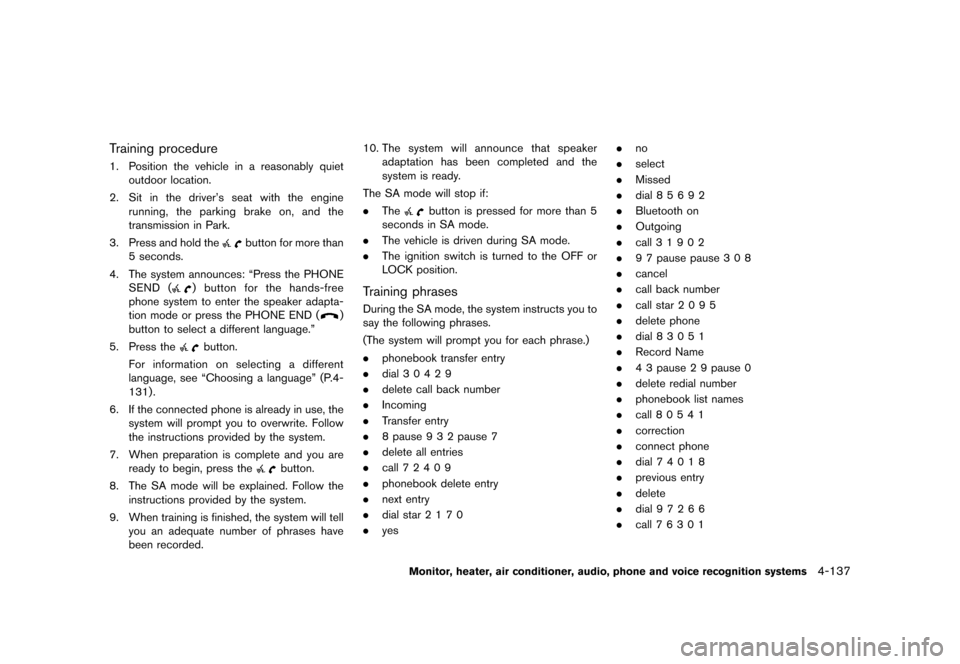

Training procedureGUID-47CDCFE5-CC6F-4B92-B0F8-8DE0C35F469E1. Position the vehicle in a reasonably quietoutdoor location.
2. Sit in the driver's seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Press and hold the
button for more than
5 seconds.
4. The system announces: ªPress the PHONE SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or press the PHONE END (
)
button to select a different language.º
5. Press the
button.
For information on selecting a different
language, see ªChoosing a languageº (P.4-
131) .
6. If the connected phone is already in use, the system will prompt you to overwrite. Follow
the instructions provided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The SA mode will be explained. Follow the instructions provided by the system.
9. When training is finished, the system will tell you an adequate number of phrases have
been recorded. 10.
The system will announce that speaker
adaptation has been completed and the
system is ready.
The SA mode will stop if:
. The
button is pressed for more than 5
seconds in SA mode.
. The vehicle is driven during SA mode.
. The ignition switch is turned to the OFF or
LOCK position.
Training phrasesGUID-D5E64D24-377B-46E7-9041-C3AF7ABD397FDuring the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)
.phonebook transfer entry
. dial 3 0 4 2 9
. delete call back number
. Incoming
. Transfer entry
. 8 pause 9 3 2 pause 7
. delete all entries
. call 7 2 4 0 9
. phonebook delete entry
. next entry
. dial star 2 1 7 0
. yes .
no
. select
. Missed
. dial 8 5 6 9 2
. Bluetooth on
. Outgoing
. call 3 1 9 0 2
. 9 7 pause pause 3 0 8
. cancel
. call back number
. call star 2 0 9 5
. delete phone
. dial 8 3 0 5 1
. Record Name
. 4 3 pause 2 9 pause 0
. delete redial number
. phonebook list names
. call 8 0 5 4 1
. correction
. connect phone
. dial 7 4 0 1 8
. previous entry
. delete
. dial 9 7 2 6 6
. call 7 6 3 0 1
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-137
&RQGLWLRQ


> (GLW    0RGHO (' @
4-140Monitor, heater, air conditioner, audio, phone and voice recognition systems
GUID-016BA63F-C515-458C-980B-3756E72DF473* Type C is models without navigation
system/with text message function.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with the Bluetooth
