2-36Instruments and controls
headlights turn off automatically.
SIC2275
Headlight aiming control (if so equipped)GUID-103C45A9-2602-4569-8107-B8C8A03E16EADepending on the number of occupants in the
vehicle and the load it is carrying, the headlight
axis may be higher than desired. If the vehicle is
traveling on a hilly road, the headlights may
directly hit the rearview mirror of the vehicle
ahead or the windshield of the oncoming
vehicle. The light axis can be lowered with the
operation of the switch.
The larger the number designated on the switch,
the lower the axis.
When traveling with no heavy load or on a flat
road, select position 0.
WARNING
Xenon headlights (if so equipped) are
extremely bright compared to conven-
tional headlights. If the xenon head-
lights hit the rearview mirror of the
vehicle ahead or the windshield of
oncoming vehicle, the driver of these
vehicles may have difficulty driving
because of the brightness. Use the
headlight aiming control switch to low-
er the light axis. See ªXenon head-
lightsº (P.2-33) for additional
information.
Daytime running light system (Canada
only)
GUID-2B181A7F-890D-4E59-B451-6FFC8DC7D447The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the head-
light switch to the
position for full illumina-
tion when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
&RQGLWLRQ


> (GLW    0RGHO (' @
2-40Instruments and controls
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle's interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
GUID-7579BA53-F919-4B5D-B89D-7C3A3484E6A4
SSD1179
The Blind Spot Warning (BSW) switch will turn
on and off the Blind Spot Warning (BSW)
system.
The BSW system will illuminate the Blind Spot
Warning (BSW) indicator lights, in the outside
mirrors, when the radar sensors detect a vehicle
in the detection zone. If the turn signal is
activated in the direction of the detected vehicle,
a chime sounds twice and the BSW indicator
light will flash. (See ªBlind Spot Warning (BSW)
systemº (P.5-17) .)
The BSW switch is automatically turned on
when the engine is started, and the BSW ON
indicator
*1on the switch illuminates.
To cancel the BSW system, push the BSW switch to turn off the system. The BSW ON
indicator
*1will turn off.
NOTE:
If you continue to push and hold the BSW
switch from off to on for over 4 seconds, a
chime will sound. This will change the
default status of the BSW system to OFF
so that this system will not automatically
turn on when the engine is started. If this
procedure is repeated, the default status
will return to ON.
BLIND SPOT WARNING (BSW)
SWITCH (if so equipped)
&RQGLWLRQ


> (GLW    0RGHO (' @
2-58Instruments and controls
.any door is opened with the ignition switch
in any position
Ð remain on while the door is opened.
When the door is closed, the lights go
off.
OFF positionGUID-197D664B-84F7-45E5-AC9E-DB5ABB3978F4When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
GUID-3A69E32E-8217-4F99-803C-BB82226672A4
SIC4747
Map lights
The mood lights*Alocated in the following
positions will illuminate whenever the headlight
switch is in the
orposition.
. next to the map lights
. under the instrument panel
. under the driver's power window switch
GUID-5E0E5511-7965-47D6-BAE7-6D7DF580137C
SIC4660
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
MOOD LIGHTS VANITY MIRROR LIGHTS
&RQGLWLRQ


> (GLW    0RGHO (' @
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-3
Intelligent Key system ...
......................................................... 3-3
Mechanical key ...
.................................................................... 3-4
Valet hand-off ...
....................................................................... 3-5
Doors ...
........................................................................\
.................... 3-5
Locking with mechanical key ...
............................................ 3-5
Opening and closing windows with the mechanical
key (if so equipped) ...
........................................................... 3-6
Locking with inside lock knob ...
.......................................... 3-6
Locking with power door lock switch ...
............................ 3-6
Automatic door locks ...
......................................................... 3-7
Sliding doors ...
........................................................................\
3-7
Sliding door auto closure function (if
so equipped) ...
........................................................................\
3-9
Child safety sliding door lock ...
.......................................... 3-9
Power sliding door (if so equipped) ...
................................. 3-10
Precautions on power sliding door operation ...
........... 3-11
Switching sliding door operation ...
................................. 3-11
Operating sliding door switch ...
...................................... 3-12
Operating the power sliding door with the
Intelligent Key (if so equipped) ...
..................................... 3-12
Operating sliding door by power assist ...
..................... 3-13
Sliding door auto reverse function ...
.............................. 3-13 Intelligent Key system
...
........................................................... 3-13
Intelligent Key operating range ...
................................... 3-15
Door locks/unlocks precaution ...
................................... 3-15
Intelligent Key operation ...
............................................... 3-16
Battery saver system ...
..................................................... 3-19
Warning signals ...
.............................................................. 3-19
Troubleshooting guide ...
.................................................. 3-20
Remote keyless entry system ...
............................................. 3-21
How to use remote keyless entry system ...
................ 3-22
Hood ...
........................................................................\
................. 3-25
Lift gate ...
........................................................................\
............ 3-26
Operating manual lift gate ...
........................................... 3-26
Operating power lift gate (if so equipped) ...
............. 3-26
Auto closure ...
.................................................................... 3-29
Lift gate release ...
.............................................................. 3-30
Fuel-filler door ...
........................................................................\
3-30
Opening fuel-filler door ...
................................................ 3-30
Fuel-filler cap ...
.................................................................. 3-30
Tilt/telescopic steering ...
......................................................... 3-32
Tilt or telescopic operation ...
.......................................... 3-32
Sun visors ...
........................................................................\
........ 3-33
Mirrors ...
........................................................................\
.............. 3-33
Inside mirror ...
..................................................................... 3-33
&RQGLWLRQ


> (GLW    0RGHO (' @
Outside mirrors...
................................................................. 3-35
Vanity mirror ...
....................................................................... 3-36
Automatic drive positioner (if so equipped) ...
.................... 3-36
Entry/exit function ...
............................................................. 3-36 Memory storage
...
.............................................................. 3-37
System operation ...
........................................................... 3-38
&RQGLWLRQ


> (GLW    0RGHO (' @

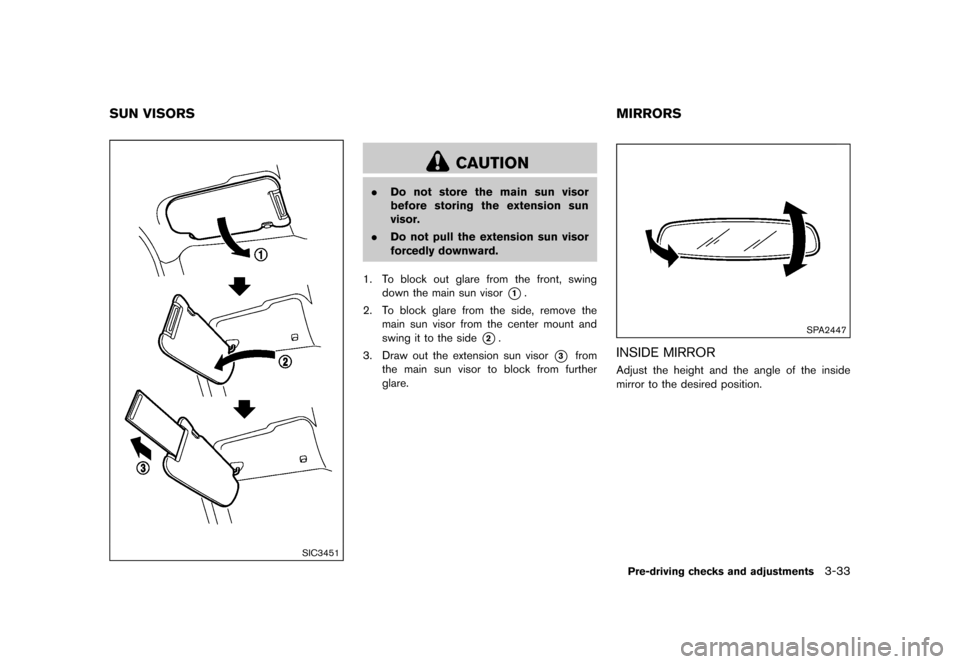

GUID-4CFDB9D2-58AF-4A8C-90ED-BCCDAEB2429B
SIC3451
CAUTION
.Do not store the main sun visor
before storing the extension sun
visor.
. Do not pull the extension sun visor
forcedly downward.
1. To block out glare from the front, swing down the main sun visor
*1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
*2.
3. Draw out the extension sun visor
*3from
the main sun visor to block from further
glare.
GUID-64DBF7D1-4713-4227-96C7-5B25E941248E
SPA2447
INSIDE MIRRORGUID-A519B782-D726-414C-B567-ECBC5D961F3EAdjust the height and the angle of the inside
mirror to the desired position.
Pre-driving checks and adjustments3-33
SUN VISORS MIRRORS
&RQGLWLRQ


> (GLW    0RGHO (' @
3-34Pre-driving checks and adjustments
SPA2143
Manual anti-glare typeGUID-1D65C108-5B16-4D9F-964E-FAEC8D474701The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
SPA2422A
Type A (if so equipped)
SPA2450
Type B (if so equipped)
Automatic anti-glare typeGUID-1BF23A99-F7FF-4C78-BE01-4E0480FD45F8The inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Type A (if so equipped): Push the
switch*B
to make the inside rearview mirror operate
normally and the indicator light will turn off.
Push the
switch again to turn the system on.
Type B (if so equipped): Push the ª*º switch
*Cto make the inside rearview mirror operate
normally. The indicator light will turn off. Push the
ªIº switch
*Dto turn the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper opera-
tion.
For the compass (if so equipped) operation, see
ªCompassº (P.2-8) .
For the HomeLink


> (GLW    0RGHO (' @
3-36Pre-driving checks and adjustments
SPA1829
Foldable outside mirrorsGUID-C1C0EE4F-25B0-44D4-AE32-5F77B5E3E29FFold the outside mirror by pushing it toward the
rear of the vehicle.
SIC4448
VANITY MIRRORGUID-C84F4FB4-8EE7-48D6-B741-CC07C946F427To use the front vanity mirror, pull down the sun
visor and pull up the cover.
GUID-D7276E5F-FB84-463B-BDF9-A346295A447BThe automatic drive positioner system has two
features:
.Entry/exit function
. Memory storage
ENTRY/EXIT FUNCTIONGUID-5F29AE45-A8DA-42BF-A7C8-04256D167074This system is designed so that the driver's seat
will automatically move when the shift lever is in
the P (Park) position. This allows the driver to
get into and out of the driver's seat more easily.
The driver's seat will slide backward when the
driver's door is opened with the ignition switch
in the LOCK position.
The driver's seat will return to the previous
positions when the ignition switch is pushed to
the ACC position.
The driver's seat will not return to the previous
positions if the seat adjusting switch is operated
when the seat is at the exit position.
Cancel or activate entry/exit functionGUID-97B13C13-98B1-43DA-BF4E-6CC11E5EE734The shift lever must be in the P (Park) position
with the ignition switch in the OFF position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink twice
AUTOMATIC DRIVE POSITIONER (if
so equipped)
&RQGLWLRQ
