Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Display screen, heater, air conditioner, audio and phone systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10

1. Vent (P. 4-25)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-30)
3. Supplemental front-impact air bag
(P. 1-46)
4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-3, P. 2-7, P. 2-14)
5. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-27)
6. Vent (P. 4-25)
7. Hazard warning flasher switch (P. 6-2)
8. Radio (P. 4-38)
9. Front passenger supplemental air bag
(P. 2-25)
10. Vent (P. 4-25)
11. Glove box (P. 2-43)
12. Front passenger air bag warning status
light (P. 1-46)
13. Power outlet (P. 2-39)
14. Heater and air conditioning controls
(P. 4-26)
15. Shift lever (P. 5-16)
16. Push-button ignition switch (P. 5-10)
LIC2999
INSTRUMENT PANEL
0-6Illustrated table of contents

WARNING
Extreme Hazard! Do not use a rear-facing
child restraint on a seat protected by an air
bag in front of it!

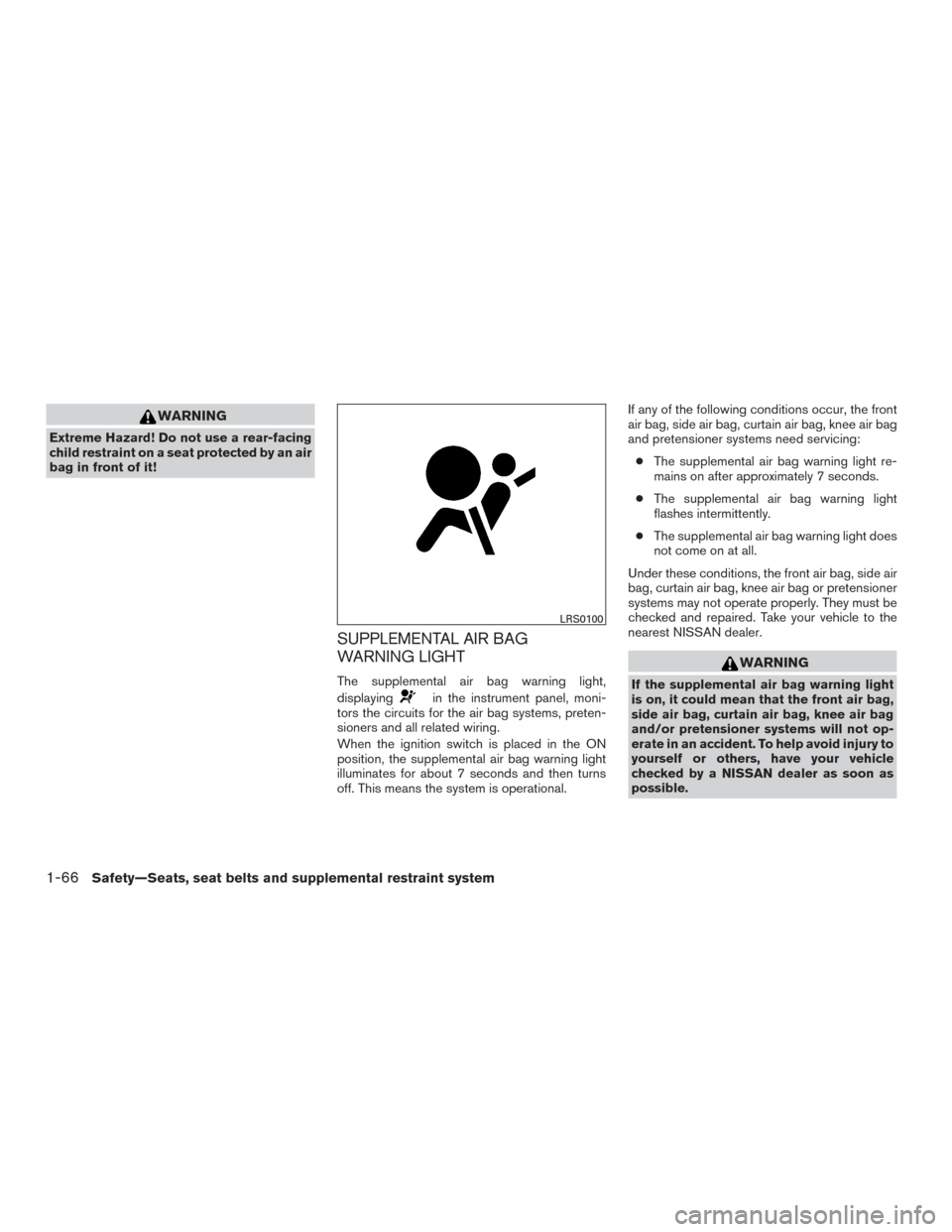

SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioners and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational. If any of the following conditions occur, the front
air bag, side air bag, curtain air bag, knee air bag
and pretensioner systems need servicing:
● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag, knee air bag or pretensioner
systems may not operate properly. They must be
checked and repaired. Take your vehicle to the
nearest NISSAN dealer.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag, knee air bag
and/or pretensioner systems will not op-
erate in an accident. To help avoid injury to
yourself or others, have your vehicle
checked by a NISSAN dealer as soon as
possible.
LRS0100
1-66Safety—Seats, seat belts and supplemental restraint system

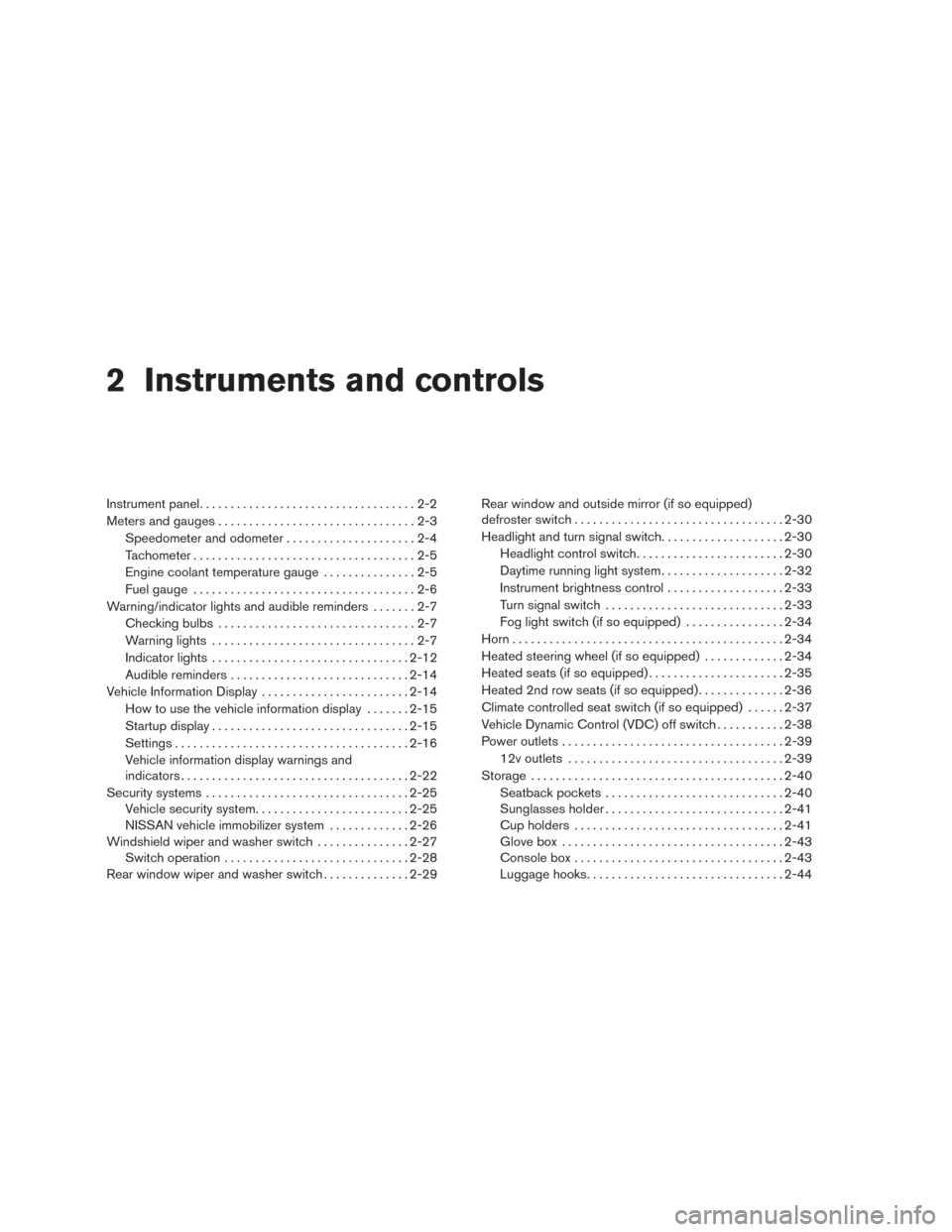

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-5
Fuel gauge ....................................2-6
Warning/indicator lights and audible reminders .......2-7
Checking bulbs ................................2-7
Warning lights .................................2-7
Indicator lights ................................ 2-12
Audible reminders ............................. 2-14
Vehicle Information Display ........................2-14
How to use the vehicle information display .......2-15
Startup display ................................ 2-15
Settings ...................................... 2-16
Vehicle information display warnings and
indicators ..................................... 2-22
Security systems ................................. 2-25
Vehicle security system ......................... 2-25
NISSAN vehicle immobilizer system .............2-26
Windshield wiper and washer switch ...............2-27
Switch operation .............................. 2-28
Rear window wiper and washer switch ..............2-29Rear window and outside mirror (if so equipped)
defroster switch
.................................. 2-30
Headlight and turn signal switch ....................2-30
Headlight control switch ........................ 2-30
Daytime running light system ....................2-32
Instrument brightness control ...................2-33
Turn signal switch ............................. 2-33
Fog light switch (if so equipped) ................2-34
Horn ............................................ 2-34
Heated steering wheel (if so equipped) .............2-34
Heated seats (if so equipped) ......................2-35
Heated 2nd row seats (if so equipped) ..............2-36
Climate controlled seat switch (if so equipped) ......2-37
Vehicle Dynamic Control (VDC) off switch ...........2-38
Power outlets .................................... 2-39
12v outlets ................................... 2-39
Storage ......................................... 2-40
Seatback

pockets............................. 2-40
Sunglasses holder ............................. 2-41
Cup holders .................................. 2-41
Glove box .................................... 2-43
Console box .................................. 2-43
Luggage hooks ................................ 2-44

1. Vent (P. 4-25)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-30)
3. Supplemental front-impact air bag
(P. 1-46)
4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-3, P. 2-7, P. 2-14)
5. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-27)
6. Vent (P. 4-25)
7. Hazard warning flasher switch (P. 6-2)
8. Radio (P. 4-38)
9. Front passenger supplemental air bag
(P. 2-25)
10. Vent (P. 4-25)
11. Glove box (P. 2-43)
12. Front passenger air bag warning status
light (P. 1-46)
13. Power outlet (P. 2-39)
14. Heater and air conditioning controls
(P. 4-26)
15. Shift lever (P. 5-16)
16. Push-button ignition switch (P. 5-10)
LIC2999
INSTRUMENT PANEL
2-2Instruments and controls

17. Cruise control main/Intelligent CruiseControl (ICC) (if so equipped) set
switches (P. 5-33)
18. Driver supplemental knee air bag
(P. 1-46)
19. Bluetooth Hands-Free Phone System/
Audio control switches (P. 4-29)
20. Hood release (P. 3-22)/Fuel door
release (P. 3-27)
21. Fuse box (P. 8-22)
22. Power liftgate main switch
(if so equipped) (P. 3-23)
Heated steering wheel switch (if so
equipped) (P. 2-34)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-38)
23. Instrument brightness control
(P. 2-30)/Twin trip odometer reset
switch (P. 2-3)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
1. Tachometer
2. Warning/indicator lights
3. Vehicle Information Display/Odometer/Twin trip odometer
4. Speedometer
5. Fuel gauge 6. Engine coolant temperature gauge
LIC2920
METERS AND GAUGES
Instruments and controls2-3

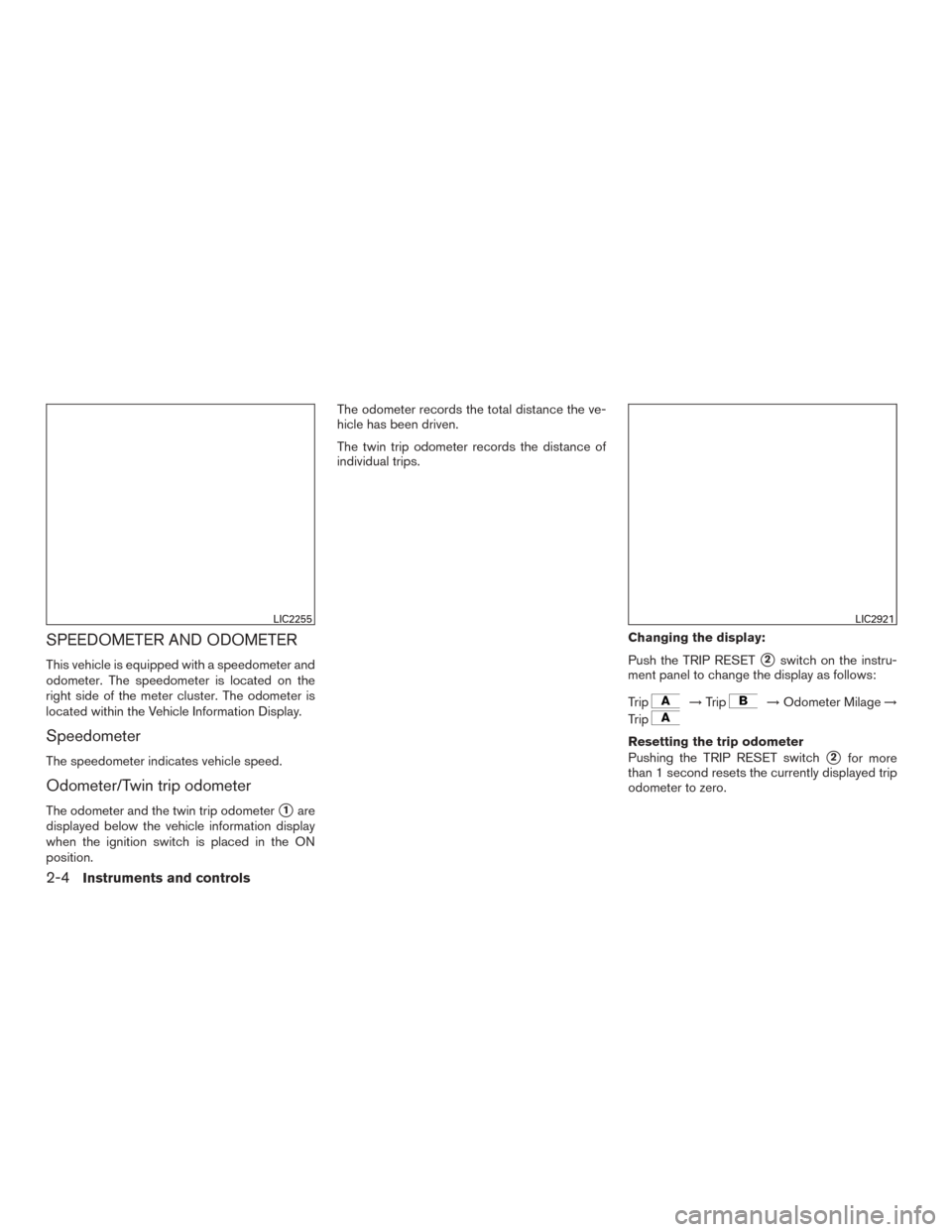

SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the Vehicle Information Display.
Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer and the twin trip odometer1are
displayed below the vehicle information display
when the ignition switch is placed in the ON
position. The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
Push the TRIP RESET
2switch on the instru-
ment panel to change the display as follows:
Trip
→ Trip→Odometer Milage →
Trip
Resetting the trip odometer
Pushing the TRIP RESET switch
2for more
than 1 second resets the currently displayed trip
odometer to zero.
LIC2255LIC2921
2-4Instruments and controls

orAnti-lock Braking System (ABS)
warning lightMaster warning lightMalfunction Indicator Light (MIL)
orBrake warning lightPower steering warning lightSecurity indicator light
Charge warning lightSeat belt warning light and chimeSide light and headlight indicator light (green)
Engine oil pressure warning lightSupplemental air bag warning lightSlip indicator light
Forward Emergency Braking system warning light
(if so equipped)Front fog light indicator light (if so equipped)Turn signal/hazard indicator lights
Low tire pressure warning lightFront passenger air bag status lightVehicle Dynamic Control (VDC) off indicator
light
Low windshield-washer fluid warning lightHigh beam indicator light (blue)

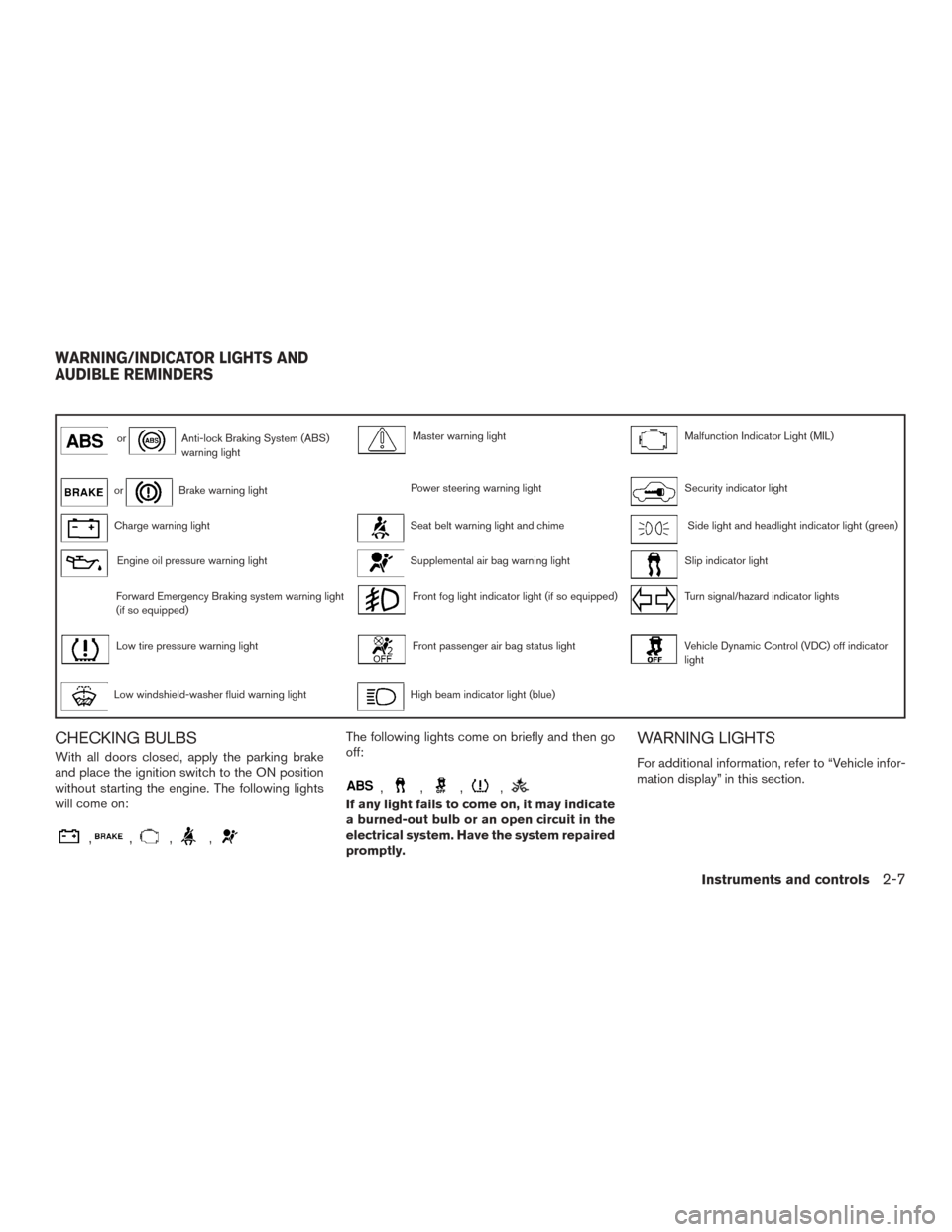

CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,,,,
The following lights come on briefly and then go
off:
,,,,
If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.
WARNING LIGHTS
For additional information, refer to “Vehicle infor-
mation display” in this section.
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-7
