2015 NISSAN LEAF fog light

1. Charge port lid (P 3-19)
2. Hood (P 3-17)
3. Headlight and turn signal lights— Switch operation (P 2-42)
— Bulb replacement (P 8-22) 4. Windshield wiper and washer
— Switch operation (P 2-38)
— Blade replacement (P 8-13)
— Window washer fluid (P 8-10) 5. Side camera (if so equipped) (See LEAF
Navigation System Owner’s Manual.)
6. Outside mirrors (P 3-24)
7. Power windows (P 2-55)
8. License plate installation (P 9-9)
9. Front camera (if so equipped) (See LEAF Navigation System Owner’s Manual.)
10. Recovery hook (P 6-14)
11. Fog lights* (if so equipped) — Switch operation (P 2-44)
— Bulb replacement (P 8-23)
12. Tires — Wheels and tires (P 8-26, P. 9-5)
— Flat tire (P 6-3)
— Tire Pressure Monitoring System (TPMS)
(P 2-16, P. 5-2)
13. Doors — Keys (P 3-2)
— Door locks (P 3-3)
— NISSAN Intelligent Key® system (P 3-6)
— Security system (P 2-35)
14. Child safety rear door lock (P 3-6)
EXTERIOR FRONT
Illustrated table of contents0-3

1. TRIP switch for twin trip odometer (P 2-6)
2. Trip computer switch (P 2-27)
3. Instrument brightness control switch(P 2-41)
4. Headlight, fog light and turn signal switch — Headlight (P 2-42)
— Turn signal light (P 2-44)
— Fog light (if so equipped) (P 2-44)
5. Steering-wheel-mounted controls (left side) (See LEAF Navigation System Owner’s
Manual.)
—
Driving range button (if so
equipped)
— Audio control
— Bluetooth® Hands-Free Phone System
control
6. Steering wheel — Power steering system (P 5-19)
— Horn (P 2-46)
— Driver’s supplemental air bag (P 1-36)
7. Wiper and washer switch (P 2-38)
8. Steering-wheel-mounted controls (right side)
— Cruise control switches (P 5-15)
— ECO button (if so equipped) (P 2-46)
9. Fuse box cover (P 8-16)
10. Heated steering wheel (P 2-45)
COCKPIT
0-6Illustrated table of contents

Warn-ing
light Name
Page
12-volt battery charge
warning light 2-13
Anti-lock Braking Sys-
tem (ABS) warning light2-14
Approaching Vehicle
Sound for Pedestrians
(VSP) system warning
light2-14
BRAKE system warning
light (yellow)
2-14
BRAKE warning light
(red)2-15
Warn-
ing
light Name
Page
Electric shift control sys-
tem warning light 2-16
EV system warning light 2-16
Headlight warning light 2-16
Low battery charge
warning light2-16
Low tire pressure warn-
ing light2-16
Master warning light
(red/yellow)2-18
Power steering warning
light2-18
Warn-
ing
light Name
Page
Seat belt warning light 2-18
Supplemental air bag
warning light 2-18
Vehicle Dynamic Control
(VDC) warning light2-19
Indica-
tor
light Name
Page
Exterior light indicator 2-19
Front fog light indicator
light (if so equipped) 2-19
Front passenger air bag
status light2-19

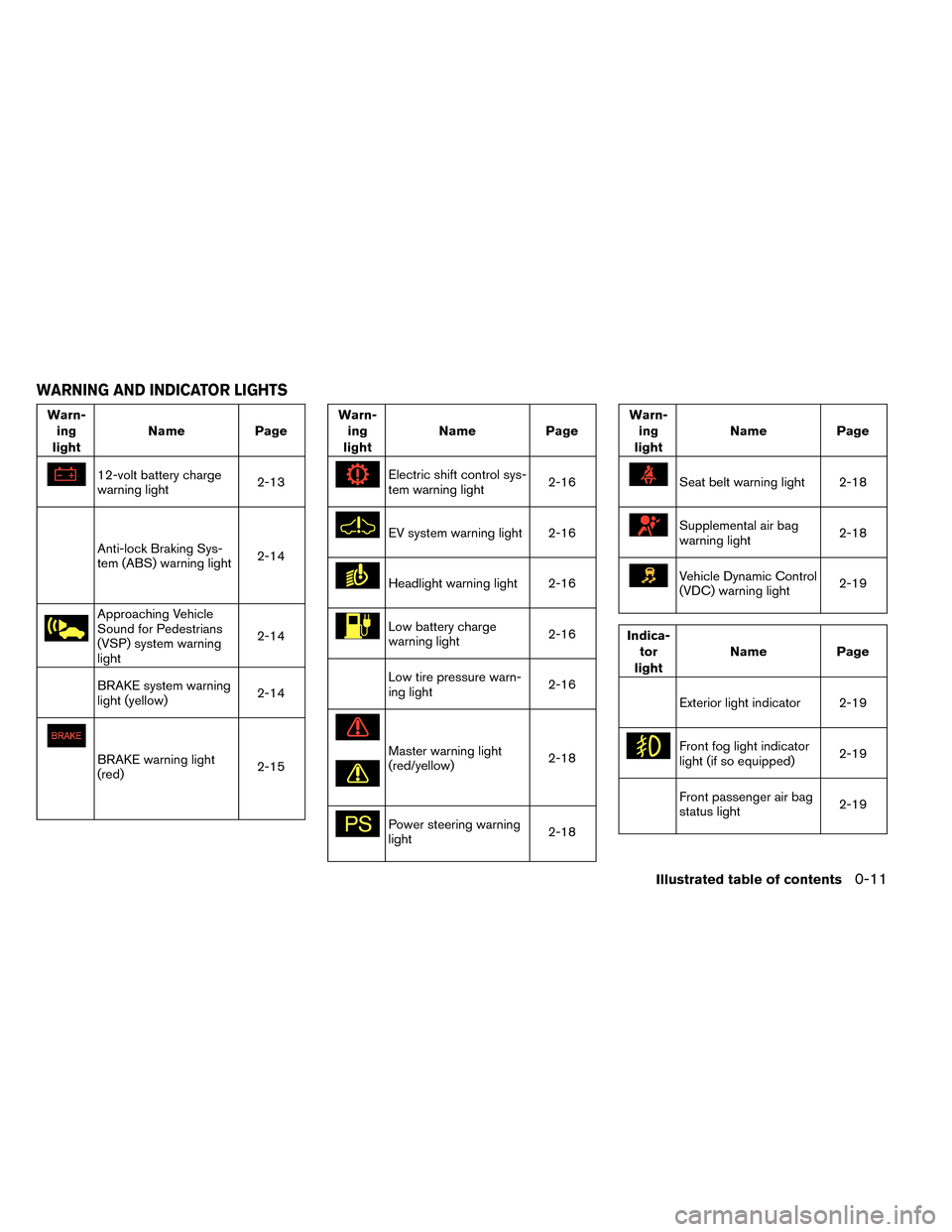

WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-11

2 Instruments and controls
Cockpit............................ .2-3
Instrument panel ....................... .2-4
Meters and gauges ..................... .2-5
Speedometer and odometer ...............2-6
Li-ion battery temperature gauge ............2-7
Power meter ....................... .2-7
Driving range ....................... .2-8
Li-ion battery available charge gauge .........2-9
Li-ion battery capacity level gauge ..........2-10
Outside air temperature ................2-10
ECO indicator ..................... .2-10
Clock .......................... .2-11
Warning/indicator lights and audible reminders .....2-12
Checking bulbs .................... .2-13
Warning lights ..................... .2-13
Indicator lights ..................... .2-19
Audible reminders ................... .2-21
Vehicle information display .................2-22
Indicators for operation ................ .2-23
Trip computer ..................... .2-27
Warning information displays .............2-32
Indicators for maintenance ...............2-34
Indicator for timer ................... .2-35
Security systems ..................... .2-35Vehicle security system
................ .2-35
NISSAN Vehicle Immobilizer System .........2-37
Windshield wiper and washer switch ...........2-38
Washer operation ................... .2-39
Rear window wiper and washer switch .........2-40
Rear window and outside mirror defroster switch . . .2-41
Instrument brightness control ...............2-41
Headlight and turn signal switch .............2-42
Headlight switch .................... .2-42
Turn signal switch ................... .2-44
Fog light switch (if so equipped) .............2-44
Heated steering

wheel switch ...............2-45
Horn ............................. .2-46
ECO switch ........................ .2-46
Heated seat switch .................... .2-46
Vehicle Dynamic Control (VDC) OFF switch ......2-48
Charge port lid switch .................. .2-48
Charge connector lock switch ...............2-49
Charge timer OFF switch .................2-49
Power outlet ........................ .2-49
Storage ........................... .2-50
Cup holders ...................... .2-50
Seatback Pocket ................... .2-51
Sunglasses holder ................... .2-51
Glove box ........................ .2-52

1. TRIP switch for twin trip odometer
2. Trip computer switch
3. Instrument brightness control switch
4. Headlight, fog light (if so equipped) and turnsignal switch
— Headlight
— Turn signal light — Fog light (if so equipped)
5. Steering-wheel-mounted controls (left side) (See LEAF Navigation System Owner’s
Manual.)
—
Driving range button (if so
equipped)
— Audio control — Bluetooth® Hands-Free Phone System
control
6. Steering wheel — Electric power steering system
— Horn
— Driver’s supplemental air bag
7. Wiper and washer switch
8. Steering-wheel-mounted controls (right side)
— Cruise control switches
— ECO button (if so equipped)
9. Fuse box cover
10. Heated steering wheel
11. Vehicle Dynamic Control (VDC) OFF switch
12. Charge timer OFF switch
13. Charge connector lock switch
14. Charge port lid opener switch
15. Tilting steering wheel lever
16. Heated seat switch
17. Shift lever
18. Storage tray
COCKPIT
Instruments and controls2-3

Headlight warning lightFront fog light indicator light (if so equipped)
Low battery charge warning lightFront passenger air bag status light

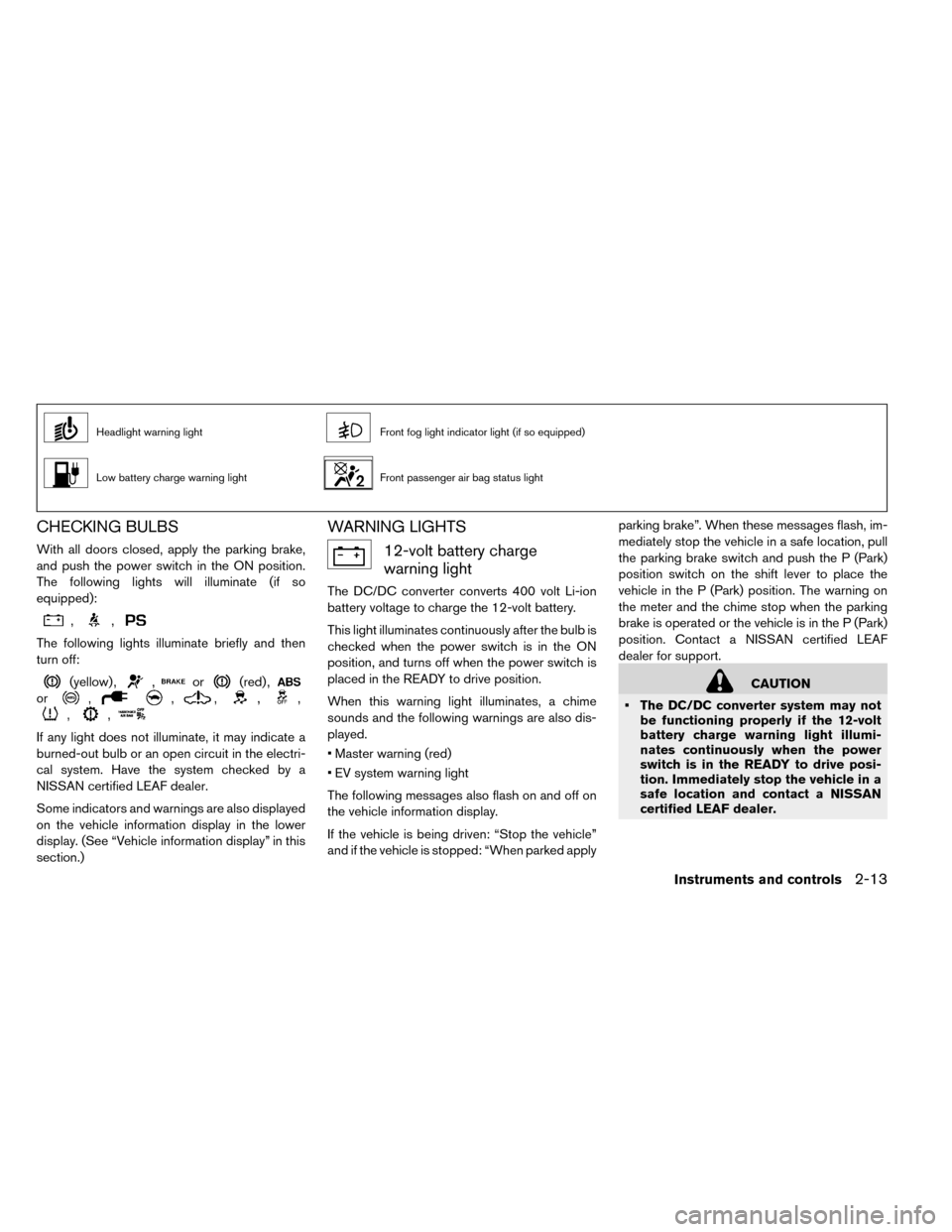

CHECKING BULBS
With all doors closed, apply the parking brake,
and push the power switch in the ON position.
The following lights will illuminate (if so
equipped):
,,
The following lights illuminate briefly and then
turn off:
(yellow) ,,or(red) ,
or,,,,,
,,
If any light does not illuminate, it may indicate a
burned-out bulb or an open circuit in the electri-
cal system. Have the system checked by a
NISSAN certified LEAF dealer.
Some indicators and warnings are also displayed
on the vehicle information display in the lower
display. (See “Vehicle information display” in this
section.)
WARNING LIGHTS
12-volt battery charge
warning light
The DC/DC converter converts 400 volt Li-ion
battery voltage to charge the 12-volt battery.
This light illuminates continuously after the bulb is
checked when the power switch is in the ON
position, and turns off when the power switch is
placed in the READY to drive position.
When this warning light illuminates, a chime
sounds and the following warnings are also dis-
played.
• Master warning (red)
• EV system warning light
The following messages also flash on and off on
the vehicle information display.
If the vehicle is being driven: “Stop the vehicle”
and if the vehicle is stopped: “When parked applyparking brake”. When these messages flash, im-
mediately stop the vehicle in a safe location, pull
the parking brake switch and push the P (Park)
position switch on the shift lever to place the
vehicle in the P (Park) position. The warning on
the meter and the chime stop when the parking
brake is operated or the vehicle is in the P (Park)
position. Contact a NISSAN certified LEAF
dealer for support.
CAUTION
• The DC/DC converter system may not be functioning properly if the 12-volt
battery charge warning light illumi-
nates continuously when the power
switch is in the READY to drive posi-
tion. Immediately stop the vehicle in a
safe location and contact a NISSAN
certified LEAF dealer.
Instruments and controls2-13

must be taken to your nearest NISSAN certified
LEAF dealer.
• The supplemental air bag warning light remainson after approximately 7 seconds.
• The supplemental air bag warning light flashes intermittently.
• The supplemental air bag warning light does not illuminate at all.
Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioners may
not function properly.
For additional information, see “Supplemental re-
straint system” in the “Safety — Seats seat belts
and supplemental restraint system” section.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or pre-
tensioner systems will not operate in an
accident. To help avoid injury to yourself
or others, have your vehicle checked by a
NISSAN certified LEAF dealer as soon as
possible.
Vehicle Dynamic Control
(VDC) warning light
The light will blink when the Vehicle Dynamic
Control (VDC) system is operating, thus alerting
the driver that the vehicle is nearing its traction
limits. The road surface may be slippery.
When the VDC warning light illuminates with
VDC system turned on, this light alerts the driver
to the fact that the VDC system’s fail-safe mode
is operating, for example the VDC system may
not be functioning properly. Have the system
checked by a NISSAN certified LEAF dealer. If a
malfunction occurs in the system, the VDC sys-
tem function will be canceled but the vehicle is
still driveable. For additional information, see “Ve-
hicle Dynamic Control (VDC) system” in the
“Starting and driving” section of this manual.
INDICATOR LIGHTS
Exterior light indicator
This indicator illuminates when the headlight
switch is turned to the AUTO (if so equipped) ,
orposition and the front parking
lights, side maker lights, tail and license plate
lights are on. The indicator turns off when these
lights are turned off.
Front fog light indicator
light (if so equipped)
The front fog light indicator light illuminates when
the front fog lights are on. See “Fog light switch”
in this section.
Front passenger air bag status
light
The front passenger air bag status light (located
on the center of the instrument panel) will be lit
and the passenger front air bag will be turned
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light operation,
see “NISSAN Advanced Air Bag System (front
seats)” in the “Safety — Seats seat belts and
supplemental restraint system” section of this
manual.
High beam indicator light
(blue)
This light illuminates when the headlight high
beam is on and goes out when the low beam is
selected.
Instruments and controls2-19

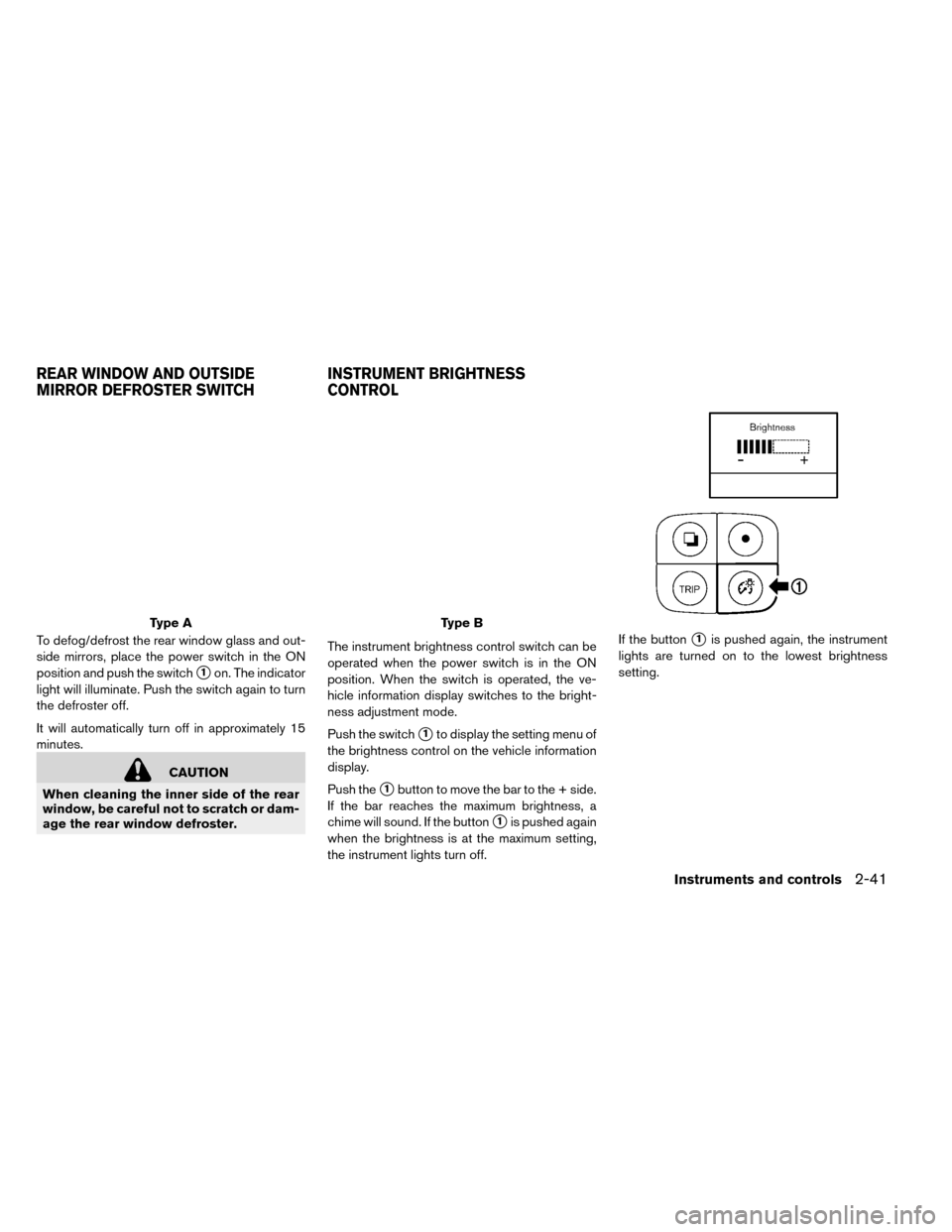

To defog/defrost the rear window glass and out-
side mirrors, place the power switch in the ON
position and push the switch
1on. The indicator
light will illuminate. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster. The instrument brightness control switch can be
operated when the power switch is in the ON
position. When the switch is operated, the ve-
hicle information display switches to the bright-
ness adjustment mode.
Push the switch
1to display the setting menu of
the brightness control on the vehicle information
display.
Push the
1button to move the bar to the + side.
If the bar reaches the maximum brightness, a
chime will sound. If the button
1is pushed again
when the brightness is at the maximum setting,
the instrument lights turn off. If the button
1is pushed again, the instrument
lights are turned on to the lowest brightness
setting.
Type AType B
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH INSTRUMENT BRIGHTNESS
CONTROL
Instruments and controls2-41
