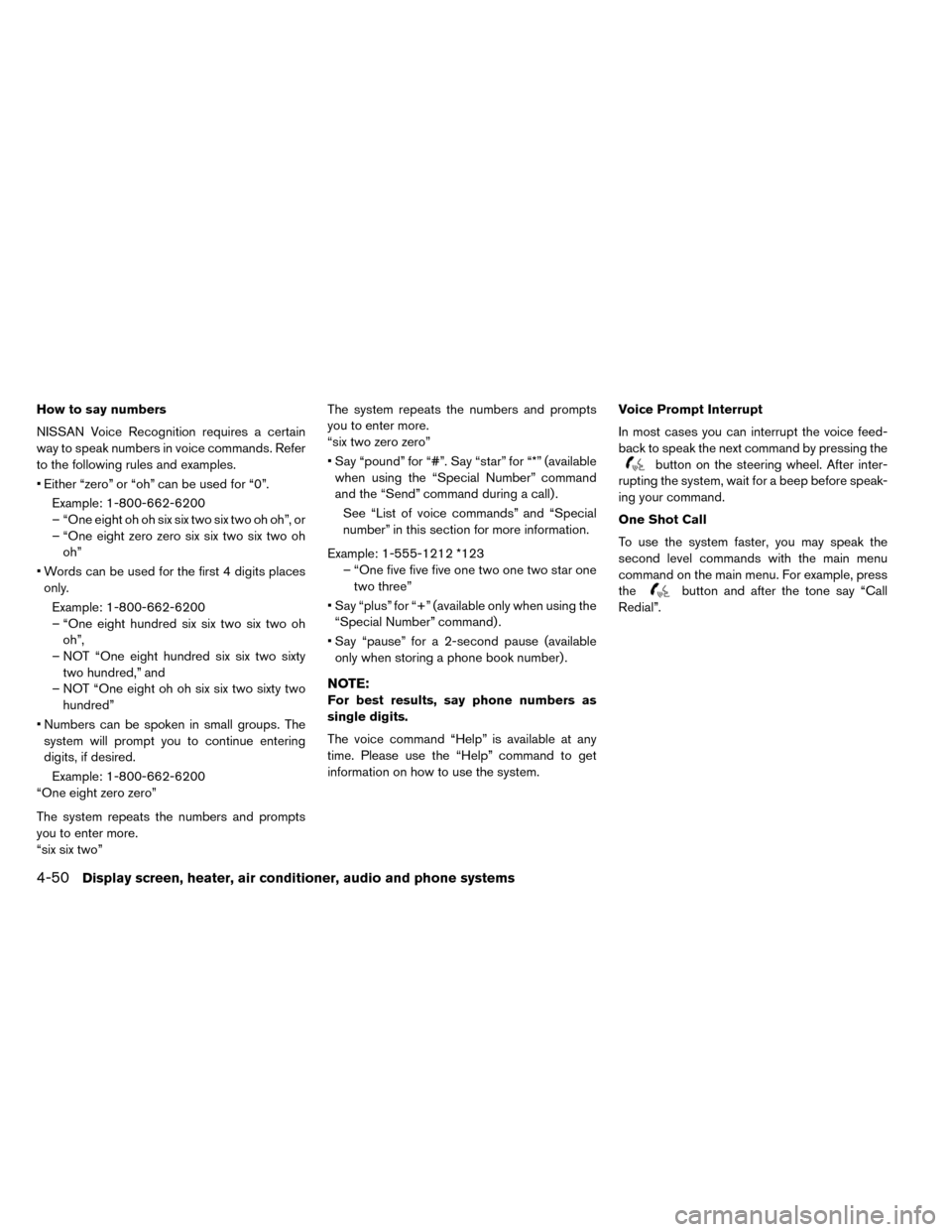

How to say numbers
NISSAN Voice Recognition requires a certain
way to speak numbers in voice commands. Refer
to the following rules and examples.
• Either “zero” or “oh” can be used for “0”.Example: 1-800-662-6200
– “One eight oh oh six six two six two oh oh”, or
– “One eight zero zero six six two six two ohoh”
• Words can be used for the first 4 digits places only.
Example: 1-800-662-6200
– “One eight hundred six six two six two oh oh”,
– NOT “One eight hundred six six two sixty two hundred,” and
– NOT “One eight oh oh six six two sixty two hundred”
• Numbers can be spoken in small groups. The system will prompt you to continue entering
digits, if desired.
Example: 1-800-662-6200
“One eight zero zero”
The system repeats the numbers and prompts
you to enter more.
“six six two” The system repeats the numbers and prompts
you to enter more.
“six two zero zero”
• Say “pound” for “#”. Say “star” for “*” (available
when using the “Special Number” command
and the “Send” command during a call) .
See “List of voice commands” and “Special
number” in this section for more information.
Example: 1-555-1212 *123 – “One five five five one two one two star onetwo three”
• Say “plus” for “+” (available only when using the “Special Number” command) .
• Say “pause” for a 2-second pause (available only when storing a phone book number) .
NOTE:
For best results, say phone numbers as
single digits.
The voice command “Help” is available at any
time. Please use the “Help” command to get
information on how to use the system. Voice Prompt Interrupt
In most cases you can interrupt the voice feed-
back to speak the next command by pressing the
button on the steering wheel. After inter-
rupting the system, wait for a beep before speak-
ing your command.
One Shot Call
To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example, press
the
button and after the tone say “Call
Redial”.
4-50Display screen, heater, air conditioner, audio and phone systems

CONTROL BUTTONS
The control buttons for the Bluetooth® Hands-
Free Phone System are located on the steering
wheel.
1.
Phone/send button
2.
Phone/end button
3. Tuning switch
Phone/send
Press thebutton to initiate a VR session or
answer an incoming call.
You can also use the
button to interrupt the
system feedback and give a command at once. See “List of voice commands” and “During a call”
in this section for more information.
Phone/end
While the Voice Recognition system is active,
press and hold the
button for 5 seconds to
quit the Voice Recognition system at any time.
Tuning switch
While using the Voice Recognition system, tilt the
tuning switch up or down to manually control the
phone system.
GETTING STARTED
The following procedures will help you get
started using the Bluetooth® Hands-Free Phone
System with NISSAN Voice Recognition. For ad-
ditional command options, refer to “List of voice
commands” in this section.
Choosing a language
You can interact with the Bluetooth® Hands-
Free Phone System using English, Spanish or
French.
To change the language, perform the following.
1. Press and hold the
button for more than
5 seconds. 2. The system announces: “Press the PHONE/
SEND (
) button for the hands-free
phone system to enter the voice adaptation
mode or press the PHONE/END (
)
button to select a different language.”
3. Press the
button.
For information on voice adaptation, see
“Voice Adaptation (VA) mode” in this section.
4. The system announces the current language and gives you the option to change the lan-
guage to Spanish (in Spanish) or French (in
French) . To select the current language, press
the PHONE/SEND (
) button. To select
a different language, tilt the tuning switch
(
or) up or down.
NOTE:
You must press thebutton within 5
seconds to change the language.
5. If you decide not to change the language, do not press either button. After 5 seconds, the
VR session will end, and the language will not
be changed.
Display screen, heater, air conditioner, audio and phone systems4-51

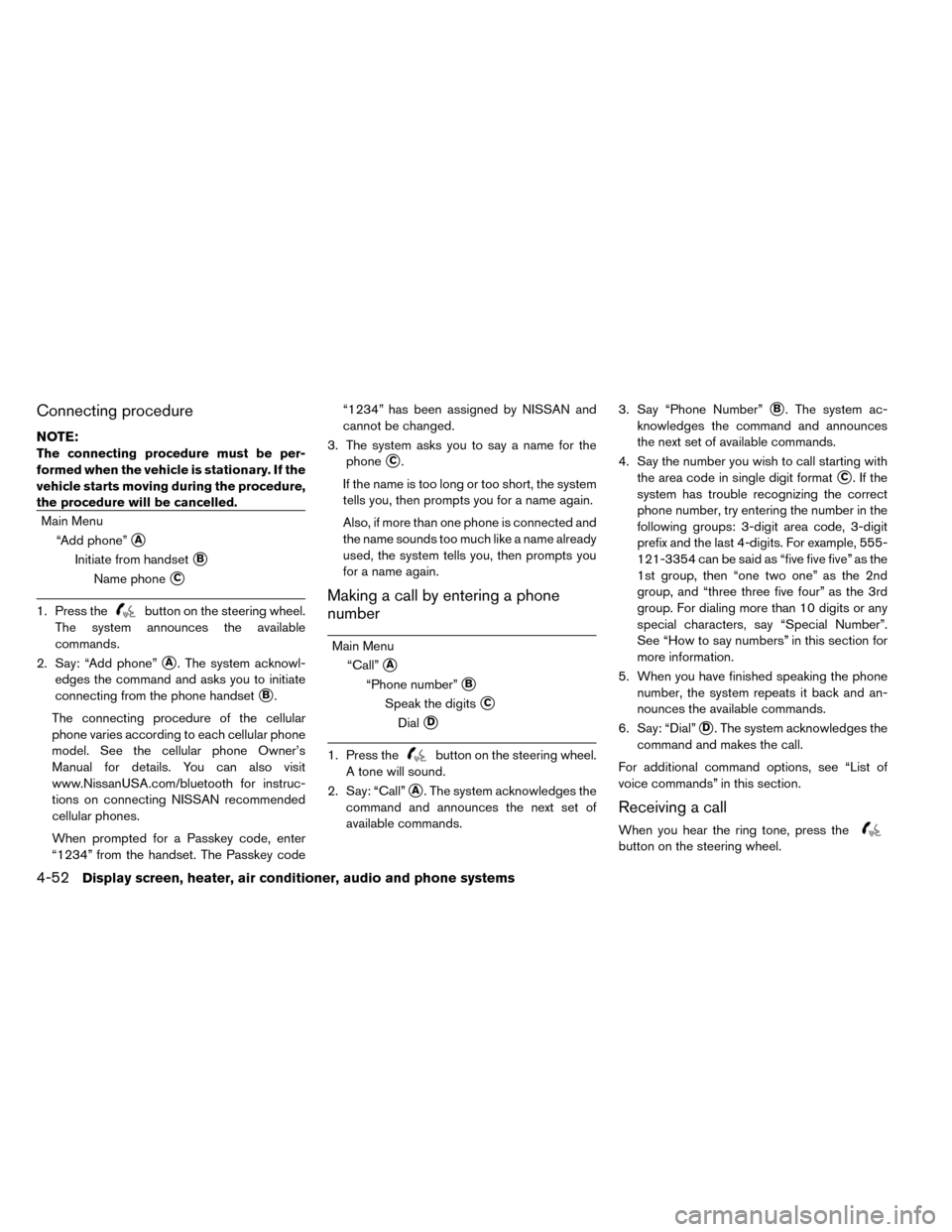

Connecting procedure
NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If the
vehicle starts moving during the procedure,
the procedure will be cancelled.
Main Menu“Add phone”
A
Initiate from handsetB
Name phoneC
1. Press thebutton on the steering wheel.
The system announces the available
commands.
2. Say: “Add phone”
A. The system acknowl-
edges the command and asks you to initiate
connecting from the phone handset
B.
The connecting procedure of the cellular
phone varies according to each cellular phone
model. See the cellular phone Owner’s
Manual for details. You can also visit
www.NissanUSA.com/bluetooth for instruc-
tions on connecting NISSAN recommended
cellular phones.
When prompted for a Passkey code, enter
“1234” from the handset. The Passkey code “1234” has been assigned by NISSAN and
cannot be changed.
3. The system asks you to say a name for the phone
C.
If the name is too long or too short, the system
tells you, then prompts you for a name again.
Also, if more than one phone is connected and
the name sounds too much like a name already
used, the system tells you, then prompts you
for a name again.
Making a call by entering a phone
number
Main Menu “Call”
A
“Phone number”B
Speak the digitsC
DialD
1. Press thebutton on the steering wheel.
A tone will sound.
2. Say: “Call”
A. The system acknowledges the
command and announces the next set of
available commands. 3. Say “Phone Number”
B. The system ac-
knowledges the command and announces
the next set of available commands.
4. Say the number you wish to call starting with the area code in single digit format
C.Ifthe
system has trouble recognizing the correct
phone number, try entering the number in the
following groups: 3-digit area code, 3-digit
prefix and the last 4-digits. For example, 555-
121-3354 can be said as “five five five” as the
1st group, then “one two one” as the 2nd
group, and “three three five four” as the 3rd
group. For dialing more than 10 digits or any
special characters, say “Special Number”.
See “How to say numbers” in this section for
more information.
5. When you have finished speaking the phone number, the system repeats it back and an-
nounces the available commands.
6. Say: “Dial”
D. The system acknowledges the
command and makes the call.
For additional command options, see “List of
voice commands” in this section.
Receiving a call
When you hear the ring tone, press the
button on the steering wheel.
4-52Display screen, heater, air conditioner, audio and phone systems

Once the call has ended, press thebutton
on the steering wheel.
NOTE:
If you do not wish to take the call when you
hear the ring tone, press the
button on
the steering wheel.
For additional command options, see “List of
voice commands” in this section.
LIST OF VOICE COMMANDS
Main Menu
“Call”
“Phonebook”
“Recent calls”
“Connect phone”
“Help”
When you press and release the
button on
the steering wheel, you can choose from the
commands on the Main Menu. The following
pages describe these commands and the com-
mands in each sub-menu. Remember to wait for the tone before
speaking.
After the main menu, you can say “Help” to hear
the list of commands currently available any time
the system is waiting for a response.
If you want to end an action without completing it,
you can say “Cancel” or “Quit” at any time the
system is waiting for a response. The system will
end the VR session. Whenever the VR session is
cancelled, a double beep is played to indicate
you have exited the system.
If you want to go back to the previous command,
you can say “Go back” or “Correction” any time
the system is waiting for a response.
Call
Main Menu
“Call” (Speak name)
A
“Phone number”(Speak digits)
B
“Special Number”C
“Redial ”D
“Call Back ”E
(Speak name)A
If you have stored entries in the phonebook, you
can dial a number associated with a name and
location.
See “Phonebook (phones without automatic
phonebook download function)” or “Phonebook
(phones with automatic phonebook download
function)” in this section to learn how to store
entries.
When prompted by the system, say the name of
the phone book entry you wish to call. The system
acknowledges the name.
If there are multiple locations associated with the
name, the system asks you to choose the loca-
tion.
Once you have confirmed the name and location,
the system begins the call.
(Speak Digits)
B
When prompted by the system, say the number
you wish to call. Refer to “How to say numbers”
and “Making a call by entering a phone number”
in this section for more details.
Display screen, heater, air conditioner, audio and phone systems4-53

“Special Number”C
For dialing up to 24 digits or any special charac-
ters, say “Special Number”. When the system
acknowledges the command, the system will
prompt you to speak the number.
“Redial”
D
Use the Redial command to call the last number
that was dialed.
The system acknowledges the command, re-
peats the number and begins dialing.
If a redial number does not exist, the system
announces, “There is no number to redial” and
ends the VR session.
“Call Back”
E
Use the Call Back command to dial the number of
the last incoming call within the vehicle.
The system acknowledges the command, re-
peats the number and begins dialing.
If a call back number does not exist, the system
announces, “There is no number to call back” and
ends the VR session.
During a call
During a call there are several command options
available. Press the
button on the steeringwheel to mute the receiving voice and enter com-
mands.
• “Help” — The system announces the available
commands.
• “Cancel/Quit” — The system announces “Can- cel,” ends the VR session and returns to the call.
• “Send” — Use the Send command to enter numbers, “*” or “#” during a call. For example, if
you were directed to dial an extension by an
automated system:
Say: “Send one two three four.”
The system acknowledges the command and
sends the tones associated with the numbers.
The system then ends the VR session and returns
to the call. Say “star” for “*”, Say “pound” for “#”.
• “Transfer call”— Use the Transfer Call command to transfer the call from the Bluetooth® Hands-
Free Phone System to the cellular phone when
privacy is desired.
The system announces, “Transfer call. Call
transferred to privacy mode.” The system then
ends the VR session.
To reconnect the call from the cellular phone to
the Bluetooth® Hands-Free System, press the
button. • “Mute” — Use the Mute command to mute your
voice so the other party cannot hear it. Use the
mute command again to unmute your voice.
NOTE:
If a call is ended or the cellular phone
network connection is lost while the Mute
feature is on, the Mute feature will be reset
to “off” for the next call so the other party
can hear your voice.
“Phonebook” (phones without
automatic phonebook download
function)
NOTE:
The “Transfer Entry” command is not avail-
able when the vehicle is moving.
Main Menu
“Phonebook”
Main Menu “Transfer Entry”
A
“Delete Entry”B
“List Names”C
4-54Display screen, heater, air conditioner, audio and phone systems

For phones that do not support automatic down-
load of the phonebook (PBAP Bluetooth® pro-
file) , the “Phonebook”command is used to manu-
ally add entries to the vehicle phonebook.
The phonebook stores up to 40 names for each
phone connected to the system.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s phone-
book if you are currently connected with
Phone B.
“Transfer Entry”
A
Use the Transfer Entry command to store a new
name in the system.
When prompted by the system, say the name you
would like to give the new entry.
For example, say: “Mary.”
If the name is too long or too short, the system
tells you, then prompts you for a name again.
Also, if the name sounds too much like a name
already stored, the system tells you, then prompts
you for a name again.
The system will ask you to transfer a phone
number stored in the cellular phone’s memory.Enter a phone number by voice command:
For example, say: “five five five one two one two.”
See “How to say numbers” in this section for
more information.
To transfer a phone number stored in the cellular
phone’s memory:
Say “Transfer entry.” The system acknowledges
the command and asks you to initiate the transfer
from the phone handset. The new contact phone
number will be transferred from the cellular
phone via the Bluetooth® communication link.
The transfer procedure varies according to each
cellular phone. See the cellular phone Owner’s
Manual for details. You can also visit
www.nissanusa.com/bluetooth for instructions
on transferring phone numbers from NISSAN
recommended cellular phones.
The system repeats the number and prompts you
for the next command. When you have finished
entering numbers or transferring an entry, choose
“Store.”
The system confirms the name, location and
number.
“Delete Entry”
B
Use the Delete Entry command to erase one
entry from the phonebook. After the system rec-
ognizes the command, speak the name to delete
or say “List Names” to choose an entry.
“List Names”
C
Use the List Names command to hear all the
names in the phonebook.
The system recites the phonebook entries but
does not include the actual phone numbers.
When the playback of the list is complete, the
system goes back to the main menu.
You can stop the playback of the list at any time
by pressing the
button on the steering
wheel. The system ends the VR session.
Display screen, heater, air conditioner, audio and phone systems4-55

“Phonebook” (phones with automatic
phonebook download function)
NOTE:
The “Transfer Entry” command is not avail-
able when the vehicle is moving.
Main Menu“Phonebook”
Main Menu Speak a Name
“List Names”
A
“Record Name”B
For phones that support automatic download of
the phonebook (PBAP Bluetooth® profile) , the
“Phonebook” command is used to manage en-
tries in the vehicle phonebook. You can say the
name of an entry at this menu to initiate dialing of
that entry.
The phonebook stores up to 1000 names for
each phone connected to the system.
When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth® system and call
contacts by name. You can record a custom voice tag for contact names that the system has
difficulty recognizing. For more information see
“Record name” in this section.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s phone-
book if you are currently connected with
Phone B.
“List Names”
A
Use the List Names command to hear all the
names and locations in the phone book.
The system recites the phone book entries but
does not include the actual phone numbers.
When the playback of the list is complete, the
system goes back to the main menu.
You can stop the playback of the list at any time
by pressing the
button on the steering
wheel. The system ends the VR session. See the
“Record name” command in this section for infor-
mation about recording custom voice tags for list
entries that the system has difficulty pronounc-
ing.
“Record Name”
B
The system allows you to record custom voice
tags for contact names in the phonebook that the vehicle has difficulty recognizing. This feature can
also be used to record voice tags to directly dial
an entry with multiple numbers. Up to 40 voice
tags can be recorded to the system.
“Recent calls”
Main Menu
“Recent Calls”“Incoming”
A
“Missed”B
“Outgoing”C
“Redial”D
“Call Back”E
Use the Recent Calls command to access out-
going, incoming or missed calls.
“Incoming”
A
Use the Incoming command to list the incoming
calls made to the vehicle.
“Missed”
B
Use the Missed command to list the calls made to
the vehicle that were not answered.
4-56Display screen, heater, air conditioner, audio and phone systems

“Outgoing”C
Use the Outgoing command to list the outgoing
calls made from the vehicle.
“Redial”
D
Use the Redial command to dial the number of
the last outgoing call from the vehicle.
“Call Back”
E
Use the Call Back command to dial the number of
the last incoming call to the vehicle.
“Connect phone”
NOTE:
The Add Phone command is not available
when the vehicle is moving.
Main Menu“Connect Phone”“Add Phone”
A
“Replace Phone”B
“Select Phone”C
“Delete Phone”D
“Bluetooth OFF”E
Use the Connect Phone commands to manage
the phones connecting to the vehicle or to enable
the Bluetooth® function on the vehicle. “Add Phone”
A
Use the Add Phone command to add a phone to
the vehicle. See “Connecting procedure” in this
section for more information.
“Replace Phone”
B
Use the Replace Phone command to replace an
existing phone pairing with a new phone. The
system will keep all voice tags assigned to your
phonebook.
“Select Phone”
C
Use the Select Phone command to select from a
list of phones connected to the vehicle. The sys-
tem will list the names assigned to each phone
and then prompt you for the phone you wish to
select. Only one phone can be active at a time.
“Delete Phone”
D
Use the Delete Phone command to delete a
phone that is connected to the vehicle. The sys-
tem will list the names assigned to each phone
and then prompt you for the phone you wish to
delete. Deleting a phone from the vehicle will also
delete that phonebook for that phone.
“Bluetooth OFF”
E
Use the Bluetooth OFF command to prevent a
wireless connection to your phone.
VOICE ADAPTATION (VA) MODE
Voice Adaptation allows up to two out-of-dialect
users to train the system to improve recognition
accuracy. By repeating a number of commands,
the users can create a voice model of their own
voice that is stored in the system. The system is
capable of storing a different voice adaptation
model for each connected phone.
Training procedure
The procedure for training a voice is as follows:
1. Position the vehicle in a reasonably quiet out-
door location.
2. Sit in the driver’s seat with the parking brake on and the transmission in P (Park) .
3. Press and hold the
button for more than
5 seconds.
4. The system announces: “Press the PHONE/ SEND (
) button for the hands-free
phone system to enter the voice adaptation
mode or press the PHONE/END (
)
button to select a different language.”
5. Press the
button.
For information on selecting a different lan-
guage, see “Choosing a language” in this
section.
Display screen, heater, air conditioner, audio and phone systems4-57
