The hill start assist system automatically keeps
the brakes applied to help prevent the vehicle
from rolling backwards in the time it takes the
driver to release the brake pedal and apply the
accelerator when the vehicle is stopped on a hill.
Hill start assist will operate automatically under
the following conditions:
• The shift lever is shifted into D (Drive) , ECO, orR (Reverse) position.
• The vehicle is stopped completely on a hill by applying the brake.
The maximum holding time is 2 seconds. After 2
seconds the vehicle will begin to roll back and hill
start assist will stop operating completely.
Hill start assist will not operate when the shift
lever is shifted into D (Drive) , ECO, or R (Re-
verse) position or on a flat and level road.CAUTION
To prevent damage to the Li-ion battery:
Do not store a vehicle in temperatures
below -13°F (-25°C) for over seven days. If
the outside temperature is -13°F (-25°C)
or less, the Li-ion battery may freeze and
it cannot be charged or provide power to
run the vehicle. Move the vehicle to a
warm location.
NOTE:
• Connect the charger to the vehicle and
place the power switch in the OFF posi-
tion when parking the vehicle if tempera-
tures may go below -4°F (-20°C) . This pro-
vides external power to the Li-ion battery
warmer when it operates and does not
discharge the Li-ion battery. Vehicle driv-
ing range is reduced if the Li-ion battery
warmer operates (Li-ion battery tempera-
ture approximately -4°F (-20°C) or colder)
while driving the vehicle. You may need to
charge the Li-ion battery sooner than in
warmer temperatures.
• The Li-ion battery requires more time to
charge when the Li-ion battery warmer
operates. •
The predicted charging time displayed on
the meter and navigation system in-
creases when the Li-ion battery warmer
operates.
• Vehicle range may be substantially re-
duced in extremely cold conditions (for
example under -4°F (-20°C)) .
• Using the climate control system to heat
the cabin when outside temperature is
below 32°F (0°C) uses more electricity and
affects vehicle range more than when us-
ing the heater when the temperature is
above 32°F (0°C) .
• Climate control performance is reduced
when using the Climate Ctrl. Timer or Re-
mote Climate Control while the Li-ion bat-
tery warmer operates. Set only the charg-
ing timer [End Time] when charging in cold
weather. The vehicle automatically deter-
mines when to start charging to fully
charge the Li-ion battery, even if the Li-ion
battery warmer operates. Charging ends
before the set end time if the Li-ion bat-
tery is fully charged.
COLD WEATHER DRIVING
Starting and driving5-25

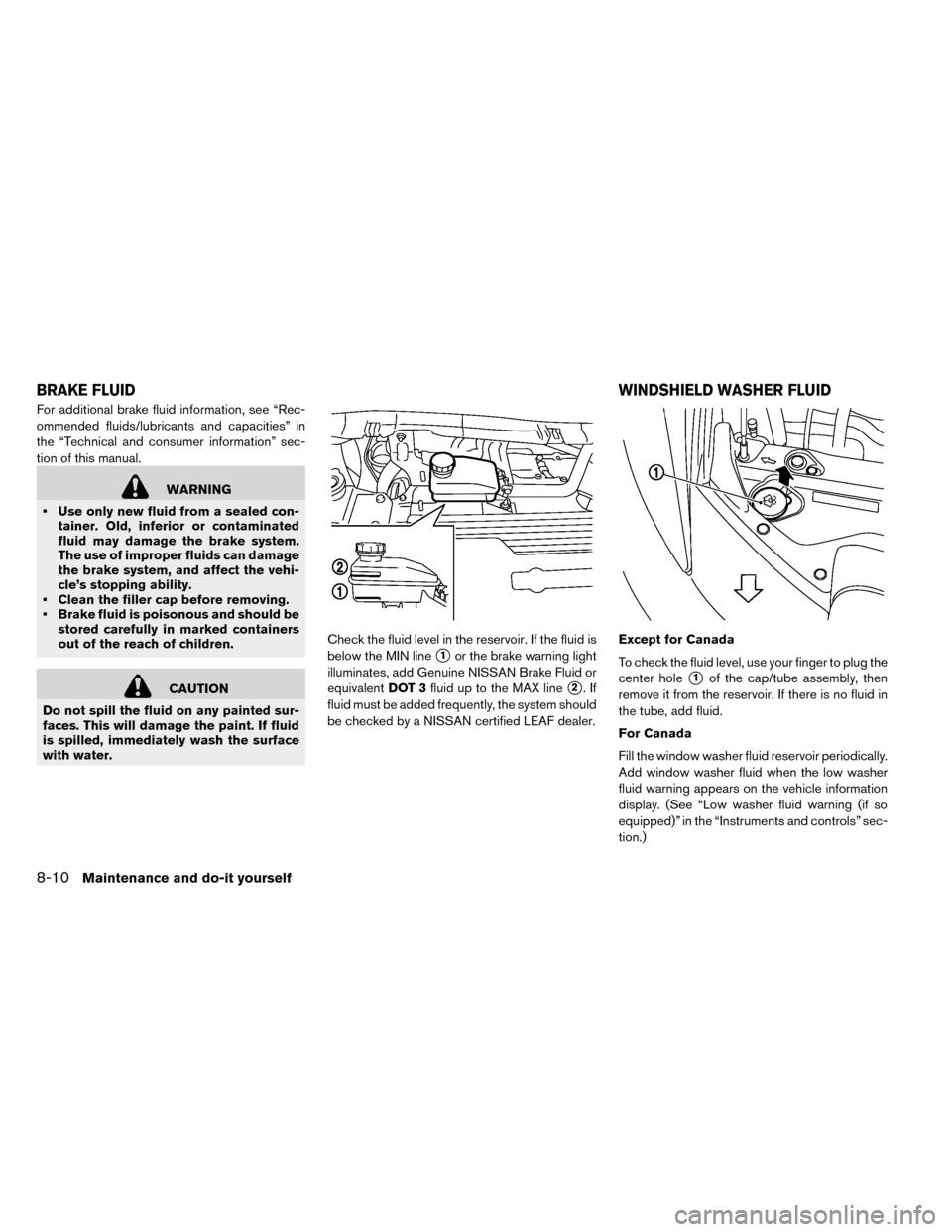

For additional brake fluid information, see “Rec-
ommended fluids/lubricants and capacities” in
the “Technical and consumer information” sec-
tion of this manual.
WARNING
• Use only new fluid from a sealed con- tainer. Old, inferior or contaminated
fluid may damage the brake system.
The use of improper fluids can damage
the brake system, and affect the vehi-
cle’s stopping ability.
• Clean the filler cap before removing.
• Brake fluid is poisonous and should be stored carefully in marked containers
out of the reach of children.
CAUTION
Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid
is spilled, immediately wash the surface
with water. Check the fluid level in the reservoir. If the fluid is
below the MIN line
1or the brake warning light
illuminates, add Genuine NISSAN Brake Fluid or
equivalent DOT 3fluid up to the MAX line
2.If
fluid must be added frequently, the system should
be checked by a NISSAN certified LEAF dealer. Except for Canada
To check the fluid level, use your finger to plug the
center hole1of the cap/tube assembly, then
remove it from the reservoir. If there is no fluid in
the tube, add fluid.
For Canada
Fill the window washer fluid reservoir periodically.
Add window washer fluid when the low washer
fluid warning appears on the vehicle information
display. (See “Low washer fluid warning (if so
equipped)” in the “Instruments and controls” sec-
tion.)
BRAKE FLUID WINDSHIELD WASHER FLUID
8-10Maintenance and do-it yourself

Boosterseats.................1-33
Precautions on child restraints.......1-18
Top tether strap ................1-21
Childsafety....................1-15
Child safety rear door lock ............3-6
Circuit breaker, Fusible link ...........8-17
Cleaning exterior and interior ........7-2,7-4
Climatecontrol..................4-19 Climate control service ............4-19
Climate control system refrigerant
and lubricant recommendations .......4-19
In-cabin microfilter ..............4-19
Climate control system ..............4-9
Climate control operation ...........4-9
Climate Ctrl. Timer ............4-14,4-22
Clock.......................2-11
Cockpit.......................2-3
Cold weather driving ...............5-25
Consolebox...................2-52
Coolant.......................8-9 Changingcoolant ...............8-9
Checkingcoolantlevel.............8-8
Recommended fluids/lubricants and
capacities ....................9-2
Cooling system ..................8-7
Corrosionprotection ...............7-6
Cruisecontrol..................5-15
Cupholders...................2-50D
Defroster switch, Rear window and outside
mirror defroster switch ..............2-41
Dimensionsandweights.............9-6
Display, vehicle information ...........2-22
Driving ......................5-25
Cold weather driving .............5-25
Driving vehicle ................5-11
Precautions when starting and driving ....5-2
Driving range ....................2-8
Driving vehicle ..................5-11
E
ECO .......................2-46
ECO switch ..................2-46
ECOindicator..................2-10
Efficient use of your vehicle ..........EV-23
Emergency charge ..............CH-11
Emergency EV (Electric Vehicle) shut off. .5-9, 6-2
Emergency shutoff system ...........EV-9
Emission control information label ........9-8
EV Characteristics ...............EV-9
Event Data Recorder (EDR) ...........9-18
EVSE (Electric Vehicle Supply Equipment) .CH-11
EVSE (Electric Vehicle Supply Equipment)
cleaning ......................7-6
EV system ....................EV-2
EV unique information .............EV-25
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire.......................6-3
Flattowing....................9-14
Floormatcleaning.................7-5
Fluid ........................8-10
Brake fluid ...................8-10
coolant.....................8-7
Recommended fluids/lubricants and
capacities ....................9-2
Reduction gear fluid ..............8-9
Window washer fluid .............8-10
F.M.V.S.S./C.M.V.S.S. certification label .....9-8
Foglightswitch .................2-44
Frontmanualseatadjustment ..........1-3
Front passenger air bag and status light ....1-44
Front seat, Front seat adjustment ........1-3
Fuses.......................8-16
Fusiblelinks ...................8-17
G
Garage door open, HomeLink® Universal . . .2-59 Transceiver ..................2-59
Gauge.......................2-5 Driving range ..................2-8
ECO indicator ................2-10
Li-ion battery available charge gauge .....2-9
Li-ion battery capacity level gauge .....2-10
10-2Technical and consumer information

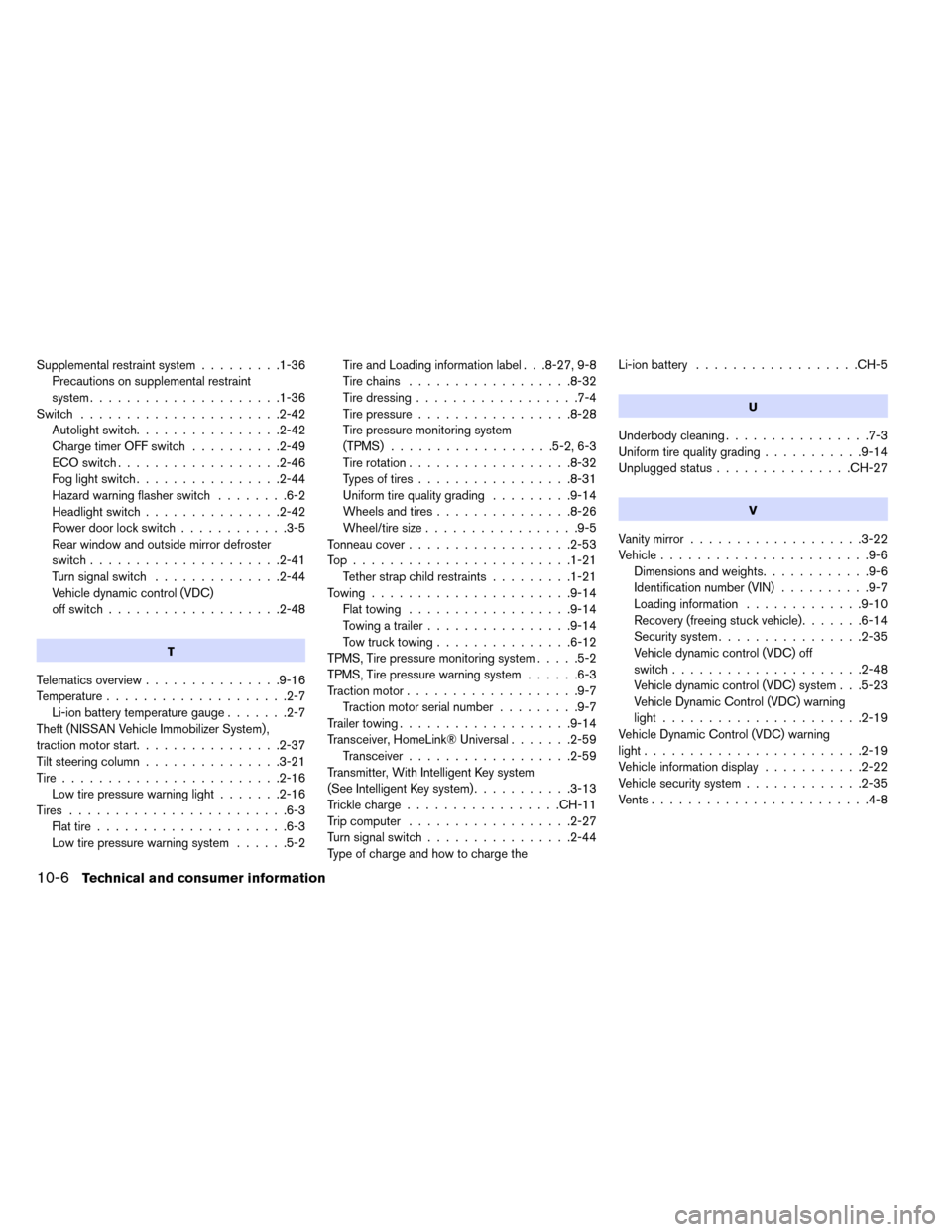

Supplemental restraint system.........1-36
Precautions on supplemental restraint
system.....................1-36
Switch ......................2-42
Autolightswitch................2-42
ChargetimerOFFswitch ..........2-49
ECOswitch..................2-46
Foglightswitch................2-44
Hazard warning flasher switch ........6-2
Headlightswitch...............2-42
Power door lock switch ............3-5
Rear window and outside mirror defroster
switch.....................2-41
Turnsignalswitch ..............2-44
Vehicle dynamic control (VDC)
offswitch...................2-48
T
Telematics overview ...............9-16
Temperature ....................2-7
Li-ion battery temperature gauge .......2-7
Theft (NISSAN Vehicle Immobilizer System) ,
traction motor start ................2-37
Tilt steering column ...............3-21
Tire........................2-16 Low tire pressure warning light .......2-16
Tires ........................6-3 Flat tire .....................6-3
Low tire pressure warning system ......5-2Tire and Loading information label . . .8-27, 9-8
Tirechains ..................8-32
Tire dressing
..................7-4
Tire pressure .................8-28
Tire pressure monitoring system
(TPMS) ..................5-2,6-3
Tire rotation ..................8-32
Types of tires .................8-31
Uniform tire quality grading .........9-14
Wheels and tires ...............8-26
Wheel/tire size .................9-5
Tonneau cover ..................2-53
Top........................1-21 Tether strap child restraints .........1-21
Towing......................9-14 Flattowing ..................9-14
Towing a trailer ................9-14
Towtrucktowing...............6-12
TPMS, Tire pressure monitoring system .....5-2
TPMS, Tire pressure warning system ......6-3
Tractionmotor...................9-7 Traction motor serial number .........9-7
Trailer towing ...................9-14
Transceiver, HomeLink® Universal .......2-59
Transceiver ..................2-59
Transmitter, With Intelligent Key system
(See Intelligent Key system) ...........3-13
Tricklecharge.................CH-11
Trip computer ..................2-27
Turn signal switch ................2-44
Type of charge and how to charge the Li-ion battery
..................CH-5
U
Underbody cleaning ................7-3
Uniform tire quality grading ...........9-14
Unplugged status ...............CH-27
V
Vanity mirror...................3-22
Vehicle.......................9-6 Dimensionsandweights............9-6
Identification number (VIN) ..........9-7
Loading information .............9-10
Recovery (freeing stuck vehicle) .......6-14
Security system ................2-35
Vehicle dynamic control (VDC) off
switch.....................2-48
Vehicle dynamic control (VDC) system . . .5-23
Vehicle Dynamic Control (VDC) warning
light......................2-19
Vehicle Dynamic Control (VDC) warning
light........................2-19
Vehicle information display ...........2-22
Vehicle security system .............2-35
Vents........................4-8
10-6Technical and consumer information

W
Warning......................6-2Hazard warning flasher switch ........6-2
Indicators for operation ...........2-23
Tire pressure monitoring system
(TPMS) ..................5-2,6-3
Warning/indicator lights and audible
reminders ...................2-12
Warning information displays ........2-32
Warninglights ................2-13
Warningandindicatorlights ..........0-11
Warninginformationdisplays..........2-32
Warninglabels,Airbagwarninglabels.....1-50
Warninglight...................1-50 Airbagwarninglight .........1-50,2-18
Anti-lock braking system (ABS) warning
light......................2-14
BRAKE system warning light (yellow) ....2-14
BRAKE warning light (red) ..........2-15
Low tire pressure warning light .......2-16
Seatbeltwarninglight............2-18
Vehicle Dynamic Control (VDC) warning
light......................2-19
Washer switch ..................2-40
Rear window wiper and washer switch . . .2-40
Windshield wiper and washer switch ....2-38
Washing ......................7-2
Waxing.......................7-2
Weights(Seedimensionsandweights).....9-6
Wheels and tires .................8-26 Careofwheels.................7-3
Cleaning aluminum alloy wheels
.......7-3
Wheel/tire size ...................9-5
When traveling or registering your vehicle
inanothercountry.................9-6
Window(s) .....................7-3
Cleaning ....................7-3
Powerwindows................2-55
Window washer fluid ..............8-10
Windshieldwiperandwasherswitch .....2-38
Wiper.......................8-13 Pulling up the wiper arm ...........8-13
Rear window wiper and washer switch . .2-40
Rear window wiper blade ..........8-15
Windshieldwiperandwasherswitch....2-38
Wiperblades .............8-13,8-14
Technical and consumer information10-7
