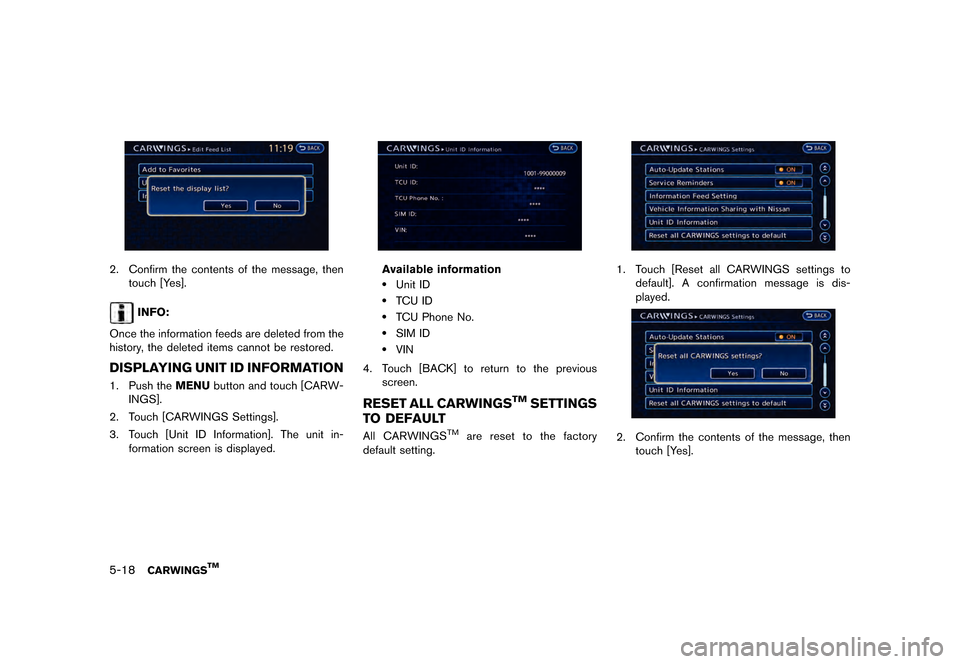

5-18CARWINGSTM
LNG0038X
2. Confirm the contents of the message, thentouch [Yes].
INFO:
Once the information feeds are deleted from the
history, the deleted items cannot be restored.
DISPLAYING UNIT ID INFORMATIONGUID-8741EEAB-0C9B-4A53-A614-CA214B360C841. Push the MENUbutton and touch [CARW-
INGS].
2. Touch [CARWINGS Settings].
3. Touch [Unit ID Information]. The unit in- formation screen is displayed.
LNC0022X
Available information.Unit ID
.TCU ID
.TCU Phone No.
.SIM ID
.VIN
4. Touch [BACK] to return to the previous screen.
RESET ALL CARWINGSTMSETTINGS
TO DEFAULT
GUID-6D2CAE9E-8983-4DAA-A8E3-8A6B0BEDF798All CARWINGSTMare reset to the factory
default setting.
LNG0039X
1. Touch [Reset all CARWINGS settings to default]. A confirmation message is dis-
played.
LNG0040X
2. Confirm the contents of the message, thentouch [Yes].
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
GUID-B396AE18-C833-4CC3-88AD-CCFAB28E4A80
VIEWING MAINTENANCE INFOR-
MATION
GUID-921A0AF1-AF9A-440B-B1A6-CC6ACA5751CCThe maintenance intervals can be displayed for
your preferred maintenance items.
LNH0002X
1. Push theMENUbutton and touch [Info.].
2. Touch [Maintenance].
3. Select the maintenance interval for the
battery, air conditioner filter, tire and other
reminders.
You can also set the system to display a
message to remind you that the maintenance
needs to be performed.
The following example shows how to set the
battery maintenance information. Use the same
steps to set the other maintenance information
items.
LNH0003X
1. Reset the driving distance to the new
maintenance schedule.
2. Set the interval (mileage) of the maintenance schedule. To determine the recommended
maintenance interval, refer to the "NISSAN
Service and Maintenance Guide".
3. To display the reminder automatically when the set trip distance is reached, touch
[Reminder].
4. To return the display to MAINTENANCE INFO., touch [BACK].
The unit can be converted between "US" and
"Metric".
ªUnit settingsº (page 1-17)
LNH0004X
The Reminder will be automatically displayed as
shown when both of the following conditions are
met:
. the vehicle is driven the set distance and the
power switch is pushed to the LOCK
position.
. the power switch is pushed to the ACC or
ON position the next time you drive the
vehicle after the set value has been reached.
To return to the previous screen after the
maintenance reminder screen is displayed,
touch [OK].
The maintenance reminder screen is displayed
each time the power switch is pushed to the ON
position unless one of the following operations is
performed:
. [Reset Distance] is touched.
. [Reminder] is set to OFF.
Viewing technical information6-3
VIEWING VEHICLE INFORMATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10-12Troubleshooting guide/General system information
Route calculation and visual guidanceGUID-1302203A-3BB3-4E27-A68F-EB2EC58942E3
SymptomPossible cause Possible solution
Waypoints are not included in the auto
reroute calculation. Waypoints that have been already passed are not included in the auto
reroute calculation. To go to that waypoint again, edit the route.
Route information is not displayed. Route calculation has not yet been performed. Set the destination and perform route calculation.
The vehicle is not on the suggested route. Drive on the suggested route.
Route guidance is set to OFF. Turn on route guidance.
Route information is not provided for certain types of roads (roads
displayed in dark green) . This is not a malfunction.
The auto reroute calculation (or detour
calculation) suggests the same route as
the one previously suggested. Route calculations took priority conditions into consideration, but the
same route was calculated.
This is not a malfunction.
A waypoint cannot be added. Five waypoints are already set on the route, including ones that the
vehicle has already passed. A maximum of 5 waypoints can be set on the route. To
go to 6 or more waypoints, perform route calculations
multiple times as necessary.
[Calculate] must be selected for route calculation after Waypoints are
selected from the ªEdit/Add to Routeº screen. Touch [Calculate] after selecting waypoints.
The suggested route is not displayed. Roads near the destination cannot be calculated. Reset the destination to a main or ordinary road, and
recalculate the route.
The starting point and destination are too close. Set a more distant destination.
The starting point and destination are too far away. Divide the trip by selecting one or two intermediate
destinations, and perform route calculations multiple
times.
There are time restricted roads (by the day of the week, by time) near
the current vehicle location or destination. Set [Use Time Restricted Roads] to OFF.
ªSetting conditions for route calculationº
(page 3-55)
A part of the route is not displayed. The suggested route includes narrow streets (roads displayed in gray) . This is not a malfunction.
The part of the route that the vehicle has
already passed is deleted. A route is managed by sections between waypoints. If the vehicle
passed the first waypoint, the section between the starting point and
the waypoint is deleted (it may not be deleted depending on the area) . This is not a malfunction.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
SymptomPossible cause Possible solution
An indirect route is suggested. If there are restrictions (such as one-way streets) on roads close to the starting point or destination, the system may suggest an indirect route. Adjust the location of the starting point or destination.
The system may suggest an indirect route because route calculation
does not take into consideration some areas such as narrow streets
(gray roads) . Reset the destination to a main or ordinary road, and
recalculate the route.
The landmark information does not
correspond to the actual information. This may be caused by insufficient or incorrect map data.
Updated information will be included in the next version
of the map data.
The suggested route does not exactly
connect to the starting point, waypoints,
or destination. There is no data for route calculation closer to these locations. Set the starting point, waypoints and destination on a
main road, and perform route calculation.
Troubleshooting guide/General system information10-13
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
the lower right corner of the screen. Also, at
this time, voice guidance will announce,
ªThe route to the destination includes roads
through incomplete map areas. Voice gui-
dance will not be provided in these areas.º
When approaching the endpoint of the
suggested route, voice guidance will an-
nounce, ªEntering the road with incomplete
map data. Use the direction arrow and
distance information to proceed to your
destination.º
To reach the destination, refer to the map
screen. Always follow actual roads and
regulations and drive safely.
. The suggested route may not be the short-
est, nor are other circumstances such as
traffic jams considered.
. Because of the inevitable difference in road
conditions and circumstances between the
time you use this system and the time the
information was produced for the map data,
there may be discrepancies in roads and
regulations. In such cases, follow the actual
information available.
. During route calculation, the map will not
scroll, however the vehicle icon will move
with the actual vehicle's movement. .
During route calculation, buttons such as
theMAP button and the MENUbutton will
be disabled.
. In some cases, after the calculation is
complete, the calculated route may not be
immediately displayed.
. Waypoints that have been passed will be
disregarded by rerouting calculation.
. If you scroll the map while the suggested
route is being drawn, it may take more time
to finish drawing.
. If waypoints are set, the system calculates
multiple routes between waypoints simulta-
neously, and the following may result.
Ð If one section between waypoints cannot
be calculated, none of the route will be
displayed.
Ð The route may not connect completely at some waypoints.
Ð The route may require a U-turn close to some waypoints.
. Route calculation may not be completed in
the following cases.
Ð If there is no main road within a range of
1.5 miles (2.5 km) from the vehicle, a
message saying so will appear on the
screen. Try recalculating when the vehi-
cle is closer to a main road. Ð If there is no main road within a range of
1.5 miles (2.5 km) from the destination or
waypoint, a message saying so will
appear on the screen. Try setting the
location closer to a main road.
Ð If the vehicle is too close to the destina- tion or if there are no roads to the
destination, a message saying so will
appear on the screen.
Ð If it is impossible to reach the destination or waypoints because of traffic regula-
tions, etc.
Ð If the only route to reach the destination or waypoints is extremely complicated.
. The following may occur when the route is
displayed.
Ð If you calculate a route on a main road,
the starting point of the route may not
exactly match the current vehicle loca-
tion.
Ð The endpoint of the route may not exactly match the destination.
Ð If you calculate a route on a main road, the system may display a route from
another main road. This may be because
the position of the vehicle icon is not
accurate. In this case, park the vehicle in
a safe location and reset the vehicle icon,
or continue driving to see if the position
Troubleshooting guide/General system information10-33
