4-12Audio system
FM/AM radio screen:
*1Displays the broadcasting station and category
currently being received.
*2Displays the frequency currently being received.
*3[Info]:
Displays the broadcasting station information
currently being received.
*4[SCAN]:
Touch to tune from low to high frequencies and
stop at each broadcasting station for 5 seconds.
*5Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held, the
current station will be stored as the new preset.
LNF0004X
SiriusXM Satellite Radio screen:
*1Indicates the channel, category, program and title
currently being received.
*2Indicates the frequency currently being received.
*3[CAT]:
Displays a category list for SiriusXM Satellite
Radio. When a category is selected, the channel
list will be displayed.
*4[Direct]:
Input the channel number by using a keypad.
*5[Info]:
Indicates the broadcasting station information
currently being received.
*6[SCAN]:
Touch to tune from low to high frequencies and
stop at each broadcasting channel for 5 seconds.
*7Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held, the
current station will be stored as the new preset.
Selecting channel/categoryGUID-62D7FA96-477E-4256-B425-B9212D8F6329
TUNE (Tuning):
For AM and FM radio:
Push theTUNE SEEK CH button for manual
tuning.
For SiriusXM Satellite Radio:
Push the TUNE SEEK CH button to seek
channels from all of the categories.
During satellite radio reception, the following
messages will be displayed under certain
conditions.
. No Signal (No signal is received while the
SAT tuner is connected)
. Channel Off Air (Broadcasting signed off)
. Check Antenna (Antenna connection error) .
Loading (The system is receiving the music
or information that is provided from the
selected channel)
. Channel Not Available (No channels are
searched)
. Channel Not Authorized (There is no user
subscription to this channel)
SEEK tuning:
For AM and FM radio:
Push the TUNE SEEK CH button for less than
1.5 seconds to tune from low to high or high to
low frequencies and to stop at the next broad-
casting station.
When the TUNE SEEK CH button is pushed
and held, radio frequencies will increase or
decrease by skipping the broadcasting stations.
When the button is released, the next broad-
casting station is selected.
SCAN tuning:
Touch [SCAN] to tune from low to high
frequencies and stop at each broadcasting
station/channel for 5 seconds.
Touch [SCAN] again during this 5 second
period to stop SCAN tuning. The radio will
remain tuned to that station/channel.
If [SCAN] is not touched within 5 seconds,
SCAN tuning moves to the next station/channel.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Storing stations/channelsGUID-E7F91FC1-C573-4847-8D40-29FB8FEED54B12 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.
1. Choose the radio band pushing theFM´AM
button or XMbutton.
2. Tune to the preferred station/channel push- ing the TUNE SEEK CH button.
3. Touch and hold one of the preset lists to register the chosen broadcasting station or
channel.
COMPACT DISC (CD) PLAYER OP-
ERATION
GUID-A28D720F-2D75-4FE8-83A3-198D5B21527C
LNF0005X
Playing CDGUID-E9F7A408-A3A7-4940-9CF2-ACB80C4DF3881. Push the power switch to the ACC or ONposition.
2. Push the OPEN/TILTbutton to open the
monitor.
3. Insert a Compact Disc (CD) into the slot with the label side facing up. The CD will be
guided automatically into the slot and start
playing.
After loading a CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will
automatically turn off and the CD will play.
If the system has been turned off while a CD
was playing, pushing the
button will
start the CD.
Do not use 3.1 in (8 cm) discs.
LNF0006X
Ejecting CD:
1. Push the OPEN/TILTbutton to open the
monitor.
2. When the
button is pushed with a CD
loaded, the CD will be ejected.
When this button is pushed while a CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect it.
Also, the monitor will be closed automati-
cally.
Audio system4-13
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
When theCD´AUXbutton is pushed with the
system off and a compatible device connected,
the system will turn on. If another audio source is
playing and a compatible device is connected,
push the CD´AUXbutton repeatedly until the
center display changes to the AUX mode.
INFO:
Insert a 1/4 inch (3.5 mm) stereo mini plug in the
auxiliary input jack. If a cable with a mono plug is
used, the audio output may not function
normally.
How to view AUX screenGUID-3A8A4717-B982-4AEC-B5FA-083909A32A94
LNF0020X
Select the volume settings from the following
options.
. Low
. Medium .
High
STEERING WHEEL SWITCHES FOR
AUDIO CONTROL
GUID-8A6FE299-FCD9-40E1-B943-BD5E80FDBC47The audio system can be operated using the
control switches on the steering wheel.
LNF0153X
1. SOURCE button
2. Volume control button
SOURCE buttonGUID-A72FFA6B-91BA-416E-A385-A09861CAB60BPush the SOURCE switch to change the mode
to available audio source.
AM and FM radio:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
stations. .
Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
SiriusXM Satellite Radio:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the preset
channels.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
Pandora


> (GLW    0RGHO 1DYL(9 @
5 CARWINGSTM
Telematics overview...
.................................................................. 5-2
CARWINGSTMoverview ...
.......................................................... 5-4
About service application ...
.................................................. 5-6
Notice for usage ...
................................................................... 5-6
Radio approval number and information ...
........................ 5-7
Displaying CARWINGS
TMinformation screen ...
................... 5-7
How to view information screen ...
...................................... 5-8
Storing favorites ...
........................................................................\
. 5-9
Google search ...
........................................................................\
. 5-10
Viewing CARWINGS
TMrecords ...
........................................ 5-11 CARWINGS
TMsettings
...
....................................................... 5-12
Setting messages that are received by email ...
......... 5-12
Information feed setting ...
................................................ 5-15
Displaying unit ID information ...
...................................... 5-18
Reset all CARWINGS
TMsettings to default ...
........... 5-18
Error message on communication ...
..................................... 5-19
Data communication settings ...
.............................................. 5-20
Automatic carrier settings ...
............................................. 5-20
Manual carrier settings ...
.................................................. 5-20
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
5-12CARWINGSTM
GUID-69B796CD-BFBC-4A91-812B-C2C18DEEAE27
LNG0135X
1. Push theMENUbutton and touch [CARW-
INGS].
2. Touch [CARWINGS Settings].
3. Touch the item you would like to set.
Available settings
. [Charging Messages]:
Sends a notification to a preset e-mail
address. This notification includes the
charge connector status and the charge
completion.
ªSetting messages that are received
by emailº (page 5-12)
. [Sign in]:
The user ID and password can be entered.
ªInputting user ID and passwordº
(page 1-11)
. [Auto-Update Stations]:
When information for new charging stations
is received while the vehicle is connecting to
the NISSAN CARWINGS Data Center, the information is automatically downloaded and
the map data is updated.
. [Service Reminders]:
The information that is sent from the
NISSAN CARWINGS Data Center is dis-
played.
. [Information Feed Setting]:
Set the timing of the connection to the
NISSAN CARWINGS Data Center, or edit
the list of the information feeds.
ªInformation feed settingº (page 5-15)
. [Vehicle Data Transmission Setting]:
Ð [Share Vehicle Information]:
Vehicle information (driving history, etc.) is
automatically sent to the NISSAN CARWINGS
Data Center. Ð [Share Vehicle Info When Powered On]:
Vehicle information (such as the driving history,
etc.) is automatically sent to the NISSAN
CARWINGS Data Center every time the power
switch is turned to the ACC, ON or READY
position. Ð [Delete Share Vehicle Information]
Vehicle information (driving history, etc.) is
deleted.
. [Unit ID Information]:
The necessary information for user registra-
tion is displayed.
ªDisplaying unit ID informationº (page 5-18)
. [Reset all CARWINGS settings to default]:
All CARWINGS
TMsettings are reset to the
factory default setting.
ªReset all CARWINGSTMsettings to
defaultº (page 5-18)
SETTING MESSAGES THAT ARE
RECEIVED BY EMAIL
GUID-4F33BF3B-7AF0-4C31-BA79-0DDD8E740EB6Sends a notification to a preset e-mail address.
This notification includes the charge connector
status and the charge completion. To receive a
notification to your personal computer or cellular
phone, an e-mail address should be set before-
hand. For details, access the NISSAN Owner's
Portal Website.
Storing location for receiving charge
connector disconnected notifica-
tions
GUID-81AE1261-98BD-4D5B-B487-793E89BB1538A maximum of 5 regularly used charging stations
can be registered. If the charging connector is
disconnected in one of these locations, an email
informing you of this will be sent.
1. Touch [Store charging plug reminder loca- tions].
CARWINGSTMSETTINGS
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

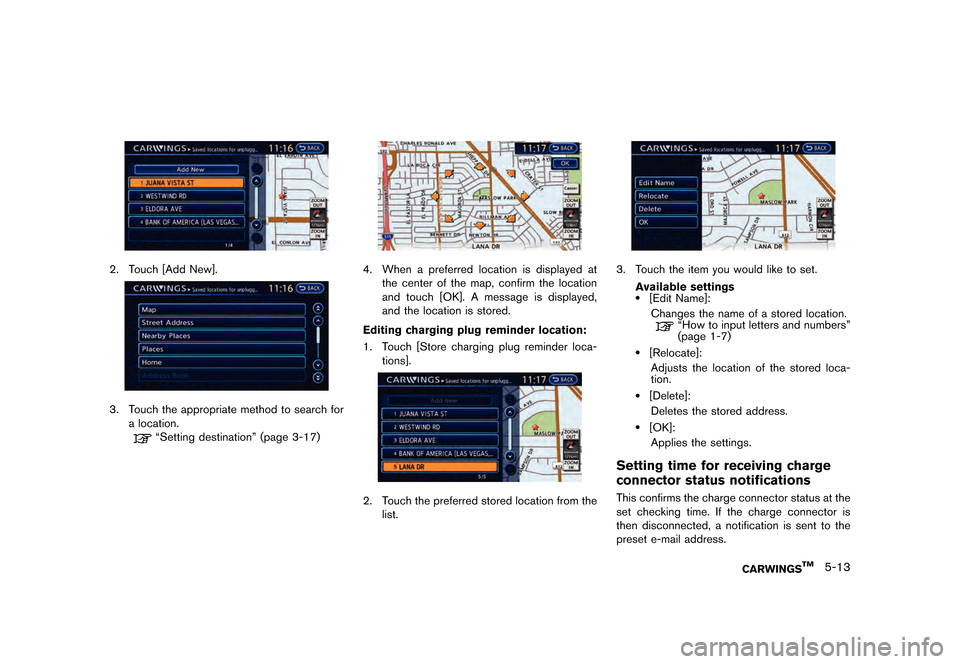

LNG0020X
2. Touch [Add New].
LNG0021X
3. Touch the appropriate method to search fora location.
ªSetting destinationº (page 3-17)
LNG0022X
4. When a preferred location is displayed atthe center of the map, confirm the location
and touch [OK]. A message is displayed,
and the location is stored.
Editing charging plug reminder location:
1. Touch [Store charging plug reminder loca- tions].
LNG0023X
2. Touch the preferred stored location from thelist.
LNG0024X
3. Touch the item you would like to set.
Available settings
.[Edit Name]:Changes the name of a stored location.
ªHow to input letters and numbersº
(page 1-7)
.[Relocate]:Adjusts the location of the stored loca-
tion.
.[Delete]:Deletes the stored address.
.[OK]:Applies the settings.
Setting time for receiving charge
connector status notifications
GUID-95509E3B-7FE0-4856-96AD-358A12828D54This confirms the charge connector status at the
set checking time. If the charge connector is
then disconnected, a notification is sent to the
preset e-mail address.
CARWINGSTM5-13
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
5-14CARWINGSTM
1. Touch [Charging Plug Reminder Time].
LNG0025X
2.Touch the preferred checking time. The
indicator of the selected time illuminates.
Available checking times
.5 min.10 min.15 min.30 min.1 hour
3. When the power switch is placed in the OFF position from the ON position, the setting
will be set to ON.
INFO:
When the power switch is placed in the OFF
position from the ACC position, the check time
setting will be reset.
Sending charge connector status
information to Data Center
GUID-A7265620-4E47-42C9-B4F5-C994D226466FIf the system recognizes that the charge
connector is not connected to the vehicle even
though the charge timer function is set, the
system transmits this information to the NISSAN
CARWINGS Data Center. When the NISSAN
CARWINGS Data Center receives the informa-
tion, it will send an e-mail to the specified
address to inform you of the charge connector
status.
LNG0026X
1. Touch [Send unplugged status to Data
Center]. The indicator illuminates when the
item is set.
INFO:
Even if the notification service for the charge
connector status is set, no notification is sent
and no status can be checked under the
following conditions.
. The system will check the connection status
of the charge connector within the period of
time set, but will not check once this period
of time has been exceeded. Therefore, if the
charge connector is removed from the
vehicle after the period of time set, a
notification is not sent.
. The charge connector status notification
does not indicate the start of battery
charging.
. No notification is sent if the vehicle is
outside the communication service area.
. The notification does not include the reason
why the charge connector is disconnected.
. If the vehicle is not used for 2 weeks,
communication with the vehicle is disabled.
. If the power switch is in the ON position, no
notification is sent.
Sending battery charge status in-
formation to Data Center
GUID-4E35BF0B-A71A-4523-A882-BE98AF936E8AIf a battery charge is interrupted before it is
completed, the system recognizes this and
transmits this information to the NISSAN
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
CARWINGS Data Center. When the NISSAN
CARWINGS Data Center receives the informa-
tion, it will send an email to the specified
address to inform you of the battery charge
status.
LNG0027X
1. Touch [Send charging status to Data Cen-ter]. The indicator illuminates when the item
is set.
Emails that are received from the NISSAN
CARWINGS Data Center inform you of the
following:
. Interruption to battery charge
. Current battery level
. Battery capacity
. Driving range (Two values are shown: when
the air conditioner is on or off)
INFO:
Even if the notification service for the charge
completion is set, no notification is sent and no
status can be checked under the following
conditions.
. The charge interruption notification does not
always indicate the completion of battery
charging.
. This notification does not mean that the
timer charge function did not start at the
time set.
. No notification is sent if the vehicle is
outside the communication service area.
. The notification does not include the reason
why the battery charging was interrupted.
. If the vehicle is not used for 2 weeks,
communication with the vehicle is disabled.
. If the power switch is in the ON position, no
notification is sent.
Restoring default settings for noti-
fications
GUID-9144B37D-5880-40BD-AAAD-6A319ECE24CEAll settings are set to the factory default settings.
1. Touch [Reset All Notifications to Default]. A
confirmation message is displayed.
LNG0028X
2. Confirm the contents of the message, thentouch [Yes].
INFORMATION FEED SETTINGGUID-3D2E926D-340E-4D01-9009-F4FC72E2D867Set the timing of the connection to the NISSAN
CARWINGS Data Center, or edit the list of the
information feeds. You can also delete all the
history of the information feeds used.
1. Touch [Information Feed Setting].
LNG0029X
2. Touch the item you would like to set.
CARWINGSTM5-15
&RQGLWLRQ 1$0
