3-12Pre-driving checks and adjustments

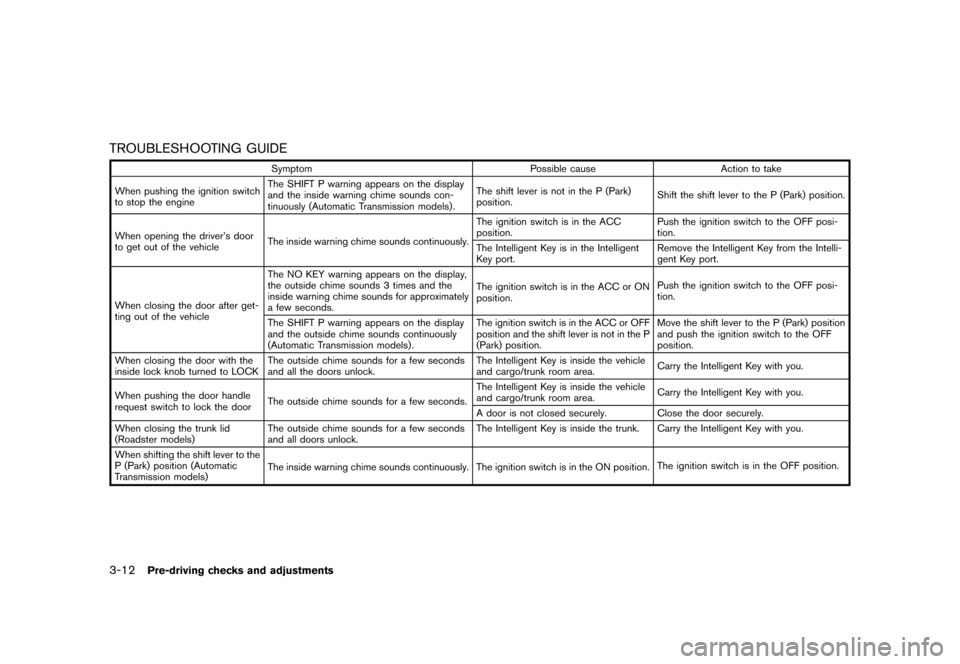

TROUBLESHOOTING GUIDEGUID-9C429A4C-EFBF-40ED-8F11-BD7DE804332C
SymptomPossible causeAction to take
When pushing the ignition switch
to stop the engine The SHIFT P warning appears on the display
and the inside warning chime sounds con-
tinuously (Automatic Transmission models) .
The shift lever is not in the P (Park)
position.
Shift the shift lever to the P (Park) position.
When opening the driver's door
to get out of the vehicle The inside warning chime sounds continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF posi-
tion.
The Intelligent Key is in the Intelligent
Key port. Remove the Intelligent Key from the Intelli-
gent Key port.
When closing the door after get-
ting out of the vehicle The NO KEY warning appears on the display,
the outside chime sounds 3 times and the
inside warning chime sounds for approximately
a few seconds.
The ignition switch is in the ACC or ON
position.
Push the ignition switch to the OFF posi-
tion.
The SHIFT P warning appears on the display
and the outside chime sounds continuously
(Automatic Transmission models) . The ignition switch is in the ACC or OFF
position and the shift lever is not in the P
(Park) position.Move the shift lever to the P (Park) position
and push the ignition switch to the OFF
position.
When closing the door with the
inside lock knob turned to LOCK The outside chime sounds for a few seconds
and all the doors unlock. The Intelligent Key is inside the vehicle
and cargo/trunk room area.
Carry the Intelligent Key with you.
When pushing the door handle
request switch to lock the door The outside chime sounds for a few seconds. The Intelligent Key is inside the vehicle
and cargo/trunk room area.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lid
(Roadster models) The outside chime sounds for a few seconds
and all doors unlock. The Intelligent Key is inside the trunk. Carry the Intelligent Key with you.
When shifting the shift lever to the
P (Park) position (Automatic
Transmission models) The inside warning chime sounds continuously. The ignition switch is in the ON position.
The ignition switch is in the OFF position.
&RQGLWLRQ


> (GLW    0RGHO =' @

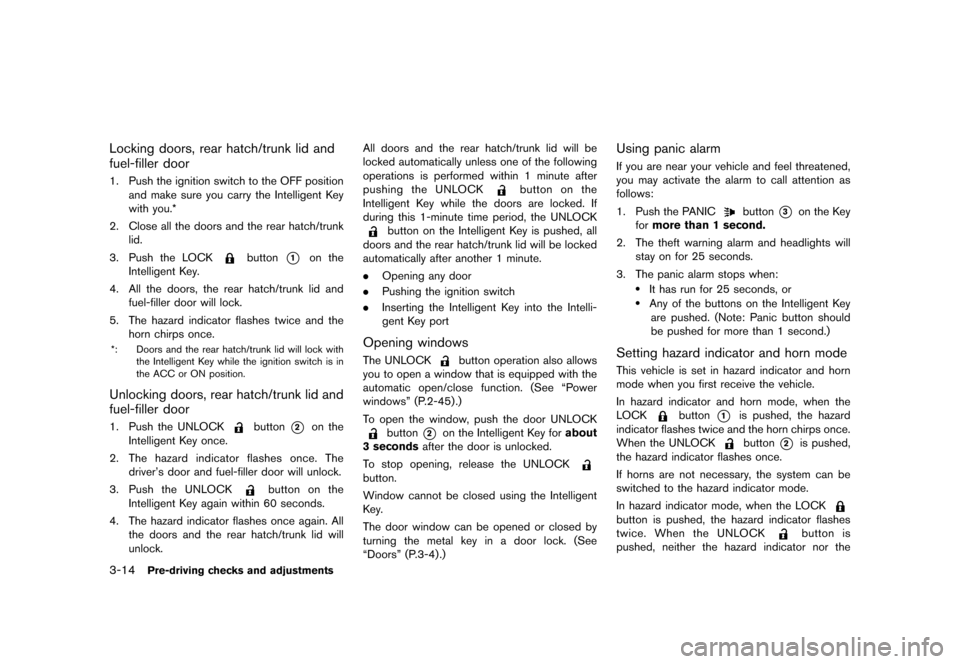

3-14Pre-driving checks and adjustments
Locking doors, rear hatch/trunk lid and
fuel-filler door
GUID-1A0BB4A4-D39A-4BCF-94EF-7E5B8B87976E1. Push the ignition switch to the OFF positionand make sure you carry the Intelligent Key
with you.*
2. Close all the doors and the rear hatch/trunk lid.
3. Push the LOCK
button*1on the
Intelligent Key.
4. All the doors, the rear hatch/trunk lid and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*: Doors and the rear hatch/trunk lid will lock with the Intelligent Key while the ignition switch is in
the ACC or ON position.
Unlocking doors, rear hatch/trunk lid and
fuel-filler door
GUID-707A2B82-E60E-44AF-9021-D3467A86E6551. Push the UNLOCKbutton*2on the
Intelligent Key once.
2. The hazard indicator flashes once. The
driver's door and fuel-filler door will unlock.
3. Push the UNLOCK
button on the
Intelligent Key again within 60 seconds.
4. The hazard indicator flashes once again. All the doors and the rear hatch/trunk lid will
unlock. All doors and the rear hatch/trunk lid will be
locked automatically unless one of the following
operations is performed within 1 minute after
pushing the UNLOCK
button on the
Intelligent Key while the doors are locked. If
during this 1-minute time period, the UNLOCK
button on the Intelligent Key is pushed, all
doors and the rear hatch/trunk lid will be locked
automatically after another 1 minute.
. Opening any door
. Pushing the ignition switch
. Inserting the Intelligent Key into the Intelli-
gent Key port
Opening windowsGUID-03680386-4F63-4C81-A910-6715265BCF91The UNLOCKbutton operation also allows
you to open a window that is equipped with the
automatic open/close function. (See ªPower
windowsº (P.2-45) .)
To open the window, push the door UNLOCK
button*2on the Intelligent Key for about
3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
Window cannot be closed using the Intelligent
Key.
The door window can be opened or closed by
turning the metal key in a door lock. (See
ªDoorsº (P.3-4).)
Using panic alarmGUID-D0FA6B8E-37B1-464F-843C-BAE86B6A6BDEIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button*3on the Key
for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
.It has run for 25 seconds, or.Any of the buttons on the Intelligent Key are pushed. (Note: Panic button should
be pushed for more than 1 second.)
Setting hazard indicator and horn modeGUID-FC966A5F-4D57-494D-8237-76539549A565This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button*1is pushed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button*2is pushed,
the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK
button is
pushed, neither the hazard indicator nor the
&RQGLWLRQ


> (GLW    0RGHO =' @

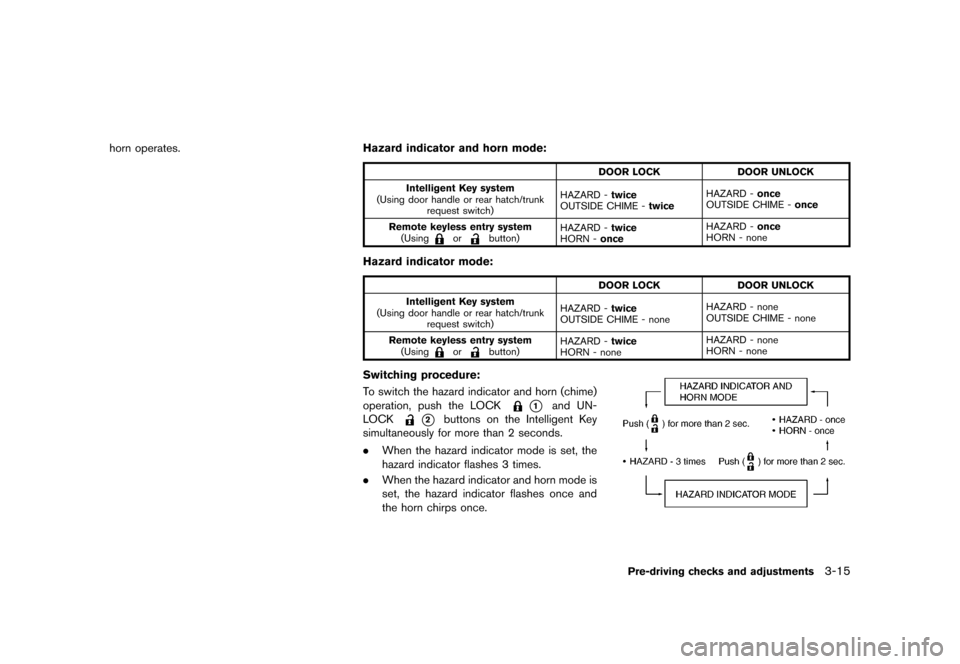

horn operates.Hazard indicator and horn mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCKDOOR UNLOCK
Intelligent Key system
(Using door handle or rear hatch/trunk request switch) HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - once
Remote keyless entry system (Using
orbutton) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
DOOR LOCK DOOR UNLOCK
Intelligent Key system
(Using door handle or rear hatch/trunk request switch) HAZARD -
twice
OUTSIDE CHIME - none HAZARD - none
OUTSIDE CHIME - none
Remote keyless entry system (Using
orbutton) HAZARD -
twice
HORN - none HAZARD - none
HORN - none
Switching procedure:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To switch the hazard indicator and horn (chime)
operation, push the LOCK
*1and UN-
LOCK
*2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
. When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
. When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
NOS1695
Pre-driving checks and adjustments3-15
&RQGLWLRQ


> (GLW    0RGHO =' @

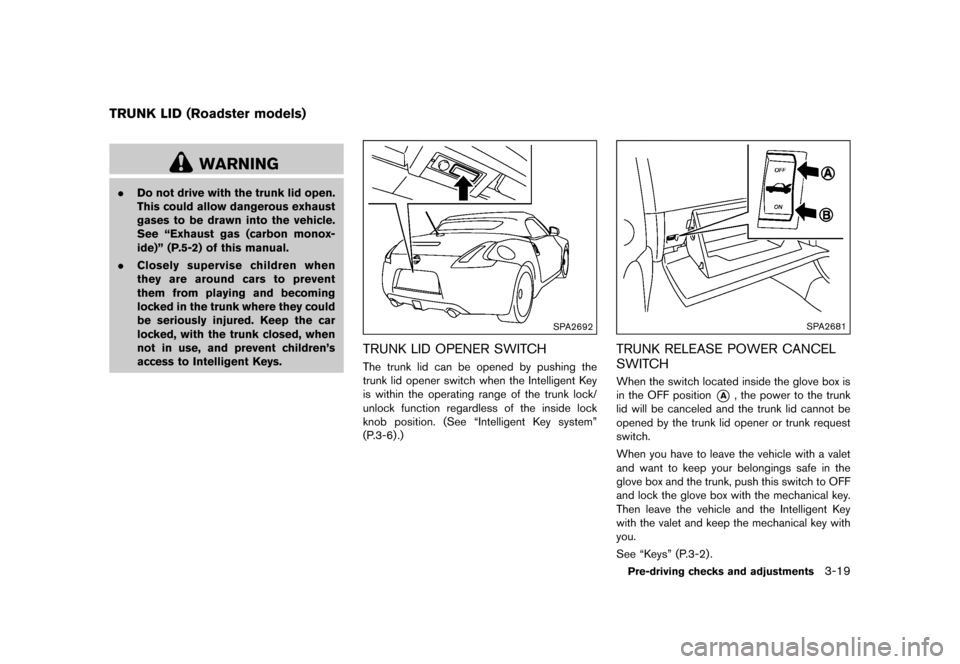

GUID-0B8CB1E3-32A0-4C4F-9206-081EAB74BCDF
WARNING
.Do not drive with the trunk lid open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See ªExhaust gas (carbon monox-
ide)º (P.5-2) of this manual.
. Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked, with the trunk closed, when
not in use, and prevent children's
access to Intelligent Keys.
SPA2692
TRUNK LID OPENER SWITCHGUID-AE4AD757-9DE6-465C-8C60-034A52653F91The trunk lid can be opened by pushing the
trunk lid opener switch when the Intelligent Key
is within the operating range of the trunk lock/
unlock function regardless of the inside lock
knob position. (See ªIntelligent Key systemº
(P.3-6) .)
SPA2681
TRUNK RELEASE POWER CANCEL
SWITCH
GUID-B3C52BCE-89E9-4F92-B717-D9F9BBE6D293When the switch located inside the glove box is
in the OFF position
*A, the power to the trunk
lid will be canceled and the trunk lid cannot be
opened by the trunk lid opener or trunk request
switch.
When you have to leave the vehicle with a valet
and want to keep your belongings safe in the
glove box and the trunk, push this switch to OFF
and lock the glove box with the mechanical key.
Then leave the vehicle and the Intelligent Key
with the valet and keep the mechanical key with
you.
See ªKeysº (P.3-2) .
Pre-driving checks and adjustments3-19
TRUNK LID (Roadster models)
&RQGLWLRQ


> (GLW    0RGHO =' @

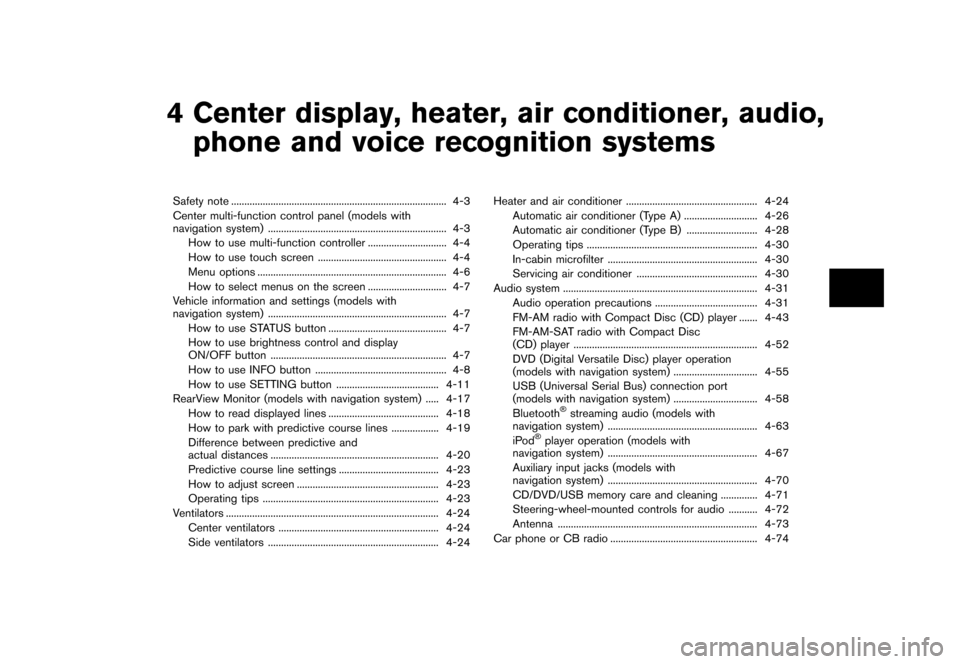

4 Center display, heater, air conditioner, audio,phone and voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (models with
navigation system) ...
.................................................................... 4-3
How to use multi-function controller ...
.............................. 4-4
How to use touch screen ...
................................................. 4-4
Menu options ...
........................................................................\
4-6
How to select menus on the screen ...
.............................. 4-7
Vehicle information and settings (models with
navigation system) ...
.................................................................... 4-7
How to use STATUS button ...
............................................. 4-7
How to use brightness control and display
ON/OFF button ...
................................................................... 4-7
How to use INFO button ...
.................................................. 4-8
How to use SETTING button ...
....................................... 4-11
RearView Monitor (models with navigation system) ...
..... 4-17
How to read displayed lines ...
.......................................... 4-18
How to park with predictive course lines ...
.................. 4-19
Difference between predictive and
actual distances ...
................................................................ 4-20
Predictive course line settings ...
...................................... 4-23
How to adjust screen ...
...................................................... 4-23
Operating tips ...
................................................................... 4-23
Ventilators ...
........................................................................\
......... 4-24
Center ventilators ...
............................................................. 4-24
Side ventilators ...
................................................................. 4-24 Heater and air conditioner
...
.................................................. 4-24
Automatic air conditioner (Type A) ...
............................ 4-26
Automatic air conditioner (Type B) ...
........................... 4-28
Operating tips ...
................................................................. 4-30
In-cabin microfilter ...
......................................................... 4-30
Servicing air conditioner ...
.............................................. 4-30
Audio system ...
........................................................................\
.. 4-31
Audio operation precautions ...
....................................... 4-31
FM-AM radio with Compact Disc (CD) player ...
....... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-52
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
................................ 4-55
USB (Universal Serial Bus) connection port
(models with navigation system) ...
................................ 4-58
Bluetooth


> (GLW    0RGHO =' @

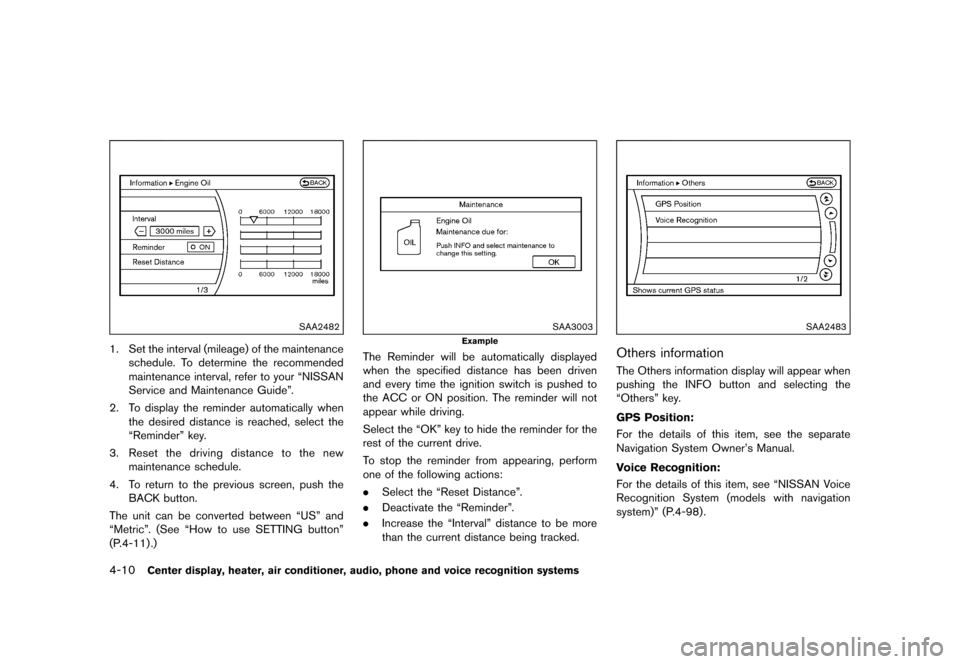

4-10Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2482
1. Set the interval (mileage) of the maintenanceschedule. To determine the recommended
maintenance interval, refer to your ªNISSAN
Service and Maintenance Guideº.
2. To display the reminder automatically when the desired distance is reached, select the
ªReminderº key.
3. Reset the driving distance to the new
maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between ªUSº and
ªMetricº. (See ªHow to use SETTING buttonº
(P.4-11) .)
SAA3003
Example
The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the ªOKº key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
. Select the ªReset Distanceº.
. Deactivate the ªReminderº.
. Increase the ªIntervalº distance to be more
than the current distance being tracked.
SAA2483
Others informationGUID-D662A7E5-DDB2-4470-A69A-D889DCD71F99The Others information display will appear when
pushing the INFO button and selecting the
ªOthersº key.
GPS Position:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Navigation System Owner's Manual.
Voice Recognition:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see ªNISSAN Voice
Recognition System (models with navigation
system)º (P.4-98) .
&RQGLWLRQ


> (GLW    0RGHO =' @
SAA2486
Display settingsGUID-AD9AA26B-E3FA-4D8F-8D25-5089B486593FThe display as illustrated will appear when
pushing the SETTING button and selecting the
ªDisplayº key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the ªDis-
play Adjustmentº key. The following settings are
available.
.Display
To turn off the screen, push the ENTER button
and turn the ªDisplayº indicator off. The other
method is to push and hold the ª
OFFº
button for more than 2 seconds.
When any mode button is pushed with the screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the ª
OFFº
button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the ªBrightnessº or ªContrastº
key.
Then, you can adjust the brightness and contrast
using the multi-function controller.
For information on the ªBackground Colorº key,
refer to the separate Navigation System Own-
er's Manual.
For Roadster models:
Depending on the driver's seat position, the
display could be hard to read. Adjust the
brightness and contrast of the display on the
setting screen.
Color Theme:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the theme color of the menu screen
from ªBlackº, ªBlueº or ªRedº.
SAA2487
Clock settingsGUID-D0FE04A9-3501-46DF-97D4-1FCF2C9A67C5The display as illustrated will appear when
pushing the SETTING button and selecting the
ªClockº key.
The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
On-screen Clock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, a clock is
always displayed in the upper right corner of the
screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS
Center display, heater, air conditioner, audio, phone and voice recognition systems4-13
&RQGLWLRQ


> (GLW    0RGHO =' @

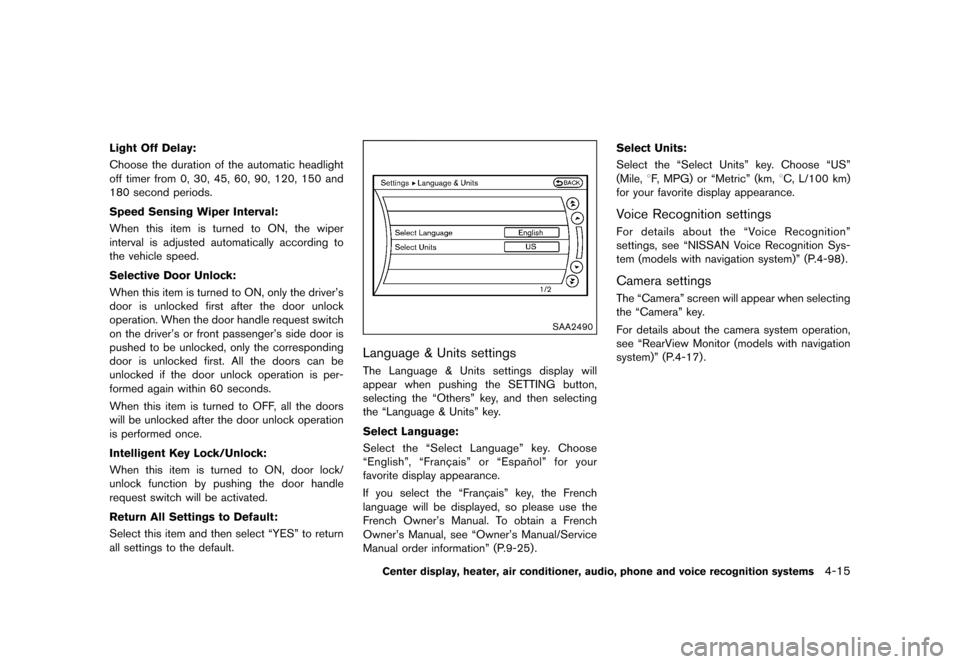

Light Off Delay:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, only the driver's
door is unlocked first after the door unlock
operation. When the door handle request switch
on the driver's or front passenger's side door is
pushed to be unlocked, only the corresponding
door is unlocked first. All the doors can be
unlocked if the door unlock operation is per-
formed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, door lock/
unlock function by pushing the door handle
request switch will be activated.
Return All Settings to Default:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select this item and then select ªYESº to return
all settings to the default.
SAA2490
Language & Units settingsGUID-32072A6E-524E-4948-9A8A-1A1EFA3A6364The Language & Units settings display will
appear when pushing the SETTING button,
selecting the ªOthersº key, and then selecting
the ªLanguage & Unitsº key.
Select Language:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªSelect Languageº key. Choose
ªEnglishº, ªFrancËaisº or ªEspan Ä
olº for your
favorite display appearance.
If you select the ªFrancË aisº key, the French
language will be displayed, so please use the
French Owner's Manual. To obtain a French
Owner's Manual, see ªOwner's Manual/Service
Manual order informationº (P.9-25) . Select Units:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªSelect Unitsº key. Choose ªUSº
(Mile,
8F, MPG) or ªMetricº (km, 8C, L/100 km)
for your favorite display appearance.
Voice Recognition settingsGUID-E44DDB7D-41F8-4BE9-972F-5D86FB5251F3For details about the ªVoice Recognitionº
settings, see ªNISSAN Voice Recognition Sys-
tem (models with navigation system)º (P.4-98) .
Camera settingsGUID-1E867F3A-C3CC-478A-9E23-63A28F1C44EFThe ªCameraº screen will appear when selecting
the ªCameraº key.
For details about the camera system operation,
see ªRearView Monitor (models with navigation
system)º (P.4-17) .
Center display, heater, air conditioner, audio, phone and voice recognition systems4-15
&RQGLWLRQ
