2015 NISSAN 370Z ROADSTER reset


> (GLW    0RGHO =' @

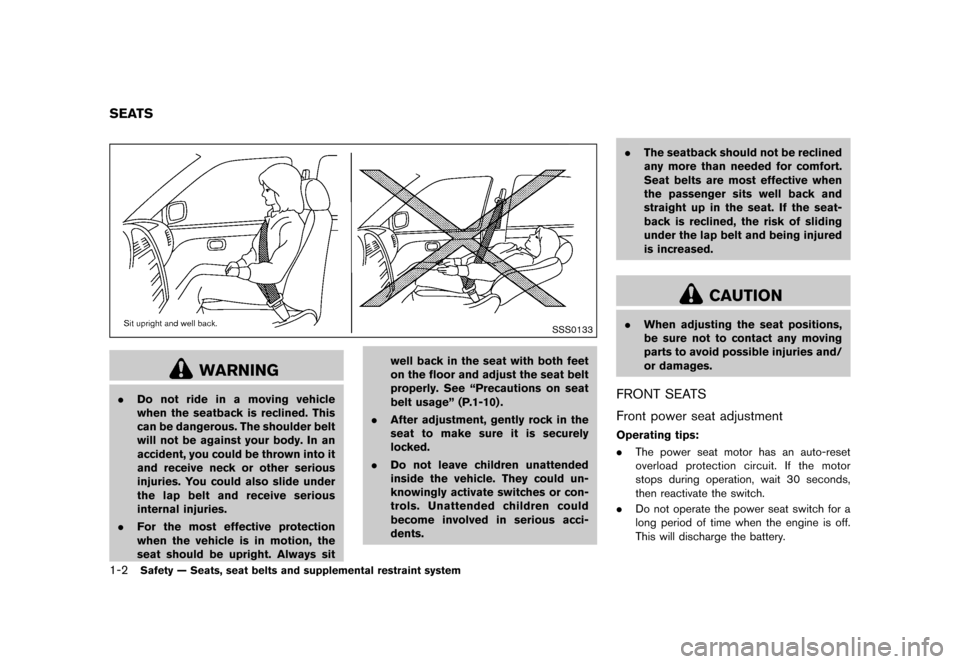

1-2Safety Ð Seats, seat belts and supplemental restraint system
GUID-5AA59FCF-5AAE-4C17-AFA7-074376CD08B4
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat belt
properly. See ªPrecautions on seat
belt usageº (P.1-10) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
.When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damages.
FRONT SEATSGUID-C6067234-6222-4802-A21C-99B3011E856D
Front power seat adjustmentGUID-94CA7C16-FDB7-4D8E-9B77-534547D10839
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
SEATS
&RQGLWLRQ


> (GLW    0RGHO =' @
2-6Instruments and controls
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
SIC3973
SPEEDOMETER AND ODOMETERGUID-93CE6073-278E-4C4D-BC4E-35570E774ACE
SpeedometerGUID-08F72CE7-EB0D-4E47-9EB4-124017502CD5The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
Odometer/twin trip odometerGUID-69490912-23C9-4D2E-A755-B281FE0D418EThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET knob*3
changes the display as follows:
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET knob*3for more
than 1 second resets the trip odometer to zero.
&RQGLWLRQ


> (GLW    0RGHO =' @
Low tire pressure warning lightGUID-198D6DCF-E9F3-4FE1-8C20-8D8063552643Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRESSURE warning also
appears in the vehicle information display.
When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning appearseach time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.
For additional information, see ªVehicle informa-
tion displayº (P.2-18) , ªTire Pressure Monitoring
System (TPMS)º (P.5-3) and ªTire Pressure
Monitoring System (TPMS)º (P.6-3) .
TPMS malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer.
The CHECK TIRE PRESSURE warning does
not appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
For additional information, see ªTire Pressure
Monitoring System (TPMS)º (P.5-3) .
WARNING
.
If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked by a NISSAN
dealer as soon as possible.
. If the light illuminates while driving,
avoid sudden steering maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low
tire pressure warning light OFF. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat. If you have a flat
tire, replace it with a spare tire as
soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after the 1 minute. Con-
tact your NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
Instruments and controls2-13
&RQGLWLRQ


> (GLW    0RGHO =' @
2-22Instruments and controls
3) and ªTire Pressure Monitoring System
(TPMS)º (P.6-3) .
7. ªTIMERº indicatorGUID-18E114C8-C2B4-404A-8A4E-84A7A42051BCThis indicator appears when the set ªTIMERº
indicator activates. You can set the time for up to
6 hours. (See ªTrip computerº (P.2-23) .)
8. Low outside temperature warningGUID-90E6D863-3B05-425C-9927-080F44CBDB15This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See ªTrip computerº (P.2-23) .)
9. SynchroRev Match mode (S-MODE)
warning
GUID-C447488B-81AA-430F-A921-D8024D24AA7AThis warning appears if a system malfunction
occurs. When the warning appears, the S-
MODE function will not operate, but the manual
transmission will operate normally and driving
can be continued. Have the system checked by
a NISSAN dealer.
10. Extended storage fuse warningGUID-2B7909ED-3C60-43BF-809C-8242216A5944This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see ªExtended
storage fuse switchº (P.8-23) .
SIC4237
MAINTENANCE INDICATORSGUID-826D2792-78BB-4DB1-9F80-E2CC7FAC9686
1. Engine oil replacement indicatorGUID-82878847-AFB9-4DB0-9035-D418FB66756DThis indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
ªTrip computerº (P.2-23) .)
2. Oil filter replacement indicatorGUID-63D34095-F93B-4620-A0A5-C319653463CBThis indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See ªTrip
computerº (P.2-23).)
3. Tire replacement indicatorGUID-E1E9DA72-EE66-4904-893A-4A123B2B1CAAThis indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See ªTrip compu-
terº (P.2-23) .)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
ªChanging wheels and tiresº (P.8-37) .
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tire
&RQGLWLRQ


> (GLW    0RGHO =' @
replacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. ªOTHERº indicatorGUID-5336AF1B-0FD8-4F35-9418-6059DEFCD648This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See ªTrip computerº
(P.2-23) .)
Models with navigation system:
More maintenance reminders are also available
on the center display. (See ªHow to use INFO
buttonº (P.4-8).)
SIC3978
TRIP COMPUTERGUID-5FADE743-F606-4123-885B-ACB05BA36CF5Switches for the trip computer are located on
the left side of the combination meter panel. To
operate the trip computer, push the switches as
shown above.
*AENTER switch
*BNEXT switch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switch*A.
Each time the
switch*Ais pushed, the
display will change as follows:
Current fuel consumption ?Average fuel
consumption and speed ?Elapsed time and trip odometer
?Distance to empty ?Outside
air temperature ?Setting ?Warning check
Instruments and controls2-23
&RQGLWLRQ


> (GLW    0RGHO =' @
2-24Instruments and controls
SIC3673
Current fuel consumption (MPG or l
(liter)/100 km)
GUID-62859DF5-F2EF-4F4F-877B-911D0BCA9AA6The current fuel consumption mode shows the
current fuel consumption.
SIC3674
Average fuel consumption (MPG or l
(liter)/100 km) and speed (MPH or km/h)
GUID-3401951A-7D1B-49AC-92C4-C5BFDC697C29
Fuel consumption:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch*B
for longer than 1 second. (The average speed is
also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows ªÐк.
Speed:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average speed mode shows the average
vehicle speed since the last reset. Resetting isdone by pushing the
switch*Bfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
ªÐк.
&RQGLWLRQ


> (GLW    0RGHO =' @
SIC4226
Elapsed time and trip odometer (MILES
or km)
GUID-ED45A6BD-153C-4500-B746-FDAA7FC98058
Elapsed time:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switch*Bfor longer than 1
second. (The trip odometer is also reset at the
same time.)
Trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second. (The
elapsed time is also reset at the same time.)
SIC3676
Distance to empty (MILES or km)GUID-6D734799-499F-4B18-B4E4-3E963CE6F39FThe distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to ªÐк.
. If the amount of fuel added is small, the
display just before the ignition switch is pushed to the OFF position may continue to
be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
Instruments and controls2-25
&RQGLWLRQ


> (GLW    0RGHO =' @
.OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
To return to the top page of the setting mode,
select ªBACKº.
OPTIONS:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The 3 option menus can be set to your
preference.
. LANGUAGE
Select this submenu to choose English or
French for display.
. UNIT
Select this submenu to choose the unit from
US or METRIC.
. EFFECTS
Select this menu to set the dial effects
described below to on or off. Ð The indicator needles sweep in the
meters when the engine is started.
To return to the top page of the setting mode,
select ªBACKº.
SIC3993
Warning checkGUID-72709829-29A0-457E-800D-B3536841F1C4To see if there are any of the following warnings
and corresponding details, select this menu.
. No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/rear hatch/trunk open warning
. Loose fuel cap warning
. Check tire pressure warning
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato move to the warning
check mode.
Instruments and controls2-27
&RQGLWLRQ
