2015 MITSUBISHI OUTLANDER III light

Instruments and controls 1-1
1
Overview
N00100202599
Instruments and controls
Combination headlights and dimmer switch P.5-171 Turn signal lever P.5-176 Front fog light switch (if so equipped) P.5-178
Steering wheel audio remote control switches P.7-27 [For DISPLAY AUDIO and MMCS, refer to the separateowner’s manuals.]
Active stability control (ASC) OFF switch P.5-90
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-33, 4-39 Horn switch P.5-184
Instrument cluster P.5-120
Windshield wiper and washer switch P.5-178 Rear window wiper and washer switch P.5-182
Cruise control switch P.5-92
Steering wheel height and reach adjustment lever P.5-53
Engine switch (if so equipped) P.5-16
Bluetooth
® 2.0 interface (if so equipped)
P.5-185
Driver’s vents P. 7 - 2
Shift paddles (if so equipped) P.5-64
Driver’s vents P. 7 - 2
Multi information display switch (if so equipped) P.5-123
Headlight leveling switch (if so equipped) P.5-176 Driver’s side power liftgate switch (if so equipped) P.5-38
Fuse box P.9-25
Lane departure warning (LDW) switch (if so equipped) P.5-112 Forward collision mitigation system (FCM) ON/OFF switch (if so equipped) P.5-109
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-39
Ignition switch (if so equipped) P.5-55
BK0211800US.book 1 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Instruments and controls
Overview 1-2
1
Audio (if so equipped) P.7-15 Mitsubishi Multi-Communication Syst
em (MMCS) (if so equipped)
[For DISPLAY AUDIO and MMCS, refer to the separate owner’s manuals.]
Hazard warning flasher switch P.5-177
Electric rear window defogger switch P.5-183 Fuel tank filler door release lever P. 3 - 3
Drive mode selector (if so equipped) P.5-75 S-AWC drive mode-selector (if so equipped) P.5-78
Selector lever P.5-60, 5-67
Parking brake lever P.5-52
Supplemental restraint system (SRS) - air bag (for front passenger’s seat) P.4-33, 4-39
Air conditioner P.7-5 Hood release lever P. 9 - 3
Floor console box P.5-215 Arm rest 12 V power outlet P.5-210 USB input terminal (if so equipped) P.5-206 Heated seat switch (if so equipped) P. 4 - 7
Cup holder P.5-217
12 V power outlet P.5-210
Power liftgate main sw
itch (if so equipped)
P.5-37
Key slot (if so equipped) P.5-25
Glove compartment P.5-214 Card holder P.5-214
Passenger’s vents P. 7 - 2
Passenger’s airbag off indicator P.4-38
Front passenger seat belt warning light P.4-22
BK0211800US.book 2 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Interior 1-3 Overview
1
N00100302314
Interior
Sun visors P.5-209 Vanity mirror P.5-209Card holder P.5-209
Supplemental restraint system (SRS) - side airbag (for front seats) P.4-44
Front seat P.4-4
Adjustable seat belt shoulder anchor P.4-23 Seat belts P.4-17
Cargo room light P.5-213, 9-32
Electric remote-controlled outside rear-view mirrors switch P.5-54
Lock switch P.5-49
Power door lock switch P.5-33
Power window switch P.5-47
Second row seat P.4-8
Third row seat (7 persons) P. 4 - 1 0
Dome light (rear) P.5-212
Inside rear-view mirror P.5-53
BK0211800US.book 3 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Interior
Overview 1-4
1

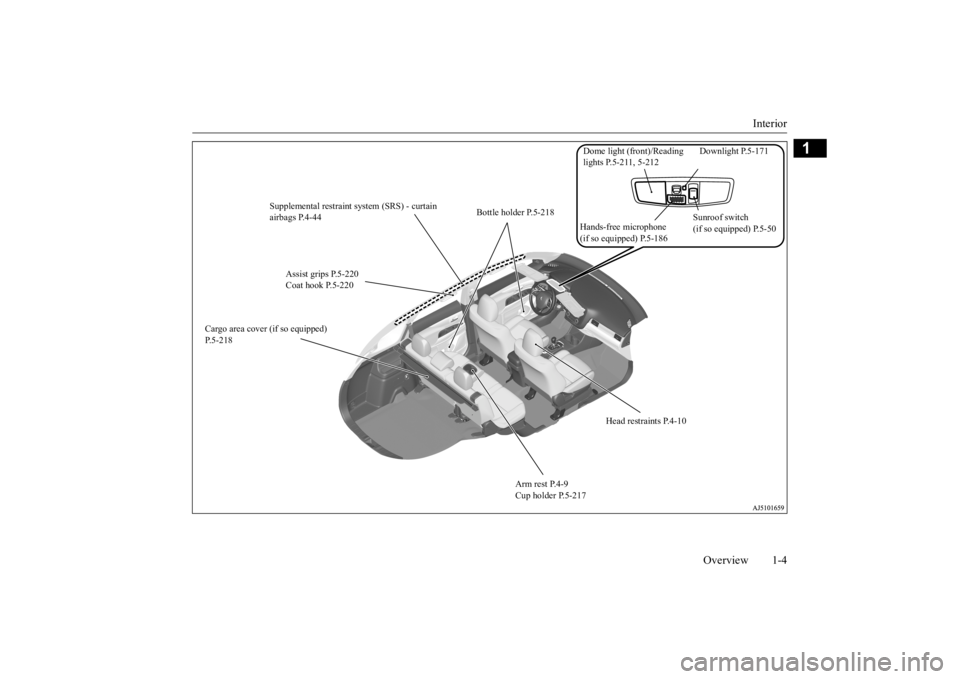

Assist grips P.5-220 Coat hook P.5-220
Bottle holder P.5-218
Sunroof switch (if so equipped) P.5-50
Head restraints P.4-10
Arm rest P.4-9 Cup holder P.5-217
Cargo area cover (if so equipped) P.5-218
Supplemental restraint system (SRS) - curtain airbags P.4-44
Dome light (front)/Reading lights P.5-211, 5-212
Downlight P.5-171
Hands-free microphone (if so equipped) P.5-186
BK0211800US.book 4 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Outside (Front)
Overview 1-6
1
N00100602476
Outside (Front)
Sunroof (if so equipped) P.5-50
Windshield wipers P.5-178 Engine hood P.9-3
Front fog lights (if so equipped) P.5-178, 9-30, 9-35 Daytime running lights (if so equipped) P. 5-171, 9-30, 9-35
Outside rear-view mirrors P.5-54 Side turn-signal lights (if so equipped) P.5-176, 9-30, 9-35 Fuel tank filler P.3-3
Power window P.5-47
Front turn-signal lights P.5-176, 9-30, 9-35
Front turn signal lights P.5-176, 9-30, 9-35
Headlights, low beam P.5-174, 9-30, 9-33 Parking lights P.5-171, 9-30, 9-34
Headlights, low beam/Daytime running lights P.5-171, 5-174,9-30, 9-32
Parking lights P.5-171, 9-30, 9-34
Headlights, high beam P.5-174, 9-30, 9-33 Headlights, high beam P.5-174, 9-30, 9-33 Except for high intensity discharge headlights
type High intensity discharge headlights type
Front side-marker lights P.5-171, 9-30, 9-33
Front side-marker lights P.5-171, 9-30, 9-33
BK0211800US.book 6 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Outside (Rear) 1-7 Overview
1
N00100602489
Outside (Rear)
Keyless entry system (if so equipped) P.5-7, 5-28 F.A.S.T.-key (Free-hand Advanced Se
curity Transmitter)
(if so equipped)
P.5-12Locking and unlocking P.5-31
Tire P.9-14 Tire pressure monitoring sys- tem P.5-114Tire inflation pressures P.9-18Changing tires P.8-6 Tire rotation P.9-20 Tire chains P.9-21Size of tires and wheels P.11-7
Tail and stop lights P.5-171, 9-30, 9-36
Rear turn signal lights P.5-176, 9-30, 9-36
Spare tire P.8-7
Back-up lights P.9-30, 9-37
License plate lights P.5-171, 9-30, 9-38
Rear-view camera (if so equipped) P. 5 - 1 1 8
Rear window wiper P.5-182
High-mounted stop light P.9-30
Antenna P.7-47
Liftgate (if so equipped) P.5-35 Power liftgate (if so equipped) P.5-36
Power liftgate close switch (if so equipped) P.5-38
Rear side-marker lights P.5-171, 9-30
BK0211800US.book 7 ページ ２０１４年３月１２日　水曜日　午後２時４２分

2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702159
If this warning light comes on
or flashes while you’re driving...
NOTE
For information regarding warning
displays in the multi-information display (Color
liquid crystal display
type), refer to “Mult
i-information display” on
page 5-122.  These warning lights will co
me on for a few seconds for a bulb check when the i
gnition switch is
first turned to “ON” or the op
eration mode is put in ON.
Wa rn in g l ig h t s
Do this
Ref. Page
Charging system warning light
 Park your vehicle in a safe
place and stop the engine.
Contact your Mitsubishi Motors dealer or a re
pair facility of your choice for assis-
tance.
P. 5-168
Oil pressure warning light
(Vehicles equipped with mono-color
liquid crystal display)
 Park your vehicle in a safe
place and stop the engine, then check the engine oil
level. If the light comes on while the engine oil le
vel is normal, have the system checked
at an authorized Mitsubishi
Motors dealer or a repair fa
cility of your choice as soon
as possible.
P. 5-168
or
Brake warning light
 If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after
releasing the parking brake,
immediately stop and check
the brake fluid level.  If the brake fluid level is correct, there
may be a system malfunction. Avoid hard
braking and high speed, and contact an au
thorized Mitsubishi Mo
tors dealer or a
repair facility of your
choice for assistance.
P. 5-167
BK0211800US.book 1 ページ ２０１４年３月１２日　水曜日　午後２時４２分

If this warning light comes on or flashes while you’re driving... 2-2 Quick index
2
Selector lever position indicator in the instrument cluster flashes rapidly
(once per second)
(Vehicles equipped with mono-color
liquid crystal display)
 Park your vehicle in a safe place. Idle the engine until the selector le
ver position indicato
r stops flashing.
If the indicator does not go off, have the
system checked at an
authorized Mitsubi-
shi Motors dealer or a repair facili
ty of your choice as soon as possible.
P. 5-62, 5-69
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
 Although your vehicle will usually be dr
ivable and not need towing, have the
engine system checked at an authorized Mi
tsubishi Motors dealer
or a repair facility
of your choice as soon as possible. If the
vehicle is not drivab
le, contact emergency
roadside assistance at 1-888-648-7820 (for
vehicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an aut
horized Mitsubishi Moto
rs dealer, or local
towing company for assistance.
P. 5-167
Electric power stee
ring system (EPS)
warning light
(Vehicles equipped with mono-color
liquid crystal display)
 If this light comes on while the engine is
running, it may become harder to turn the
steering wheel. Have your ve
hicle inspected at an aut
horized Mitsubishi Motors
dealer or a repair facility of
your choice as soon as possible.
P. 5-88
Warning lights
Do this
Ref. Page
BK0211800US.book 2 ページ ２０１４年３月１２日　水曜日　午後２時４２分
