2015 MITSUBISHI ASX headlamp

Instruments and controlsE001001086631. Combination headlamps and dipper switch p. 5-48Turn-signal lever p. 5-55
Front fog lamp switch* p. 5-56
Rear fog lamp switch p. 5-56
Headlamp washer switch* p. 5-62
2. Instruments p. 5-02
3. Shift paddles* p. 6-36
4. Windscreen wiper and washer switch p. 5-57 Rear window wiper and washer switch p. 5-61
5. Engine switch* p. 3-13
6. Cruise control switch* p. 6-54
7. Ignition switch* p. 6-12
8. Supplemental restraint system - driver’s knee airbag* p. 4-29
9. Supplemental restraint system - airbag (for driver’s seat) p. 4-24, 4-29
Horn switch p. 5-63
10. Tilt & Telescopic steering lever p. 6-08
11. Bluetooth® 2.0 interface* p. 7-48
12. Steering wheel audio remote control switches* p. 7-24
13. Sonar switch* p. 6-66
14. Active stability control (ASC) OFF switch* p. 6-52
15. Headlamp levelling switch* p. 5-54
16. Auto Stop & Go (AS&G) OFF switch* p. 6-22
Instruments and controls
1-02OGAE15E5Overview11516
13
14 1
2
34
5 6
7
8
9
10
11
12
LHD

1. Instruments p. 5-02
2. Combination headlamps and dipper switch p. 5-48 Turn-signal lever p. 5-55
Front fog lamp switch* p. 5-56
Rear fog lamp switch p. 5-56
Headlamp washer switch* p. 5-62
3. Auto Stop & Go (AS&G) OFF switch* p. 6-22
4. Headlamp levelling switch* p. 5-54
5. Active stability control (ASC) OFF switch* p. 6-52
6. Sonar switch* p. 6-66
7. Cruise control switch* p. 6-54
8. Supplemental restraint system - airbag (for driver’s seat) p. 4-24, 4-29
Horn switch p. 5-63
9. Ignition switch* p. 6-12
10. Supplemental restraint system - driver’s knee airbag* p. 4-29
11. Bluetooth® 2.0 interface* p. 7-48
12. Steering wheel audio remote control switches* p. 7-24
13. Tilt & Telescopic steering lever p. 6-08
14. Engine switch* p. 3-13
15. Windscreen wiper and washer switch p. 5-57 Rear window wiper and washer switch p. 5-61
16. Shift paddles* p. 6-36
Instruments and controls
1-03OGAE15E5Overview12
1
16
15
14 13
12 11 10 98
7 5
6
3
4
RHD

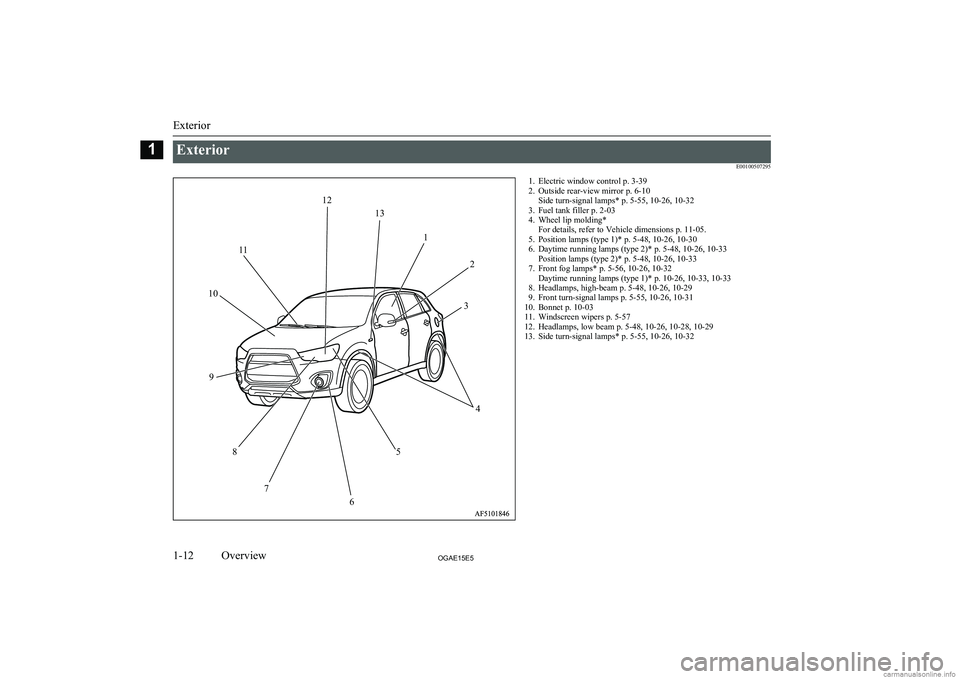

ExteriorE001005072951. Electric window control p. 3-392. Outside rear-view mirror p. 6-10 Side turn-signal lamps* p. 5-55, 10-26, 10-32
3. Fuel tank filler p. 2-03
4. Wheel lip molding* For details, refer to Vehicle dimensions p. 11-05.
5. Position lamps (type 1)* p. 5-48, 10-26, 10-30
6. Daytime running lamps (type 2)* p. 5-48, 10-26, 10-33 Position lamps (type 2)* p. 5-48, 10-26, 10-33
7. Front fog lamps* p. 5-56, 10-26, 10-32 Daytime running lamps (type 1)* p. 10-26, 10-33, 10-33
8. Headlamps, high-beam p. 5-48, 10-26, 10-29
9. Front turn-signal lamps p. 5-55, 10-26, 10-31
10. Bonnet p. 10-03
11. Windscreen wipers p. 5-57
12. Headlamps, low beam p. 5-48, 10-26, 10-28, 10-29
13. Side turn-signal lamps* p. 5-55, 10-26, 10-32
Exterior
1-12OGAE15E5Overview112
3
4
5
6
7
8
9
10
11 12
13

NOTElThe outside rear-view mirrors cannot be fol-
ded or extended using the remote control
switch in the following conditions:
• The key is left in the ignition switch.
• A door or the tailgate is open or ajar.
l The remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is located near a power station, or radio/TV
broadcasting station.
l If either of the following problems occurs,
the battery may be exhausted.
• The remote control switch is operated at
the correct distance from the vehicle, but
the doors and tailgate are not locked/ unlocked in response.
• The indication lamp (3) is dim or does not
come on.

For further information, please contact your MITSUBISHI MOTORS Authorized
Service Point.
If you replace the battery yourself, refer to
“Procedure for replacing the remote con-
trol switch battery” on page 3-06.
l If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.NOTEl If you wish to add a remote control switch,
we recommend you to contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
A maximum of 8 remote control switches
are available for your vehicle.Setting of door and tailgate un-
lock function (Except for vehi- cles equipped with a Dead
Lock System)
E00310300257
The door and tailgate unlock function can be set to the following two conditions.
Each time the door and tailgate unlock func-
tion is set, a chime will sound to tell you the
condition of the door and tailgate unlock function.
Number of
chimesConditionOne chimeAll doors and the tailgate un-lockTwo chimesDriver’s door unlock only
1. Remove the key from the ignition
switch.
2. Place the combination headlamps and
dipper switch in the “OFF” position, and leave the driver’s door open.
3. Press and hold the LOCK switch (1) for
4 to 10 seconds and then also press the
UNLOCK switch (2) during this time.
4. Release in sequence the LOCK and UN-
LOCK switches within 10 seconds of pressing the LOCK switch in step 3.Procedure for replacing the re-
mote control switch battery
E00309501272
1. Before replacing the battery, remove
static electricity from your body bytouching a metal part such as a doorknob
of the room.
WARNINGl Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an equivalent type.CAUTIONl When the remote control switch case is
opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-
nents.
Keyless entry system*
3-06OGAE15E5Locking and unlocking3

NOTElIf your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.
l If you wish to add a remote control switch,
please contact your MITSUBISHI
MOTORS Authorized Service Point. A max-
imum of 4 remote control switches are avail- able for your vehicle.Setting of door and tailgate un-
lock function (Except for vehi- cles equipped with a Dead LockSystem)
E00310400304
The door and tailgate unlock function can be set to the following two conditions.
Each time the door and tailgate unlock func-
tion is set, a chime will sound to tell you the
condition of the door and tailgate unlock function.
Number of
chimesConditionOne chimeAll doors and the tailgate un-lockTwo chimesDriver’s door unlock only
1. Put the operation mode in OFF.
2. Place the combination headlamps and
dipper switch in the “OFF” position, and leave the driver’s door open.
3. Press and hold the LOCK switch (1) for
4 to 10 seconds and then also press the
UNLOCK switch (2) during this time.
4. Release in sequence the LOCK and UN-
LOCK switches within 10 seconds of pressing the LOCK switch in step 3.Procedure for replacing the re-
mote control switch battery
E00309601114
1. Before replacing the battery, remove
static electricity from your body bytouching a metal part such as doorknob
of the room.
WARNINGl Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an
equivalent type.CAUTIONl When the remote control switch case is
opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-
nents.NOTEl You may purchase a replacement battery at
an electric appliance store.
l A
MITSUBISHI MOTORS Authorized
Service Point can replace the battery for you
if you prefer.
2. With the MITSUBISHI mark facing
you, insert the cloth covered tip of a
straight blade (or minus) screwdriver in-
to the notch in the remote control switch
case and use it to open the case.
NOTEl Be sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the remote control switch case, the transmitter may come out.
3. Remove the old battery.
Keyless operation system*
3-24OGAE15E5Locking and unlocking3

Instruments.......................................................................................... 5-02
Multi-information display................................................................... 5-03 Indication lamp, warning lamp, and information screen display list....................................................................................... 5-26
Indication lamps.................................................................................. 5-44
Warning lamps.................................................................................... 5-45
Information screen display.................................................................. 5-46
Combination headlamps and dipper switch........................................ 5-48
Headlamp levelling............................................................................. 5-54
Turn-signal lever................................................................................. 5-55
Hazard warning flasher switch............................................................5-55 Fog lamp switch.................................................................................. 5-56
Wiper and washer switch.................................................................... 5-57
Rear window demister switch............................................................. 5-63
Horn switch......................................................................................... 5-63Instruments and controls
OGAE15E55

Information screen display list
E00523900233
When there is information to be announced, such as lamp reminders, a sound is emitted and the screen switches to the displays shown below.
Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (when the ignition switch or the operation mode is OFF)” on page 5-28.
Refer to “Warning display list (when the ignition switch or the operation mode is ON)” on page 5-32.
Refer to “Other interrupt displays” on page 5-40.
NOTEl A warning may be displayed on the information screen and the buzzer may sound in the following rare cases.
This is caused by the system picking up interference such as noise or strong electromagnetic waves, and is not a functional problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of installed electrical equipment (including after-market parts).
If the warning display appears many times, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

Warning display list (when the ignition switch or the operation mode is OFF)
E00524000983
Screen type 1Screen type 2CauseSolution (Reference)l You have forgotten to turn off
the lamps.l Refer to “Lamps (headlamps,
fog lamp, etc.) auto-cutout
function” on page 5-48.
Indication lamp, warning lamp, and information screen display list
5-28OGAE15E5Instruments and controls5

Oil pressure warning display
E00524900214
Type 1Type 2
If the engine oil pressure drops while the en-gine is running, the warning display is dis-
played on the information screen in the multi- information display.
CAUTIONl If the vehicle is driven while the engine oil
is low, or the oil level is normal but the
warning is displayed, the engine may burn out and be damaged.
l If the warning is displayed while the engine
is running, immediately park your vehicle in
a safe place and check the engine oil level.
l If the warning is displayed while the engine
oil level is normal, have it inspected.Engine oil level warning dis-
play*
E00526700072
Type 1Type 2
When the ignition switch or the operation mode is in ON, if it is suspected that the en-
gine oil level has increased excessively, the warning display is displayed on the informa-
tion screen in the multi-information display.
CAUTIONl If this warning is displayed while driving,
stop the vehicle in a safe place, turn off the engine, and check the engine oil level.
Refer to “Engine oil” on page 10-05.NOTEl Immediately have your vehicle checked by a
MITSUBISHI MOTORS Authorized Serv-
ice Point.Combination headlamps
and dipper switch E00506003588
Headlamps
NOTElWhen entering a country in which vehicles
are driven on the opposite side of the road tothe country in which your vehicles is sup- plied, necessary measures have to be takento avoid dazzling oncoming traffic. Howev-
er, headlamps on this vehicle do not need any adjustment.
l Do not leave the lights on for a long time
while the engine is stationary (not running).A rundown battery could result.
l When it rains, or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy, but this does not indicate a functional problem.
When the lamp is switched on, the heat will
remove the fog. However, if water gathers
inside the lamp, we recommend you to have it checked.
Combination headlamps and dipper switch
5-48OGAE15E5Instruments and controls5
