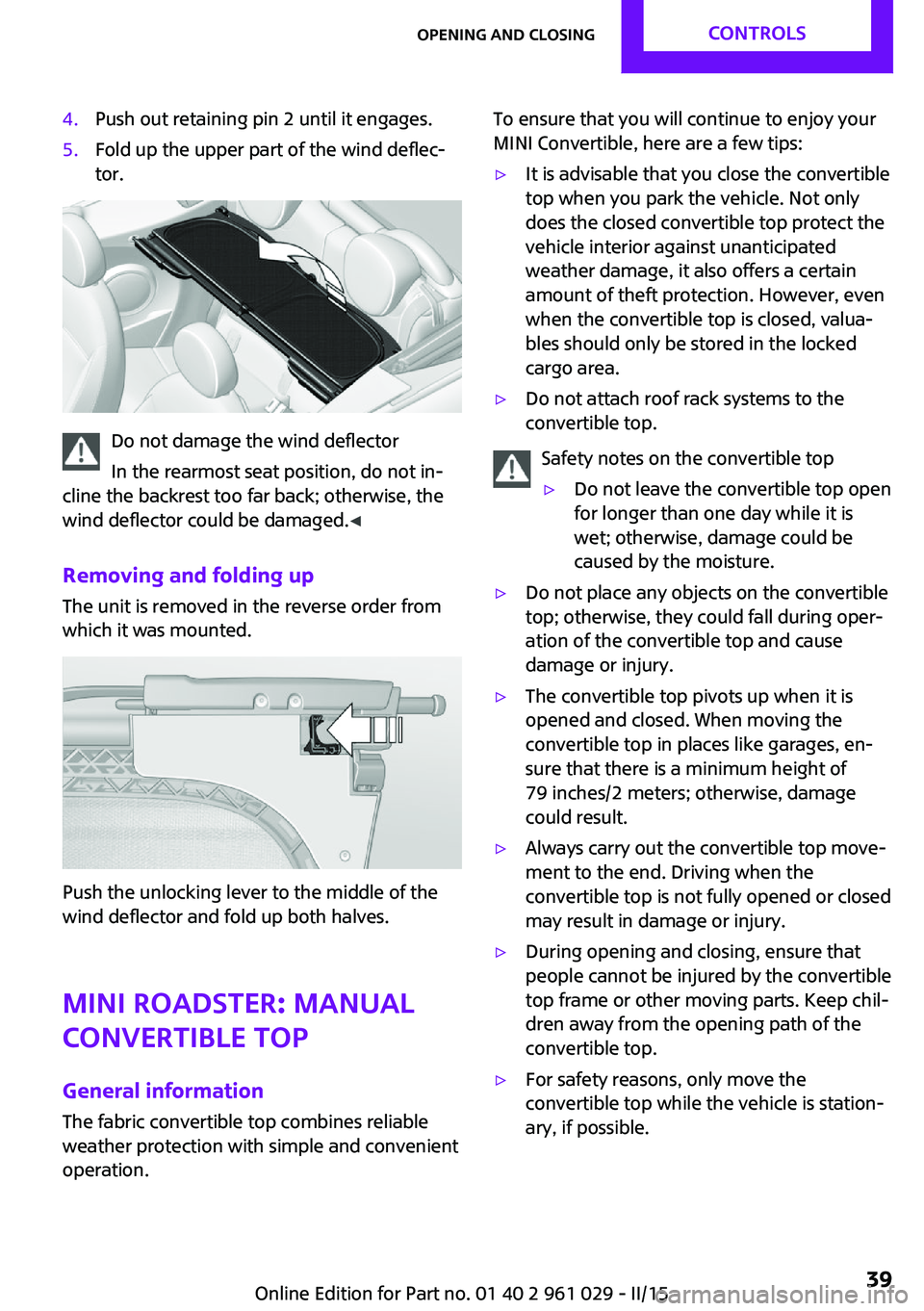

4.Push out retaining pin 2 until it engages.5.Fold up the upper part of the wind deflec‐
tor.
Do not damage the wind deflector
In the rearmost seat position, do not in‐
cline the backrest too far back; otherwise, the
wind deflector could be damaged. ◀
Removing and folding up
The unit is removed in the reverse order from
which it was mounted.
Push the unlocking lever to the middle of the
wind deflector and fold up both halves.
MINI Roadster: manual
convertible top
General information The fabric convertible top combines reliable
weather protection with simple and convenient
operation.
To ensure that you will continue to enjoy your
MINI Convertible, here are a few tips:▷It is advisable that you close the convertible
top when you park the vehicle. Not only
does the closed convertible top protect the
vehicle interior against unanticipated
weather damage, it also offers a certain
amount of theft protection. However, even
when the convertible top is closed, valua‐
bles should only be stored in the locked
cargo area.▷Do not attach roof rack systems to the
convertible top.
Safety notes on the convertible top
▷Do not leave the convertible top open
for longer than one day while it is
wet; otherwise, damage could be
caused by the moisture.▷Do not place any objects on the convertible
top; otherwise, they could fall during oper‐
ation of the convertible top and cause
damage or injury.▷The convertible top pivots up when it is
opened and closed. When moving the
convertible top in places like garages, en‐
sure that there is a minimum height of
79 inches/2 meters; otherwise, damage
could result.▷Always carry out the convertible top move‐
ment to the end. Driving when the
convertible top is not fully opened or closed
may result in damage or injury.▷During opening and closing, ensure that
people cannot be injured by the convertible
top frame or other moving parts. Keep chil‐
dren away from the opening path of the
convertible top.▷For safety reasons, only move the
convertible top while the vehicle is station‐
ary, if possible.Seite 39Opening and closingCONTROLS39
Online Edition for Part no. 01 40 2 961 029 - II/15

▷Do not place any objects on the convertible
top; otherwise, they could fall during oper‐
ation of the convertible top and cause
damage or injury. ◀
Opening
1.Fold out the handle and turn it all the way
to the end, arrow.2.Push the unlocked convertible top upward
at the handle and open it about a hand's
width.3.Exit the vehicle.4.Guide the convertible top to the rear.5.Push down on the convertible top with
some momentum until it engages audibly.Closing1.Switch the ignition on so that the windows
can be slightly lowered automatically. Re‐
move the wind deflector if necessary.2.Press button 1.
The convertible top is unlocked and moves
up slightly.3.Exit the vehicle.4.Guide the convertible top forward.5.Pull the convertible top onto the windshield
frame.6.Turn the handle clockwise until it engages
audibly.
The convertible top is locked.
If the convertible top was open for a
lengthy period, it may be necessary to ap‐
ply greater force when locking the top.7.Fold the handle back in.
MINI Roadster: semi-auto‐
matic convertible top
General information
The fabric convertible top combines reliable
weather protection with simple and convenient
operation.
To ensure that you will continue to enjoy your
MINI Convertible, here are a few tips:
▷It is advisable that you close the convertible
top when you park the vehicle. Not only
does the closed convertible top protect theSeite 40CONTROLSOpening and closing40
Online Edition for Part no. 01 40 2 961 029 - II/15

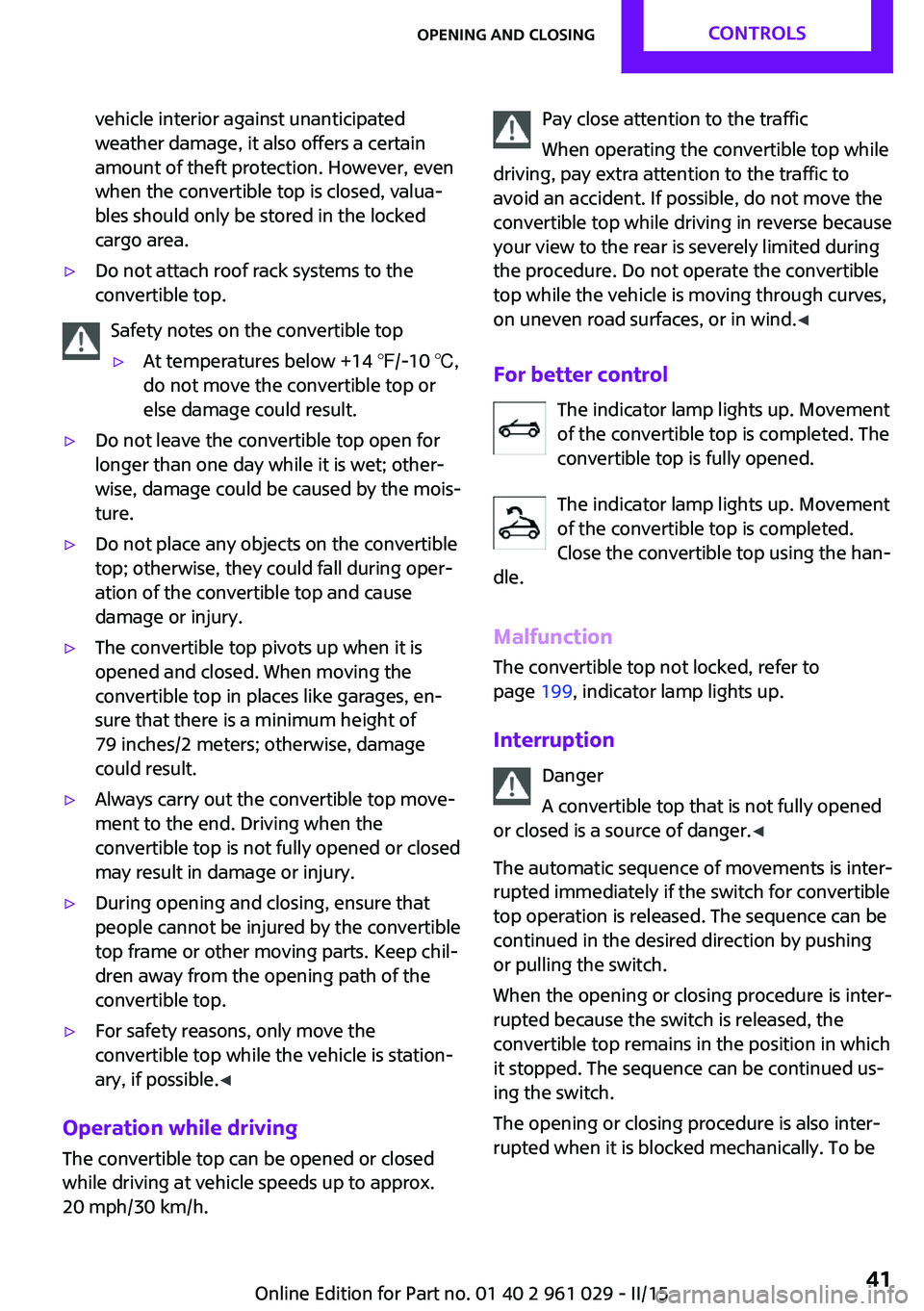

vehicle interior against unanticipated
weather damage, it also offers a certain
amount of theft protection. However, even
when the convertible top is closed, valua‐
bles should only be stored in the locked
cargo area.▷Do not attach roof rack systems to the
convertible top.
Safety notes on the convertible top
▷At temperatures below +14 ℉/-10 ℃,
do not move the convertible top or
else damage could result.▷Do not leave the convertible top open for
longer than one day while it is wet; other‐
wise, damage could be caused by the mois‐
ture.▷Do not place any objects on the convertible
top; otherwise, they could fall during oper‐
ation of the convertible top and cause
damage or injury.▷The convertible top pivots up when it is
opened and closed. When moving the
convertible top in places like garages, en‐
sure that there is a minimum height of
79 inches/2 meters; otherwise, damage
could result.▷Always carry out the convertible top move‐
ment to the end. Driving when the
convertible top is not fully opened or closed
may result in damage or injury.▷During opening and closing, ensure that
people cannot be injured by the convertible
top frame or other moving parts. Keep chil‐
dren away from the opening path of the
convertible top.▷For safety reasons, only move the
convertible top while the vehicle is station‐
ary, if possible. ◀
Operation while driving
The convertible top can be opened or closed
while driving at vehicle speeds up to approx.
20 mph/30 km/h.
Pay close attention to the traffic
When operating the convertible top while
driving, pay extra attention to the traffic to
avoid an accident. If possible, do not move the
convertible top while driving in reverse because
your view to the rear is severely limited during
the procedure. Do not operate the convertible
top while the vehicle is moving through curves,
on uneven road surfaces, or in wind. ◀
For better control The indicator lamp lights up. Movement
of the convertible top is completed. The
convertible top is fully opened.
The indicator lamp lights up. Movement
of the convertible top is completed.
Close the convertible top using the han‐
dle.
Malfunction The convertible top not locked, refer to
page 199, indicator lamp lights up.
Interruption Danger
A convertible top that is not fully opened
or closed is a source of danger. ◀
The automatic sequence of movements is inter‐
rupted immediately if the switch for convertible top operation is released. The sequence can be
continued in the desired direction by pushing
or pulling the switch.
When the opening or closing procedure is inter‐
rupted because the switch is released, the
convertible top remains in the position in which
it stopped. The sequence can be continued us‐
ing the switch.
The opening or closing procedure is also inter‐
rupted when it is blocked mechanically. To beSeite 41Opening and closingCONTROLS41
Online Edition for Part no. 01 40 2 961 029 - II/15

able to reactivate the convertible top in this
case:1.Switch the ignition off and on again.2.Press the switch to continue the sequence
in the desired direction.
Opening and closing the convertible top
Switch on the radio ready state or the ignition, refer to page 56.
If possible, conserve the battery by only operat‐
ing the convertible top while the engine is run‐
ning.
Before closing the convertible top, remove all
foreign objects from the windshield frame that
could prevent the top from closing properly.
Opening
1.Fold out the handle and turn it all the way
to the end, arrow.2.Push the unlocked convertible top upward
at the handle and open it about a hand's
width.3.Press the switch back to open the
convertible top. The windows opens during
this procedure.
Closing
1.Press the switch forward.2.Pull the convertible top onto the windshield
frame.3.Turn the handle clockwise until it engages
audibly.
The convertible top is locked.
If the convertible top was open for a
lengthy period, it may be necessary to ap‐
ply greater force when locking the top.4.Fold the handle back in.5.Close the windows if necessary.
Manual closing in case of electrical
malfunction
Only close the convertible top manually if
there is an electrical malfunction
Only close the convertible top manually if this is
absolutely necessary; never open it manually.
Damage may occur if incorrectly operated. The
closing procedure must be fully completed;
otherwise, there is a risk of injury or damage. ◀
Before closing
Lower the side windows slightly, switch off the
engine, and switch off the ignition.
1.Take out the cover plate, refer to
page 107.Seite 42CONTROLSOpening and closing42
Online Edition for Part no. 01 40 2 961 029 - II/15

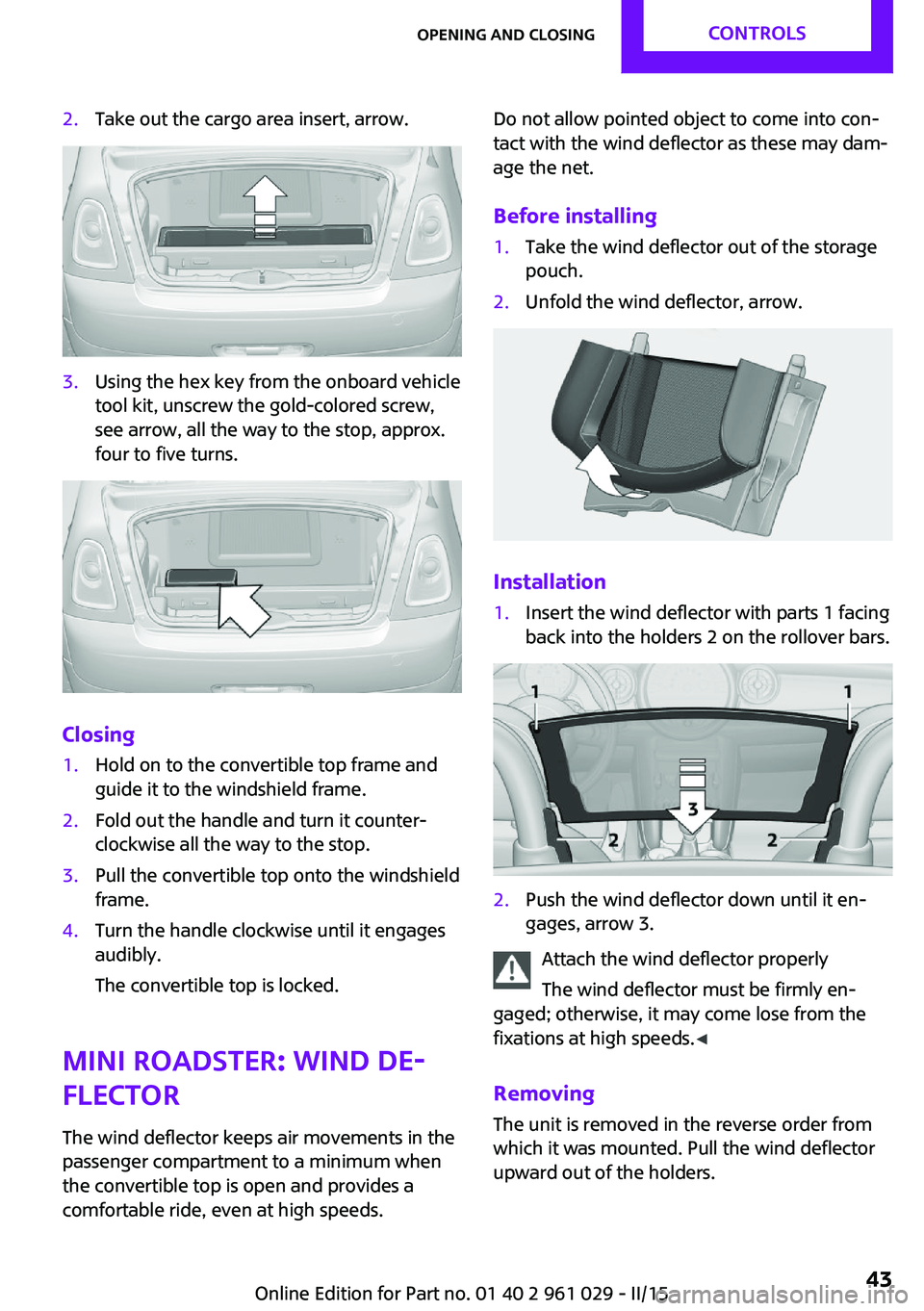

2.Take out the cargo area insert, arrow.3.Using the hex key from the onboard vehicle
tool kit, unscrew the gold-colored screw,
see arrow, all the way to the stop, approx.
four to five turns.
Closing
1.Hold on to the convertible top frame and
guide it to the windshield frame.2.Fold out the handle and turn it counter‐
clockwise all the way to the stop.3.Pull the convertible top onto the windshield
frame.4.Turn the handle clockwise until it engages
audibly.
The convertible top is locked.
MINI Roadster: wind de‐
flector
The wind deflector keeps air movements in the
passenger compartment to a minimum when
the convertible top is open and provides a
comfortable ride, even at high speeds.
Do not allow pointed object to come into con‐
tact with the wind deflector as these may dam‐
age the net.
Before installing1.Take the wind deflector out of the storage
pouch.2.Unfold the wind deflector, arrow.
Installation
1.Insert the wind deflector with parts 1 facing
back into the holders 2 on the rollover bars.2.Push the wind deflector down until it en‐
gages, arrow 3.
Attach the wind deflector properly
The wind deflector must be firmly en‐
gaged; otherwise, it may come lose from the
fixations at high speeds. ◀
Removing The unit is removed in the reverse order from
which it was mounted. Pull the wind deflector
upward out of the holders.
Seite 43Opening and closingCONTROLS43
Online Edition for Part no. 01 40 2 961 029 - II/15

Storage
Fold up the wind deflector 1 and slide it into
the storage pouch 2.
The wind deflector can be stored on the rear
storage shelf behind the seats, refer to
page 111.
Seite 44CONTROLSOpening and closing44
Online Edition for Part no. 01 40 2 961 029 - II/15

AdjustingVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series. Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
When using the features and systems described
here, adhere to local regulations.
Sitting safely
The ideal seating position can make a vital con‐
tribution to relaxed, fatigue-free driving.
The seating position plays an important role in
an accident in combination with:▷Safety belts, refer to page 47.▷Head restraints, refer to page 48.▷Airbags, refer to page 81.
Seats
Note before adjusting Do not adjust the seat while driving
Never attempt to adjust the driver's seat
while driving. The seat could respond with un‐
expected movement and the ensuing loss of
vehicle control could lead to an accident. ◀
Do not incline the backrest too far to the
rear
Do not incline the backrest on the front passen‐
ger side too far to the rear during driving. Oth‐
erwise, there is the danger of sliding under the
safety belt in an accident. This would eliminate
the protection normally provided by the belt. ◀
Seat adjustment Forward/backward
Pull the lever, arrow 1, and slide the seat into
the desired position, arrows 2.
After releasing the lever, move the seat forward
or back slightly to make sure it engages prop‐
erly.
Height
Pull the lever up or push it down repeatedly, ar‐
rows 1, until the desired height is reached, ar‐
rows 2.
Seite 45AdjustingCONTROLS45
Online Edition for Part no. 01 40 2 961 029 - II/15

Backrest tilt
Pull the lever, arrow 1, and apply your weight
to the backrest or lift it off, as necessary, ar‐
rows 2.
Lumbar support
You can also adjust the contour of the backrest
to obtain additional support in the lumbar re‐
gion.
The upper hips and spinal column receive sup‐
plementary support to help you maintain a re‐
laxed, upright sitting position.
Turn the wheel to increase or decrease the cur‐
vature.
Entry in the rear
MINI Convertible: entry in the rear.
MINI Coupe, MINI Roadster: access to the rear
storage shelf.
1.Pull the lever on the back of the seat up‐
ward, arrow 1.
The backrest folds forward.2.Push against the backrest to move the seat
forward, arrow 2.
Restoring the original seat position
The driver's seat has a mechanical memory
function for the forward/backward seat setting and the backrest setting.
1.Push the seat back to the original position.
Do not fold back the backrest until the seat
is in its original position; otherwise, the seat
will engage in its current position. If this
happens, adjust the forward/backward po‐
sition manually, refer to page 45.2.Fold back the backrest to lock the seat.
Note the following when moving back the
seat
When moving back the seat, ensure that per‐
sons cannot be injured and objects cannot be
damaged. Lock the front seats and front back‐
rests before driving away; otherwise, there is
the risk of an accident if the seat or backrest
moves unexpectedly. ◀
Seite 46CONTROLSAdjusting46
Online Edition for Part no. 01 40 2 961 029 - II/15
