2015 MERCEDES-BENZ M-Class wiper fluid

BAS PLUS (Brake Assist System
PLUS)
.................................................... 69
Battery (SmartKey) Checking .......................................... 83
Important safety notes .................... 83
Replacing ......................................... 83
Battery (vehicle)
Charging ........................................ 389
Display message ............................ 301
Important safety notes .................. 387
Jump starting ................................. 391
Overview ........................................ 387
Belt
see Seat belts
Blind Spot Assist
Activating/deactivating ................. 276
Display message ............................ 308
Notes/function .............................. 237
Trailer towing ................................. 239
see Active Blind Spot Assist
BlueTEC
Adding DEF .................................... 180
BlueTEC (DEF) .................................... 451
Brake Assist see BAS (Brake Assist System)
Brake fluid
Display message ............................ 291
Notes ............................................. 453
Brake lamps
Changing bulb s.............................. 132
Display message ............................ 298
Brakes
ABS .................................................. 68
Adaptive Brake Assist ...................... 71
BAS .................................................. 68
BAS PLUS ........................................ 69
Brake fluid (notes) ......................... 453
Display message ............................ 285
High-performance brake system .... 189
Important safety notes .................. 188
Maintenance .................................. 189
Parking brake ................................ 184
Riding tips ...................................... 188
Warning lamp ................................. 320
Breakdown
see Flat tire
see Towing away Brightness control (instrument
cluster lighting)
................................... 35
Bulbs see Replacing bulbs C
California Important notice for retail cus-
tomers and lessees .......................... 26
Calling up a malfunction
see Display messages
Car
see Vehicle
Care
360° camera ................................. 376
Carpets .......................................... 379
Car wash ........................................ 372
Displa y........................................... 377
Exhaust pipe .................................. 376
Exterior lights ................................ 375
Gear or selector lever .................... 378
Interior ........................................... 377
Matte finish ................................... 374
Night View Assist Plus ................... 377
Notes ............................................. 371
Paint .............................................. 373
Plastic trim .................................... 378
Power washe r................................ 373
Rear view camera .......................... 376
Roof lining ...................................... 379
Seat belt ........................................ 379
Seat cover ..................................... 378
Sensors ......................................... 375
Steering wheel ............................... 378
Trim pieces .................................... 378
Washing by hand ........................... 373
Wheels ........................................... 374
Windows ........................................ 375
Wiper blades .................................. 375
Wooden trim .................................. 378
Cargo compartment cover
Notes/how to use ......................... 340
Cargo compartment enlargement
Important safety notes .................. 337
Cargo compartment floor
Opening/closing ............................ 344
Stowage well (under )..................... 344 6
Index

Wheel and tire combination
see Tires
Wheel bolt tightening torque ........... 428
Wheel chock ...................................... 424
Wheels Changing a wheel .......................... 423
Checking ........................................ 401
Cleaning ......................................... 374
Cleaning (warning) ........................ .424
Emergency spare wheel ................. 440
Important safety notes .................. 400
Interchanging/changing ................ 423
Mounting a new wheel ................... 427
Mounting a wheel .......................... 424
Overview ........................................ 400
Removing a wheel .......................... 427
Storing .......................................... .424
Tightening torque ........................... 428
Wheel size/tire size ....................... 428
Window curtain air bag
Display message ............................ 294
Operation ......................................... 52
Windows
see Side windows
Windshield
Defrosting ...................................... 149
Infrared reflective .......................... 364
Windshield washer fluid
see Windshield washer system
Windshield washer system
Adding washer fluid ....................... 370
Notes ............................................. 454
Windshield wipers
Problem (malfunction) ................... 136
Rear window wiper ........................ 133
Replacing the wiper blades ............ 133
Switching on/off ........................... 132
Winter driving
Slippery road surfaces ................... 190
Snow chains .................................. 403
Winter operation
General notes ................................ 402
Overview ........................................ 402
Radiator cover ............................... 367
Snow drive program ....................... 248
Winter tires
M+S tires ....................................... 402 Wiper blades
Cleaning ......................................... 375
Important safety notes .................. 133
Replacing ....................................... 133
Replacing (rear window) ................ 134
Replacing (windshield )................... 134
Wooden trim (cleaning instruc-
tions) .................................................. 378
Workshop see Qualified specialist workshop Z
ZONE function Switching on/of f........................... 149 Index
23

The hazard warning lamps automatically
switch on if:
R an air bag is deployed or
R the vehicle decelerates rapidly from a
speed of above 45 mph (70 km/h) and
comes to a standstill
The hazard warning lamps switch off auto-
matically if the vehicle reaches a speed of
above 6 mph (10 km/h) again after a full
brake application.
i The hazard warning lamps still operate if
the ignition is switched off. Headlamp cleaning system
The headlamps are cleaned automatically if
the "Wipe with washer fluid" function is oper- ated five times (Y page 132) while the lights
are on and the engine is running. When you
switch off the ignition, the automatic head-
lamp cleaning system is reset and counting is
resumed from 0. Active light function
The active light function is a system that
moves the headlamps according to the steer-
ing movements of the front wheels. In this
way, relevant areas remain illuminated while
driving. This allows you to recognize pedes-
trians, cyclists and animals.
Active: when the lights are switched on. Cornering light function
The cornering light function improves the illu-
mination of the road over a wide angle in the direction you are turning, enabling better vis-
ibility in tight bends, for example. It can only
be activated when the low-beam headlamps
are switched on.
Active:
R if you are driving at speeds below 25 mph
(40 km/h) and switch on the turn signal or
turn the steering wheel
R if you are driving at speeds between
25 mph (40 km/ h)and 45 mph (70 km/h)
and turn the steering wheel
The cornering lamp may remain lit for a short
time, but is automatically switched off after
no more than three minutes. Exterior lighting
125Lights and windshield wipers Z

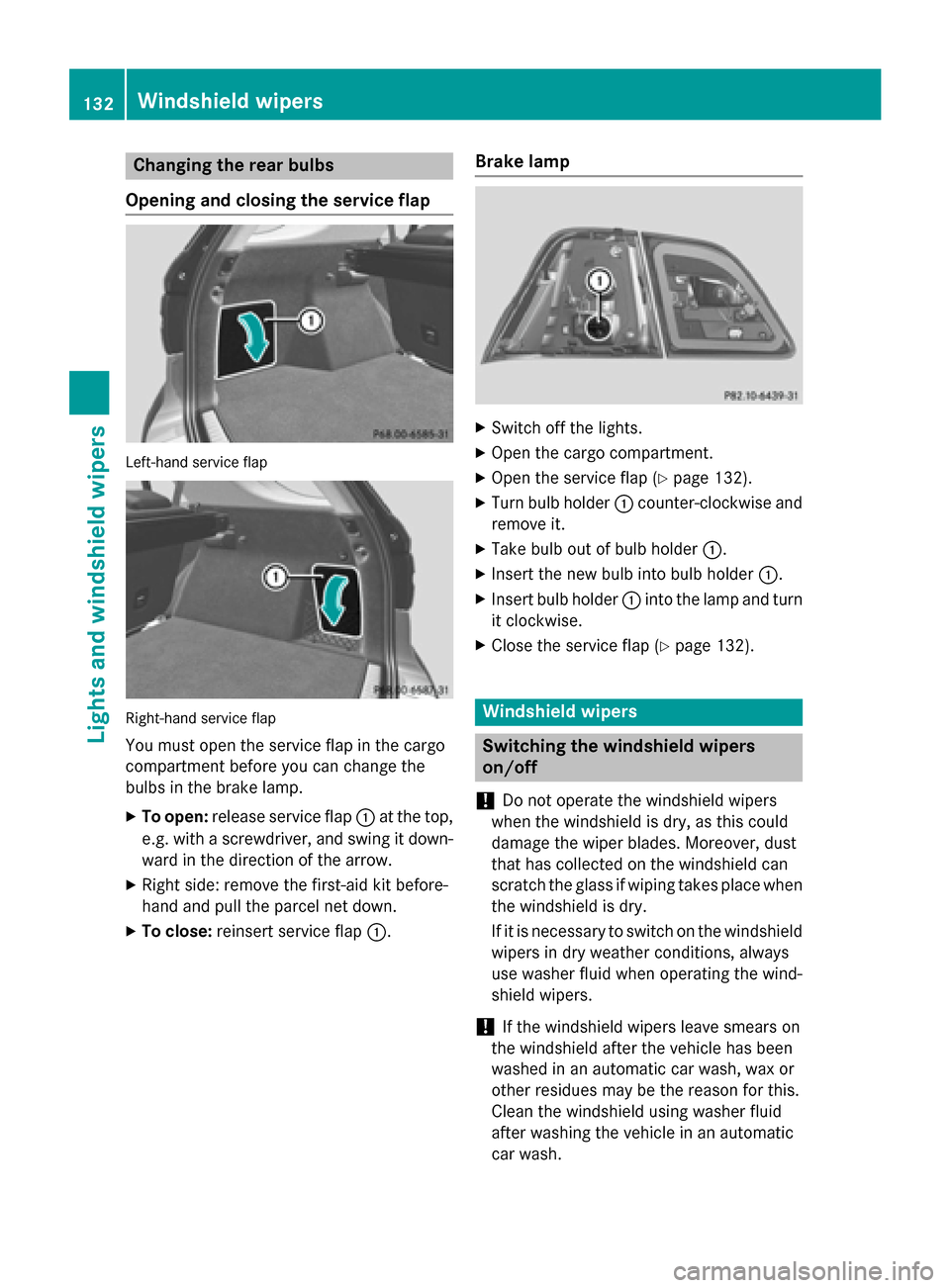

Changing the rear bulbs
Opening and closing the service flap Left-hand service flap
Right-hand service flap
You must open the service flap in the cargo
compartment before you can change the
bulbs in the brake lamp.
X To open: release service flap 0043at the top,
e.g. with a screwdriver, and swing it down- ward in the direction of the arrow.
X Right side: remove the first-aid kit before-
hand and pull the parcel net down.
X To close: reinsert service flap 0043.Brake lamp X
Switch off the lights.
X Open the cargo compartment.
X Open the service flap (Y page 132).
X Turn bulb holder 0043counter-clockwise and
remove it.
X Take bulb out of bulb holder 0043.
X Insert the new bulb into bulb holder 0043.
X Insert bulb holder 0043into the lamp and turn
it clockwise.
X Close the service flap (Y page 132). Windshield wipers
Switching the windshield wipers
on/off
! Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield can
scratch the glass if wiping takes place when the windshield is dry.
If it is necessary to switch on the windshield wipers in dry weather conditions, always
use washer fluid when operating the wind-
shield wipers.
! If the windshield wipers leave smears on
the windshield after the vehicle has been
washed in an automatic car wash, wax or
other residues may be the reason for this.
Clean the windshield using washer fluid
after washing the vehicle in an automatic
car wash. 132
Windshield wipersLights and windshield wipers

!
Intermittent wiping with rain sensor: due
to optical influences and the windshield
becoming dirty in dry weather conditions,
the windshield wipers may be activated
inadvertently. This could then damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather. Combination switch
0047
003F Windshield wiper off
0048 0062 Intermittent wipe, low (rain sensor
set to low sensitivity)
0049 0063 Intermittent wipe, high (rain sensor
set to high sensitivity)
004A 00AA Continuous wipe, slow
004B 00A9 Continuous wipe, fast
0084 00D3 Single wipe
006B 00D4 To wipe with washer fluid
X Switch on the ignition.
X Turn the combination switch to the corre-
sponding position.
In the 0062or0063 position, the appropriate
wiping frequency is set automatically accord- ing to the intensity of the rain. In the 0063
position, the rain sensor is more sensitive
than in the 0062position, causing the wind-
shield wipers to wipe more frequently.
If the wiper blades are worn, the windshield
will no longer be wiped properly. This could
prevent you from observing the traffic condi-
tions. Switching the rear window wiper on/
off Combination switch
0043
00C5 Rear window wiper switch
0048 008E To wipe with washer fluid
0049 ITo switch on intermittent wiping
004A 0To switch off intermittent wiping
004B 00E2 To wipe with washer fluid
X Turn the SmartKey to position 1or 2in the
ignition lock (Y page 157).
X Turn switch 0043on the combination switch
to the corresponding position.
When the rear window wiper is switched on,
the icon appears in the instrument cluster. Replacing the wiper blades
Important safety notes G
WARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could be trapped by the wiper arm. There is a risk of
injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
! Never open the hood/tailgate if a wiper
arm has been folded away from the wind-
shield/rear window.
Never fold a windshield wiper arm without a
wiper blade back onto the windshield/rear window. Windshield wipers
133Lights and windshield wipers Z
