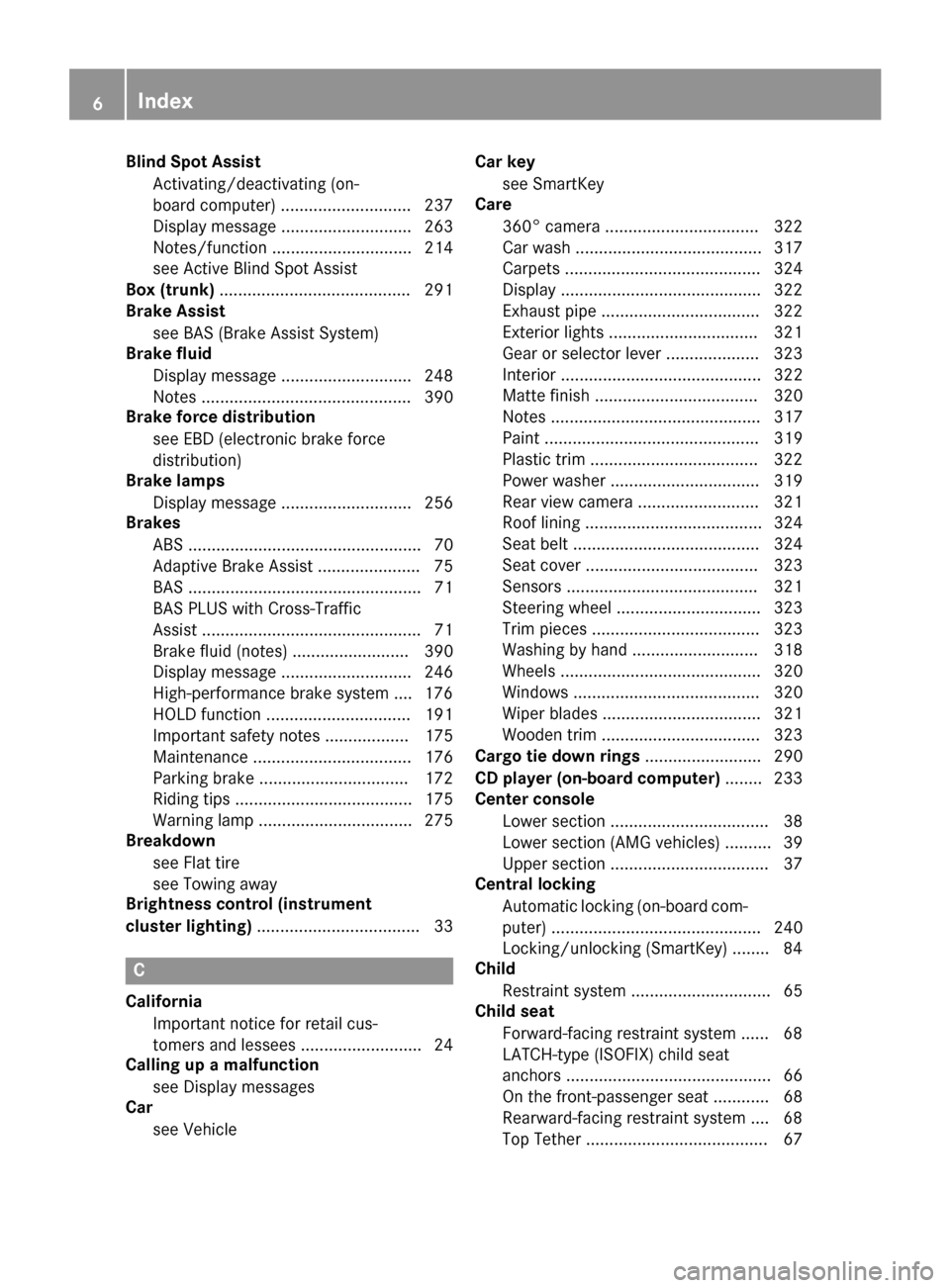

Blind Spot Assist
Activating/deactivating (on-
board computer) ............................ 237
Display message ............................ 263
Notes/functio n.............................. 214
see Active Blind Spot Assist
Box (trunk) ......................................... 291
Brake Assist
see BAS (Brake Assist System)
Brake fluid
Display message ............................ 248
Notes ............................................. 390
Brake force distribution
see EBD (electronic brake force
distribution)
Brake lamps
Display message ............................ 256
Brakes
ABS .................................................. 70
Adaptive Brake Assist ...................... 75
BAS .................................................. 71
BAS PLUS with Cross-Traffic
Assist ............................................... 71
Brake fluid (notes) ......................... 390
Display message ............................ 246
High-performance brake system .... 176
HOLD function ............................... 191
Important safety notes .................. 175
Maintenance .................................. 176
Parking brake ................................ 172
Riding tips ...................................... 175
Warning lamp ................................. 275
Breakdown
see Flat tire
see Towing away
Brightness control (instrument
cluster lighting) ................................... 33 C
California Important notice for retail cus-
tomers and lessees .......................... 24
Calling up a malfunction
see Display messages
Car
see Vehicle Car key
see SmartKey
Care
360° camera ................................. 322
Car wash ........................................ 317
Carpets .......................................... 324
Display ........................................... 322
Exhaust pipe .................................. 322
Exterior lights ................................ 321
Gear or selector lever .................... 323
Interior ........................................... 322
Matte finish ................................... 320
Note s............................................. 317
Paint .............................................. 319
Plastic trim .................................... 322
Power washer ................................ 319
Rear view camera .......................... 321
Roof lining ...................................... 324
Seat belt ........................................ 324
Seat cove r..................................... 323
Sensors ......................................... 321
Steering wheel ............................... 323
Trim pieces .................................... 323
Washing by hand ........................... 318
Wheels ........................................... 320
Windows ........................................ 320
Wiper blades .................................. 321
Wooden trim .................................. 323
Cargo tie down rings ......................... 290
CD player (on-board computer) ........ 233
Center console
Lower section .................................. 38
Lower section (AMG vehicles) .......... 39
Upper section .................................. 37
Central locking
Automatic locking (on-board com-puter) ............................................. 240
Locking/unlocking (SmartKey )........ 84
Child
Restraint system .............................. 65
Child seat
Forward-facing restraint system ...... 68
LATCH-type (ISOFIX) child seat
anchors ............................................ 66
On the front-passenger seat ............ 68
Rearward-facing restraint system .... 68
Top Tether ....................................... 67 6
Index

Operator's Manual
Vehicle equipment ........................... 23
Outside temperature display ........... 227
Overhead control panel ......................40
Override feature
Rear side windows ........................... 69 P
Paint code number ............................386
Paintwork (cleaning instructions) ... 319
Panic alarm .......................................... 44
Parking
Important safety notes .................. 170
Parking brake ................................ 172
Position of exterior mirror, front-
passenger side ............................... 118
Rear view camera .......................... 205
see PARKTRONIC
Parking aid
Active Parking Assist ..................... 200
see Exterior mirrors
see PARKTRONIC
Parking assistance
see PARKTRONIC
Parking brake
Display message ............................ 248
Notes/function .............................. 172
Warning lamp ................................. 275
Parking lamps
Switching on/off ........................... 123
PARKTRONIC
Deactivating/activating ................. 199
Driving system ............................... 197
Function/notes ............................ .197
Important safety notes .................. 197
Problem (malfunction) ................... 200
Range of the sensors ..................... 198
Warning displa y............................. 199
PASSENGER AIR BAG
Display message ............................ 254
Problems (malfunction) .................. 254
PASSENGER AIR BAG OFF
Indicator lamp .................................. 45
Pets in the vehicle ............................... 70
Plastic trim (cleaning instruc-
tions) .................................................. 322
Power washers .................................. 319 Power windows
see Side windows
PRE-SAFE ®
(anticipatory occupant
protection)
Display message ............................ 249
Operation ......................................... 62
PRE-SAFE ®
Brake
Activating/deactivating ................. 236
Display message ............................ 250
Function/note s................................ 79
Important safety notes .................... 79
Warning lamp ................................. 282
PRE-SAFE ®
PLUS (anticipatory
occupant protection PLUS)
Display message ............................ 250
Operation ......................................... 63
Program selector button .................. 162
Protection against theft
ATA (Anti-Theft Alarm system )......... 81
Immobilizer ...................................... 81
Protection of the environment
General notes .................................. 22
Pulling away
General notes ................................ 152
Pulling away (automatic transmis-
sion) .................................................... 152 Q
QR code Mercedes-Benz Guide App ................. 1
Rescue card ..................................... 28
Qualified specialist workshop ........... 26 R
RACE START (AMG vehicles) ............. 192
RACETIMER (on-board computer) .... 242
Radio
Selecting a station ......................... 232
see separate operating instructions
Radio-wave reception/transmis-
sion in the vehicle
Declaration of conformity ................ 26
Reading lamp ..................................... 127
Rear compartment
Setting the air vents ...................... 146
Setting the airflow ......................... 142 Index
15

Storing settings (memory func-
tion) ............................................... 119
Switching seat heating on/of
f....... 111
Switching seat ventilation on/of f.. 112
Section
Trunk ............................................... 92
Securing cargo .................................. 290
Selector lever
Cleaning ......................................... 323
Sensors (cleaning instructions) ....... 321
Service menu (on-board com-
puter) .................................................. 237
Service products
Brake fluid ..................................... 390
Coolant (engine) ............................ 390
Engine oil ....................................... 389
Fuel ................................................ 387
Important safety notes .................. 387
Refrigerant (air-conditioning sys-
tem) ............................................... 392
Washer fluid ................................... 391
Setting the air distribution ............... 141
Setting the airflow ............................ 142
Settings
Factory (on-board computer) ......... 241
On-board computer ....................... 237
SETUP (on-board computer) ............. 242
Side impact air bag ............................. 52
Side marker lamp (display mes-
sage) ................................................... 257
Side windows
Cleaning ......................................... 320
Convenience closing feature ............ 98
Convenience opening feature .......... 98
Important safety information ........... 97
Opening/closing .............................. 97
Problem (malfunction) ................... 100
Resetting ......................................... 99
Sliding sunroof
Important safety notes .................. 100
Opening/closing ............................ 101
Problem (malfunction) ................... 103
Resetting ....................................... 102
SmartKey
Changing the battery ....................... 87
Changing the programming ............. 86
Checking the battery ....................... 87 Convenience closing feature ............ 99
Convenience opening feature .......... 98
Display message ............................ 272
Door central locking/unlocking ....... 84
Important safety notes .................... 84
Loss ................................................. 89
Mechanical key ................................ 86
Overview .......................................... 84
Positions (ignition lock) ................. 149
Problem (malfunction) ..................... 89
Starting the engine ........................ 152
Snow chains ...................................... 347
Sockets
Center console .............................. 298
General notes ................................ 298
Rear compartment ......................... 299
Spare wheel
Stowing .......................................... 380
Special seat belt retractor .................. 64
Specialist workshop ............................ 26
Speed, controlling
see Cruise control
Speedometer
Digital ............................................ 230
In the Instrument cluster ................. 33
Segments ...................................... 227
Selecting the unit of measure-
ment .............................................. 238
see Instrument cluster
SPORT handling mode
Activating/deactivating (AMG
vehicles) .......................................... 77
Warning lamp ................................. 278
Standing lamps
Display message ............................ 256
Switching on/of f........................... 123
Start/stop function
see ECO start/stop function
Starting (engine) ................................ 151
Steering (display message) .............. 272
Steering Assist and Stop&Go Pilot
(DISTRONIC PLUS)
Activating/deactivating ................. 236
Display message ............................ 266
Steering wheel
Adjusting (electrically) ................... 113
Button overview ............................... 35 Index
17

Protection of the environment
General notes
H
Environmental note
Daimler's declared policy is one of compre-
hensive environmental protection.
The objectives are for the natural resources
that form the basis of our existence on this
planet to be used sparingly and in a manner
that takes the requirements of both nature
and humanity into account.
You too can help to protect the environment
by operating your vehicle in an environmen-
tally responsible manner.
Fuel consumption and the rate of engine,
transmission, brake and tire wear are affected by these factors:
R operating conditions of your vehicle
R your personal driving style
You can influence both factors. You should
bear the following in mind:
Operating conditions:
R avoid short trips as these increase fuel con-
sumption.
R always make sure that the tire pressures
are correct.
R do not carry any unnecessary weight.
R remove roof racks once you no longer need
them.
R a regularly serviced vehicle will contribute
to environmental protection. You should
therefore adhere to the service intervals.
R always have service work carried out at a
qualified specialist workshop.
Personal driving style:
R do not depress the accelerator pedal when
starting the engine.
R do not warm up the engine when the vehicle
is stationary.
R drive carefully and maintain a safe distance
from the vehicle in front.
R avoid frequent, sudden acceleration and
braking. R
change gear in good time and use each gear
only up to Ôof its maximum engine speed.
R switch off the engine in stationary traffic.
R keep an eye on the vehicle's fuel consump-
tion. Environmental concerns and recom-
mendations
Wherever the operating instructions require
you to dispose of materials, first try to regen-
erate or re-use them. Observe the relevant
environmental rules and regulations when
disposing of materials. In this way you will
help to protect the environment. Genuine Mercedes-Benz parts
H
Environmental note
Daimler AG also supplies reconditioned major
assemblies and parts which are of the same
quality as new parts. They are covered by the same Limited Warranty entitlements as new
parts.
! Air bags and Emergency Tensioning Devi-
ces, as well as control units and sensors for these restraint systems, may be installed inthe following areas of your vehicle:
R doors
R door pillars
R door sills
R seats
R cockpit
R instrument cluster
R center console
Do not install accessories such as audio
systems in these areas. Do not carry out
repairs or welding. You could impair the
operating efficiency of the restraint sys-
tems.
Have aftermarket accessories installed at a qualified specialist workshop. 22
Introduction

R
if the vehicle skids, the sliding sunroof and
the side windows are closed so that only a small gap remains.
R vehicles with a multicontour seat or active
multicontour seat: the air pressure in the
side bolsters of the backrest is increased.
If the hazardous situation passes without
resulting in an accident, PRE-SAFE ®
slackens
the belt pre-tensioning. On vehicles with mul-
ticontour seats/active multicontour seats,
the air pressure in the side bolsters is reduced
again. All settings made by PRE-SAFE ®
can
then be reversed.
If the seat belt pre-tensioning is not reduced:
X Move the seat backrest or seat back
slightly when the vehicle is stationary.
The seat belt pre-tensioning is reduced and
the locking mechanism is released.
The seat-belt adjustment is an integral part of
the PRE-SAFE ®
convenience function. You
will find information on the convenience func-
tion under "Belt adjustment" (Y page 49).PRE-SAFE
®
PLUS (anticipatory occu-
pant protection system PLUS)
Introduction PRE-SAFE
®
PLUS is only available in vehicles
with the Driving Assistance package.
Using the radar sensor system, PRE-SAFE ®
PLUS is able to detect that a head-on or rear-
end collision is imminent. In certain hazard-
ous situations, PRE-SAFE ®
PLUS takes pre-
emptive measures to protect the vehicle
occupants.
Important safety notes The intervention of PRE-SAFE
®
PLUS cannot
prevent an imminent collision.
The driver is not warned about the interven-
tion of PRE-SAFE ®
PLUS.
PRE-SAFE ®
PLUS does not intervene if the
vehicle is backing up. PRE-SAFE
®
PLUS does not perform braking
actions while the vehicle is in motion or when Parking Guidance is active.
Function PRE-SAFE
®
PLUS intervenes in certain situa-
tions if the radar sensor system detects an
imminent head-on or rear-end collision.
PRE-SAFE ®
PLUS takes the following meas-
ures depending on the hazardous situation
detected:
R if the radar sensor system detects that a
head-on collision is imminent, the seat
belts are pre-tensioned.
R if the radar sensor system detects that a
rear-end collision is imminent:
- the brake pressure is increased if the
driver applies the brakes when the vehi-
cle is stationary.
- the seat belts are pre-tensioned.
The PRE-SAFE ®
PLUS braking application is
canceled:
R if the accelerator pedal is depressed when
a gear is engaged
R if the risk of a collision passes or is no lon-
ger detected
R if DISTRONIC PLUS indicates an intention
to pull away
If the hazardous situation passes without
resulting in an accident, the original settings
are restored. Automatic measures after an acci-
dent
Immediately after an accident, the following
measures are implemented, depending on
the type and severity of the impact:
R the hazard warning lamps are activated
R the emergency lighting is activated
R the vehicle doors are unlocked
R the front side windows are lowered Occupant safety
63Safety Z

ally, further driving safety systems are deac-
tivated. There is an increased danger of skid- ding and accidents.
Drive on carefully. Have ABS checked imme-
diately at a qualified specialist workshop.
When ABS is malfunctioning, other systems,
including driving safety systems, will also
become inoperative. Observe the information on the ABS warning lamp (Y page 276) and
display messages which may be shown in the
instrument cluster (Y page 246).
ABS works from a speed of about 5 mph
(8 km/ h), regardless of road-surface condi-
tions. ABS works on slippery surfaces, even if
you only brake gently.
Braking X
If ABS intervenes: continue to depress the
brake pedal vigorously until the braking sit- uation is over.
X To make a full brake application:
depress the brake pedal with full force.
If ABS intervenes when braking, you will feel a pulsing in the brake pedal.
The pulsating brake pedal can be an indica-
tion of hazardous road conditions, and func-
tions as a reminder to take extra care while
driving. BAS (Brake Assist System)
General information BAS operates in emergency braking situa-
tions. If you depress the brake pedal quickly,
BAS automatically boosts the braking force,
thus shortening the stopping distance.
Important safety notes i
Observe the "Important safety notes" sec-
tion (Y page 70). G
WARNING
If BAS is malfunctioning, the braking distance
in an emergency braking situation is
increased. There is a risk of an accident.
In an emergency braking situation, depress
the brake pedal with full force. ABS prevents
the wheels from locking.
Braking X
Keep the brake pedal firmly depressed until
the emergency braking situation is over.
ABS prevents the wheels from locking.
The brakes will function as usual once you
release the brake pedal. BAS is deactivated. BAS PLUS (Brake Assist PLUS) with
Cross-Traffic Assist
General information i
Observe the "Important safety notes" sec-
tion (Y page 70).
BAS PLUS is only available on vehicles with
the Driving Assistance package.
For BAS PLUS to assist you when driving, the radar sensor system and the camera system
must be operational.
With the help of a sensor system and a cam-
era system, BAS PLUS can detect obstacles:
R that are in the path of your vehicle for an
extended period of time
R that cross the path of your vehicle
In addition, pedestrians in the path of your
vehicle can be detected.
BAS PLUS detects pedestrians by using typi-
cal characteristics such as the body contours and posture of a person standing upright.
If the radar sensor system or the camera sys-
tem is malfunctioning, BAS PLUS functions
are restricted or no longer available. The
brake system is still available with complete
brake boosting effect and BAS. Driving safety systems
71Safety Z

i
Observe the restrictions described in the
"Important safety notes" sec-
tion“ (Y page 72).
BAS PLUS can help you to minimize the risk of
a collision with a vehicle or a pedestrian and
reduce the effects of such a collision. If BAS
PLUS detects a danger of collision, you are
assisted when braking.
Important safety notes G
WARNING
BAS PLUS cannot always clearly identify
objects and complex traffic situations.
In such cases, BAS PLUS may:
R intervene unnecessarily
R not intervene
There is a risk of an accident.
Always pay careful attention to the traffic sit- uation and be ready to brake. Terminate the
intervention in a non-critical driving situation. G
WARNING
BAS PLUS does not react:
R to small people, e.g. children
R to animals
R to oncoming vehicles
R when cornering
As a result, BAS PLUS may not intervene in all
critical situations. There is a risk of an acci-
dent.
Always pay careful attention to the traffic sit- uation and be ready to brake.
In the event of snowfall or heavy rain, the rec-
ognition can be impaired.
Recognition by the radar sensor system is
also impaired in the event of:
R there is dirt on the sensors or anything else
covering the sensors
R there is interference by other radar sources
R there are strong radar reflections, for
example in parking garages R
a narrow vehicle traveling in front, e.g. a
motorbike
R a vehicle traveling in front on a different line
R vehicles quickly moving into the radar sen-
sor system detection range
Recognition by the camera system is also
impaired in the event of:
R dirt on the camera or if the camera is cov-
ered
R there is glare on the camera system, e.g.
from the sun being low in the sky
R darkness
R if:
- pedestrians move quickly, e.g. into the
path of the vehicle
- the camera system no longer recognizes
a pedestrian as a person due to special
clothing or other objects
- a pedestrian is concealed by other
objects
- the typical outline of a person is not dis-
tinguishable from the background
Following damage to the front end of the vehi-
cle, have the configuration and operation of
the radar sensors checked at a qualified spe-
cialist workshop. This also applies to colli-
sions at low speeds where there is no visible
damage to the front of the vehicle.
Following damage to the windshield, have the configuration and operation of the camera
system checked at a qualified specialist work- shop.
Function To avoid a collision, BAS PLUS calculates the
brake force necessary if:
R you approach an obstacle, and
R BAS PLUS has detected a risk of collision
When driving at a speed under 20 mph
(30 km/h) : if you depress the brake pedal,
BAS PLUS is activated. The increase in brake pressure will be carried out at the last possi-
ble moment. 72
Driving safety systemsSafety

When driving at a speed above 20 mph
(30 km/h): if you depress the brake pedal
sharply, BAS PLUS automatically raises the
brake pressure to a value adapted to the traf-
fic situation.
BAS PLUS provides braking assistance in haz- ardous situations with vehicles in front within
a speed range between 4 mph (7 km/h) and
155 mph (250 km/h).
Up to a speed of approximately 44 mph
(70 km/h), BAS PLUS may react to:
R stationary objects in the path of your vehi-
cle, e.g. stopped or parked vehicles
R pedestrians in the path of your vehicle
R objects crossing your path and that are
recognized in the detection range of the
sensors
i If BAS PLUS demands particularly high
braking force, preventative passenger pro-
tection measures (PRE-SAFE ®
) are activa-
ted simultaneously.
X Keep the brake pedal depressed until the
emergency braking situation is over.
ABS prevents the wheels from locking.
BAS PLUS is deactivated and the brakes func- tion as usual, if:
R you release the brake pedal.
R there is no longer a risk of collision.
R no obstacle is detected in front of your
vehicle.
R you depress the accelerator pedal.
R you activate kickdown. COLLISION PREVENTION ASSIST
PLUS
General information COLLISION PREVENTION ASSIST PLUS con-
sists of a distance warning function with an
autonomous braking function and adaptive
Brake Assist.
COLLISION PREVENTION ASSIST PLUS can
help you to minimize the risk of a front-end collision with a vehicle ahead or reduce the
effects of such a collision.
If COLLISION PREVENTION ASSIST PLUS
detects that there is a risk of a collision, you
will be warned visually and acoustically. If you
do not react to the visual and audible collision warning, autonomous braking can be initiatedin critical situations. If you apply the brake
yourself in a critical situation, the COLLISION
PREVENTION ASSIST PLUS adaptive Brake
Assist assists you.
Activating or deactivating COLLISION PREVENTION ASSIST PLUS is
activated after every ignition cycle. You can
activate or deactivate COLLISION PREVEN-
TION ASSIST PLUS in the on-board computer
(Y page 236). When deactivated, the dis-
tance warning function and the autonomous
braking function are also deactivated.
If COLLISION PREVENTION ASSIST PLUS is
deactivated, the æsymbol appears in the
assistance graphics display.
Important safety notes In particular, the detection of obstacles can
be impaired if:
R there is dirt on the sensors or anything else
covering the sensors
R there is snow or heavy rain
R there is interference by other radar sources
R there are strong radar reflections, for
example in parking garages
R a narrow vehicle traveling in front, e.g. a
motorbike
R a vehicle traveling in front on a different line
R new vehicles or after a service on the COL-
LISION PREVENTION ASSIST PLUS system
Observe the notes in the section on break- ing-in (Y page 148).
Following damage to the front end of the vehi- cle, have the configuration and operation of
the radar sensor checked at a qualified spe-
cialist workshop. This also applies to colli- Driving safety systems
73Safety Z
