Read me first
Turning the system on and off
The Navigation system turns on when your vehicle starts and turns off automatically when
you turn off your vehicle's engine.
Until a connection has been established between the Audio control unit and the Navigation
system, the screen shows audio-related information and the Nav button on the main display
is inactive. If the Navigation system is restarted, press the Nav button. A Mazda/TomTom
screen is shown at first, followed by the main screen (which may take up to 30 seconds to
appear).
Under extreme temperature conditions, the navigation system may not star t. The system
should start once the temperature in the vehicle reaches a normal range. If the system fails to
start automatically in this situation, the vehicle's engine may need to be turned off and
restar ted.
Setting up the system
Important: Make sure to select the desired language. The language you choose will be used
for all text on the screen.
When the system is first started, you have to answer a few questions for set up. Answer the
questions by tapping the screen.
GPS reception
When you first start the Navigation system, it may need a few minutes to determine your GPS
position and show your current position on the map. After that, your position will be found
much faster, usually within a few seconds.
In areas where GPS reception is not possible, such as tunnels, your location may not be
accurate.
Important: The GPS antenna is located in the dashboard, so do not put objects on top of the
dash.
Note: In some situations, your navigation system may restart when turning the ignition
from ACC-ON to the engine start position. If this happens, it may take up to 30 seconds
for the main screen to appear on the navigation system.
USA_NAVI_EN.book 4 ページ ２０１４年５月８日　木曜日　午後１２時５１分

5

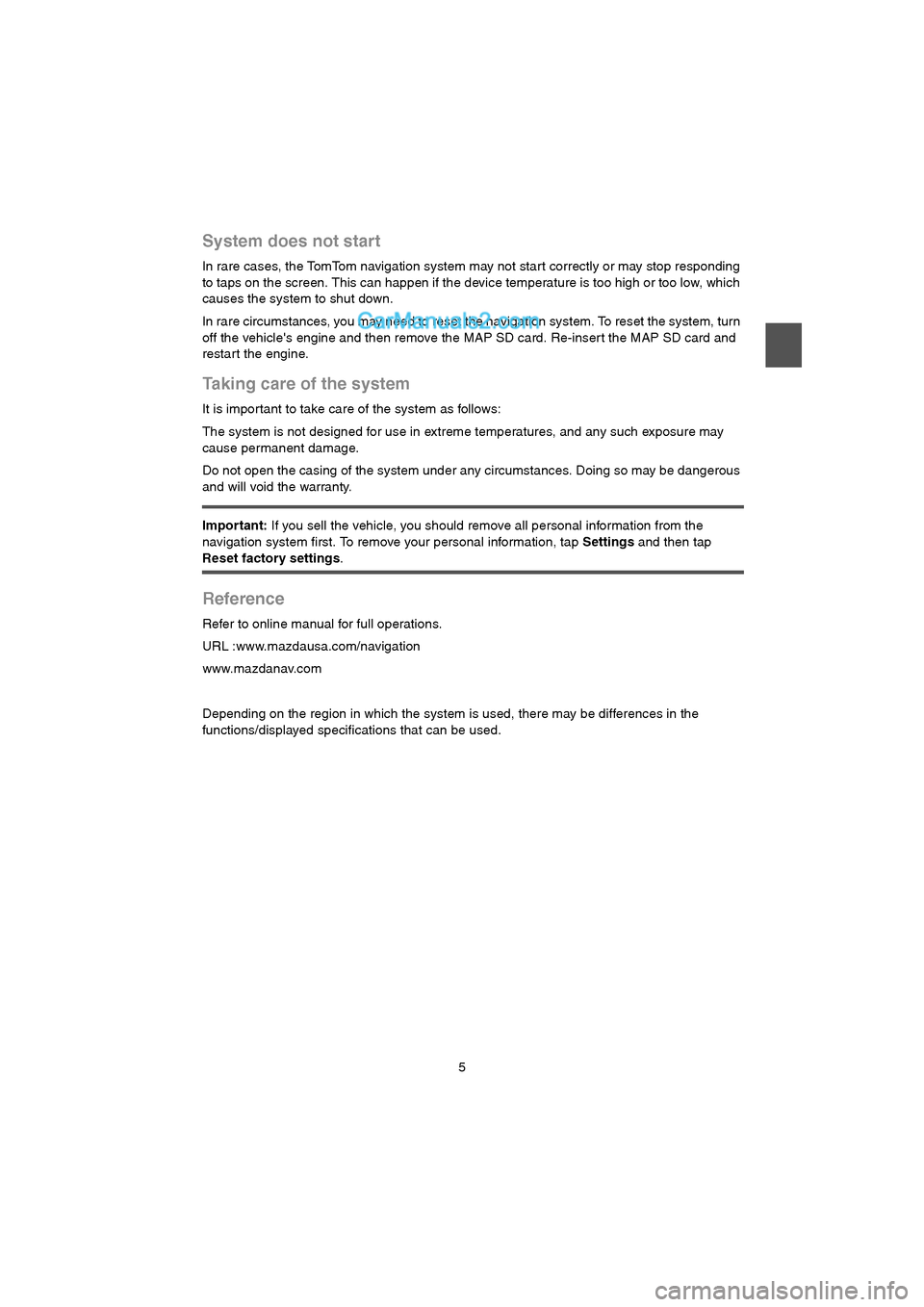

System does not start
In rare cases, the TomTom navigation system may not star t correctly or may stop responding
to taps on the screen. This can happen if the device temperature is too high or too low, which
causes the system to shut down.
In rare circumstances, you may need to reset the navigation system. To reset the system, turn
off the vehicle's engine and then remove the MAP SD card. Re-inser t the MAP SD card and
restart the engine.
Taking care of the system
It is impor tant to take care of the system as follows:
The system is not designed for use in extreme temperatures, and any such exposure may
cause permanent damage.
Do not open the casing of the system under any circumstances. Doing so may be dangerous
and will void the warranty.
Important: If you sell the vehicle, you should remove all personal information from the
navigation system first. To remove your personal information, tap Settings and then tap
Reset factory settings.
Reference
Refer to online manual for full operations.
URL :www.mazdausa.com/navigation
www.mazdanav.com
Depending on the region in which the system is used, there may be differences in the
functions/displayed specifications that can be used.
USA_NAVI_EN.book 5 ページ ２０１４年５月８日　木曜日　午後１２時５１分

41
Updating the navigation system with the new application
After the new application version has been put onto the SD-card, you need to update the
navigation system. Do the following:
1. Insert the SD-card into the navigation system and close the door.
2. Turn the ignition key to the accessory setting to turn the radio on, but not start the engine.
3. After approximately 10 seconds, press the NAVI button to see the navigation screen.
The following screen should be shown:

After about 1 minute the screen changes to the following screen. After the given time the
update starts automatically.
Tip: Do not use force to inser t the SD-card. Make sure that the SD-card label is visible
when inserting the card.
10.815
10.815
