qSPORT Mode Indicator Lightí
The light is illuminated while in SPORT
mode.
NOTE
The indicator light flashes a few times to
indicate that the mode cannot be switched to
SPORT mode even if the drive select switch is
pressed under the following conditions:
lThe vehicle is driven on a slippery road
surface such as an icy or snow-bound road.
lThe Mazda Radar Cruise Control (MRCC)
system/cruise control is operating.
lThe vehicle is making a curve.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:lThe high-beam headlights are on.lThe turn signal lever is in the flash-to-
pass position.
qTurn Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 4-67).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 4-74).
If an indicator light remains illuminated
(does not flash) or if it flashes abnormally,
one of the turn signal bulbs may be
burned out. Consult an Authorized Mazda
Dealer.
qSecurity Indicator Light
This indicator light starts flashing every
two seconds when the ignition is switched
from ON to OFF and the immobilizer
system is armed.
The light stops flashing when the ignition
is switched ON with the correct key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about three seconds and then turns off.
4-44
When Driving
íSome models.
Instrument Cluster and Display
Mazda6_8DQ8-EA-13L_Edition3 Page168
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (185,1)
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourself
Replacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion
bulbs require high voltage, you could receive an electric shock if the bulbs are
handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is
necessary.
NOTE
If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is
necessary. Consult an Authorized Mazda Dealer.
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
The headlight high-beam indicator light in
the instrument cluster illuminates while
the high beams are turned on.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The headlight high-
beam indicator light in the instrument
cluster illuminates simultaneously. The
lever will return to the normal position
when released.
OFF
Flashing
When Driving
Switches and Controls
4-61íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page185
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (191,1)
Fog Lightsí
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Fog light switch
To turn the fog lights off, rotate the fog
light switch to the
position or turn
the headlight switch to the
or
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beams.
l(With auto-light control)
If the fog light switch is in the
position
and the headlight switch is in the
position, the fog lights will turn on when
the headlights, the exterior lights and
dashboard illumination turn on.
Turn and Lane-Change
Signals
NOTElIf an indicator light stays on without
flashing or if it flashes abnormally, one of
the turn signal bulbs may be burned out.
lA personalized function is available to
change the turn indicator sound volume.
Refer to Personalization Features on page
9-9.
qTurn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn Right lane change
Left lane changeOFF
Green indicators on the dashboard show
which signal is working.
When Driving
Switches and Controls
4-67íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page191
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (434,1)
Light Bulbs
Overhead lights/
Front map lights
Vanity mirror
lights
Headlights (Low/High beam)
Daytime running lights/
Parking lightsHeadlights (Low beam)
Headlights (High beam)/
Daytime running lights Fog lights
Fog lights Front turn signal lights/
Front side-marker lightsFront turn signal lights/
Front side-marker lights
Parking lights
Brake lights/Taillights Rear side-marker lights
Rear turn signal lights Taillights (Trunk lid side)
Reverse lights High-mount brake light
License plate lights Trunk light Rear map lights Side turn signal lights Courtesy lights
Side turn signal lights Courtesy lights With Xenon Fusion Headlights With Halogen HeadlightsOverhead lights/
Front map lights
Vanity mirror
lights
Some models.
6-40
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page434
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (435,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
qReplacing Exterior Light Bulbs
Headlights (With xenon fusion
headlights)
Low/High beam bulbs
You cannot replace the low/high beam
bulbs by yourself. The bulbs must be
replaced at an Authorized Mazda Dealer.
Headlights (With halogen headlights)
Low-beam bulbs
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Pull the center of each plastic retainer
and remove the retainers.
Removal
Installation
Maintenance and Care
Owner Maintenance
6-41
Mazda6_8DQ8-EA-13L_Edition3 Page435
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (436,1)
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of the removal procedure.
High-beam bulbs/Daytime running
lights
(Left side)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Remove the clip.
6-42
Maintenance and Care
Owner Maintenance
Mazda6_8DQ8-EA-13L_Edition3 Page436
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (437,1)
4. Move the air cleaner cover and create a
space large enough to work in.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of the removal procedure.
(Right side)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the clip.
Clip
Maintenance and Care
Owner Maintenance
6-43
Mazda6_8DQ8-EA-13L_Edition3 Page437
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (438,1)

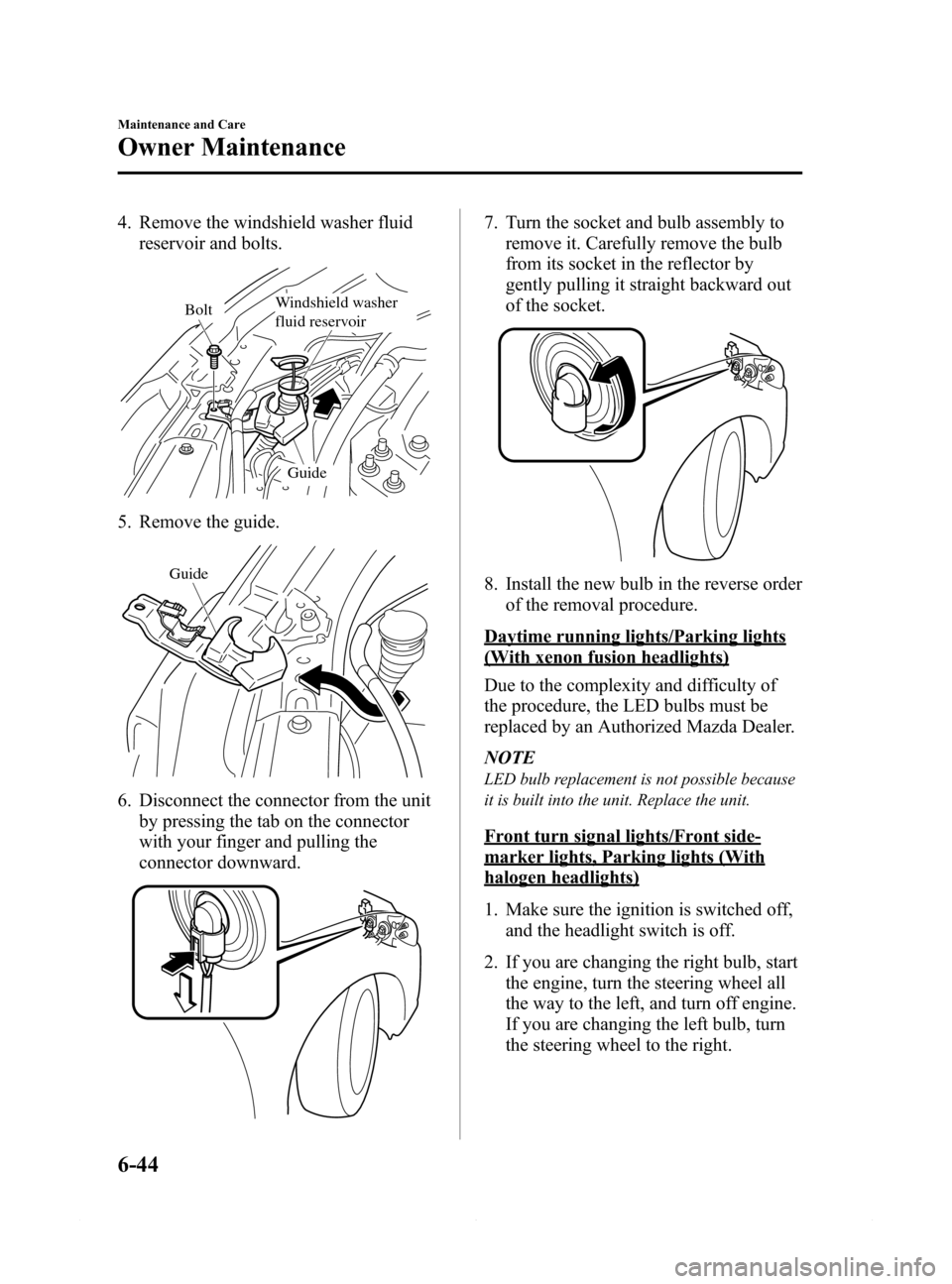

4. Remove the windshield washer fluid
reservoir and bolts.
Windshield washer
fluid reservoirBolt
Guide
5. Remove the guide.
Guide
6. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
7. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
8. Install the new bulb in the reverse order
of the removal procedure.
Daytime running lights/Parking lights
(With xenon fusion headlights)
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
