2015 MAZDA MODEL 6 ESP

Black plate (526,1)
WARNING
Keep your vehicle's tires properly inflated and not overloaded:
Driving with improperly inflated or overloaded tires is dangerous. Excessive speed,
underinflation, or excessive loading, either separately or in combination, can cause
heat buildup and possible tire failure. The temperature grade for this tire is
established for a tire that is properly inflated and not overloaded.
These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.

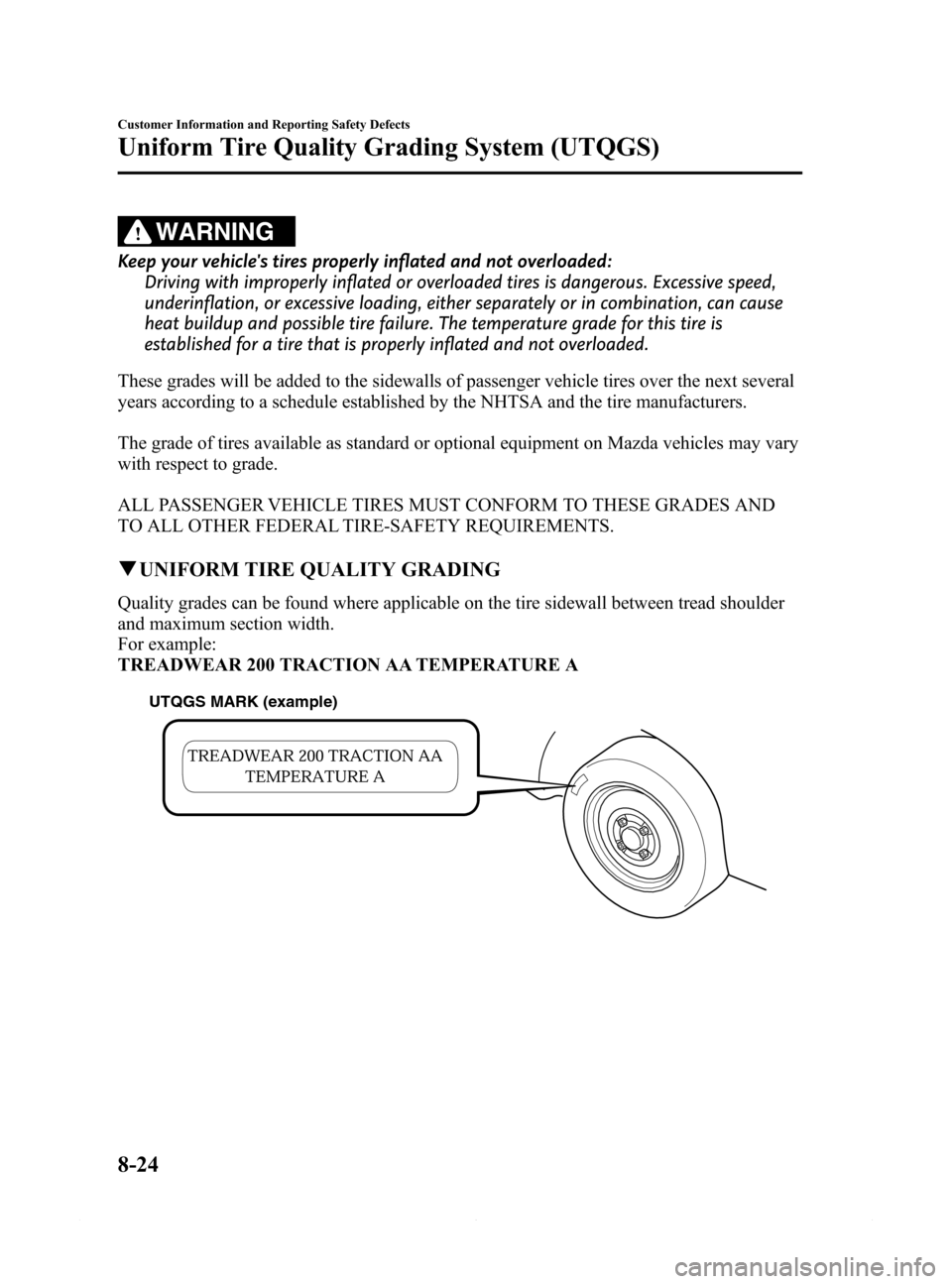

qUNIFORM TIRE QUALITY GRADING
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
TREADWEAR 200 TRACTION AA TEMPERATURE A
UTQGS MARK (example)
8-24
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
Mazda6_8DQ8-EA-13L_Edition3 Page526
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (539,1)
Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will
provide maximum return of vehicle design performance. Before loading your vehicle,
familiarize yourself with the following terms for determining your vehicle's weight ratings,
from the vehicle's Safety Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-37
Mazda6_8DQ8-EA-13L_Edition3 Page539
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (549,1)
WARNING
Change or modifications not expressively approved by the party responsible for
compliance could void the use's authority to operate the equipment.
qHomeLink Wireless Control System
CAUTION
HomeLink has been tested and complies with FCC and Industry Canada rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.
NOTE
FCC ID: NZLMOBHL4
CANADA:4112A-MOBHL4
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1- This device may not cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired
operation.
qBluetooth® Hands-Free
FCC
FCC: CB2MAZGEN6HFT
NOTE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING
Changes or modifications made to this equipment not expressly approved by the
manufacturer may void the FCC authorization to operate this equipment.
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-47
Mazda6_8DQ8-EA-13L_Edition3 Page549
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (558,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.0
qElectrical System
Item Classification
BatteryQ-85*1
12V-60Ah/20HR*2or 12V-65Ah/20HR*2
Spark-plug numberMazda Genuine spark
plug*3PE5R-18-110 or PE5S-18-110
*1 Q-85 is designed for i-ELOOP system. Only Q-85 should be used to ensure correct operation of i-ELOOP
system. Consult an Authorized Mazda Dealer for details.
*2 Not for i-ELOOP system.
*3 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda
Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 6-21.
Manual transaxle oilAPI Service GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF FZ
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
9-4
Specifications
Mazda6_8DQ8-EA-13L_Edition3 Page558
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
